User Manual for JBL EON ONE PRO All-In-One Rechargeable Linear Array PA System Click to enlarge the picture
Contents of the user manual for the JBL EON ONE PRO All-In-One Rechargeable
- Product category: Portable PA Systems JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Portable PA Systems
 |
User manual for the JBL EON ONE PRO All-In-One Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Be Heard with JBL Compact and Portable Linear-Array PA Systems Read More - Elle Varner A Wanderer - JBL EON ONE PRO

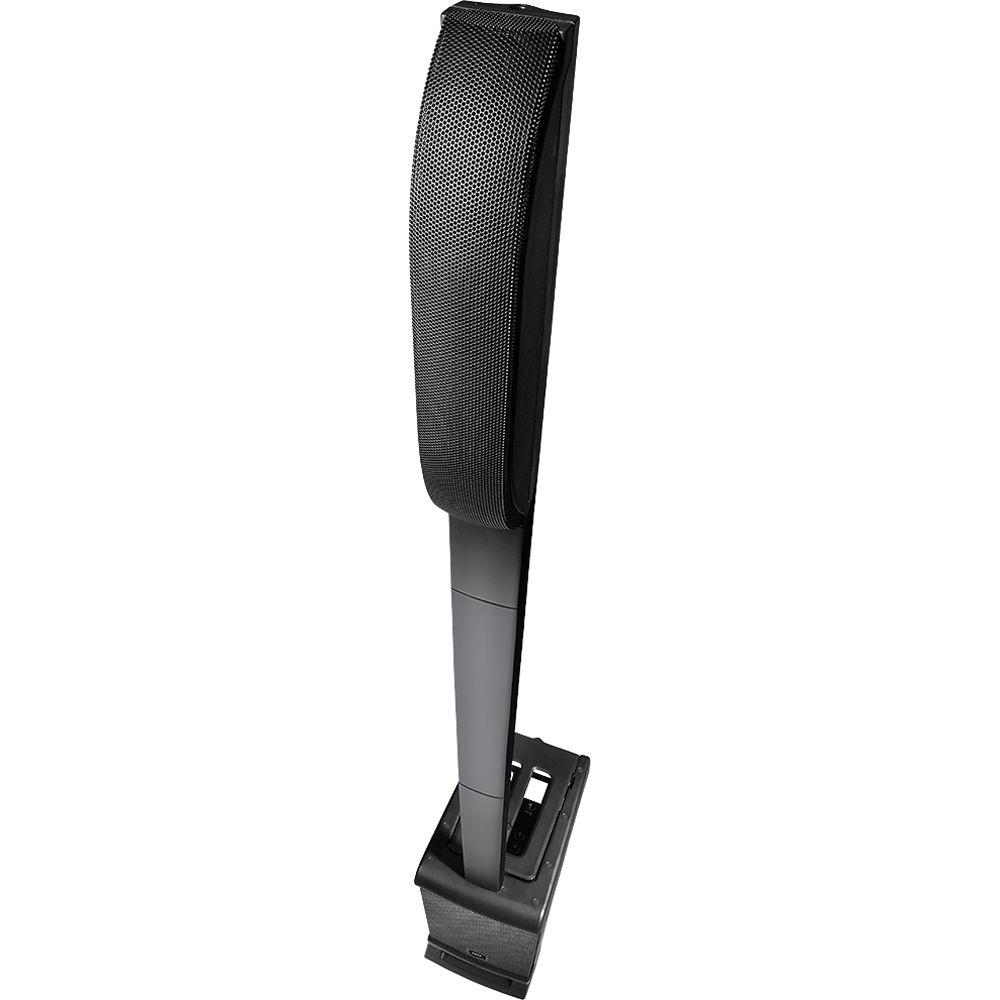

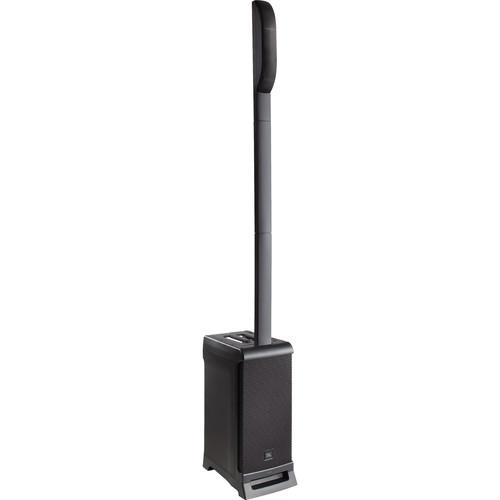

Building upon the success of the EON ONE, the JBL EON ONE PRO is an all-in-one battery-powered, compact PA system that delivers professional quality audio for live performances, meetings, conferences and more. The base unit houses the battery, power amplifier, 8" subwoofer, and the 7-channel mixer. The built-in lithium-ion battery can power the system for up to 6 hours. The high-frequency element features patent pending Directivity Control Geometry, which optimizes the spacing and angles of the six high-frequency drivers to create a remarkable front-to-back coverage.

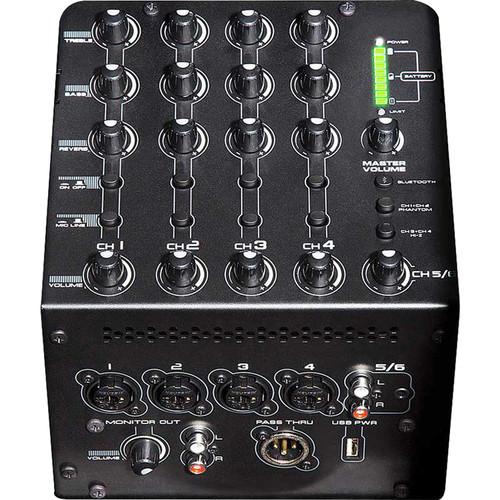

Channels 1 to 4 on the mixer offer XLR-1/4" connectors with dedicated treble, bass, and reverb controls, as well as phantom power for condenser microphones or active DIs. Channels 3 & 4 can be switched to Hi-Z instrument inputs to accommodate guitars and bass, while channels 5 & 6 offer stereo RCA inputs, and a stereo 1/8" input for connecting portable music players. Additionally, channels 5 & 6 offer Bluetooth audio streaming. The mixer also features a stereo RCA output monitor for connecting to additional speakers, recording devices, or other outboard gear and an XLR pass-thru for connecting additional speakers.

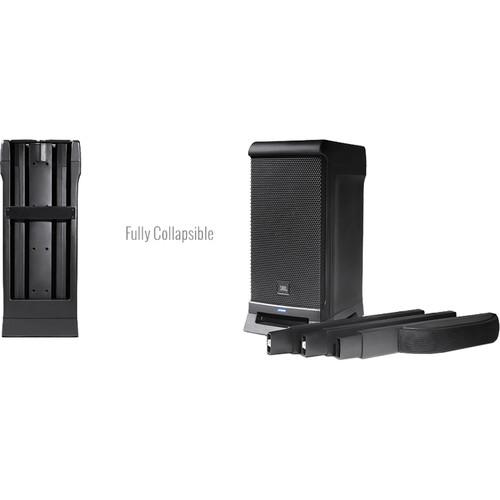

The EON ONE includes two spacers allowing for three position configurations and further expanding the systems flexibility. The HF element and two spacers conveniently pack away into the base unit, which can be carried by one hand. An optional EON ONE bag is available, which includes wheels to aid in transporting the unit and provides protection from bumps and scratches. Additionally, an accessory mount located at the top of the line-array speakers allows you to attach a camera, such as a GoPro or a light for creating a vibe. The EON ONE PRO ships with the two spacers and a power cord. -
- 6 hours of battery playtime with high-capacity Li-ion rechargeable battery
- Max SPL: 118 dB (peak)
- Bass: 8” LF bass unit
- Driver: 6 x 2” HF drivers
- 80° x 60° clean coverage using patent-pending "Directivity Control Geometry"
- Seven-channel mixer with Bluetooth streaming audio
- 4 x XLR-1/4"
- 1 x 3.5 mm
- 1 x stereo RCA
- +48V phantom power
- Hi-Z inputs
- Pass-thru XLR connector
- Carry the compact and ultra-light EON ONE PRO with just one hand; it’s only 37.5 lbs
- Wireless Bluetooth streaming of break music or backing tracks
- Keep your mobile device handy and powered up with a built-in stand and USB charging port

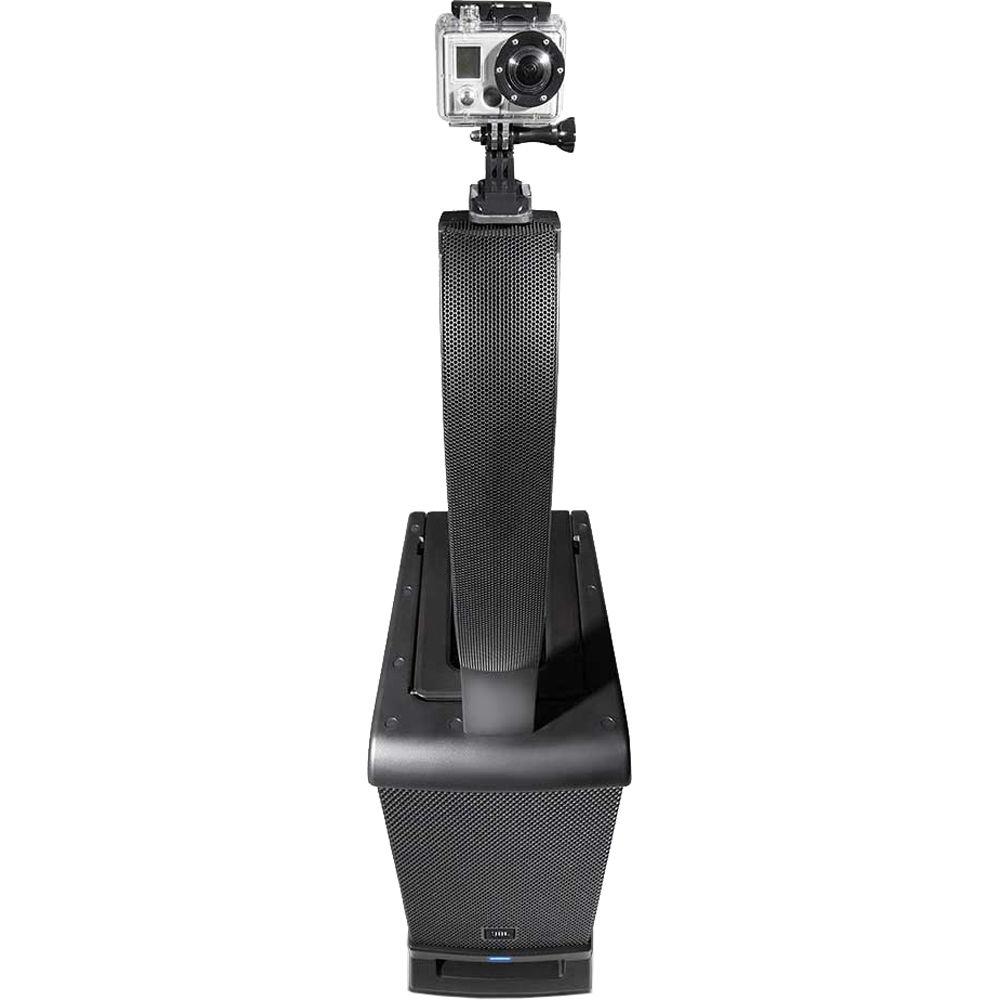

- Capture the moment or add lighting effects with the built-in accessory mount for a camera or lighting element
UPC: 691991006715 In the Box JBL EON ONE PRO All-In-One Rechargeable Linear Array PA System EON ONE Pro Base Column Speaker Array 2 x Listening Height Spacers Power Cable Limited 5-Year Warranty on Speaker Limited 3-Year Warranty on Amplifier Limited 2-Year Warranty on Cabinet 7 All-In-One Portable Speaker Systems for Special Events and Parties Phillip Nichols-Wright 11/29/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON ONE PRO All-In-One Rechargeable Linear Array PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL EON ONE PRO Specs | | | System Type | Battery-operated portable line array with powered mixer | | Maximum SPL | 118 dB peak system output (pink noise) | | | | Type | Extended-life lithium-ion | | Charge Time | 5 hours | | Run Time | Up to 6 hours | | | | Design | Class-D | | System Power | System Power Rating: 250 W LF/HF | | | | Input Connectors | 6 inputs (4 x mono mic/line, 1 x stereo) | | Channels | 1-4: XLR-1/4" / 6.35 mm combo connectors (XLR = mic-level input, 1/4" = line-level input)
(Enabling the CH3+CH4 HI-Z button switches 1/4" inputs on channels 3-4 to accept high-impedance signals from instruments)
5-6: 3.5 mm stereo jack or stereo RCA connectors | | Input Impedance | Ch 1-4 combo XLR: 40 KOhms balanced
Ch 1-2 Combo TRS: 40 KOhms balanced
Ch 3-4 Combo TRS (CH3+CH4 HI-Z button disabled): 40 kOhms balanced
Ch 3-4 Combo TRS (CH3+CH4 HI-Z button enabled): 40 kOhms unbalanced
Ch 5-6 RCA: 5 kOhms unbalanced
Ch 5-6 3.5 mm: 10 kOhms unbalanced | | Phantom Power | 48 V (CH 1-4 XLR inputs) | | Bluetooth | 2-channel Bluetooth audio input streaming (stereo signal is fed to the Monitor Out jacks while mono-summed signal is fed to the line array speakers) | | Output Connectors | 3 outputs (1 x stereo RCA monitor output
1 x mono pass thru output) | | Output Impedance | RCA Monitor Outputs: 100 Ohms unbalanced
XLR Pass Thru Output: 37 Ohms balanced | | Signal Indicator | Limit: Yellow LED indicates limiter active condition | | EQ Section | Individual channel Bass and Treble controls, center detent, ±12 dB cut and boost | | Limiter | System Limiter: On-board DSP limiting and tuning | | | | LF Driver | LF: 1 x 8.0" / 203.2 mm woofer | | HF Driver | HF: 6 x 2.0" / 50.8 mm drivers | | Coverage Pattern | 80º x 60º (H x V) | | Enclosure | Polypropylene | | Grille | Powder-coated perforated steel | | | | Dimensions (H x W x D) | 15.8 x 10.5 x 23.4" / 401.3 x 266.7 x 594.4 mm | | Weight | 37.5 lb / 17.0 kg | | | | Package Weight | 49.0 lb | | Box Dimensions (LxWxH) | 26.5 x 21.0 x 16.5" |
