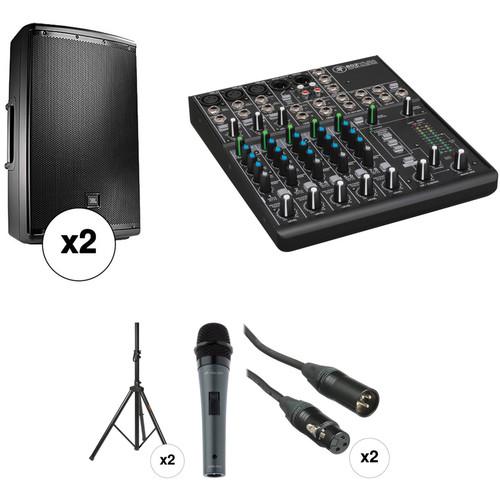

User Manual for JBL EON Powered 15" Two-Way System with PA Speaker Large Kit Click to enlarge the picture
Contents of the user manual for the JBL EON Powered 15" Two-Way System
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL EON Powered 15" Two-Way System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL EON Powered 15" Two-Way System with PA Speaker Large Kit from B&H features two 1000W JBL EON 2-way speakers, two tripod speaker stands with a telescoping center column, two 3-pin XLRM to a 3-pin XLRF mic cables; in addition, a Mackie 802VLZ4 8-channel mixer and a Polsen HDM-16-S cardioid handheld dynamic microphone.The B&H kit can be used in audio applications for public speaking, schools, small clubs, live stage, and more. The stands are more than capable of supporting the speakers, while the mic cables provides convenient connectivity to your audio source. With the mic and mixer everything is included to provide you with a professional sounding PA system. - 2 x JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control The EON615 from JBL is a 15" two-way powered speaker system with 1000W of Class-D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. It works as a single speaker, in a stereo set up with another top cabinet and a subwoofer, as a floor-monitor, or in permanent install applications.
The speaker features onboard factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with an EON subwoofer. It also has a speech setting for increased vocal intelligibility in PA and announcement applications.
The rear panel provides XLR-1/4" combo inputs for each of the speaker's two channels, along with individual gain controls and signal presence LEDs. Both inputs are mic or line selectable and a master volume knob adjusts overall system level.
The EON615 also features an iOS and Android supported Bluetooth interface for controlling master volume, adjusting the parametric EQ, and saving and recalling user presets. - Features:
-
- Two-channel mixer with XLR-1/4” combination inputs
- Both inputs are mic or line selectable
- Convenient application EQ presets available from the back panel
- XLR loop-thru for routing signal to additional EON600 series speakers
- Configurations:
-
- Single speaker on a stand for public address
- Full-range stereo set up with two top cabinets and a subwoofer for live performance or DJ
- Floor monitor option for bands and performances
- Suspend cabinet for use in commercial installations or houses of worship
UPC: 050036904810 - 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
- Mackie 802VLZ4 8-Channel Ultra-Compact Mixer The Mackie 802VLZ4 8-Channel Ultra-Compact Mixer features Onyx microphone preamps in a desk-friendly, ultra-compact design, suitable for professional applications with a lower input need. From every input to every output, the mixer is designed to provide the highest headroom and lowest noise possible for maximum signal integrity.
The mixer is built-like-a-tank with a rugged solid-steel chassis and high-contrast controls for tactile control. With features like instrument level inputs, phantom power, and level metering, the 802VLZ4 offers a true step-up performance and durability that is suitable for your professional applications. - 8-Channel mixer featuring high-headroom, low-noise design
- 3 Boutique-Quality Onyx Microphone Preamps:
Wide 60 dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20 Hz to 50 kHz) - Improved RF rejection, suitable for broadcast applications
- Phantom power for condenser microphones
- Eight high-headroom line inputs
- Selectable instrument inputs on first 2 channels; no DI box needed
- 3-Band EQ (80 Hz, 2.5 and 12 kHz)
- 18 dB/octave 100 Hz low-cut filter on microphone input channels
- AUX send, level, pan, and PFL solo on each channel
- Stereo return for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- Built-like-a-tank rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
- Universal power supply for worldwide use
- Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast, and many more
UPC: 663961039832 - Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
- Optimized for Vocals
- The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
- Supercardioid Polar Pattern
- The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
- On/Off Switch
- Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
- Rugged and Portable
- Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
UPC: 847628598447 - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - 2 x EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control ybrcaxrscrrebrrwvdfzxfytecbxxr
- Power Cable
- Limited 1-Year Warranty
- 2 x Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
- Mackie - 802VLZ4 8-Channel Ultra-Compact Mixer
- Polsen - HDM-16-S Handheld Dynamic Performance Microphone
- 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON Powered 15" Two-Way System with PA Speaker Large Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control
| | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 1000 W | | Amplifier Power Rating | 2 x 500 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 15" / 381 mm Woofer | | | | Frequency Range | 39 Hz to 20 kHz -10 dB | | Frequency Response | 50 Hz to 20 kHz ±3 dB | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 50° V | | | | Dimensions | 27.8 x 17.3 x 14.4" / 70.7 x 43.9 x 36.5 cm | | Weight | 39 lb / 17.7 kg | | | | Box Dimensions (LxWxH) | 30.75 x 18.5 x 16.0" | - 2 x Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
| Type | Speaker Stand | | Mount Size | 1-3/8" | | Height Adjustment Range | 50 to 75" / 1.27 to 1.9 m | | Material of Construction | Steel | | Base Spread | 54" / 137 cm | | Weight | 6.2 lb / 2.8 kg | | | | Box Dimensions (LxWxH) | 40.0 x 5.0 x 5.0" | - Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
| Noise | Main Mix Noise:
Main Mix Knob Down, Channel Level Knobs Down:
XLR: -95 dBu
TRS: -101 dBu
Main Mix Knob at Unity, Channel Level Knobs Down:
XLR: -90 dBu
TRS: -96 dBu
Main Mix Knob at Unity, Channel Level Knobs at Unity:
XLR: -84 dBu
TRS: -90 dBu
(20 Hz to 20 kHz bandwidth, channels 1 to 3 gain at unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3 to 8 centered) | | Total Harmonic Distortion (THD) | Microphone Pre at Insert: <0.001%
(1 kHz @ 35 dB gain, 20 Hz to 20 kHz bandwidth) | | Crosstalk / Attenuation | Main Mix Knob Down: -75 dBu
Channel Alt / Mute Switch Engaged: -100 dBu
Channel Level Knob Down: -100 dBu
(1 kHz relative to 0 dBu, 20 Hz to 20 kHz bandwidth, line in, 1/4" main out, gain at unity) | | Frequency Response | Microphone Input to Main Output (Gain at Unity):
+0, -1 dB, 20 Hz to 50 kHz
+0, -3 dB, <10 hz to>100 kHz | | Equivalent Input Noise | 150 Ohms; Termination: -128.5 dBu, 20 Hz to 20 kHz
Microphone input to insert send out, maximum gain | | Common Mode Rejection Ratio | Better than -70 dB at 1 kHz | | Maximum Level | Microphone In: +21 dBu
Tape In: +22 dBu
All Other Inputs: +22 dBu
Main Mix XLR Out: +28 dBu
All Other Outputs: +22 dBu | | Impedance | Microphone In: 2.55 kOhms
Channel Insert Return: 5 kOhms
All Other Inputs: 17 kOhms or greater
Tape Out: 1 kOhm
Phones Out: 60 Ohms
All Other Outputs: 120 Ohms | | Equalizer | High Shelving: ±15 dB at 12 kHz
Mid Peaking ±15 dB at 2.5 kHz
Low Shelving: ±15 dB at 80 Hz | | Power Consumption | 13 W, 100 to 120 VAC, 50 to 60 Hz | | Power Supply | External (AC Connector): 2-Pin IEC 250 VAC | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (H x W x D) | 10.7 x 8.9 x 1.8" (273.0 x 227.0 x 47.0 mm) | | Weight | 5.5 lb (2.5 kg) with power supply
4.5 lb (2.0 kg) without power supply | | | | Box Dimensions (LxWxH) | 15.8 x 12.2 x 4.3" | - Polsen HDM-16-S Handheld Dynamic Performance Microphone
| Transducer | Dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz to 16 kHz | | Impedance | 600 Ohms ±30% at 1 kHz | | Sensitivity | -54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz) | | Output Connector | 3-pin XLR | | Cable Length | 16.4' (5 m) | | Dimensions (L x Diam) | 7 x 2.1" (17.8 x 5.3 cm) | | Weight | 0.7 lb (317.5 g) | | | | Box Dimensions (LxWxH) | 8.7 x 4.9 x 2.7" | - 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
