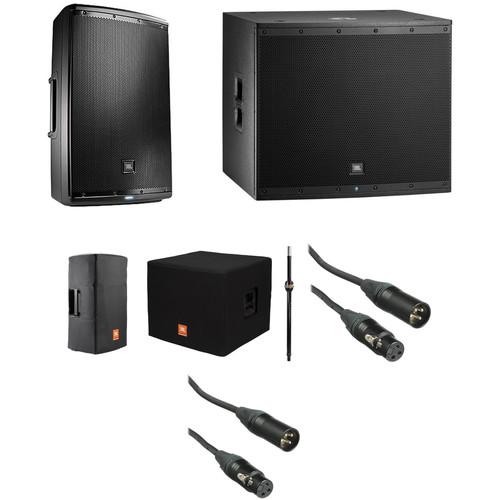

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More This B&H Kit combines the JBL EON615 Powered Speaker and the JBL EON618S Powered Subwoofer with two speaker covers, a speaker pole, and two XLR cables to form the primary components of a sound system for public address, bars, karaoke, schools, church gatherings and more. The EON615 is a 15" two-way powered speaker system with 1000W of Class D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. The speaker features on-board factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with the EON subwoofer. The EON618S is a powered portable PA subwoofer, designed to deliver high-quality sound reproduction in a variety of applications supporting EON600 and other full range systems. A lightweight, durable enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.
The speaker cover is made from a nylon, water resistant, 5mm padded material. It is used to keep out dust, dirt, and help prevent dents and dings during transport. It features a durable 600-D nylon outer fabric and is padded with protective foam layer and a soft tricot lining. Handle cut-outs provide access to the built-in cabinet handles. The subwoofer cover is also a water-resistant 600-D nylon cover with handle-access openings and a 10mm padded protective foam-layer interior. It can be used to protect the subwoofer from dust and dirt during storage and the bumps and bruises during transportation.
The speaker pole connects to the speaker pole socket on a JBL live portable sound subwoofer and supports a JBL speaker top. The XLR cables are designed to suit the most demanding live sound and performance applications. - JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control The EON615 from JBL is a 15" two-way powered speaker system with 1000W of Class-D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. It works as a single speaker, in a stereo set up with another top cabinet and a subwoofer, as a floor-monitor, or in permanent install applications.
The speaker features onboard factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with an EON subwoofer. It also has a speech setting for increased vocal intelligibility in PA and announcement applications.
The rear panel provides XLR-1/4" combo inputs for each of the speaker's two channels, along with individual gain controls and signal presence LEDs. Both inputs are mic or line selectable and a master volume knob adjusts overall system level.
The EON615 also features an iOS and Android supported Bluetooth interface for controlling master volume, adjusting the parametric EQ, and saving and recalling user presets. - Features:
-
- Two-channel mixer with XLR-1/4” combination inputs
- Both inputs are mic or line selectable
- Convenient application EQ presets available from the back panel
- XLR loop-thru for routing signal to additional EON600 series speakers
- Configurations:
-
- Single speaker on a stand for public address
- Full-range stereo set up with two top cabinets and a subwoofer for live performance or DJ
- Floor monitor option for bands and performances
- Suspend cabinet for use in commercial installations or houses of worship
UPC: 050036904810 - JBL EON618S 18" Powered Subwoofer The EON618S from JBL is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver high-quality sound reproduction in a variety of applications supporting EON600 and other full-range systems. A lightweight, durable enclosure allows the speaker to be easily transported and set up wherever low-frequency reinforcement is needed.
-
- 1000W Class-D amplification
- Maximum SPL Output: 134 dB
- Frequency Range (-10 dB): 31 to 150 Hz
- Frequency Response (- 3 dB): 42.5 to 150 Hz
- Bluetooth control
- 3 Parametric EQs + Hi & Lo Shelf
- Gain and Delay
- Save and Recall settings
- Polarity inversion
- Crossover Presets: 80, 100, 120 Hz
- M20 pole cup
- Rugged, stage-ready Duraflex enclosure
UPC: 691991003875 - JBL BAGS EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black) The black EON615-CVR from JBL Professional is a nylon, water resistant, 5 mm padded cover for the EON615 speaker. It is used to keep out dust, dirt, and help prevent dents and dings during transport. It features a durable 600-D nylon outer fabric and is padded with protective foam layer and a soft tricot lining. Handle cut-outs provide access to the built-in cabinet handles. A printed JBL Professional logo is on the front panel. The cover is designed to fit one EON615 Speaker. UPC: 716408536620
- JBL BAGS Deluxe Padded Cover for EON618S The black Deluxe Padded Cover for EON618S from JBL is a water-resistant 600-D nylon cover with handle-access openings and a 10mm padded protective foam-layer interior. It can be used to protect the speaker from dust and dirt during storage and the bumps and bruises during transportation. There is a printed JBL logo on the front panel. UPC: 716408539836
- Ultimate Support SP-90 Speaker Pole (TeleLock Series) The Ultimate Support SP-90 is a TeleLock Series speaker pole designed to hold a loudspeaker atop a subwoofer for musicians, DJs, and audio engineers in clubs, concert venues, and live stage applications. Constructed of sturdy aluminum tubing, it weighs under four pounds and is rated to support up to 150 pounds. It fits speaker sockets from 3/8 to 1/2" in diameter and features a universal subwoofer adapter for easy installation. It offers a height adjustment range of 36.5 to 57.2" via the large TeleLock mechanism. The SP-90 is 100% field serviceable for simple repair on the road.
- Oversized thick-walled aluminum tubing delivers reliable strength with minimal weight
- 100% field serviceable for simple repair on the road
- Universal subwoofer adapter for mounting on a sub
- Simple and secure height adjustment via TeleLock mechanism
- Expanding cylinder system firmly fits speaker sockets from 3/8 to 1/2" diameter
UPC: 784887176538 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (10') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558274 In the Box - EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control xsxrtzwtwatdztfvvvvffawr
- Power Cable
- Limited 1-Year Warranty
- EON618S 18" Powered Subwoofer xsxrtzwtwatdztfvvvvffawr
- JBL BAGS - EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black)
- JBL BAGS - Deluxe Padded Cover for EON618S
- Ultimate Support - SP-90 Speaker Pole (TeleLock Series)
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black xsxrtzwtwatdztfvvvvffawr
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON Powered Speaker and Subwoofer Kit with Covers, Speaker Pole, and Cables in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control
| | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 1000 W | | Amplifier Power Rating | 2 x 500 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 15" / 381 mm Woofer | | | | Frequency Range | 39 Hz to 20 kHz -10 dB | | Frequency Response | 50 Hz to 20 kHz ±3 dB | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 50° V | | | | Dimensions | 27.8 x 17.3 x 14.4" / 70.7 x 43.9 x 36.5 cm | | Weight | 39 lb / 17.7 kg | | | | Box Dimensions (LxWxH) | 30.75 x 18.5 x 16.0" | - JBL EON618S 18" Powered Subwoofer
| | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W Peak
500 W RMS | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 2" / 5.1 cm | | | | Frequency Range | 31 Hz to 150 Hz -10 dB | | Frequency Response | 42.5 Hz to 150 Hz ±3 dB | | Maximum SPL | 134 dB | | Gain Range | Line Input:
0 to 36 dBu | | I/O Impedance | Input:
22 kOhms (Balanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x XLR Male Thru/Output | | | | Crossover | 80 to 120 Hz Selectable at 80, 100, or 120 Hz | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
230 to 240 VAC, 50 / 60 Hz | | Current Consumption | 1.14 A (Max, 1/8 Power)
1.71 A (Max, 1/4 Power)
2.03 A (Max, 1/3 Power) | | | | Mounting | 1 x M20 (Top) | | Handles | 2 | | Cooling | Convection | | Construction Material | Perforated Metal Grille, Wood | | Dimensions | 22.9 x 26.3 x 25.4" / 582.0 x 668.0 x 645.0 mm | | Weight | 72 lb / 35.5 kg | | | | Box Dimensions (LxWxH) | 31.0 x 30.0 x 24.0" | - JBL BAGS EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black)
| | | Box Dimensions (LxWxH) | 18.1 x 15.2 x 3.6" | - JBL BAGS Deluxe Padded Cover for EON618S
| | | Box Dimensions (LxWxH) | 26.4 x 22.5 x 3.0" | - Ultimate Support SP-90 Speaker Pole (TeleLock Series)
| Type | Subwoofer Pole | | Load Capacity | 150 lb / 68.2 kg | | Mount Size | 1-1/2" (Top)
1-4/5" (Base) | | Height Adjustment Range | 36.5 to 57.2" / 92.8 to 145.4 cm | | Material of Construction | Aluminum | | Weight | 3.9 lb / 1.7 kg | | | | Box Dimensions (LxWxH) | 42.0 x 10.0 x 5.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 10' (3.0 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 10' / 3 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 5.7 x 2.2 x 1.0" |
