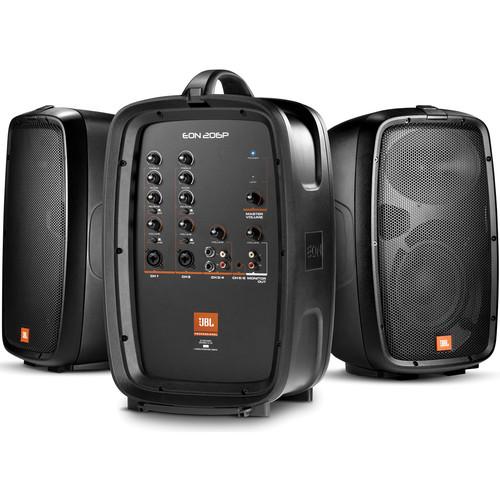

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More Weighing just 25 lb, the JBL EON206P is a portable powered mixer and speaker PA system designed for live sound reinforcement applications such as speaking in public or playing DJ music at a party. The system consists of a 6-channel powered mixer and a pair of detachable powered speakers that utilize 6.5" woofers in bass-reflex enclosures and 1" wave-guided neodymium high compression drivers to deliver a frequency range of 64 to 22,000 Hz at -10 dB and a frequency response of 77 to 20,000 Hz at -3 dB over a 100° x 80° coverage pattern at a maximum SPL of 113 dB. Each speaker is powered by 80 watts of high efficiency class D amplification with on-board EQ and limiting provided by integrated DSP.

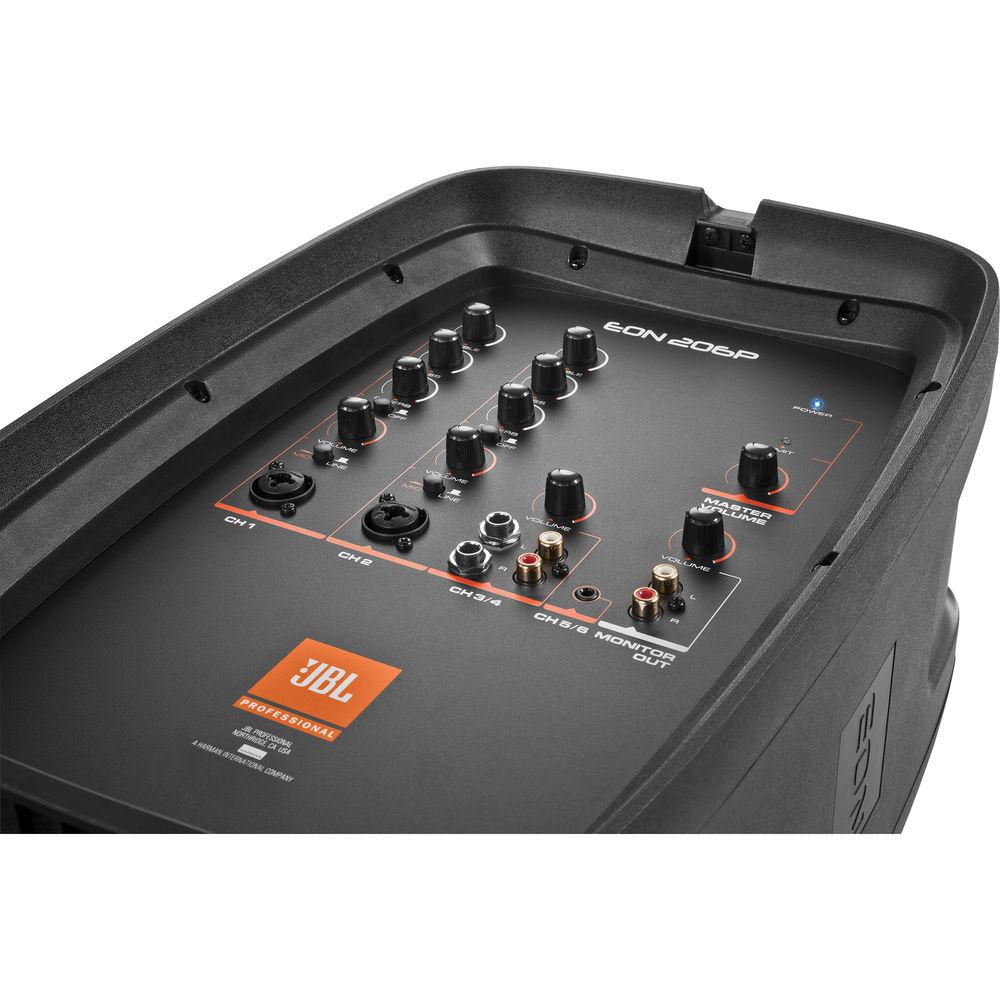

The detachable powered mixer features selectable mic/line combination 1/4" phone and XLR inputs on channels one and two with treble, bass, reverb, and channel volume control knobs. Input Channels three and four are provided by either stereo RCA connectors for consumer electronics or 1/4" phone inputs for use with electronic keyboards, processors, or an instrument preamplifier with a dedicated volume control. Input channels 5 and 6 are provided by a stereo 3.5mm input jack for use with Smartphones, MP3 players, and other comparable devices. The mixer features a master volume control as well as a monitor volume control via a pair of stereo RCA outputs.

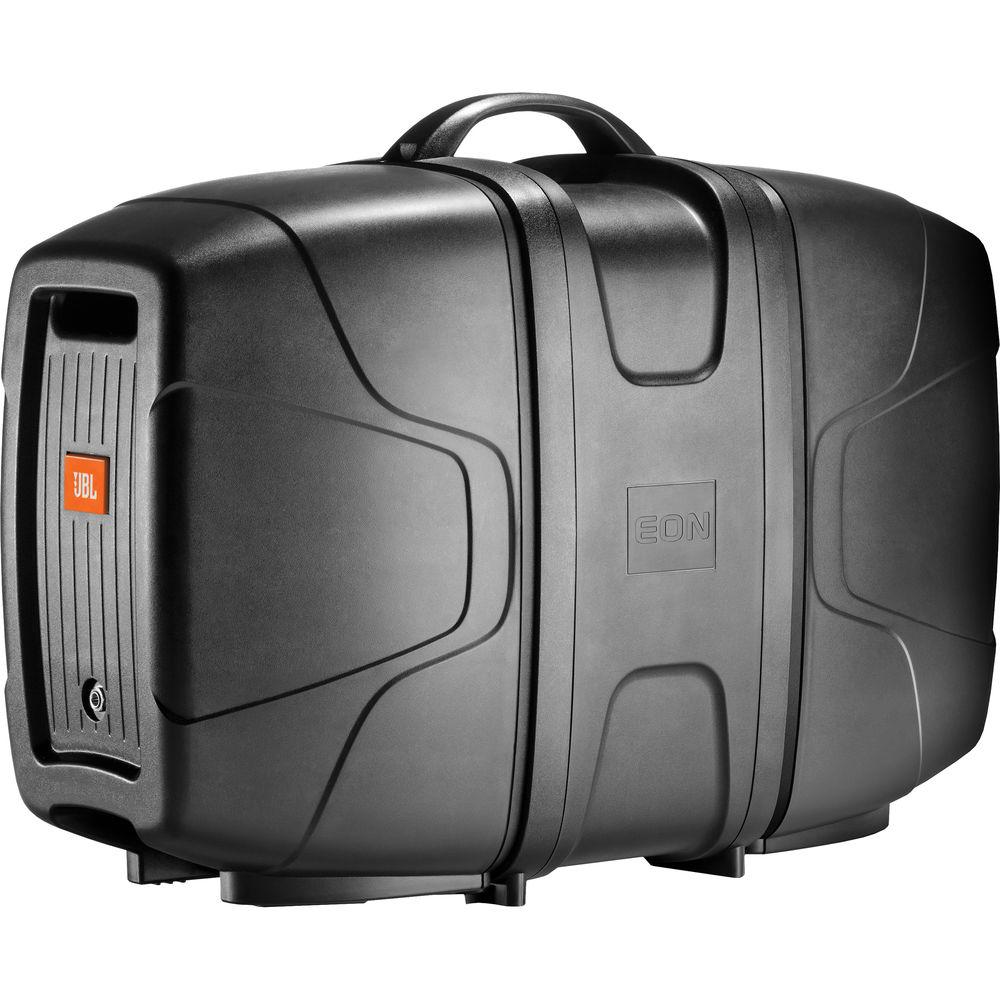

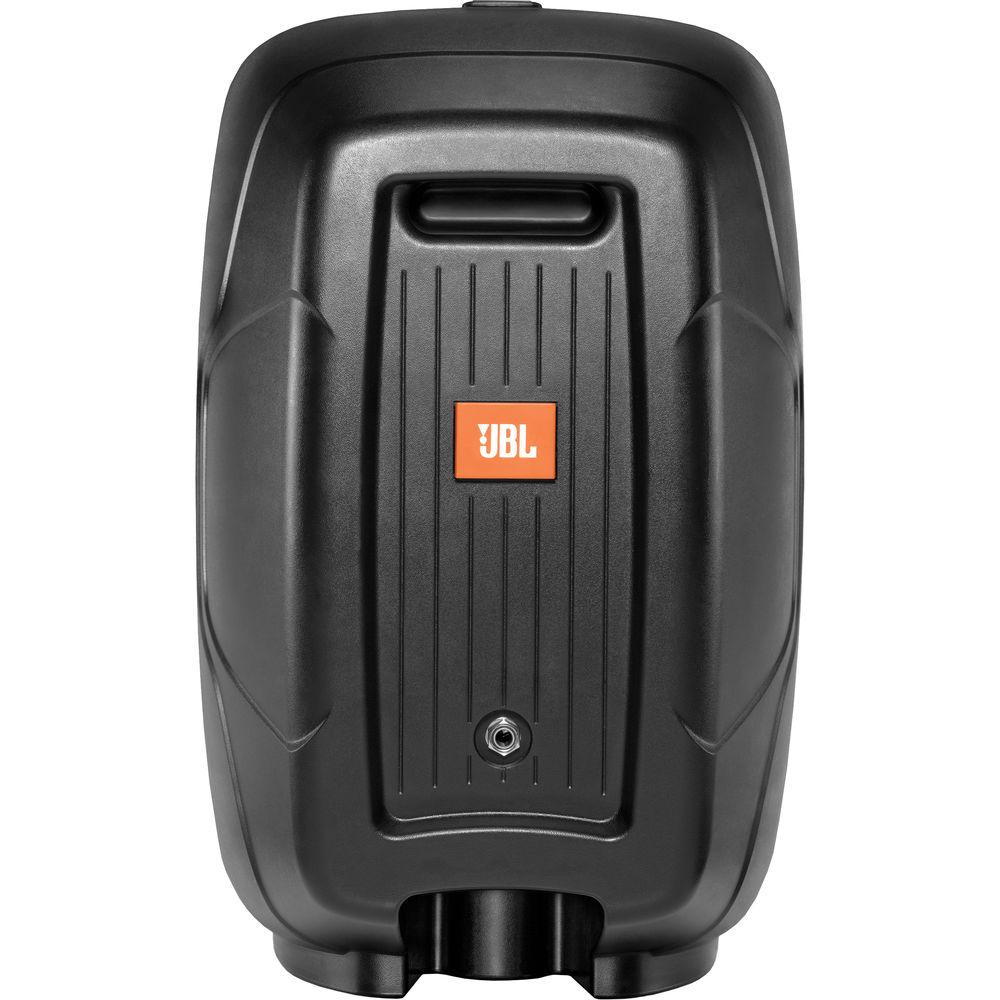

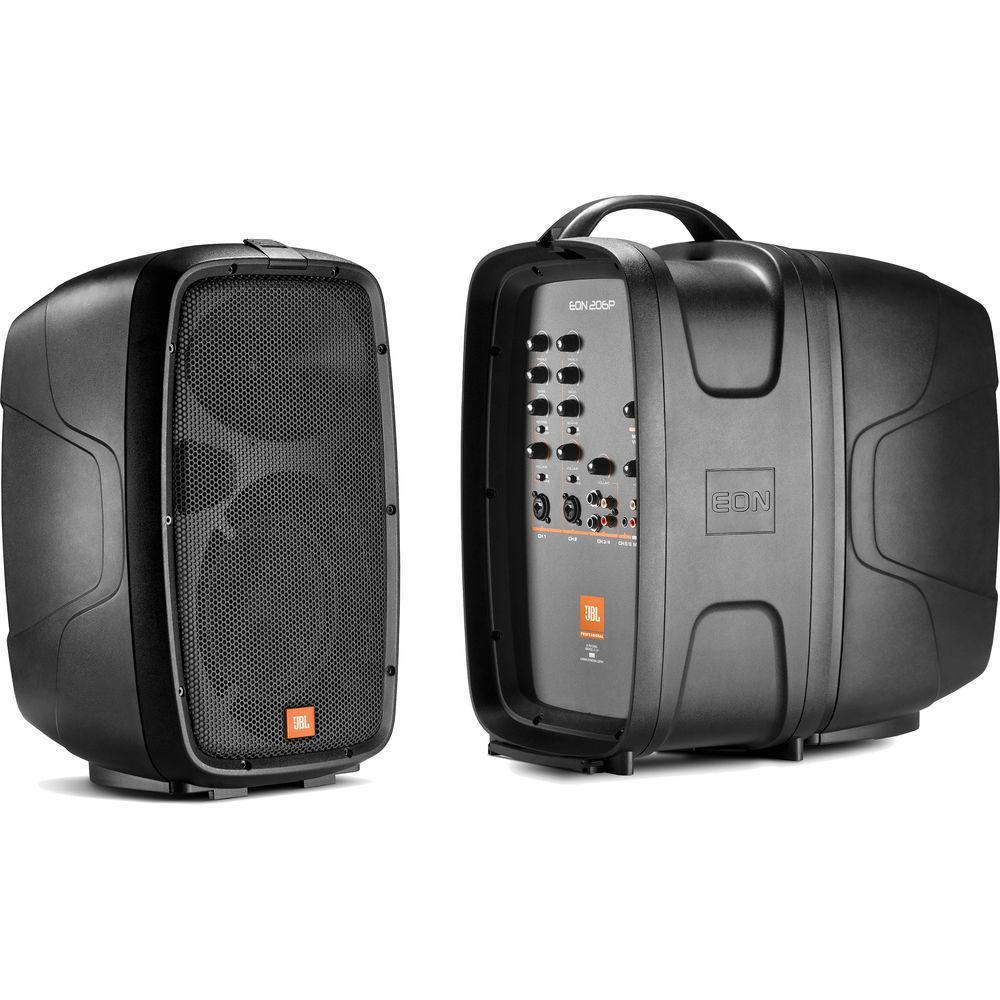

The two powered speakers feature integrated pole sockets for mounting on stands and attach to the powered mixer with connection latches to form a single convenient carrying case with integrated cable storage and an ergonomic soft grip top handle. - Waveguide
- Provides 100° horizontal by 80° vertical coverage
- Ergonomic Soft Grip Top Handle
- Provides an easy way of transporting the whole system as a unit
- Bass Reflex Port
- Extends low frequency content
- DSP
- Provides EQ, reverb, and internal limiting
In the Box JBL EON206P - Portable 6.5" Two-Way PA System With Detachable Powered Mixer Power Cord 2 x Speaker Cables Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON206P - Portable 6.5" Two-Way PA System With Detachable Powered Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL EON206P Specs | | | Input Connectors | 2x Combination 1/4" Phone XLR (XLR is mic level, 1/4" is line level)
2x 1/4" phone for channels 3/4
2x RCA (left and right pair) for channels 3/4
1x 1/4" stereo phono for Smartphones or personal media players | | Output Connectors | 2x RCA (left and right pair) for monitors | | Input Impedances | Ch 1-2 combo XLR: 40 kΩ balanced
Ch 1-2 Combo TRS: 40 kΩ balanced
Ch 3-4 TRS: 20 kΩ unbalanced
Ch 5-6 1/8" stereo: 10 kΩ unbalanced | | Signal Indicator | Limit: yellow LED | | Equalization | Individual channel Bass and Treble controls, center detent, ± 12 dB cut and boost | | Limiter | Onboard DSP limiting and tuning | | | | Type | 2x self powered 6.5" two-way with bass reflex and waveguide | | Max SPL Level | 113 dB | | Frequency Range | -10 dB: 64 to 22,000 Hz | | Frequency Response | -3 dB: 77 to 20,000 Hz | | Coverage Pattern | 100° x 80° | | Amplifier | Class D | | Power Rating | 2 x 80 W | | | | Dimensions (H x W x D) | 20.9 x 27.8 x 13.4" (530 x 705 x 340 mm) | | Weight | 25.00 lb (11.38 kg) | | | | Package Weight | 36.7 lb | | Box Dimensions (LxWxH) | 27.0 x 21.0 x 13.0" |
