User Manual for JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth Click to enlarge the picture
Contents of the user manual for the JBL EON208P Personal PA System with
- Product category: Portable PA Systems JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Portable PA Systems
 |
User manual for the JBL EON208P Personal PA System with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

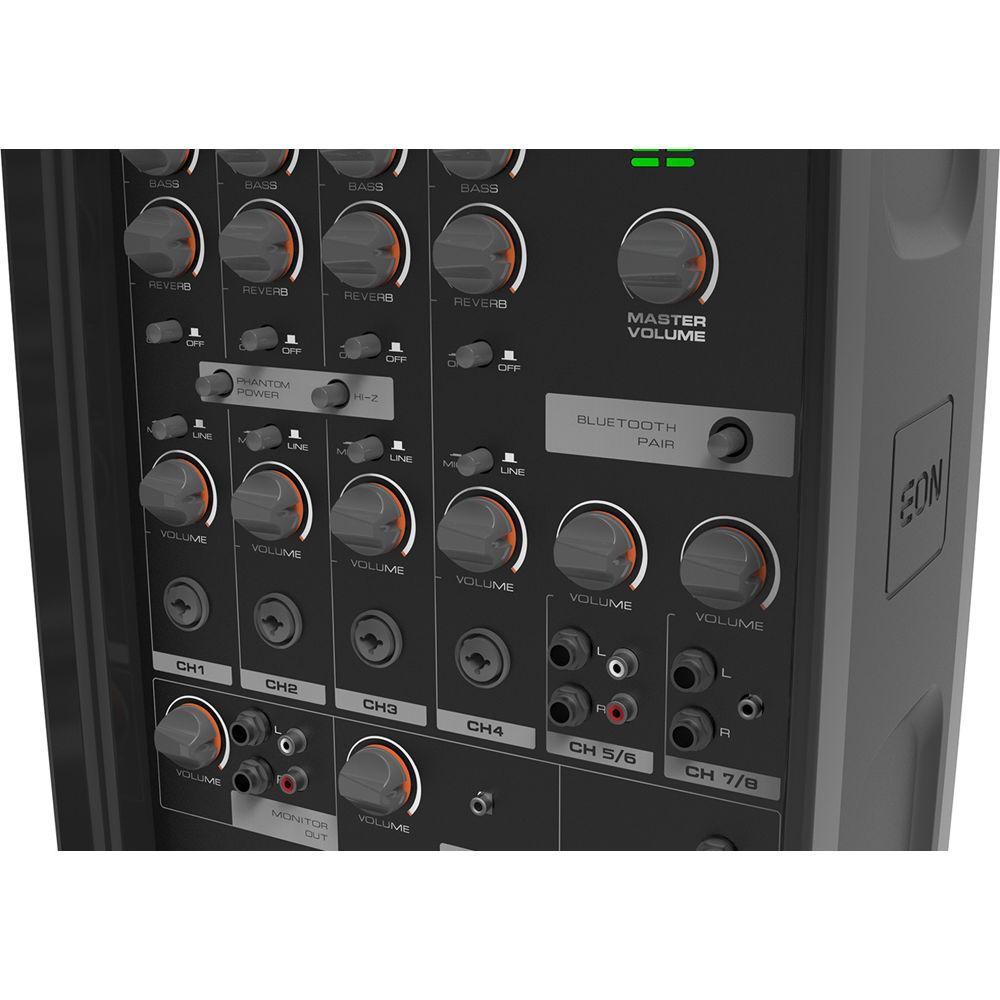

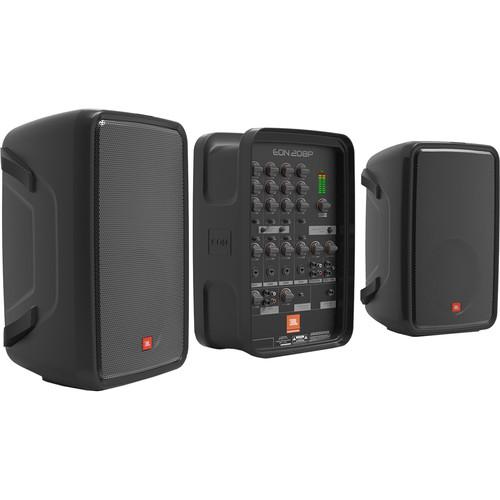

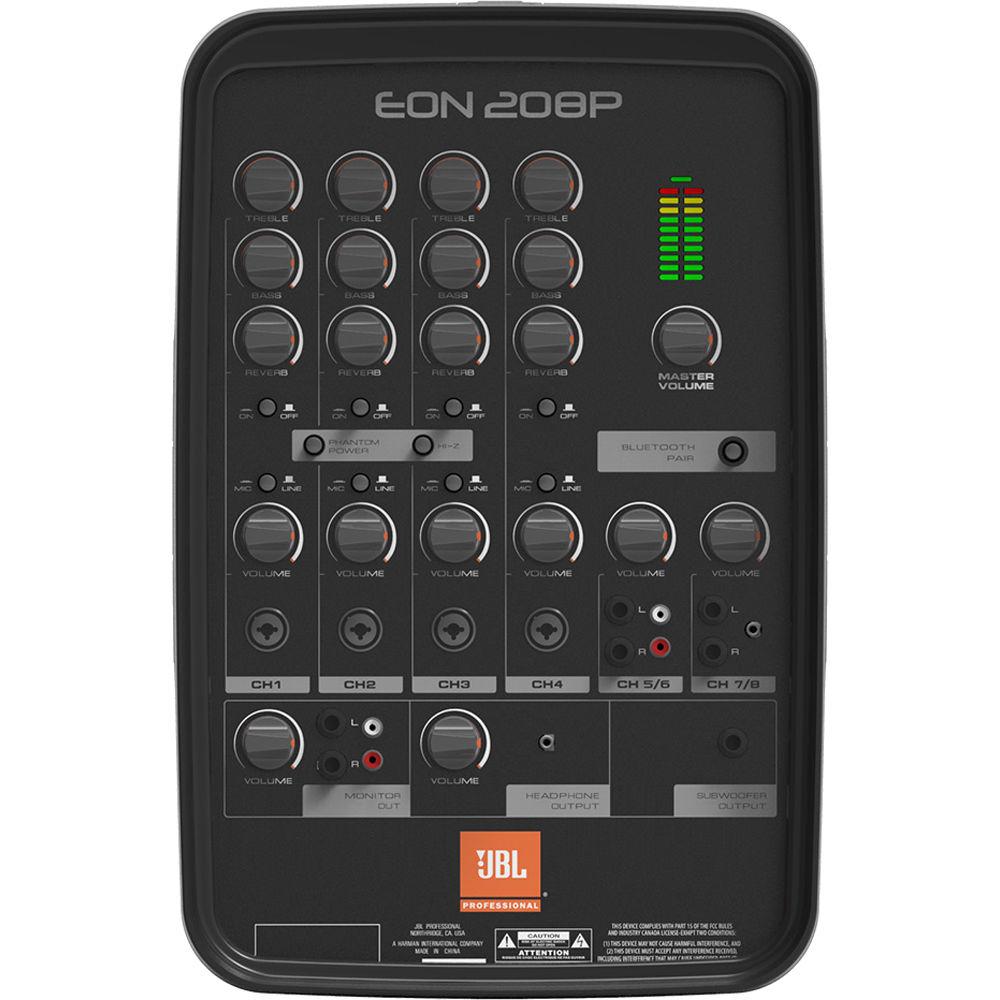

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The EON208P Personal PA System from JBL includes an eight-channel mixer and a pair of two-way loudspeakers which all clip together to form one portable unit. On the mixer itself, channels one through four feature bass, treble, reverb, and volume controls, as well as combo XLR-1/4" jacks. The first two channels provide phantom power—useful for condenser microphones—while channel three sports a Hi-Z input for guitars. Channels five through eight are grouped in stereo pairs, with the first two giving you RCA options, the second two giving you a 1/8" / 3.5mm stereo input for MP3 players and phones, and both sets offering dual 1/4" jacks as well. Additionally, this mixer can pair with Bluetooth devices for wireless streaming with tablets, smartphones, and other devices.

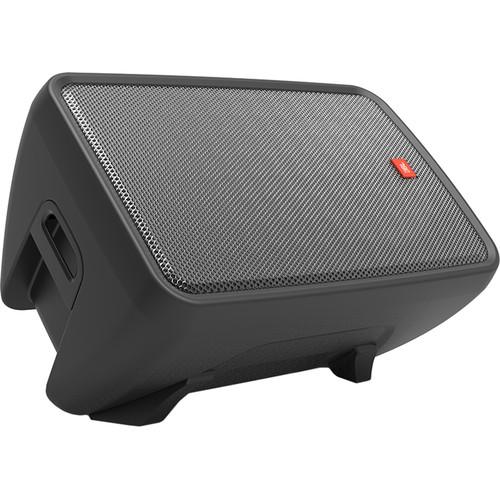

Both 8" two-way loudspeakers deliver a wide degree of coverage, as well as 300W of power and a maximum sound pressure level of 121 dB. - Bluetooth
- With Bluetooth connectivity, EON208P lets you stream audio from your mobile or Bluetooth-enabled device.
- Portable Design

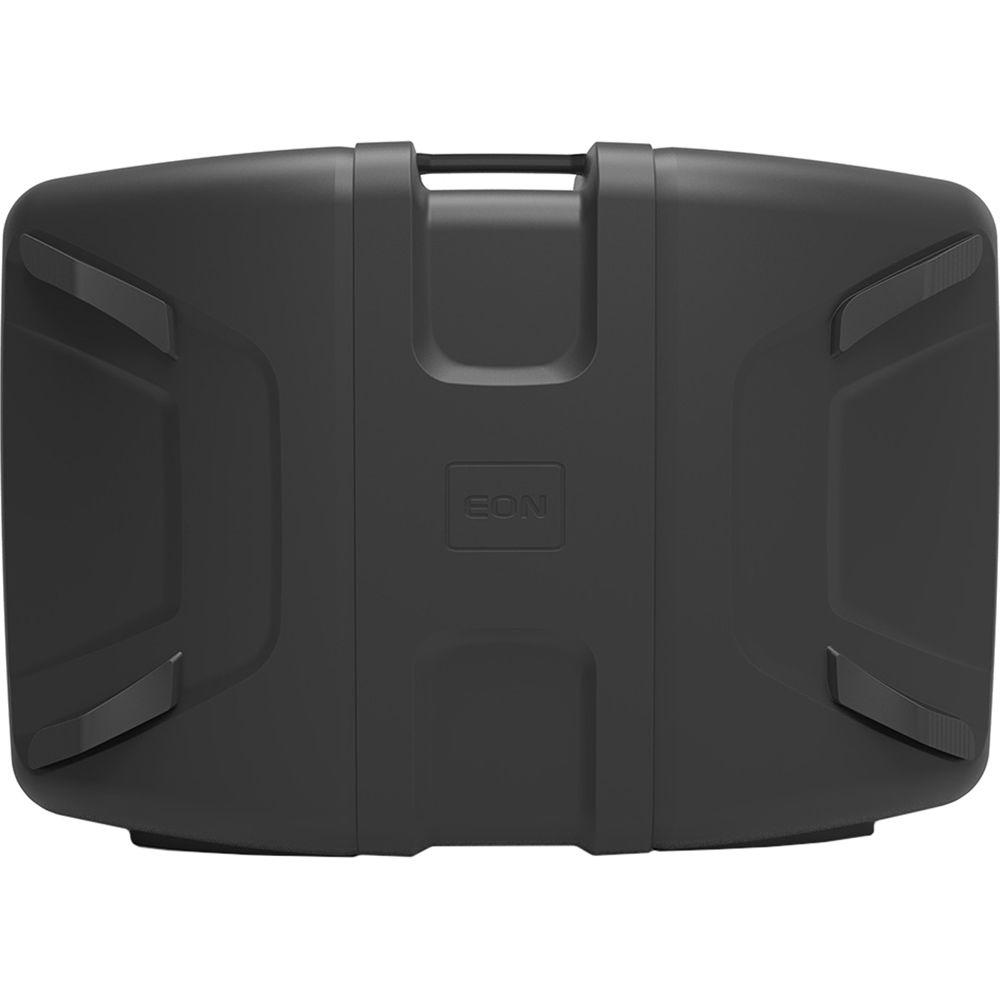

- Both 8" speakers clip onto either side of the 8-channel mixer, thus providing portable transport from gig to gig.
UPC: 691991004896 In the Box JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth Speaker Cables Power Cable AKG Handheld Mic Limited 5-Year Warranty on Loudspeakers Limited 2-Year Warranty on Enclosures Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL EON208P Specs | System Type | Portable 2-way full-range loudspeakers with powered mixer | | Maximum SPL | 121 dB peak | | Frequency Range | -10 dB: 60 Hz to 20 kHz
±3 dB: 70 Hz to 18 kHz | | AC Input | 100-120 VAC, 50/60 Hz | | Amplifier Class | D | | Power Rating | 300 W (2 x 150 W stereo) | | Output Connections | 2 x unbalanced 1/4" TS amplifier outputs | | Channels | Channels 1 through 4: Combo XLR-1/4" jacks
Channels 5, 6: 2 x 1/4" balanced TRS jacks (for stereo), 2 x RCA jacks (for stereo)
Channels 7, 8: 2 x 1/4" balanced TRS jacks (for stereo), 1 x 1/8" / 3.5 mm stereo jack | | Phantom Power | Channels 1 and 2, sharing selection switch | | Hi-Z Input | Channel three, utilizing selection switch | | Output Connections | Monitor out: 2 x RCA jacks, 2 x balanced 1/4" TRS jacks
Headphone out: 1/8" / 3.5 mm stereo jack
Subwoofer out: balanced 1/4" TRS jack | | Tone Control (Treble / Bass) | 8 x high- and low-shelf filters with ±12 dB cut and boost | | Limiter | On-board DSP limiting | | LF Driver Size | 1 x JBL 8" / 203 mm woofer | | HF Driver Size | 1 x 1" / 25.4 mm neodymium black aluminum dome tweeter | | Coverage Pattern | 100° horizontal x 60° vertical | | Crossover Frequency | 2 kHz | | Crossover Type | 2-way passive network, 2nd order filters (12 dB cutoff per octave) | | Enclosure | Polypropylene | | Suspension | 36 mm pole socket | | Handles | One on top | | Material | Speaker grille: Powder-coated Perforated Steel | | Weight | 38.2 lb (17.3 kg) | | | | Package Weight | 50.0 lb | | Box Dimensions (LxWxH) | 30.5 x 22.55 x 15.75" |
