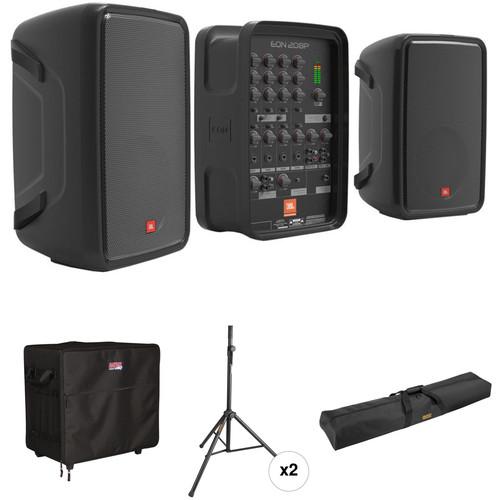

User Manual for JBL EON208P Portable PA System Kit with Speaker Stands and Protective Bags

• Product category: Portable PA Systems JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL Portable PA Systems

Product description

• JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth The EON208P Personal PA System from JBL includes an eight-channel mixer and a pair of two-way loudspeakers which all clip together to form one portable unit. On the mixer itself, channels one through four feature bass, treble, reverb, and volume controls, as well as combo XLR-1/4" jacks. The first two channels provide phantom power—useful for condenser microphones—while channel three sports a Hi-Z input for guitars. Channels five through eight are grouped in stereo pairs, with the first two giving you RCA options, the second two giving you a 1/8" / 3.5mm stereo input for MP3 players and phones, and both sets offering dual 1/4" jacks as well. Additionally, this mixer can pair with Bluetooth devices for wireless streaming with tablets, smartphones, and other devices.

  Both 8" two-way loudspeakers deliver a wide degree of coverage, as well as 300W of power and a maximum sound pressure level of 121 dB.
  Bluetooth
  • With Bluetooth connectivity, EON208P lets you stream audio from your mobile or Bluetooth-enabled device.
  Portable Design
  • Both 8" speakers clip onto either side of the 8-channel mixer, thus providing portable transport from gig to gig.
  UPC: 691991004896
• Gator Cases G-PA TRANSPORT-LG Case for Larger "Passport" Type PA Systems (Black) The black Case for Larger "Passport" Type PA Systems from Gator is the perfect traveling companion for your Passport 300 or 500 PA system. If you remove its single internal divider, it will also accommodate a Yamaha-style PA instead. The zippered case is manufactured from a lightweight wood with a nylon covering. Outside, is a convenient large zippered storage pocket for accessories like cables, adapters and paperwork. Whether for a band or a DJ, portability is always crucial and this case comes with two wheels and a retractable handle. That is supported by two additional webbed carry handles for short hauls. Gator backs the case with its standard limited lifetime warranty.
  • Fits most portable PA systems like the Passport 300 and 500; removable internal divider for Yamaha-style PA
  • Hybrid lightweight wood and nylon construction
  • Large external pocket
  • Reinforced web handle
  • Wheels and retractable handle
  Carry-On Form Factor
  • FAA and airline carry-on specifications are subject to change without notice, please check with your airline before designating this case as a carry-on item. Most airlines require carry-on items to have an external linear measurement that is equal to or less than 45.0" (114.3 cm). The external dimensions of this case add up to 73.0" (185.4 cm)
  UPC: 716408530314
• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
  • Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
  • Locking pin fits into any of five predrilled holes to secure desired height setting
  • Center brace connects tripod legs for increased stability
  UPC: 847628015845
• Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432

• EON208P Personal PA System with 8-Channel Mixer and Bluetooth tybtqacctrfure
• Speaker Cables
• Power Cable
• AKG Handheld Mic
• Limited 5-Year Warranty on Loudspeakers
• Limited 2-Year Warranty on Enclosures

• Gator Cases - G-PA TRANSPORT-LG Case for Larger "Passport" Type PA Systems (Black) tybtqacctrfure

• 2 x Auray - SS-4320 Lightweight Aluminum Speaker Stand

• Auray - Speaker Stand Bag 51" Interior (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth

  System Type	Portable 2-way full-range loudspeakers with powered mixer
  Maximum SPL	121 dB peak
  Frequency Range	-10 dB: 60 Hz to 20 kHz ±3 dB: 70 Hz to 18 kHz
  AC Input	100-120 VAC, 50/60 Hz
  Amplifier Class	D
  Power Rating	300 W (2 x 150 W stereo)
  Output Connections	2 x unbalanced 1/4" TS amplifier outputs
  Channels	Channels 1 through 4: Combo XLR-1/4" jacks Channels 5, 6: 2 x 1/4" balanced TRS jacks (for stereo), 2 x RCA jacks (for stereo) Channels 7, 8: 2 x 1/4" balanced TRS jacks (for stereo), 1 x 1/8" / 3.5 mm stereo jack
  Phantom Power	Channels 1 and 2, sharing selection switch
  Hi-Z Input	Channel three, utilizing selection switch
  Output Connections	Monitor out: 2 x RCA jacks, 2 x balanced 1/4" TRS jacks Headphone out: 1/8" / 3.5 mm stereo jack Subwoofer out: balanced 1/4" TRS jack
  Tone Control (Treble / Bass)	8 x high- and low-shelf filters with ±12 dB cut and boost
  Limiter	On-board DSP limiting
  LF Driver Size	1 x JBL 8" / 203 mm woofer
  HF Driver Size	1 x 1" / 25.4 mm neodymium black aluminum dome tweeter
  Coverage Pattern	100° horizontal x 60° vertical
  Crossover Frequency	2 kHz
  Crossover Type	2-way passive network, 2nd order filters (12 dB cutoff per octave)
  Enclosure	Polypropylene
  Suspension	36 mm pole socket
  Handles	One on top
  Material	Speaker grille: Powder-coated Perforated Steel
  Weight	38.2 lb (17.3 kg)

  Box Dimensions (LxWxH)	30.5 x 22.55 x 15.75"

• Gator Cases G-PA TRANSPORT-LG Case for Larger "Passport" Type PA Systems (Black)

  Type	Bag
  Interior Dimensions	13 x 24 x 30" / 33 x 61 x 76.2 cm
  Carrying/Transport Options	Retractable Handle, Side Handle
  Type of Closure	Zipper
  Number of Casters	2
  Material of Construction	Nylon, Wood
  Exterior Dimensions (W x H x D)	14 x 27 x 32" / 35.6 x 68.6 x 81.3 cm
  Weight	38 lb / 17.2 kg

  Box Dimensions (LxWxH)	28.5 x 24.5 x 16.2"

• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand

  Type	Speaker Stand
  Load Capacity	100 lb / 45.4 kg
  Mount Size	1-3/8" 1-1/2"
  Height Adjustment Range	47 to 78" / 120 to 198 cm
  Material of Construction	Aluminum
  Weight	5 lb / 2.3 kg

  Box Dimensions (LxWxH)	42.0 x 5.3 x 5.0"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"
