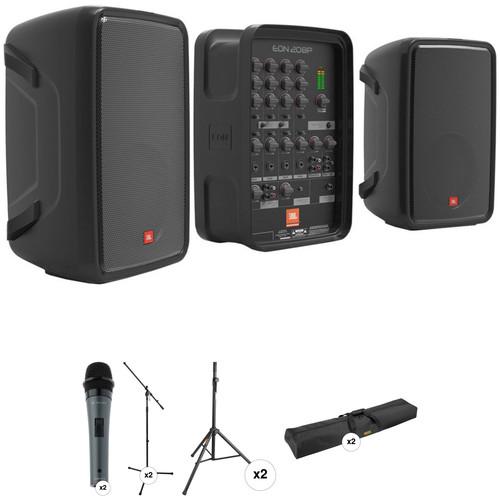

User Manual for JBL EON208P Stereo PA and Dual Microphones Kit Click to enlarge the picture
Contents of the user manual for the JBL EON208P Stereo PA and Dual
- Product category: Portable PA Systems JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Portable PA Systems
|
User manual for the JBL EON208P Stereo PA and Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The EON208P Stereo PA and Dual Microphones Kit from B&H is a portable personal PA system designed to provide a complete multi-source mixing and amplification solution for bands, musicians, presenters, and DJs at shows, conferences, clubs, and special events. It includes the JBL EON208P PA system, two handheld dynamic microphones, two tripod mic stands, two tripod speaker stands, and two speaker stand bags. The whole system is easily transportable thanks to the PA’s integrated carry handle and the spacious speaker stand bags.XLR, RCA, 3.5mm, and 1/4" inputs allow you to connect an array of sources such as microphones, instruments, DJ mixers, and laptop computers. Stream music wirelessly from your mobile device to the built-in Bluetooth receiver. The integrated 8-channel mixer offers 2-band EQ and reverb for the first four channels plus level controls for all channels and the monitor and headphone outputs. Your mix is pumped out at up to 300W (150W per side) through 8” woofers and 1” tweeters for powerful, full-range audio reproduction. - JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth The EON208P Personal PA System from JBL includes an eight-channel mixer and a pair of two-way loudspeakers which all clip together to form one portable unit. On the mixer itself, channels one through four feature bass, treble, reverb, and volume controls, as well as combo XLR-1/4" jacks. The first two channels provide phantom power—useful for condenser microphones—while channel three sports a Hi-Z input for guitars. Channels five through eight are grouped in stereo pairs, with the first two giving you RCA options, the second two giving you a 1/8" / 3.5mm stereo input for MP3 players and phones, and both sets offering dual 1/4" jacks as well. Additionally, this mixer can pair with Bluetooth devices for wireless streaming with tablets, smartphones, and other devices.
Both 8" two-way loudspeakers deliver a wide degree of coverage, as well as 300W of power and a maximum sound pressure level of 121 dB. - Bluetooth
- With Bluetooth connectivity, EON208P lets you stream audio from your mobile or Bluetooth-enabled device.
- Portable Design
- Both 8" speakers clip onto either side of the 8-channel mixer, thus providing portable transport from gig to gig.
UPC: 691991004896 - 2 x Polsen HDM-16-S Handheld Dynamic Performance Microphone The HDM-16-S Handheld Dynamic Performance Microphone from Polsen is a reliable and rugged handheld microphone with an integrated on/off switch. The supercardioid polar pattern and frequency response is optimized for the human voice and can be used for live stage, vocal presentation, and studio applications. The microphone's polar pattern is designed to eliminate off-axis sound. Additionally, an on/off switch lets you quickly silence the mic when necessary. Built with rugged construction, the Polsen HDM-16-S will withstand the rigors of transport and live performances. A 16.4' XLR cable, carry pouch, and a mic clip are also included.
- Optimized for Vocals
- The HDM-16-S microphone is optimized for live vocal performances. It has a wide frequency response with impressive sensitivity, which makes this microphone capable of capturing singers and presenters with clarity and accuracy.
- Supercardioid Polar Pattern
- The dynamic supercardioid microphone capsule minimizes background noise, making the HDM-16-S ideal for vocals or speech, whether onstage or in the studio.
- On/Off Switch
- Don't let your audience hear what you don't want them to hear. The on/off switch is a convenient feature that lets you quickly mute the microphone between songs or during a pause in your presentation.
- Rugged and Portable
- Take your microphone anywhere. The heavy-duty metal construction will withstand the rigors of transport and onstage use. With the included 16-foot XLR cable, you can plug into any mixing board, sound system, or amplifier with an XLR input jack.
UPC: 847628598447 - 2 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom The Auray MS-5230F Tripod Microphone Stand with Fixed Boom features durable, steel construction. The 31.5" boom arm allows you to angle the mic however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and nonslip feet keep it firmly and sturdily in place. The Auray MS-5230F mic stand collapses for easy transport. UPC: 847628015586
- 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
- Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
- Locking pin fits into any of five predrilled holes to secure desired height setting
- Center brace connects tripod legs for increased stability
UPC: 847628015845 - 2 x Auray Speaker Stand Bag 51" Interior (Black) The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
- Durable Protection
- The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
- Reliable and Stylish
- Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
- Easy Transport
- Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
UPC: 847628002432 In the Box - EON208P Personal PA System with 8-Channel Mixer and Bluetooth awtttrrcscsy
- Speaker Cables
- Power Cable
- AKG Handheld Mic
- Limited 5-Year Warranty on Loudspeakers
- Limited 2-Year Warranty on Enclosures
- 2 x Polsen - HDM-16-S Handheld Dynamic Performance Microphone awtttrrcscsy
- 2 x Auray - MS-5230F Tripod Microphone Stand with Fixed Boom
- 2 x Auray - SS-4320 Lightweight Aluminum Speaker Stand
- 2 x Auray - Speaker Stand Bag 51" Interior (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON208P Stereo PA and Dual Microphones Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JBL EON208P Personal PA System with 8-Channel Mixer and Bluetooth
| System Type | Portable 2-way full-range loudspeakers with powered mixer | | Maximum SPL | 121 dB peak | | Frequency Range | -10 dB: 60 Hz to 20 kHz
±3 dB: 70 Hz to 18 kHz | | AC Input | 100-120 VAC, 50/60 Hz | | Amplifier Class | D | | Power Rating | 300 W (2 x 150 W stereo) | | Output Connections | 2 x unbalanced 1/4" TS amplifier outputs | | Channels | Channels 1 through 4: Combo XLR-1/4" jacks
Channels 5, 6: 2 x 1/4" balanced TRS jacks (for stereo), 2 x RCA jacks (for stereo)
Channels 7, 8: 2 x 1/4" balanced TRS jacks (for stereo), 1 x 1/8" / 3.5 mm stereo jack | | Phantom Power | Channels 1 and 2, sharing selection switch | | Hi-Z Input | Channel three, utilizing selection switch | | Output Connections | Monitor out: 2 x RCA jacks, 2 x balanced 1/4" TRS jacks
Headphone out: 1/8" / 3.5 mm stereo jack
Subwoofer out: balanced 1/4" TRS jack | | Tone Control (Treble / Bass) | 8 x high- and low-shelf filters with ±12 dB cut and boost | | Limiter | On-board DSP limiting | | LF Driver Size | 1 x JBL 8" / 203 mm woofer | | HF Driver Size | 1 x 1" / 25.4 mm neodymium black aluminum dome tweeter | | Coverage Pattern | 100° horizontal x 60° vertical | | Crossover Frequency | 2 kHz | | Crossover Type | 2-way passive network, 2nd order filters (12 dB cutoff per octave) | | Enclosure | Polypropylene | | Suspension | 36 mm pole socket | | Handles | One on top | | Material | Speaker grille: Powder-coated Perforated Steel | | Weight | 38.2 lb (17.3 kg) | | | | Box Dimensions (LxWxH) | 30.5 x 22.55 x 15.75" | - 2 x Polsen HDM-16-S Handheld Dynamic Performance Microphone
| Transducer | Dynamic | | Polar Pattern | Supercardioid | | Frequency Response | 50 Hz to 16 kHz | | Impedance | 600 Ohms ±30% at 1 kHz | | Sensitivity | -54 dB ±3 dB (0 dB= 1 V/Pa @ 1 kHz) | | Output Connector | 3-pin XLR | | Cable Length | 16.4' (5 m) | | Dimensions (L x Diam) | 7 x 2.1" (17.8 x 5.3 cm) | | Weight | 0.7 lb (317.5 g) | | | | Box Dimensions (LxWxH) | 8.7 x 4.9 x 2.7" | - 2 x Auray MS-5230F Tripod Microphone Stand with Fixed Boom
| | | Height | 36.2 to 63" / 91.9 to 160 cm | | Base Type | Tripod | | Base Dimensions | 25.6 x 25.6" / 65 x 65 cm | | | | Material | Steel | | Weight | 4.5 lb / 2 kg | | | | Box Dimensions (LxWxH) | 33.5 x 4.0 x 4.0" | - 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand
| Type | Speaker Stand | | Load Capacity | 100 lb / 45.4 kg | | Mount Size | 1-3/8"
1-1/2" | | Height Adjustment Range | 47 to 78" / 120 to 198 cm | | Material of Construction | Aluminum | | Weight | 5 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 42.0 x 5.3 x 5.0" | - 2 x Auray Speaker Stand Bag 51" Interior (Black)
| Material | Nylon | | Type of Closure | Zipper | | Exterior Dimensions (H × W × D) | 52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm | | Carrying/Transport Options | Dual carry handles with padded touch-fastener wrap | | Weight | 1.2 lb / 0.5 kg | | | | Box Dimensions (LxWxH) | 16.6 x 10.8 x 2.2" |
