Product description

• JBL EON610 - 10" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker The JBL EON610 is a two-way 1000W peak Class-D amplifier driven live sound reinforcement speaker that combines a wave-guided high-frequency driver with a 10" woofer in a bass-reflex cabinet. The speaker was designed from the ground up by JBL engineers to leverage the latest advancements in cabinet materials, acoustic science, transducer design, and integrated Bluetooth controllable DSP.

  The combination of the 300W peak powered wave-guided high-frequency transducer and the 700W peak powered 10" woofer with bass-reflex ports delivers a frequency range of 52 Hz to 20 kHz at -10 dB and a frequency response of 60 Hz to 20 kHz at +3 dB over a 110 x 60° coverage pattern with a Max SPL output of 124 dB for a wide range of applications. The coverage pattern of the Image Control Waveguide is designed to match the high frequencies, crossover point, and low frequencies to deliver a more consistent on-axis and off-axis response. This allows the speaker to sound the same to members of the audience throughout the coverage pattern.

  Inputs are provided on dual combination mic or line XLR-1/4" input connectors with individual signal gain knobs and a master volume knob for the overall level. An XLR loop-thru allows you to route the signal to additional EON600 series speakers.

  To enable fine tuning of the speaker in different acoustic environments, the speaker includes a built-in DSP processor with Bluetooth v.4 control through an iOS or Android app. The app provides wireless control over the speaker's 5-band parametric EQ, saving and recalling presets, and adjusting the master volume.

  A push button on the back of the speaker allows you to physically switch between four different modes: Main, Monitor, Speech, and Sub for when incorporating a dedicated subwoofer. Additional controls include a button for engaging the built-in EQ, disabling the speaker's front LED indicator light, and configuring Bluetooth control.

  The speaker is designed to work in a variety of configurations including on its side as a floor monitor, vertically as a floor monitor, suspended from above, placed on a tripod stand, placed on a pole mount on top of a subwoofer, or stacked on top of one another using their molded index feet.
  Image Control Waveguide
  • Delivers consistent treble and mid frequencies throughout the speaker's 110 x 60° coverage pattern
  Bass-Reflex Design
  • Extends low-frequency response
  Bluetooth V4.0 Controllable DSP
  • Enables wireless control of 5-band parametric EQ, master volume, and saving and recalling user presets
  XLR Loop-Thru
  • Enables routing the signal to additional EON600 speakers
  UPC: 050036904797
• JBL BAGS EON610-CVR 5 mm Padding/Water Resistant/ Cover for EON610 (Black) The black EON610-CVR from JBL Professional is a nylon, water resistant, 5 mm padded cover for the EON610 speaker. It is used to keep out dust, dirt, and help prevent dents and dings during transport. It features a durable 600-D nylon outer fabric and is padded with protective foam layer and a soft tricot lining. Handle cut-outs provide access to the built-in cabinet handles. A printed JBL Professional logo is on the front panel. The cover is designed to fit one EON610 Speaker. UPC: 716408537702
• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304

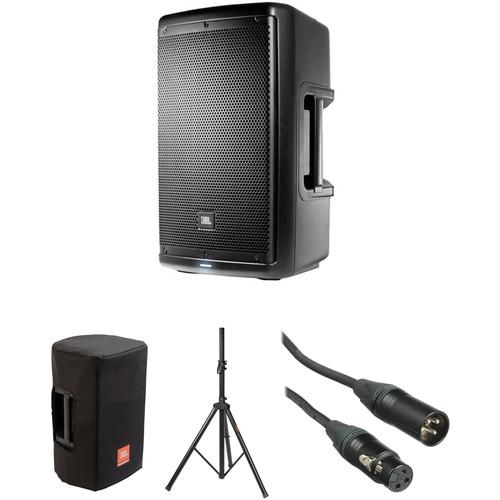

• EON610 - 10" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker etfcteyfu
• Power Cord
• Limited 1-Year Warranty

• JBL BAGS - EON610-CVR 5 mm Padding/Water Resistant/ Cover for EON610 (Black)

• Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• JBL EON610 - 10" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker

  Configuration	Passive 2-Way
  Enclosure Type	Bass-Reflex Loudspeaker
  Total Power Capacity	1000 W Peak 500 W RMS
  Amplifier Power Rating	LF: 700 W Peak 350 W RMS HF: 300 W Peak 150 W RMS
  Amplifier Class	Class-D

  LF Driver	1 x 10" / 254 mm Woofer

  Frequency Range	52 Hz to 20 kHz -10 dB
  Frequency Response	60 Hz to 20 kHz ±3 dB
  Maximum SPL	124 dB
  Coverage Angle	110° H x 60° V

  Audio I/O	2 x Combo XLR / 1/4" 1 x XLR Thru

  Parametric EQ	Yes

  Dimensions	22.0 x 12.7 x 11.6" / 55.8 x 32.2 x 29.5 cm
  Weight	26 lb / 11.7 kg

  Box Dimensions (LxWxH)	25.0 x 15.0 x 13.0"

• JBL BAGS EON610-CVR 5 mm Padding/Water Resistant/ Cover for EON610 (Black)

  Type

  Bag

  Box Dimensions (LxWxH)	25.0 x 17.6 x 3.4"

• Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)

  Type	Speaker Stand
  Mount Size	1-3/8"
  Height Adjustment Range	50 to 75" / 1.27 to 1.9 m
  Material of Construction	Steel
  Base Spread	54" / 137 cm
  Weight	6.2 lb / 2.8 kg

  Box Dimensions (LxWxH)	40.0 x 5.0 x 5.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"
