Product description The JBL EON612 is a two-way 1000 W peak Class-D amplifier driven live sound reinforcement speaker that combines a wave-guided, high-frequency driver with a 12" woofer in a bass-reflex cabinet for greater low-frequency extension. The speaker was designed from the ground up by JBL engineers to leverage the latest advancements in cabinet materials, acoustic science, transducer design, and integrated Bluetooth controllable DSP.

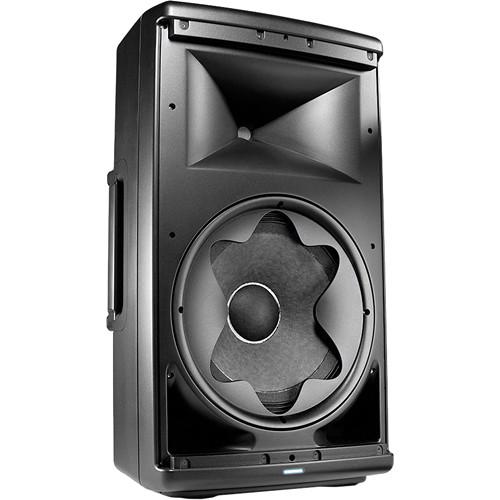

The combination of the 300W peak powered wave-guided high-frequency transducer and the 700W peak powered 12" woofer with bass-reflex ports delivers a frequency range of 48 Hz to 20 kHz at -10 dB and a frequency response of 57 Hz to 20 kHz at +3 dB over a 100 x 60° coverage pattern with a Max SPL output of 126 dB for a wide range of applications. The coverage pattern of the Image Control Waveguide is designed to match the high frequencies, crossover point, and low frequencies to deliver a more consistent on-axis and off-axis response. This allows the speaker to sound the same to members of the audience throughout the coverage pattern.
Inputs are provided on dual combination mic or line XLR-1/4" input connectors with individual signal gain knobs and a master volume knob for the overall level. An XLR loop-thru allows you to route the signal to additional EON600 series speakers.
To enable fine tuning of the speaker in different acoustic environments, the speaker includes a built in DSP processor with Bluetooth v.4 control through an iOS or Android app. The app provides wireless control over the speaker's 5-band parametric EQ, saving and recalling presets, and adjusting the master volume.

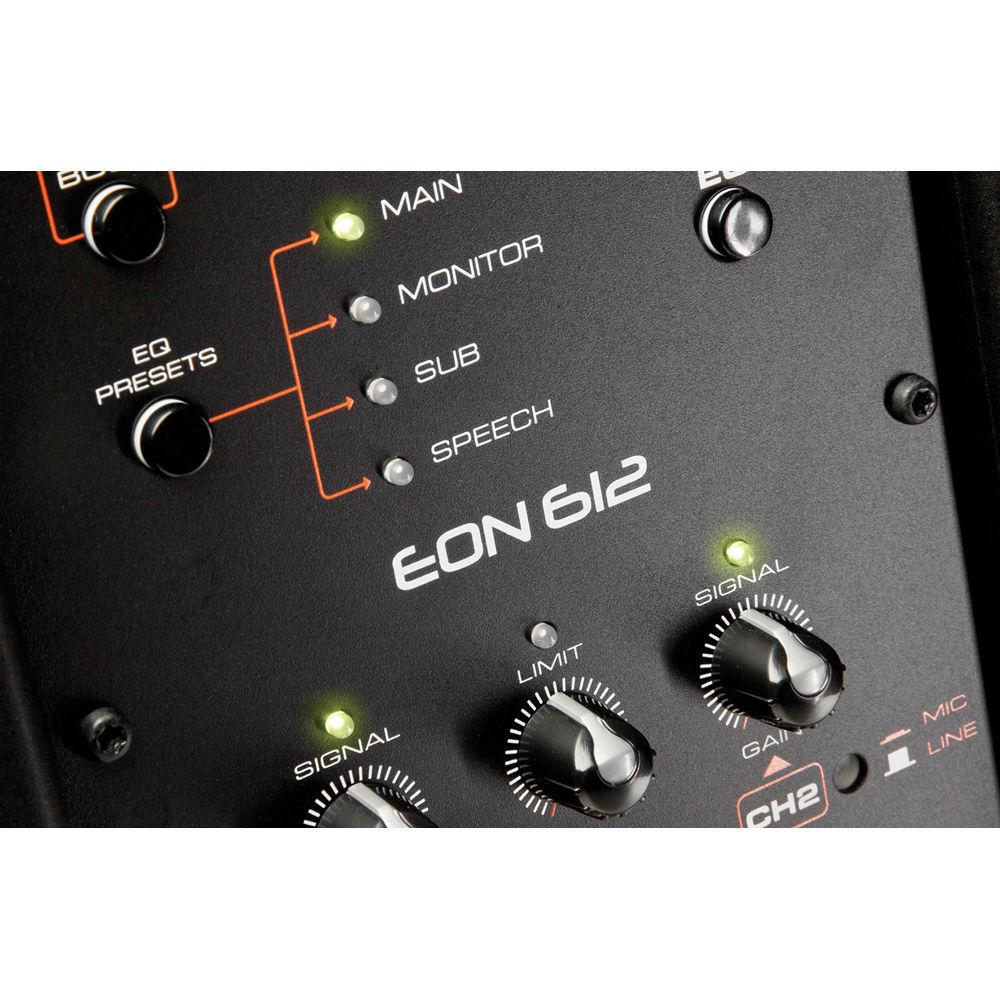

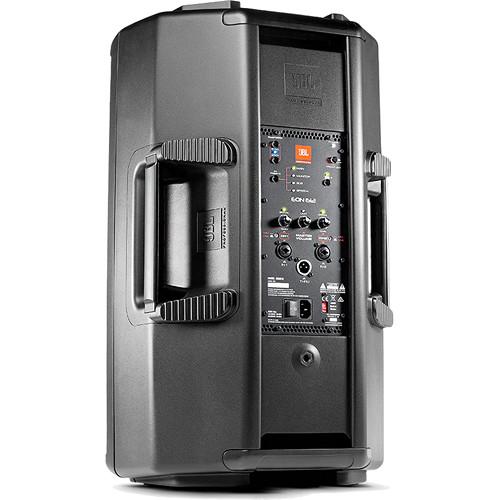

A single button on the back of the speaker allows you to physically switch between four different modes: Main, Monitor, Speech, and Sub for when incorporating a dedicated subwoofer. Additional controls include a button for engaging the built-in EQ, disabling the speaker's front LED indicator light, and configuring Bluetooth control.
The speaker is designed to work in a variety of configurations including on its side as a floor monitor, vertically as a floor monitor, suspended from above, placed on a tripod stand, placed on a pole mount on top of a subwoofer, or stacked on top of one another using their molded index feet. - Image Control Waveguide
- Delivers consistent treble and mid frequencies throughout the speaker's 100 x 60° coverage pattern
- Bass Reflex Design
- Extends low-frequency response
- Bluetooth V4.0 Controllable DSP
- Enables wireless control of 5-band parametric EQ, master volume, and saving and recalling user presets
- XLR Loop-Thru
- Enables routing the signal to additional EON600 series speakers
UPC: 050036904803 In the Box JBL EON612 - 12" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker Power Cord Limited 1-Year Warranty Guides & Manuals ayxqcfqeyxtttq Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON612 - 12" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL EON612 - 12" Two-Way Multipurpose Self-Powered Sound Reinforcement Speaker can be downloaded in PDF format at the link stated below.
Technical parametersJBL EON612 Specs | | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 1000 W Peak
500 W RMS | | Amplifier Power Rating | LF:
700 W Peak
350 W RMS
HF:
300 W Peak
150 W RMS | | Amplifier Class | Class-D | | | | LF Driver | 1 x 12" / 30.4 cm Woofer | | | | Frequency Range | 48 Hz to 20 kHz -10 dB | | Frequency Response | 57 Hz to 20 kHz ±3 dB | | Maximum SPL | 126 dB | | Coverage Angle | 100° H x 60° V | | | | Audio I/O | 2 x Combo XLR / 1/4"
1 x XLR Thru | | | | Dimensions | 26.1 x 15.0 x 12.4" / 66.4 x 38.0 x 31.6 cm | | Weight | 33 lb / 15 kg | | | | Package Weight | 39.2 lb | | Box Dimensions (LxWxH) | 29.0 x 16.0 x 14.0" |
