User Manual for JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control Click to enlarge the picture
Contents of the user manual for the JBL EON615 - 1000W 15" 2-Way
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL EON615 - 1000W 15" 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

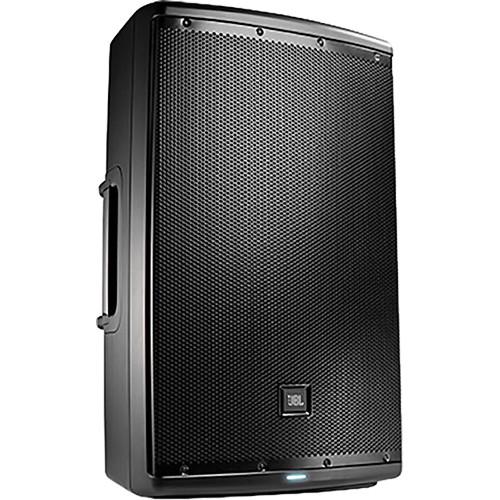

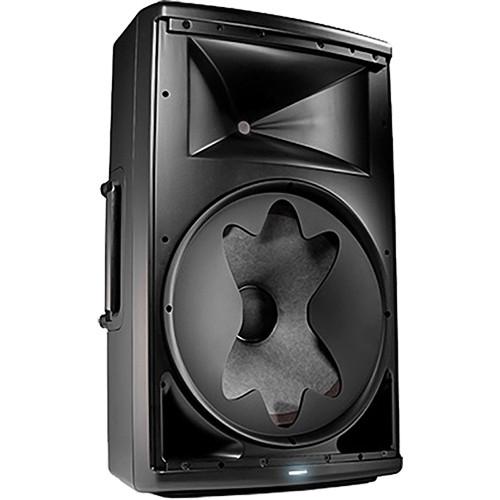

Product description The EON615 from JBL is a 15" two-way powered speaker system with 1000W of Class-D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. It works as a single speaker, in a stereo set up with another top cabinet and a subwoofer, as a floor-monitor, or in permanent install applications.
The speaker features onboard factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with an EON subwoofer. It also has a speech setting for increased vocal intelligibility in PA and announcement applications.

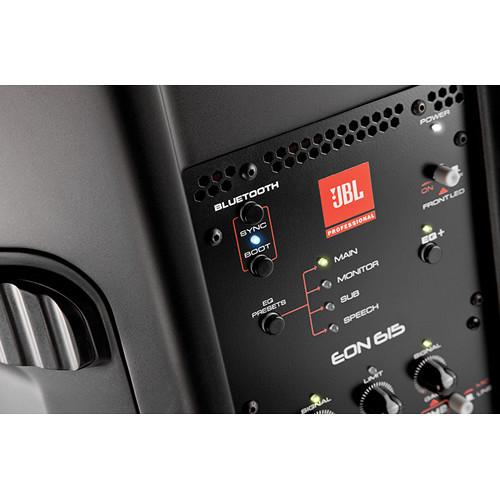

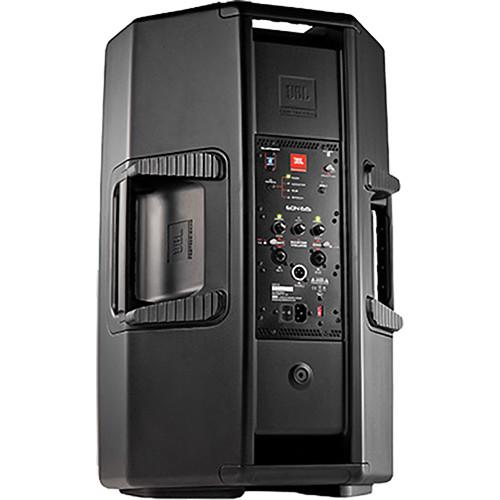

The rear panel provides XLR-1/4" combo inputs for each of the speaker's two channels, along with individual gain controls and signal presence LEDs. Both inputs are mic or line selectable and a master volume knob adjusts overall system level.
The EON615 also features an iOS and Android supported Bluetooth interface for controlling master volume, adjusting the parametric EQ, and saving and recalling user presets. - Features:
-
- Two-channel mixer with XLR-1/4” combination inputs
- Both inputs are mic or line selectable
- Convenient application EQ presets available from the back panel
- XLR loop-thru for routing signal to additional EON600 series speakers
- Configurations:
-
- Single speaker on a stand for public address
- Full-range stereo set up with two top cabinets and a subwoofer for live performance or DJ
- Floor monitor option for bands and performances
- Suspend cabinet for use in commercial installations or houses of worship
UPC: 050036904810 In the Box JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control Power Cable Limited 1-Year Warranty User Manual PDF 3.3mbbqwdtaybb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL EON615 Specs | | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 1000 W | | Amplifier Power Rating | 2 x 500 W | | Amplifier Class | Class-D | | | | LF Driver | 1 x 15" / 381 mm Woofer | | | | Frequency Range | 39 Hz to 20 kHz -10 dB | | Frequency Response | 50 Hz to 20 kHz ±3 dB | | Maximum SPL | 127 dB | | Coverage Angle | 90° H x 50° V | | | | Dimensions | 27.8 x 17.3 x 14.4" / 70.7 x 43.9 x 36.5 cm | | Weight | 39 lb / 17.7 kg | | | | Package Weight | 46.5 lb | | Box Dimensions (LxWxH) | 30.75 x 18.5 x 16.0" |
