JBL EON615 Powered Speaker Kit with

Search your instruction manual in PDF to download

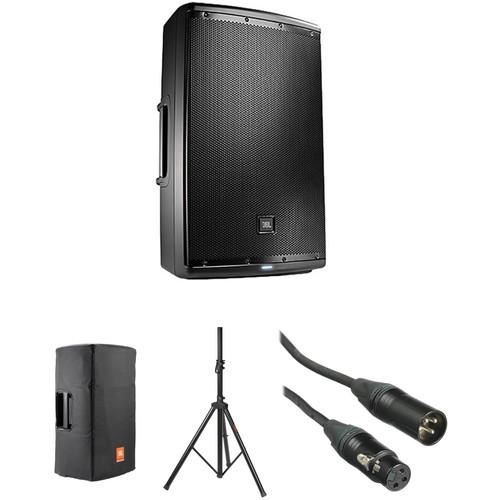

User Manual for JBL EON615 Powered Speaker Kit with Cover, Stand, and Cable

Click to enlarge the picture
JBL EON615 Powered Speaker Kit with Cover, Stand, and Cable Contents of the user manual for the JBL EON615 Powered Speaker Kit with
  • Product category: PA Speakers JBL
  • Brand: JBL
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for JBL PA Speakers

User manual for the JBL EON615 Powered Speaker Kit with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any JBL product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!



Product description

This B&H Kit combines the JBL EON615 - 1000W 15" 2-Way Powered Speaker System with a cover, speaker stand, and a high-quality XLR cable to create a complete portable PA package.
  • JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control The EON615 from JBL is a 15" two-way powered speaker system with 1000W of Class-D amplification and two input channels. Designed for high-quality audio reproduction, portability and flexibility, the EON615 can be used in a variety of configurations and scenarios. It works as a single speaker, in a stereo set up with another top cabinet and a subwoofer, as a floor-monitor, or in permanent install applications.

    The speaker features onboard factory EQ presets that allow you to set the system as a main house speaker, as a monitor speaker, or as a top speaker for use with an EON subwoofer. It also has a speech setting for increased vocal intelligibility in PA and announcement applications.

    The rear panel provides XLR-1/4" combo inputs for each of the speaker's two channels, along with individual gain controls and signal presence LEDs. Both inputs are mic or line selectable and a master volume knob adjusts overall system level.

    The EON615 also features an iOS and Android supported Bluetooth interface for controlling master volume, adjusting the parametric EQ, and saving and recalling user presets.
      Features:
      • Two-channel mixer with XLR-1/4” combination inputs
      • Both inputs are mic or line selectable
      • Convenient application EQ presets available from the back panel
      • XLR loop-thru for routing signal to additional EON600 series speakers
      Configurations:
      • Single speaker on a stand for public address
      • Full-range stereo set up with two top cabinets and a subwoofer for live performance or DJ
      • Floor monitor option for bands and performances
      • Suspend cabinet for use in commercial installations or houses of worship
    UPC: 050036904810
  • JBL BAGS EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black) The black EON615-CVR from JBL Professional is a nylon, water resistant, 5 mm padded cover for the EON615 speaker. It is used to keep out dust, dirt, and help prevent dents and dings during transport. It features a durable 600-D nylon outer fabric and is padded with protective foam layer and a soft tricot lining. Handle cut-outs provide access to the built-in cabinet handles. A printed JBL Professional logo is on the front panel. The cover is designed to fit one EON615 Speaker. UPC: 716408536620
  • Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single) This single Musicians Value C3 Series CS-SS3 Steel Speaker Stand is well suited for light-duty work in bars, clubs, hotels, houses of worship, and other venues where small PA systems are typically used. The stand fits speakers with standard 35mm sockets. Its height is adjustable from 50 to 75" and a metal pin keeps the shaft safely in place during use. The CS-SS3's steel construction and 54" tripod base provide a robust and stable support for your speaker. The stand easily folds for convenient transport and storage. UPC: 784887179744
  • Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

    Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
    • 95% dual-spiral shielding offers protection from EMI and RFI noise
    • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
    • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
    • Cotton yarn reduces electrostatic and microphonic noise
    • All solder points shrink-wrapped for protection
    • Neutrik XX silver connectors offer high conductivity
    • Caged type contact and improved ground contact
    UPC: 847628558304
In the Box
  • EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control cdyczxscsafbcdxfuayvudaxfrwrbwuvrqda
  • Power Cable
  • Limited 1-Year Warranty
  • JBL BAGS - EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black)
  • Musicians Value - C3 Series CS-SS3 Steel Speaker Stand (Single)
  • Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents




Upload User Manual

Have you got an user manual for the JBL EON615 Powered Speaker Kit with Cover, Stand, and Cable in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:


User manual for JBL EON615 Powered Speaker Kit with Cover, Stand, and Cable can be downloaded below, so the upload option is not active.


OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%

User manual for JBL EON615 Powered Speaker Kit with Cover, Stand, and Cable can be downloaded below, so the upload option is not active.

Download User Manual

The user manual for the JBL EON615 Powered Speaker Kit with Cover, Stand, and Cable can be downloaded in PDF format at the link stated below.
Download PDF user manual - JBL EON615 Powered Speaker Kit with Cover, Stand, and CableDownload PDF User Manual - https://www.search-manual.com/ upload/ jbl-eon615-powered-speaker-kit-with-cover-stand-and-cable-276356-user-manual.pdf
(PDF file, 0.85 MB)


Technical parameters

  • JBL EON615 - 1000W 15" 2-Way Powered Speaker System With Bluetooth Control
    Configuration Active 2-Way
    Enclosure Type Bass-Reflex Loudspeaker
    Total Power Capacity 1000 W
    Amplifier Power Rating 2 x 500 W
    Amplifier Class Class-D
    LF Driver 1 x 15" / 381 mm Woofer
    Frequency Range 39 Hz to 20 kHz -10 dB
    Frequency Response 50 Hz to 20 kHz ±3 dB
    Maximum SPL 127 dB
    Coverage Angle 90° H x 50° V
    Dimensions 27.8 x 17.3 x 14.4" / 70.7 x 43.9 x 36.5 cm
    Weight 39 lb / 17.7 kg
    Box Dimensions (LxWxH) 30.75 x 18.5 x 16.0"
  • JBL BAGS EON615-CVR 5 mm Padding/Water Resistant/ Cover for EON615 (Black)
    Type Cover
    Box Dimensions (LxWxH) 18.1 x 15.2 x 3.6"
  • Musicians Value C3 Series CS-SS3 Steel Speaker Stand (Single)
    Type Speaker Stand
    Mount Size 1-3/8"
    Height Adjustment Range 50 to 75" / 1.27 to 1.9 m
    Material of Construction Steel
    Base Spread 54" / 137 cm
    Weight 6.2 lb / 2.8 kg
    Box Dimensions (LxWxH) 40.0 x 5.0 x 5.0"
  • Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
    Connector 1 3-Pin XLR Male
    Connector 2 3-Pin XLR Female
    Cable Length 20' / 6.1 m
    Shielding 95% Spiral
    Wire Gauge 24 AWG
    Contact Plating Silver
    Box Dimensions (LxWxH) 8.6 x 7.0 x 0.4"
