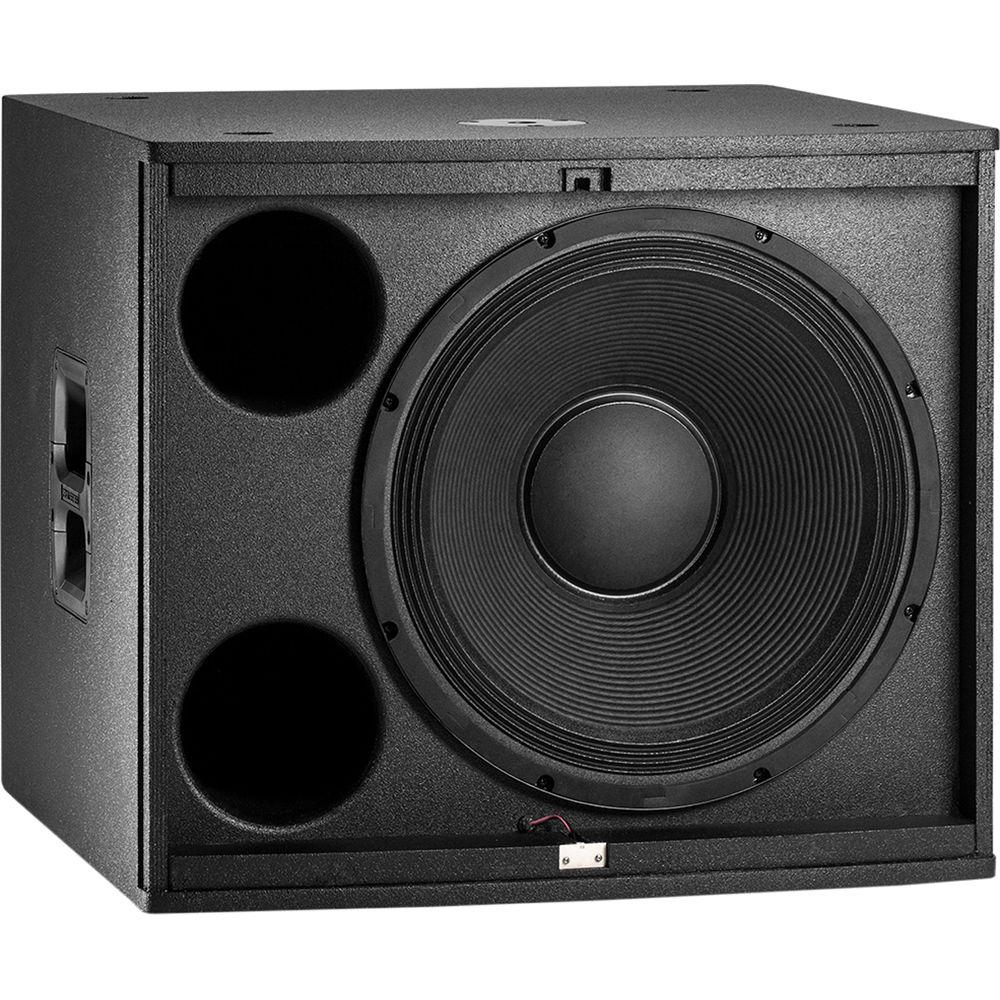

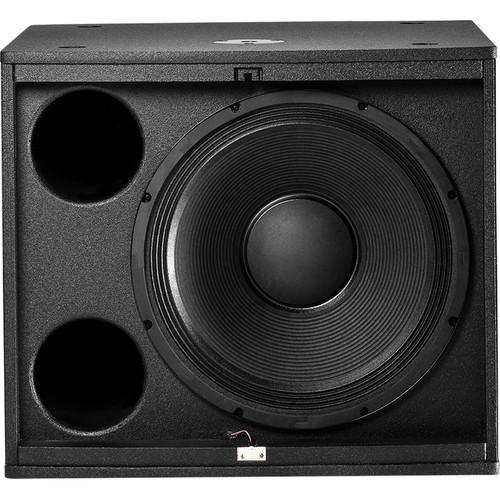

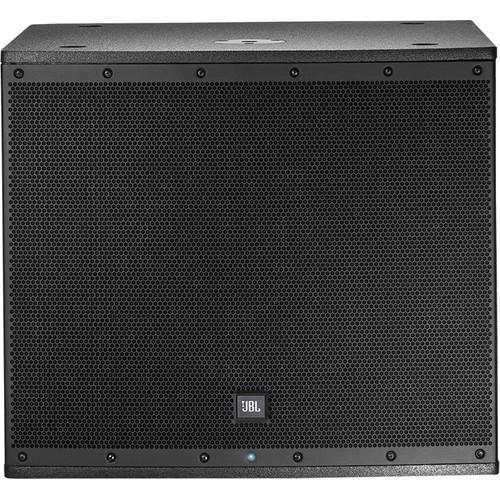

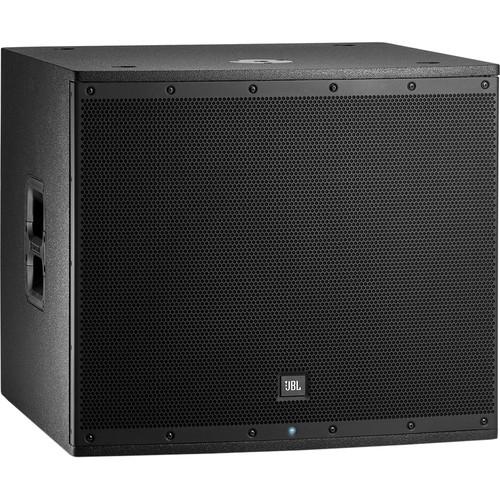

User Manual for JBL EON618S 18" Powered Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL EON618S 18" Powered Subwoofer
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL EON618S 18" Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The EON618S from JBL is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver high-quality sound reproduction in a variety of applications supporting EON600 and other full-range systems. A lightweight, durable enclosure allows the speaker to be easily transported and set up wherever low-frequency reinforcement is needed. -
- 1000W Class-D amplification
- Maximum SPL Output: 134 dB
- Frequency Range (-10 dB): 31 to 150 Hz
- Frequency Response (- 3 dB): 42.5 to 150 Hz
- Bluetooth control
- 3 Parametric EQs + Hi & Lo Shelf
- Gain and Delay
- Save and Recall settings
- Polarity inversion
- Crossover Presets: 80, 100, 120 Hz
- M20 pole cup
- Rugged, stage-ready Duraflex enclosure
UPC: 691991003875 In the Box JBL EON618S 18" Powered Subwoofer Power Cable Limited 5-Year Warranty on Speaker Limited 3-Year Warranty on Amplifier Limited 2-Year Warranty on Cabinet User Manual PDF 3.9mbwtbcquxv Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON618S 18" Powered Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL EON618S Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W Peak
500 W RMS | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 2" / 5.1 cm | | | | Frequency Range | 31 Hz to 150 Hz -10 dB | | Frequency Response | 42.5 Hz to 150 Hz ±3 dB | | Maximum SPL | 134 dB | | Gain Range | Line Input:
0 to 36 dBu | | I/O Impedance | Input:

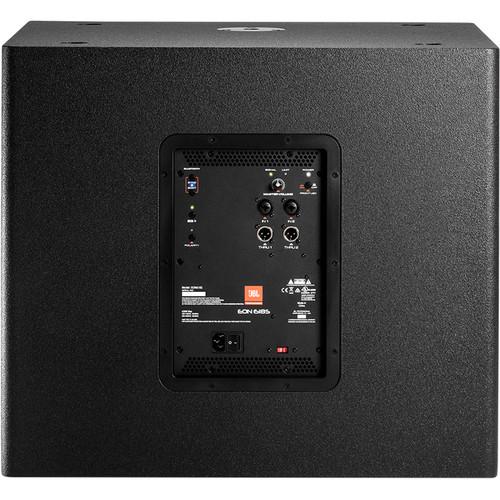

22 kOhms (Balanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x XLR Male Thru/Output | | | | Crossover | 80 to 120 Hz Selectable at 80, 100, or 120 Hz | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
230 to 240 VAC, 50 / 60 Hz | | Current Consumption | 1.14 A (Max, 1/8 Power)
1.71 A (Max, 1/4 Power)
2.03 A (Max, 1/3 Power) | | | | Mounting | 1 x M20 (Top) | | Handles | 2 | | Cooling | Convection | | Construction Material | Perforated Metal Grille, Wood | | Dimensions | 22.9 x 26.3 x 25.4" / 582.0 x 668.0 x 645.0 mm | | Weight | 72 lb / 35.5 kg | | | | Package Weight | 90.2 lb | | Box Dimensions (LxWxH) | 31.0 x 30.0 x 24.0" |
