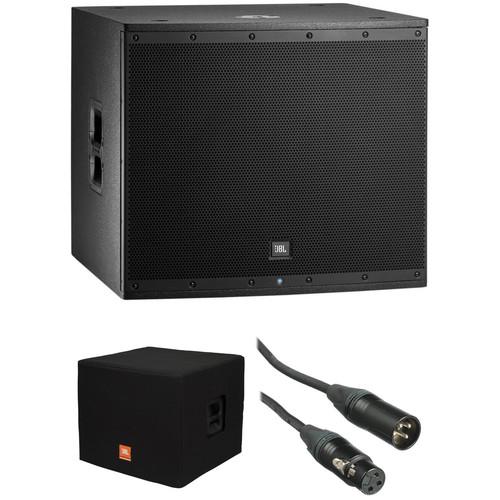

User Manual for JBL EON618S Powered Subwoofer Kit with Padded Cover and XLR Cable Click to enlarge the picture
Contents of the user manual for the JBL EON618S Powered Subwoofer Kit with
- Product category: Portable PA Systems JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Portable PA Systems
|
User manual for the JBL EON618S Powered Subwoofer Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More zzyqybsrzbzbbtv This B&H Kit combines the JBL EON618S Powered Subwoofer with a padded cover and a premium XLR cable to provide a mobile sound reinforcement package for DJs, bands, public address events, churches, schools, and more. - JBL EON618S 18" Powered Subwoofer The EON618S from JBL is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver high-quality sound reproduction in a variety of applications supporting EON600 and other full-range systems. A lightweight, durable enclosure allows the speaker to be easily transported and set up wherever low-frequency reinforcement is needed.
-
- 1000W Class-D amplification
- Maximum SPL Output: 134 dB
- Frequency Range (-10 dB): 31 to 150 Hz
- Frequency Response (- 3 dB): 42.5 to 150 Hz
- Bluetooth control
- 3 Parametric EQs + Hi & Lo Shelf
- Gain and Delay
- Save and Recall settings
- Polarity inversion
- Crossover Presets: 80, 100, 120 Hz
- M20 pole cup
- Rugged, stage-ready Duraflex enclosure
UPC: 691991003875 - JBL BAGS Deluxe Padded Cover for EON618S The black Deluxe Padded Cover for EON618S from JBL is a water-resistant 600-D nylon cover with handle-access openings and a 10mm padded protective foam-layer interior. It can be used to protect the speaker from dust and dirt during storage and the bumps and bruises during transportation. There is a printed JBL logo on the front panel. UPC: 716408539836
- Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - EON618S 18" Powered Subwoofer zzyqybsrzbzbbtv
- Power Cable
- Limited 5-Year Warranty on Speaker
- Limited 3-Year Warranty on Amplifier
- Limited 2-Year Warranty on Cabinet
- JBL BAGS - Deluxe Padded Cover for EON618S
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL EON618S Powered Subwoofer Kit with Padded Cover and XLR Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JBL EON618S 18" Powered Subwoofer
| | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W Peak
500 W RMS | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | LF Voice Coil | 2" / 5.1 cm | | | | Frequency Range | 31 Hz to 150 Hz -10 dB | | Frequency Response | 42.5 Hz to 150 Hz ±3 dB | | Maximum SPL | 134 dB | | Gain Range | Line Input:
0 to 36 dBu | | I/O Impedance | Input:
22 kOhms (Balanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x XLR Male Thru/Output | | | | Crossover | 80 to 120 Hz Selectable at 80, 100, or 120 Hz | | | | AC Input Power | 100 to 120 VAC, 50 / 60 Hz
230 to 240 VAC, 50 / 60 Hz | | Current Consumption | 1.14 A (Max, 1/8 Power)
1.71 A (Max, 1/4 Power)
2.03 A (Max, 1/3 Power) | | | | Mounting | 1 x M20 (Top) | | Handles | 2 | | Cooling | Convection | | Construction Material | Perforated Metal Grille, Wood | | Dimensions | 22.9 x 26.3 x 25.4" / 582.0 x 668.0 x 645.0 mm | | Weight | 72 lb / 35.5 kg | | | | Box Dimensions (LxWxH) | 31.0 x 30.0 x 24.0" | - JBL BAGS Deluxe Padded Cover for EON618S
| | | Box Dimensions (LxWxH) | 26.4 x 22.5 x 3.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
