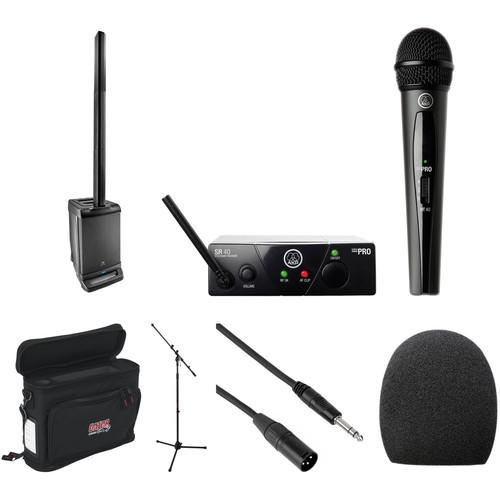

Product description Be Heard with JBL Compact and Portable Linear-Array PA Systems Read More This B&H Kit combines the JBL EON ONE All-In-One Linear Array PA System with a handheld wireless microphone, a wireless mic carrying case, a mic stand, a premium XLR to 1/4" cable, and a foam windscreen to create a portable PA system well suited for on-the-go performances. - JBL EON ONE All-In-One Linear Array PA System The EON ONE from JBL is an all-in-one compact PA system that delivers professional-quality audio for live performances, meetings, conferences, and more. The base unit houses the 380W amplifier, 10" unobstructed subwoofer, and the 6-channel mixer. The high-frequency element features patent-pending Directivity Control Geometry, which optimizes the spacing and angles of the six high-frequency drivers to create a remarkable front-to-back coverage.
Channels 1 & 2 on the mixer offer XLR-1/4" connectors with dedicated treble, bass, and reverb controls. Channels 3 & 4 offer stereo 1/4" inputs or stereo RCA inputs while channels 5 & 6 offer a stereo 3.5mm input for connecting portable music players. Additionally, channels 5 & 6 offer Bluetooth audio streaming. The mixer also features a stereo RCA output monitor for connecting to additional speakers, recording devices, or other outboard gear.
The EON ONE includes two spacers allowing for three position configurations and further expanding the systems flexibility. The HF element and two spacers conveniently pack away into the base unit, which can be carried by one hand. An optional EON ONE bag is available, which includes wheels to aid in transporting the unit and provides protection from bumps and scratches. The EON ONE ships with the two spacers and a power cord. -
- Professional sound quality
- Patent-pending linear-array configuration (6 x 2” HF drivers) offers even sound coverage
- Unobstructed 10” bass-reflex subwoofer for accurate low-frequency response
- Bluetooth connectivity for streaming audio from your mobile device
- Powerful 6-channel mixer with easy-to-use controls
- Reverb for mic/line inputs (channel 1-2)
- 380 watts of power, 118 dB max SPL for clear, detailed audio
- Carry the entire system with one hand, set up in seconds
- Perfect for live music, conferences, events, and more
- 3 listening positions for different environments
UPC: 691991004704 - AKG WMS40 Mini Single Vocal Set Wireless Microphone System (Band: D) The band D WMS40 Mini Single Vocal Set Wireless Microphone System from AKG features a single-channel SR40 Mini receiver and an HT40 Mini handheld transmitter, and is a true plug and play wireless solution. It provides clear audio sound and can be used to capture audio in several environments for applications such as live stage, rehearsals, conferences, and more. The included HT40 handheld transmitter features a dynamic cardioid capsule for maximum gain before feedback. The SR40 receiver has a balanced 1/4" output connector, which connects to your mixer or amplifier. The WMS40 is a fixed frequency system and has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation. A universal power supply is also included. UPC: 885038039006
- Gator Cases GM-1W Wireless Mobile Pack The Gator Cases GM-1W Wireless Mobile Pack (Black) is a 600 denier nylon case with interior padding. It is designed to carry and protect an entire single wireless system. The zippered case reveals sufficient space for lavalier microphones, cables and accessories. The foam padded interior protects the gear from shock while remaining lightweight and rugged. The receiver is functional while still in the bag. The front and back unzip for easy access. The bag is carried by a removable, adjustable shoulder strap and padded carrying handles.
- Construction
-
- 600 denier nylon
- Foam padded interior
- Zipper closure
- Access for antenna to be extended while in the case
- Space for lavalieres, cables and wireless mic with transporter
- Mounted front and rear access unzips for easy set up in the field
- Carrying options
-
- Removable, adjustable shoulder strap
- Padded carrying handles
- Compatible with most single microphone wireless systems
UPC: 716408503424 - Auray MS-5230T Tripod Microphone Stand with Telescoping Boom The Auray MS-5230T Tripod Microphone Stand with Telescoping Boom features durable, steel construction. The telescoping boom arm is adjustable from 19.3 to 33.9" in length, allowing you to angle and extend the mic placement however you need it. An ergonomic twist-action clutch helps adjust the height of the stand, while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230T mic stand collapses for easy transport. UPC: 847628015593
- Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 6' (1.8 m) The Pearstone PM Series 1/4" TRS M to XLR M Professional Interconnect Cable (6') is ideal for audio applications in which a device with an XLR input needs to be connected to a device with a balanced 1/4" output. Typical scenarios include connecting the output of a mixing board or audio interface to a powered speaker, or using an aux send to route signal to an outboard effects processor.
The cable is equipped with 24-gauge oxygen-free copper conductors and spiral shielding to protect against EMI and RFI noise. The professional-grade cast-zinc Rean XLR connector is field serviceable and features silver-plated contacts, while the Rean 1/4" TRS connector features a molded design for maximum strain relief. The twin conductive PVC shield reduces electrostatic noise, and distinguishes the PM series as the best value in its class. - Professional quality, field-serviceable, cast-zinc Rean connectors with silver-plated contacts
- Twin conductive PVC shield reduces electrostatic noise
- 24-gauge oxygen-free copper conductors
- Spiral shielding to protect against EMI and RFI noise
UPC: 847628574793 - Auray WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) The black Auray WHF Series Foam Windscreens are designed to reduce unwanted broadband wind noise and vocal pops with minimal high frequency loss. This WHF-158 Foam Windscreen is designed for use with many common handheld microphones with a 1-5/8" diameter head. The density of the specialty acoustic foam is optimized to help protect the microphone element from air bursts without muffling the sound. When used on a handheld microphone, this windscreen is effective in minimizing wind noise and plosive sounds. It is most effective in calm to light breeze conditions (0-7mph), and can be used indoors for protection against drafts caused by air-conditioners. Users can generally expect a 4dB to 8dB reduction in wind noise, with very slight dampening of high frequencies. For most applications, the very slight high frequency dampening is a worthwhile exchange for the notable wind noise reduction. The WHF-158's foam is hypoallergenic and washable and helps prevent moisture and dirt from damaging your microphone. The windscreen is designed to fit microphones from Shure, Electro-Voice, AKG, Audio-Technica, Audix, Beyerdynamic, Sennheiser, Neumann and others. The WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones is an effective solution for basic wind protection.
- Fits these and other similar-sized microphones:
-
- Shure SM58, Beta 58, Beta 87A, Beta 87C, PG58, PG48, SM48, SM96, VP88, SM87, SM53, SM54, PE85, PE86, BG3.0, PE15, PE75, 12a, 14A, 587, 587SB
- Electro-Voice RE50/B, BBK1, Co5, Co7, Co9, DS35, MC100, 150, 300, MT200, N/D200, N/D247, 257, 267, N/D357, 367, 457, 757, N/D767, PL50, PL60, PL70, PL77, PL80, RE11, RE16, RE18
- Sennheiser e825S, e865, MD21, 200, MD400, 425, 427, 429, MD511, 512, 515, 516, 735, MD736, ME65, MKE44, SKM3072, SKM5000, SKM100, SKM300, SKM500, SKP30
- Audio-Technica AE3300, 4100, 5400, 6100, ATM23, 25, 29, 31, 41, 61, ATM91, AT801, AT802, AT813, AT814, ATW7375, ATW-T602, MB1000, Pro-1a, Pro-2ax, Pro-3, Pro-4, Pro-5, Pro-10
- Audix OM-2, OM-3, OM-5, OM-6, OM-7, VX-10
- AKG C900, D40, D50, D60, D80, D90, D95, D125, D130, D190, D200, D310, D321, D330, D590, D770, D880, C535, CK4, D3700, D3800, D5900
- Beyerdynamic BM85, EM85, M01, M59, M69, M260, M300, M400, M500, MCE81, TGX-20, TGX-40, TGX-58, TGX-60, TGX-80
- Neumann KMS105, KMS140, KMS150
- Nady SP-1, SP-3, SP-4, SP-5, SP-9, SP10, WHT14, WHT15, UH10
- Peavey Celebrity, PAA250, PVM835, PVM880, PV, PVi
- Telex HT700, SH100, FMR150, FMR450, EN6100, H12E, VR12E
UPC: 847628562868 In the Box - EON ONE All-In-One Linear Array PA System ttdfdwzuxsr
- EON ONE Base
- Column Speaker Array
- 2 x Listening Height Spacers
- Power Cable
- Limited 5-Year Warranty on Speaker
- Limited 3-Year Warranty on Amplifier
- Limited 2-Year Warranty on Cabinet
- AKG - WMS40 Mini Single Vocal Set Wireless Microphone System (Band: D)
- Gator Cases - GM-1W Wireless Mobile Pack ttdfdwzuxsr
- Auray - MS-5230T Tripod Microphone Stand with Telescoping Boom
- Pearstone - PM Series 1/4" TRS M to XLR M Professional Interconnect Cable - 6' (1.8 m)
- Auray - WHF-158 Foam Windscreen for 1-5/8" Diameter Microphones (Black) ttdfdwzuxsr
