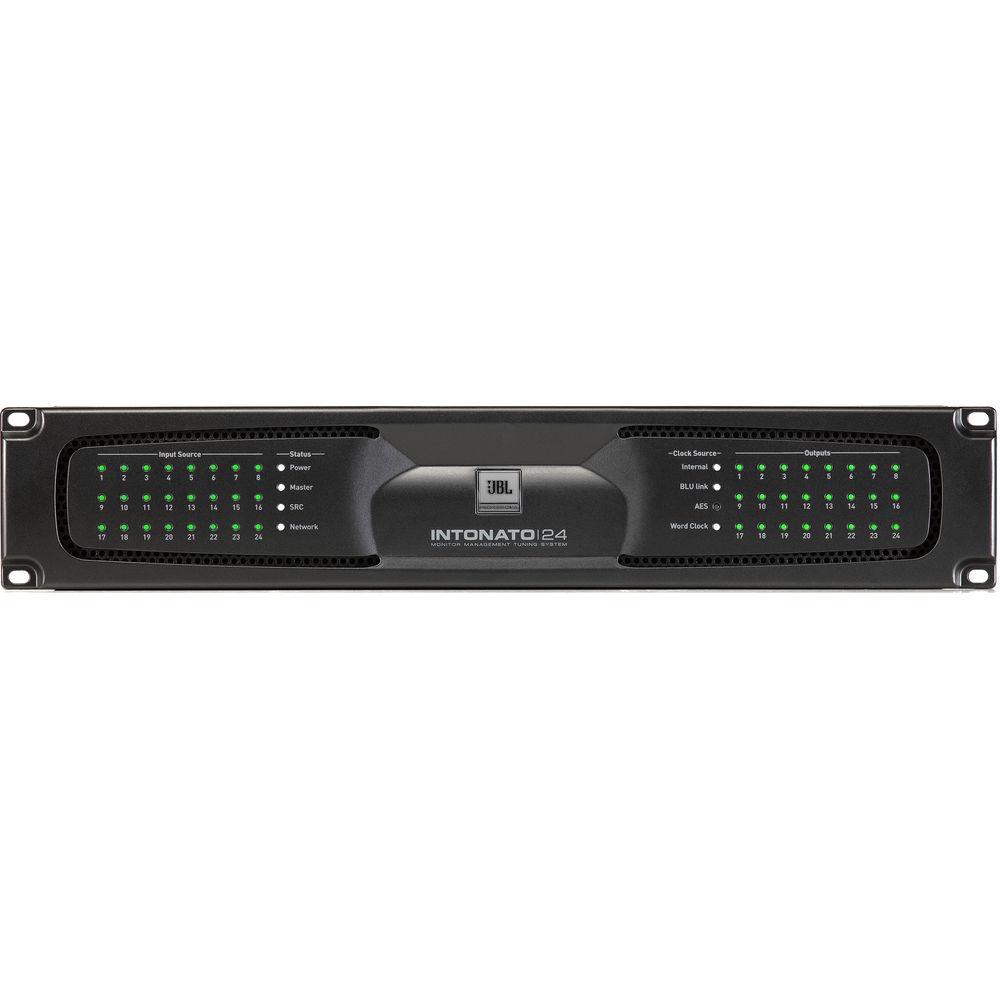

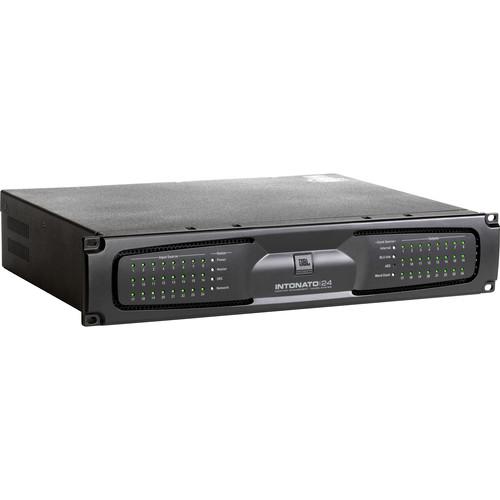

Product description The Intonato 24, 24-Channel Monitor Management Tuning System from JBL is a 2 RU, rackmount enclosure that provides automated calibration and control of professional monitoring systems. It can be used to precisely calibrate and control up to 24 speakers configured as stereo, surround, or immersive in audio applications for recording studios, post-production houses, and more. The Intonato 24 pairs with JBL 7 Series studio monitors and are designed for immersive audio production in control rooms of any size, but will work with any monitor speaker. Intonato 24 works with any passive or powered speaker. In addition, the HARMAN BLU link network protocol allows it to be digitally networked with Crown power amplifiers. Built with 24 analog inputs and outputs and 24 AES/EBU inputs on 25-pin D-Sub connectors, the monitor management tuning system requires breakout cables. Included software puts the system's monitoring features at your fingertips, and the separately available Desktop Controller provides tactile access to the key functions of the Intonato 24. The Intonato 24 features an automated speaker calibration process that "tunes" each speaker to compensate for speaker placement and room acoustics, delivering a neutral response to the mix position—even in less-than-ideal work spaces. - Compatible with all professional studio monitors
- Input connections for 24 analog, AES /EBU inputs; up to 256 channels of networked audio in HARMAN BLU link or Dante format (with optional BLUDAN interface)
- Software-controlled analog input sensitivity switches, level indicators, and gain trims
- Output connections include 24 analog outputs to powered speakers and power amplifiers; BLU link output allows networked connection to HARMAN Crown power amplifiers
- Selectively monitor via one or more monitoring systems of up to 24 speakers
- Volume, Mute, and Dim controls, plus individual speaker Mute and Solo options
- Automated Speaker Calibration with included microphone precisely balances, tunes, and aligns all speakers to deliver greater accuracy to the mix position in any room; 12 bands of room EQ, delay, and level per speaker
- Per-speaker, 8-band user EQ allows standard and customized response curves such as X-Curve and compensation for perforated screen transmission loss
- Sophisticated subwoofer integration for LFE channels and bass management
- Variable audio/video sync delay allows compensation for video display latency
- Stereo aux out with dedicated level control, EQ, and talk back system allows an independent feed to be sent to talent or a remote "green room"
- Create, store, and instantly recall project-specific configurations and speaker tunings

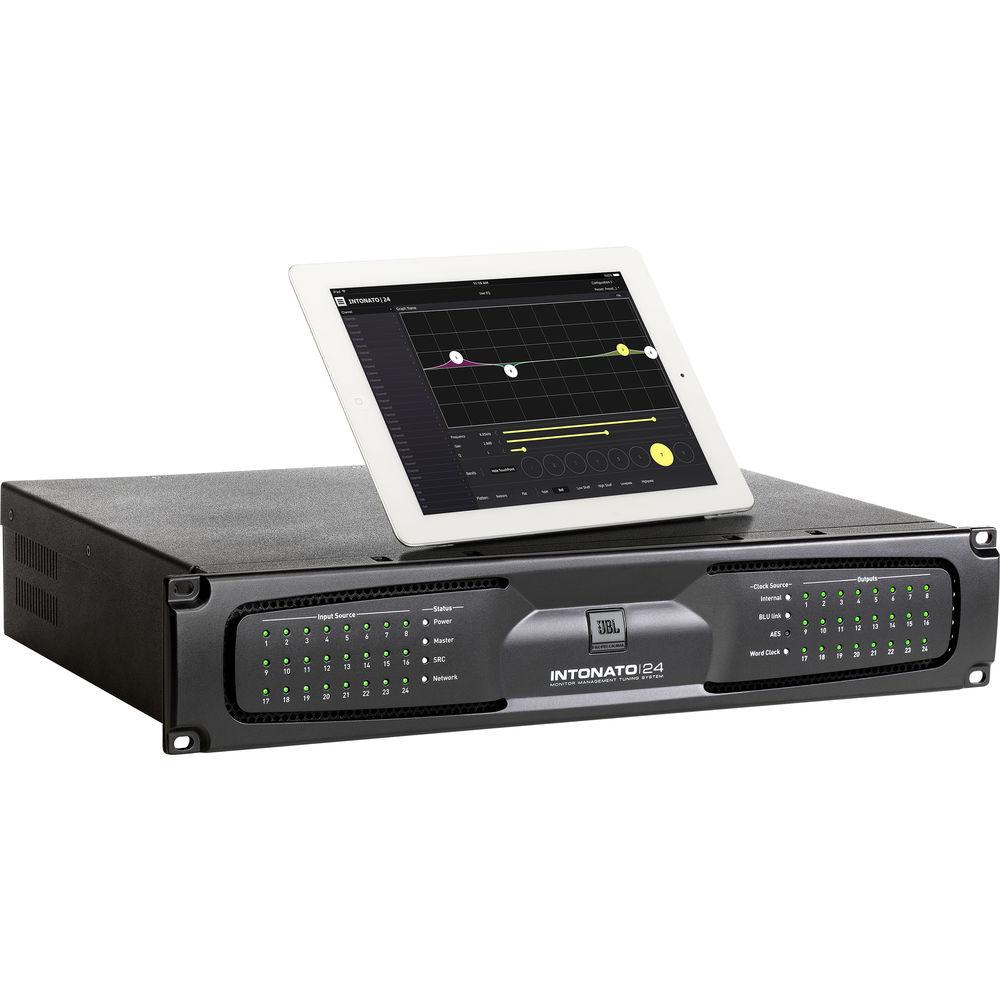

- Intuitive setup and control with included Macintosh, Windows, and iOS/Android tablet software or optional Intonato Desktop Controller
- Low-noise fan for quiet operation
UPC: 691991006197 In the Box JBL Intonato 24, 24-Channel Monitor Management Tuning System Microphone Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Intonato 24, 24-Channel Monitor Management Tuning System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL INTONATO24MX Specs | BLU Link Audio Connectors | 2 x RJ45 | | Latency | 11/Fs (0.23 ms @ 48 kbps, 0.11 ms @ 96 kbps)
Pass-Through Latency: 4/Fs (0.08 ms @ 48 kbps, 0.04 ms @ 96 kbps) | | Word Clock Input | 44.1, 48, 88.2, 96 kHz supported sample rate tolerance | | A/D Converter | 24-bit | | Dynamic Range | AD: 114 dB A-weighted
DA: 115 dB A-weighted | | DA Conversion | 24-bit | | Word Length | Internal Processing: 32-bit | | Supported Sample Rate | 44.1, 48, 88.2, 96 kHz; 32-192 kHz, sample-rate converters enabled | | Dynamic Range | 114 dB A-weighted
112 dB unweighted | | Total Harmonic Distortion (THD) + N | 0.007% typical at +4 dBu, 1 kHz, 0 dB input gain | | Frequency Response | 20 Hz to 20 kHz, +0 /- 0.5 dB | | Latency | AES In to Analog Out (96 kHz): 2.15 ms
BLU Link Input to BLU Link Output (96 kHz): 0.04 ms | | Speaker Tuning Presets | JBL 705i, 708i, and M2 | | Equalization | User: 8-band fully parametric EQ with selectable filter type
Room: 12-band fully parametric EQ | | Crossover Adjustment | Variable | | Speaker Output | Delay: Up to 18 ms per output channel for speaker time-of-arrival offset | | Synchronization | A/V Delay: Up to 150 ms (globally applied to all output channels except aux outputs | | AUX Outputs | Delay: Up to 150 ms | | Volume Control | Master: -120 dB to 0 dB
Dim: User adjustable, -120 dB to 0 dB | | Audio Output | Total Simultaneous Outputs: 24 analog outputs and 24 simultaneous BLU Link outputs

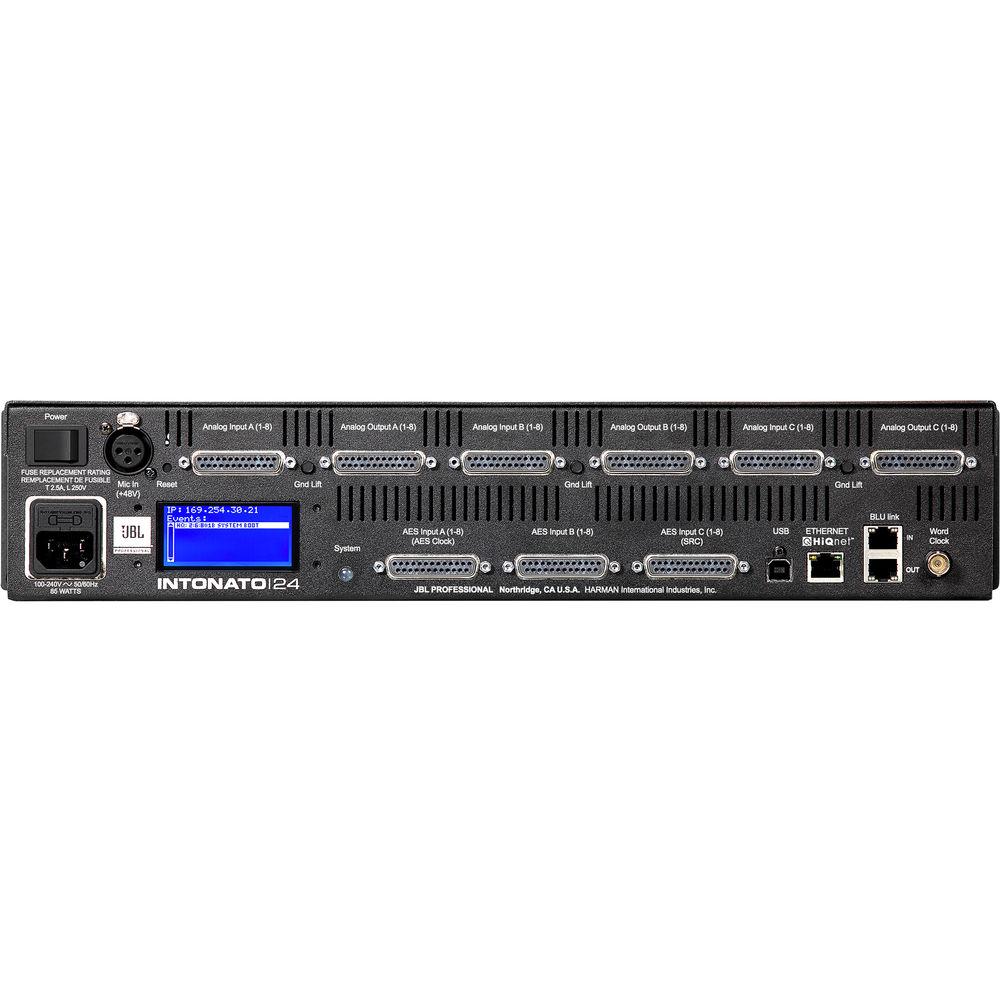

Connectors: 3 x female 25-pin D-Sub connectors
24 Balanced Analog Outputs: 3-pin female XLR
Max Output Level: +24 dBu, balanced, ≤ .006% THD | | Audio Input | Total Simultaneous Inputs: 24 (selectable among the available 24 analog, 24 AES3, and 24 BLU Link input channels)
Analog Input Connectors: 3 x female 25-pin D-Sub connectors
Type: Electronically balanced, RF filtered
Impedance: >48 kOhms balanced, >24 kOhms unbalanced
Input Sensitivity: Selectable in software per D-Sub connector
Max Input Level: +28 dBu, ≤0.008% THD CMRR
24 x AES3 Digital Inputs 8 Sample Rate Conversion: Selectable in software 1 calibration mic / talk back mic input
With Phantom Power: +48 VDC | | Rack Height | 2 RU | | Dimensions (H x D x W) | 3.5 x 13.8 x 19.0" / 8.9 x 34.9 x 48.3 cm | | Weight | Not specified by manufacturer |
