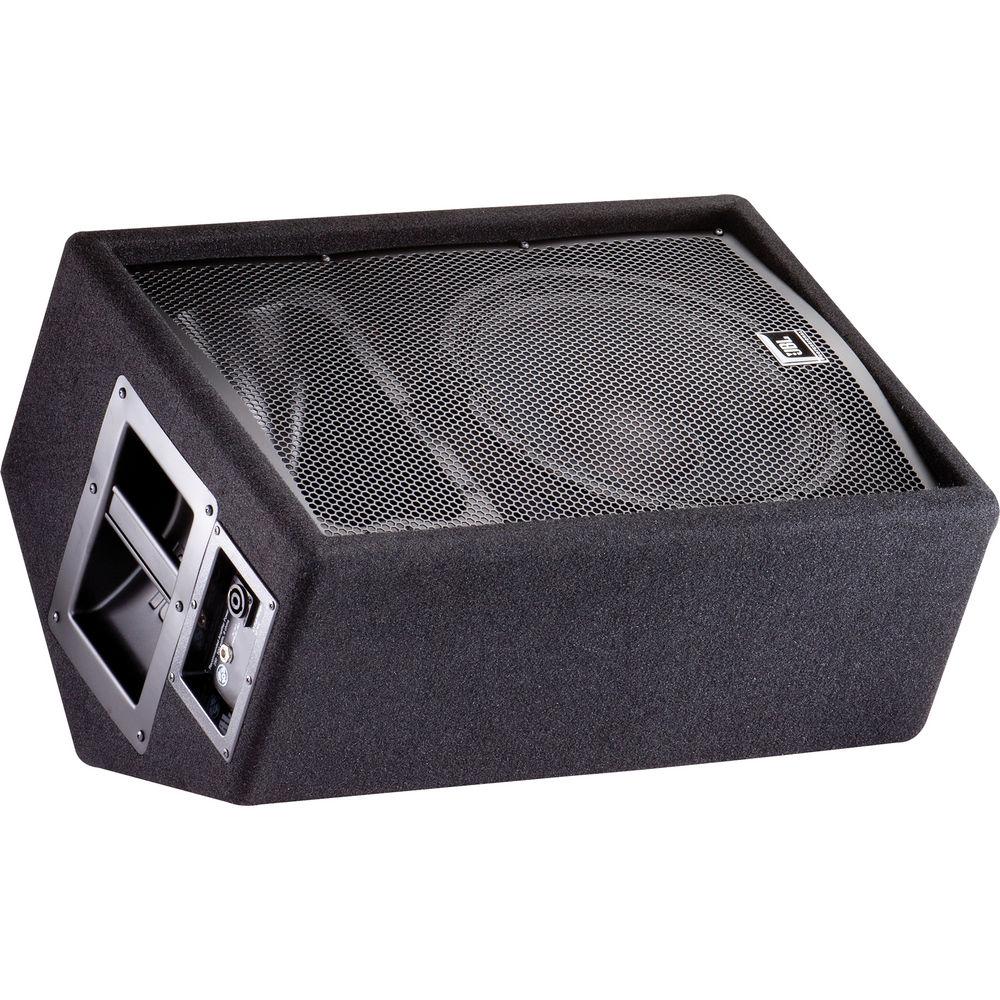

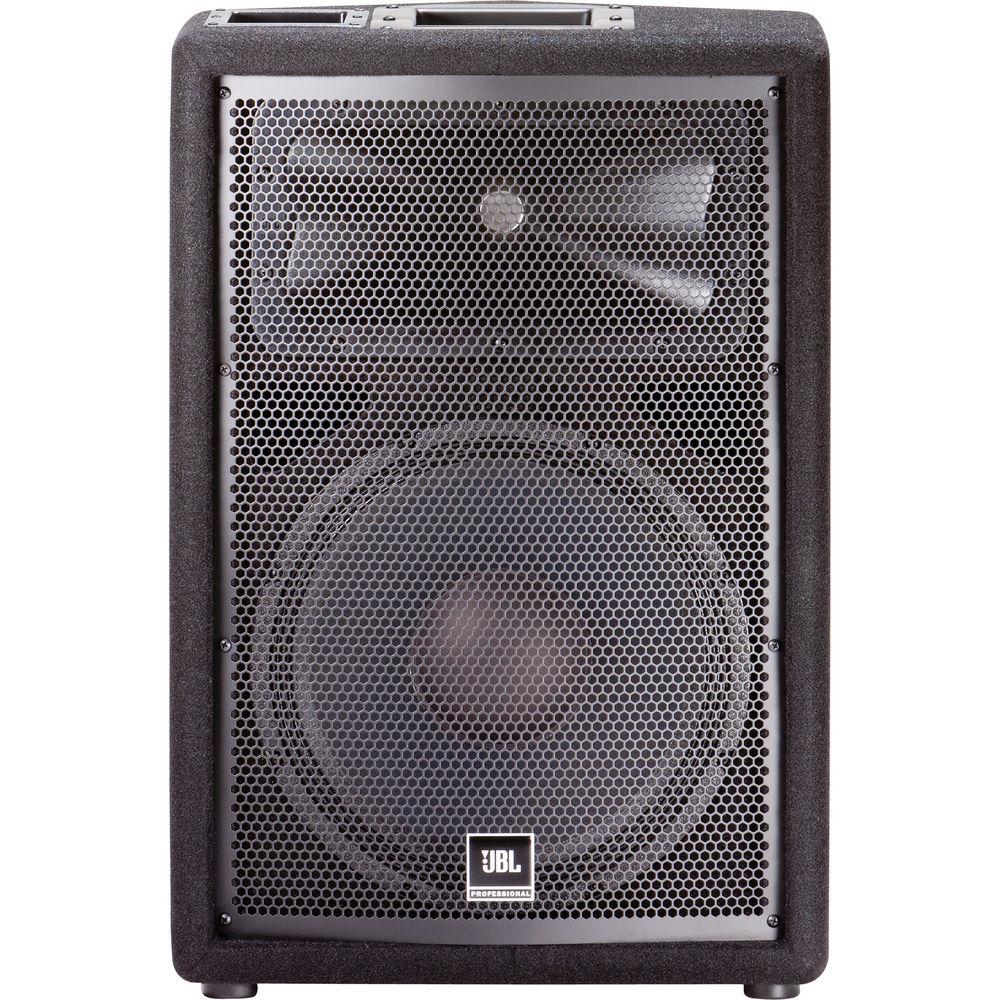

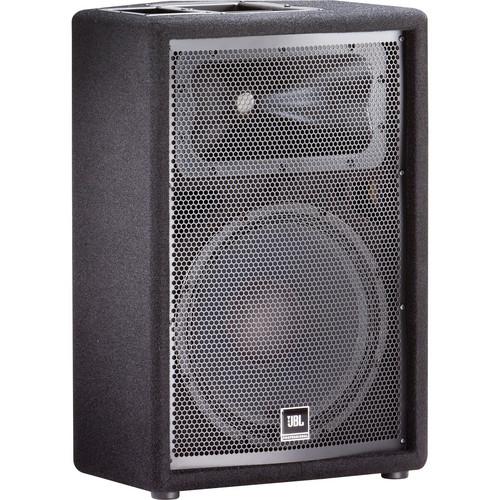

Product description The JRX212 from JBL is a two-way 12" loudspeaker system. It is suitable for live sound and speech reinforcement applications, and can also be used for monitoring on stage. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency range of 60 Hz to 20 kHz.

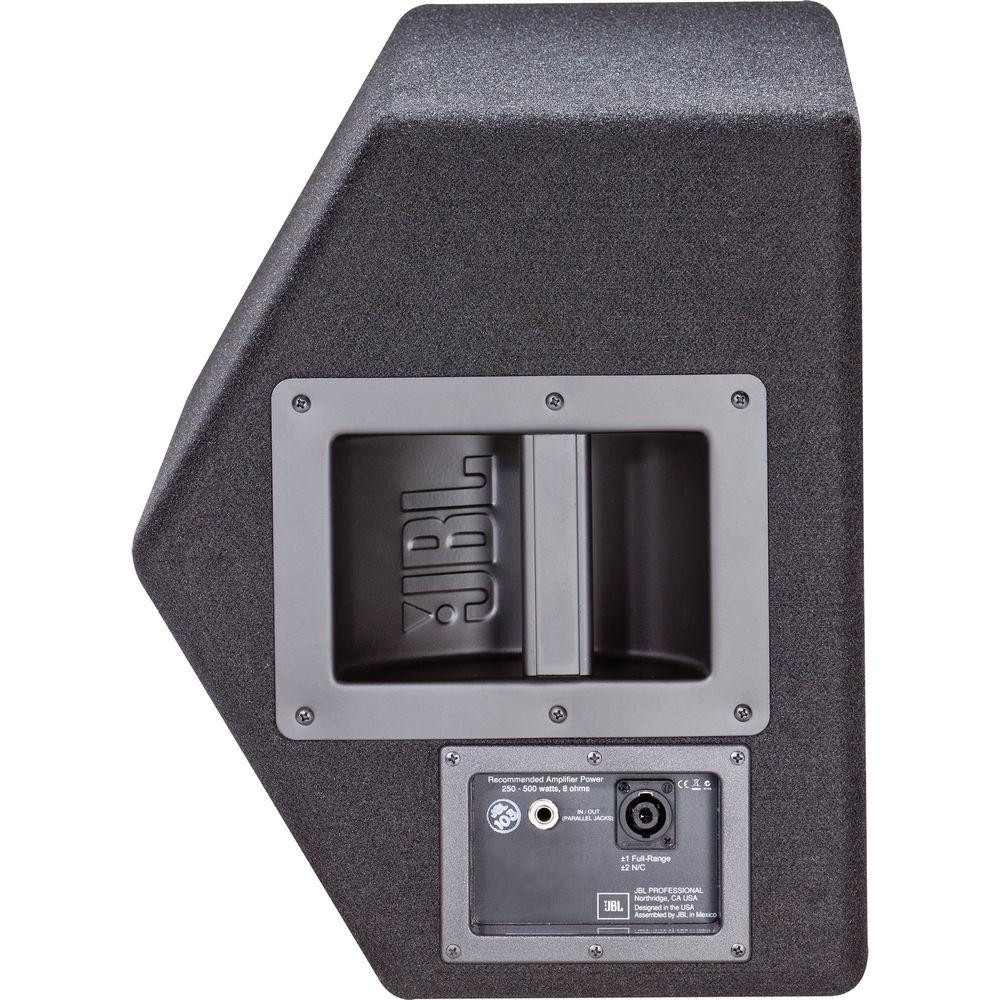

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the 43 lb speaker is easier to move around than if it had no handles at all. For connections, this loudspeaker sports 1/4" TS and Neutrik SpeakON terminations. - Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
- JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
- The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
- High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
- Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
- The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance
- SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
- Non-resonant, all-steel handles
- 18-gauge perforated, steel grille for protecting internal components from damage
- Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage
UPC: 050036904490 In the Box JBL JRX212 12" Two-Way Sound Reinforcement Loudspeaker System Limited 5-Year Warranty Spec sheet PDF 825.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL JRX212 12" Two-Way Sound Reinforcement Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL JRX212 Specs | | | Configuration | 2-Way | | Total Power Capacity | 250 W
1000 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 60 Hz to 20 kHz | | Maximum SPL | 128 dB | | Coverage Angle | 90° H x 50° V | | | | Audio I/O | 1 x speakON NL4 Input
1 x 1/4" TS Input | | | | Dimensions | 23.0 x 15.7 x 12.8" / 58.4 x 39.9 x 32.5 cm | | Weight | 43 lb / 19.5 kg | | | | Package Weight | 46.8 lb | | Box Dimensions (LxWxH) | 24.5 x 14.1 x 14.0" |
