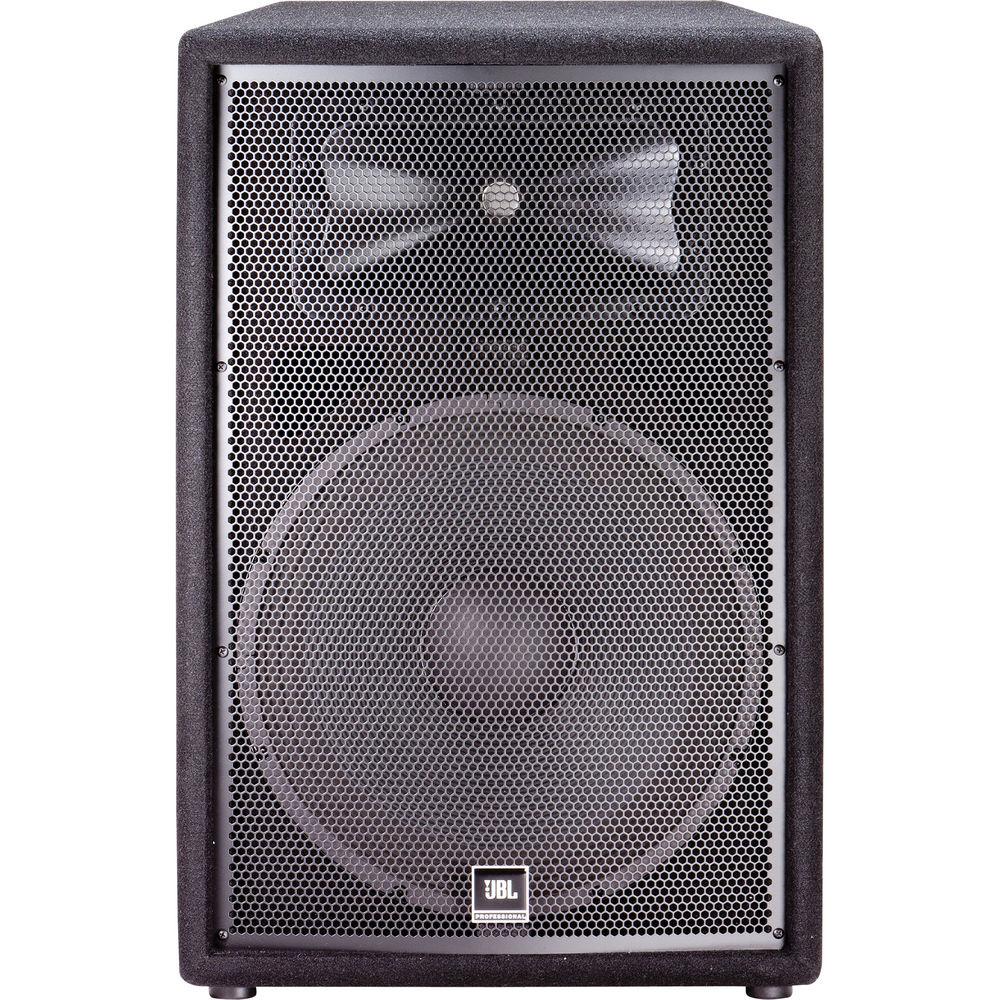

User Manual for JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL JRX215 15" Two-Way Sound Reinforcement
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL JRX215 15" Two-Way Sound Reinforcement contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

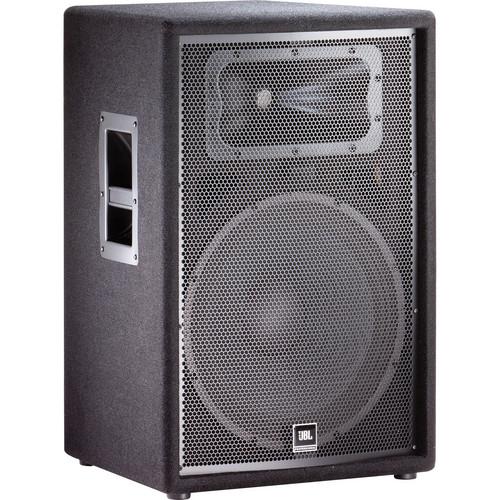

Product description The JRX215 from JBL is a two-way 15" loudspeaker system. It is suitable for live sound and speech reinforcement applications. It features a 2.5" voice coil and a 1" compression driver, as well as a frequency response of 59 Hz to 13 kHz.

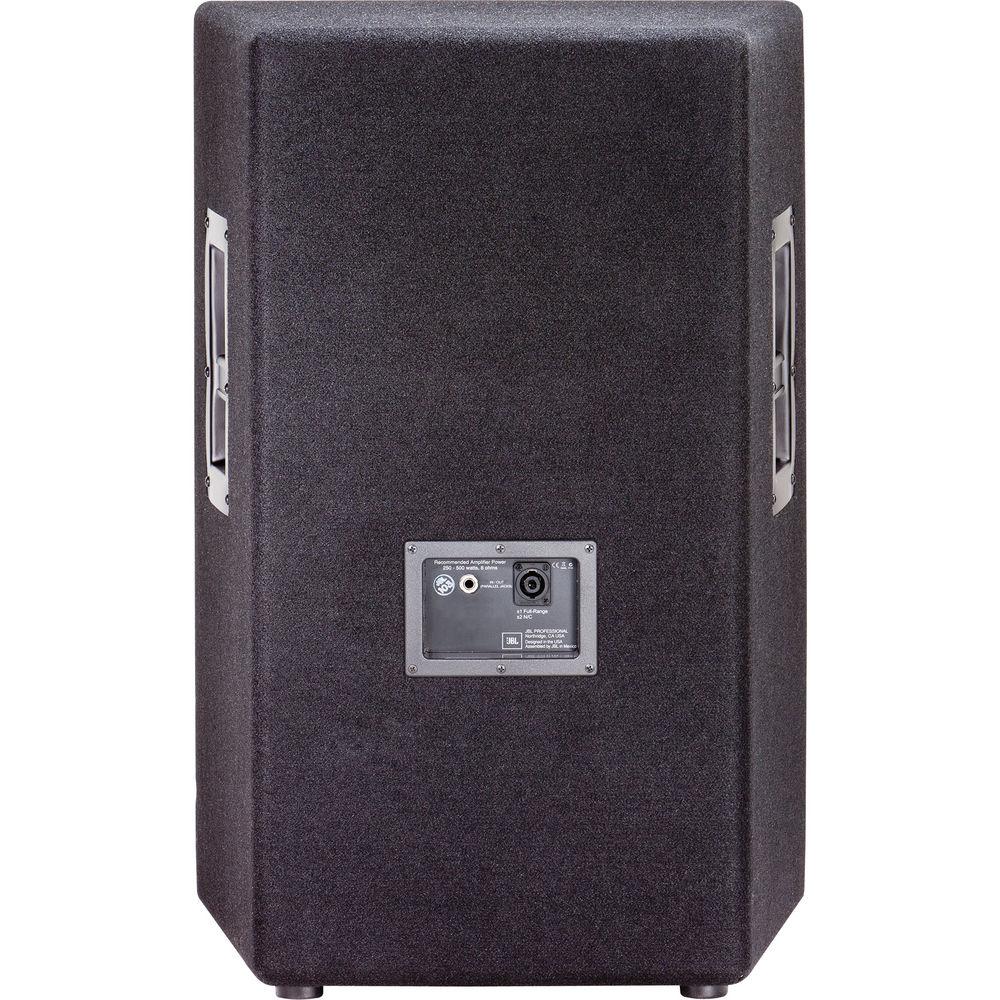

Its high-frequency driver is protected by a SonicGuard system, while the speaker's overall MDF construction allows for both durability and a suitable low-frequency response. With its non-resonant steel handles, the speaker is portable, even at a weight of 60.5 lb. For connections, this loudspeaker sports 1/4" TS and Neutrik SpeakON terminations. - Low frequency driver sports a 2.5" / 64mm diameter edge-wound ribbon voice coil, providing a cross-sectional wire area in the voice coil gap
- JBL 2414H-C 1" (25mm) polymer diaphragm compression driver delivers high frequency response
- The network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region
- High-voltage capacitors and inductors with cores and heavy gauge wire enable the crossover network to handle high power without saturating
- Progressive Transition high frequency waveguide provides coverage control, reduced distortion, and smoother frequency response
- The enclosure is constructed from 0.75" / 19mm MDF (Medium Density Fiberboard) to ensure durability and suitable low-frequency performance.
- SonicGuard protection for high frequency driver preserves against excess power without interrupting performance
- Non-resonant, all-steel handles
- 18-gauge perforated, steel grille for protecting internal components from damage.
- Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage
UPC: 050036904506 In the Box JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System Limited 5-Year Warranty Spec sheet PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL JRX215 15" Two-Way Sound Reinforcement Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL JRX215 Specs | | | Configuration | 2-Way | | Total Power Capacity | 250 W
1000 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 25 mm Compression Driver | | LF Driver | 2 x 15" / 38.1 cm Woofer | | | | Frequency Range | 59 Hz to 13 kHz | | Maximum SPL | 129 dB | | Coverage Angle | 90° H x 50° V | | | | Audio I/O | 1 x speakON NL4 Input
1 x 1/4" TS Input | | | | Dimensions | 27.5 x 18.1 x 17.0" / 699.0 x 460.0 x 432.0 mm | | Weight | 60.5 lb / 27.4 kg | | | | Package Weight | 70.0 lb | | Box Dimensions (LxWxH) | 29.0 x 19.0 x 18.0" |
