User Manual for JBL JRX218S 18" Compact Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL JRX218S 18" Compact Subwoofer
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL JRX218S 18" Compact Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

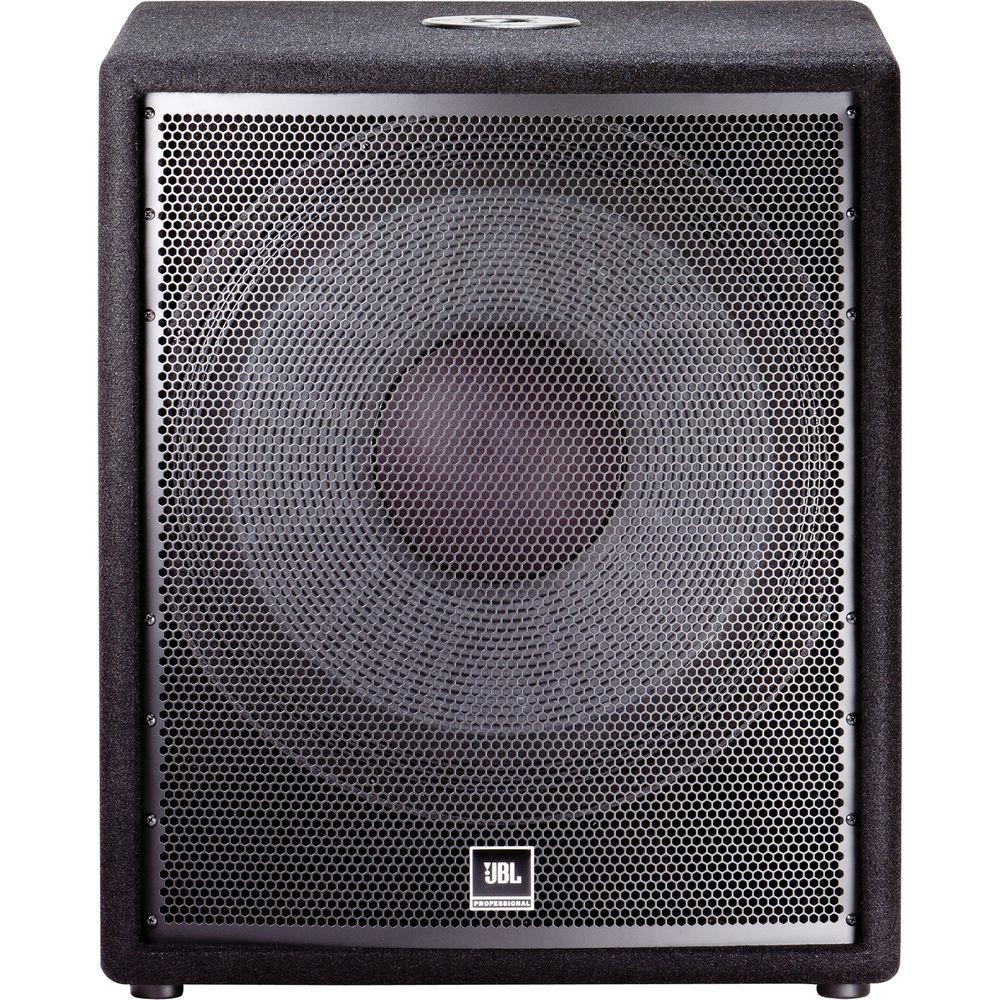

Product description The JBL JRX218S 18" Compact Subwoofer is driven by an 18.0" (457.2mm) woofer with a cast frame and 3.0" (76.2mm) voice-coil. - Features a 350 W (continuous) and 1400 W (peak) power capacity.
- The rugged enclosure is constructed from 0.75" (19mm) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for durability and improved low-frequency performance. The enclosure is covered in black carpet.
- A top mounted, cast aluminum 1.3" (35mm) pole mount receptacle can receive an optional SS3BK pole to facilitate use of the JRX218S as a base for a mid-high speaker cabinet.
- Non-resonant, all-steel handles are used.
- An 18-gauge perforated steel grille protects components from damage.
UPC: 050036904520 In the Box JBL JRX218S 18" Compact Subwoofer Limited 1-Year Warranty Spec sheet PDF 298.1kbaquerqteexydvdetuqtycbwfye Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL JRX218S 18" Compact Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

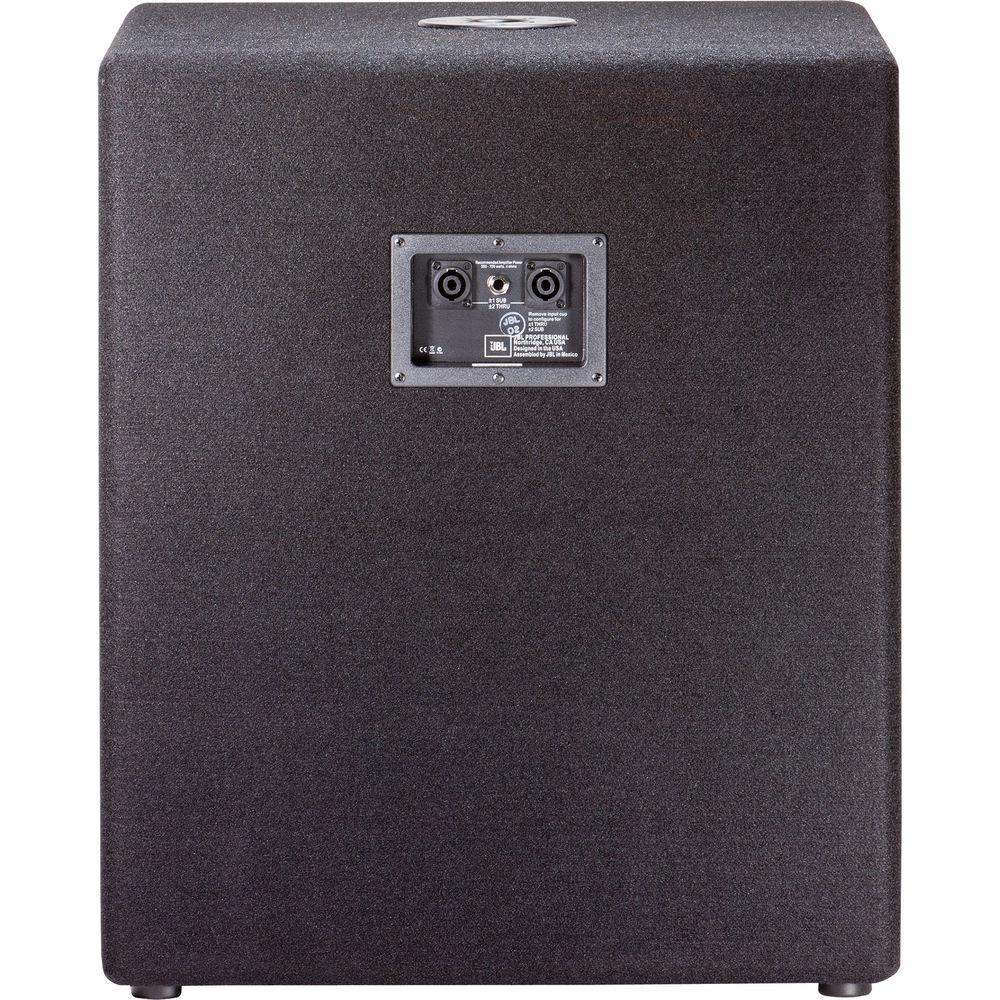

Technical parametersJBL JRX218S Specs | Power Rating | 350 / 1400 W | | Frequency Range | At -10 dB: 38 to 300 Hz | | Frequency Response | At ±3 dB: 55 to 300 Hz | | Sensitivity | 96 dB SPL (@1m) | | Nominal Impedance | 4Ω | | Amplifier Power | 350 to 700 W into 4Ω | | Crossover Adjustment | 30 Hz HPF, 24 dB / octave; 80 to 100 Hz LPF, 24 dB / octave | | Maximum SPL | 127 dB | | Low Frequency Driver | JBL 2043-G | | Input Connectors | 1 x Neutrik Speakon NL-4
1 x 0.25" (6.35 mm) TS phone jack; parallel | | Dimensions (H x W x D) | 23.5 x 20.3 x 22.0" (605.0 x 508.0 x 551.0 mm) | | Weight | 89.0 lb (40.4 kg) | | | | Package Weight | 83.2 lb | | Box Dimensions (LxWxH) | 26.2 x 23.1 x 21.6" |
