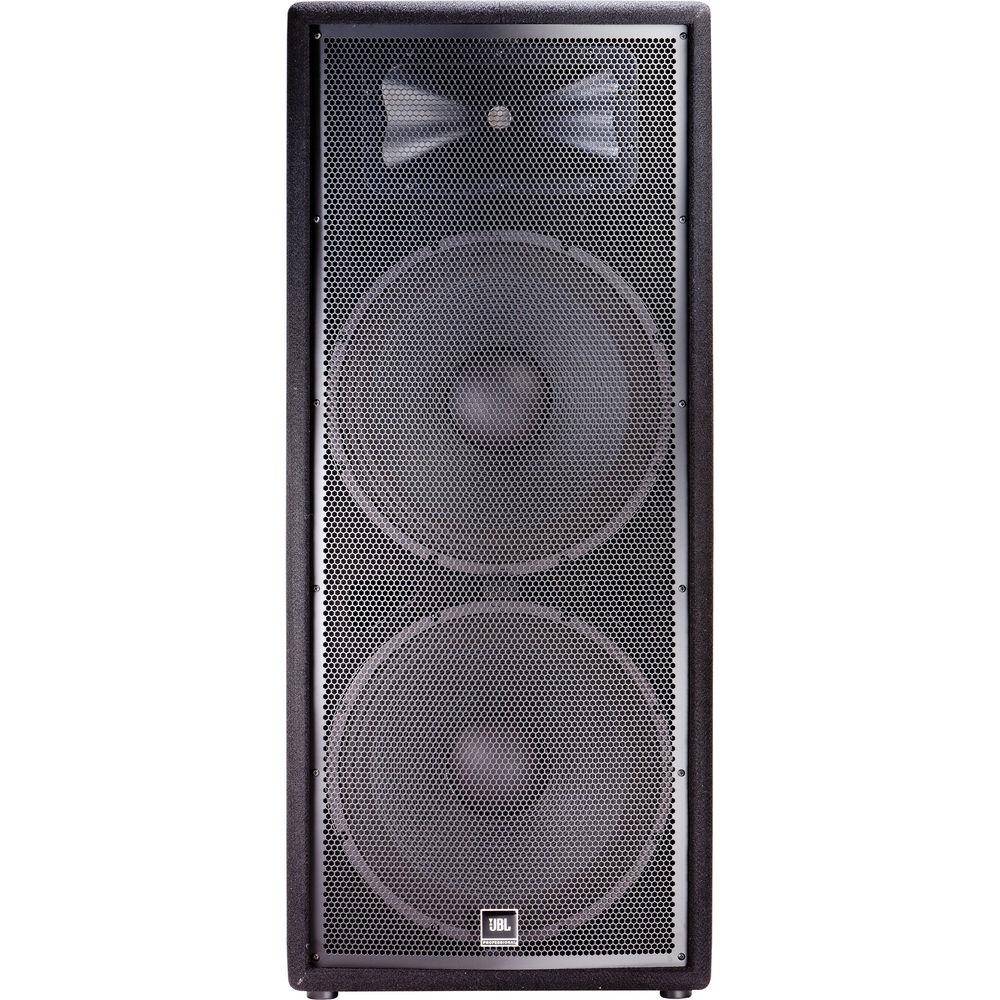

User Manual for JBL JRX225 Dual 15" Two-Way Sound-Reinforcement Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL JRX225 Dual 15" Two-Way Sound-Reinforcement
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL JRX225 Dual 15" Two-Way Sound-Reinforcement contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

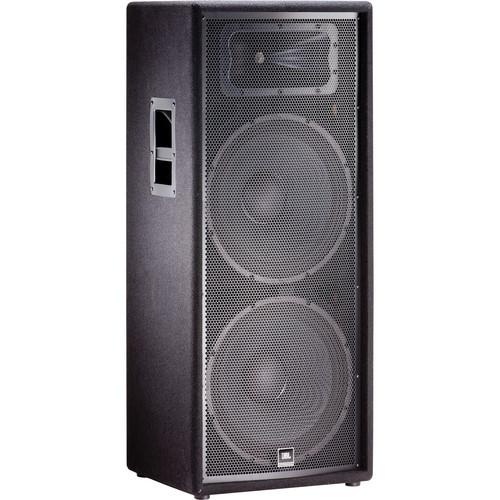

Product description Suitable for live-music performances and DJ setups, the JRX225 from JBL provides dual 15" woofers, and thus, offers much in the way of low-end without muddying up the midrange of your signal, providing a solid solution if you're looking for a speaker capable of reproducing thick, lower frequencies without a subwoofer. It can handle between 500 and 1000W into 4 Ohms, and it provides SpeakON and 1/4" TS phone jacks. The JRX225 offers other features such as a rugged 19mm MDF enclosure, steel handles, and a perforated steel grille. Its high-frequency driver is protected by SonicGuard technology, while its waveguide provides coverage control, minimized distortions, and an even frequency response. - Dual JBL low-frequency drivers with a 2.5"-diameter edgewound-ribbon voice coil
- JBL 2414H-C 1"-polymer-diaphragm compression driver
- Crossover design shapes frequency response, delivering coherent summation in the crossover region
- "Quasi 3-Way" design provides low-end without sacrificing performance in the critical midrange; the upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only, thus resulting in a reduction of midrange phase cancellation
- High-voltage capacitors and inductors with cores and heavy-gauge wire enable the crossover network to handle high power without saturating
- High-frequency waveguide provides coverage control, reduced distortion, and smooth frequency response
- The rugged, acoustically efficient enclosure is constructed from 19mm MDF (Medium Density Fiberboard) to ensure durability and low-frequency performance
- SonicGuard protects the high-frequency driver from excess power without interrupting performance
- Non-resonant, all-steel handles
- 18-gauge perforated steel grille protects components from damage
UPC: 050036904513 In the Box JBL JRX225 Dual 15" Two-Way Sound-Reinforcement Loudspeaker System Limited 2-Year Warranty Spec sheet PDF 381.6kbwfzddzfdwezytcuuuresefzutcayztvd Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL JRX225 Dual 15" Two-Way Sound-Reinforcement Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL JRX225 Specs | | | Configuration | 2-Way | | Total Power Capacity | 500 W

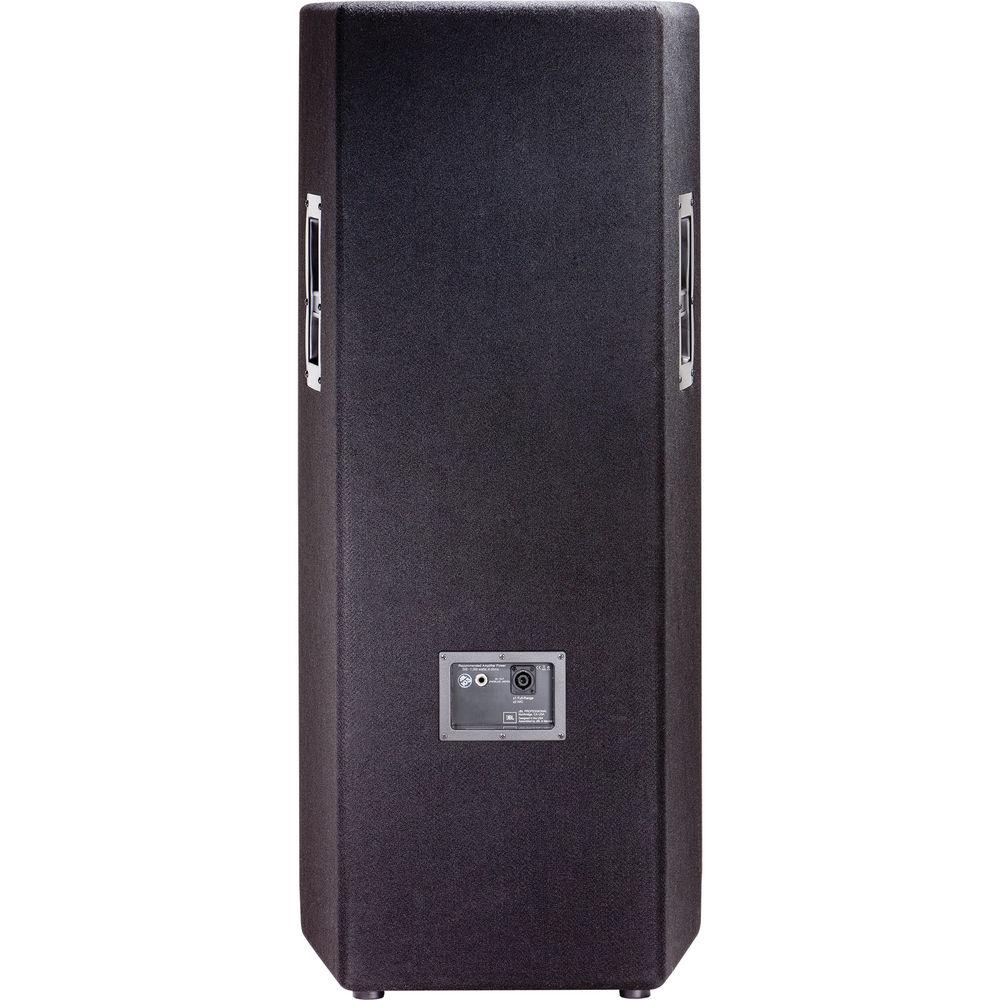

1000 W Peak | | System Impedance | 4 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 25 mm Polymer Compression Driver | | LF Driver | 2 x 15" / 38.1 cm Woofer | | | | Frequency Range | 42 Hz to 18 kHz -10 dB | | Frequency Response | 62 Hz to 13 kHz ±3 dB | | Maximum SPL | 133 dB | | Coverage Angle | 90° H x 50° V | | Speaker Sensitivity | 100 dB SPL | | | | Audio I/O | 1 x Combo speakON / 1/4" Input
1 x 1/4" TS Input | | | | Dimensions | 43.0 x 18.3 x 16.8" / 109.2 x 46.4 x 42.6 cm | | Weight | 94 lb / 42.6 kg | | | | Package Weight | 99.8 lb | | Box Dimensions (LxWxH) | 44.75 x 19.5 x 19.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 06 owners. Add your rating and experience with the product.
