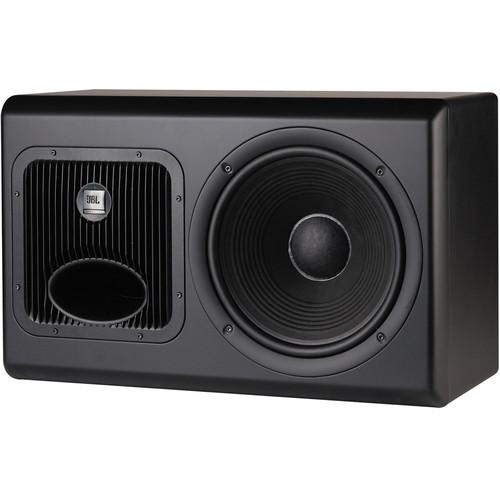

User Manual for JBL LSR6312SP 12" Powered Studio Subwoofer System Click to enlarge the picture
Contents of the user manual for the JBL LSR6312SP 12" Powered Studio Subwoofer
- Product category: Studio Monitors JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Studio Monitors
|
User manual for the JBL LSR6312SP 12" Powered Studio Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL LSR6312SP 12" Powered Studio Subwoofer System gives you low frequency extension and sophisticated bass management. JBL's trademarked Room Mode Correction (RMC) circuit provides electronic control of response peaks due to room modes. The RMC calibration kit is included to make setup a snap. The patented Differential Drive keeps power compression to a minimum. At high operating levels, audible distortion is reduced through the additional third coil, which serves as a dynamic brake.You get even more help in the crystal clear audio realm with the inclusion of a sophisticated LCR bass management system, direct LFE input, a high density baffle and Linear Dynamics Aperture port. - Room Mode Correction
- JBL's RMC gives you electronic control of response peaks due to room modes, and the calibration kit is included.
- Multi-Format Powered Subwoofer
- The LSR6312SP is a multi-format powered subwoofer for Dolby Prologic, AC-3, DTS and other surround formats.
- Sophisticated LCR Bass Management
- Left, Center and Right (LCR) outputs feed external satellite speakers and are high-passed at 80 Hz. With the inclusion of the Remote LCR Bypass contact closure switch full range signals are sent to the left, right and center satellite speakers and the Direct input is sent only to the subwoofer.
- Patented Differential Drive
- JBL's patented Differential Drive technology with dynamic braking gives you extended low frequency response and low power compression.
- Minimized Port Turbulence
- The Linear Dynamics Aperture port design minimizes port turbulence and reduces power compression.
- Adjust Gain and Response
- Six DIP switches on the input panel give you the ability to precisely control the gain and response of the system.
In the Box JBL LSR6312SP 12" Powered Studio Subwoofer System RMC Calibration Kit Owner's Manual Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL LSR6312SP 12" Powered Studio Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL LSR6312SP Specs | | | Monitor Type | Active Subwoofer | | Enclosure | Bass-Reflex, Shielded | | Power Rating | 260 W | | | | Frequency Range | 28 Hz to 80 Hz | | Maximum Sound Pressure Level (SPL) | 112 dB | | | | Crossover Frequency | 80 Hz | | | | I/O | 1 x Combo XLR / 1/4" Analog Input (2 Ohms) | | | | Dimensions (W x H x D) | 25.0 x 15.5 x 11.5" / 63.5 x 39.4 x 29.2 cm | | Weight | 50.0 lb / 22.7 kg | | | | Package Weight | 65.0 lb | | Box Dimensions (LxWxH) | 27.0 x 19.2 x 16.0" |
