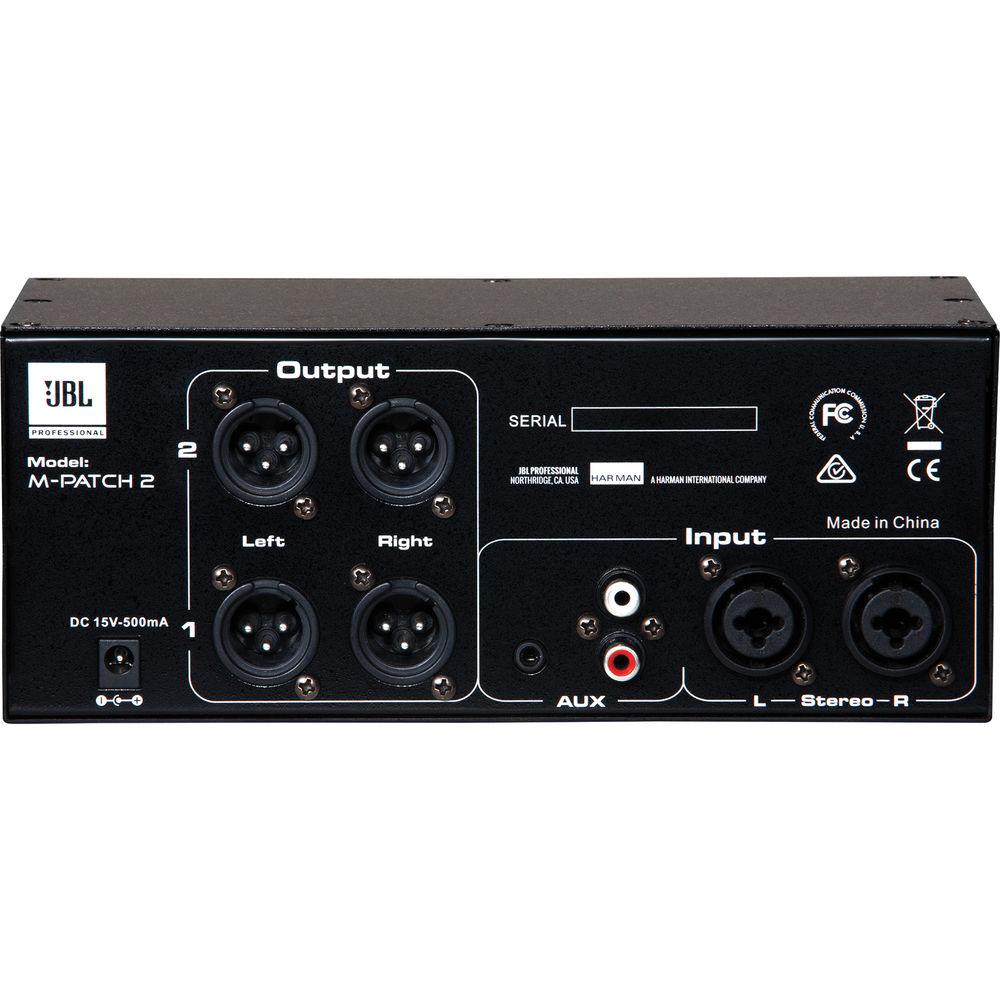

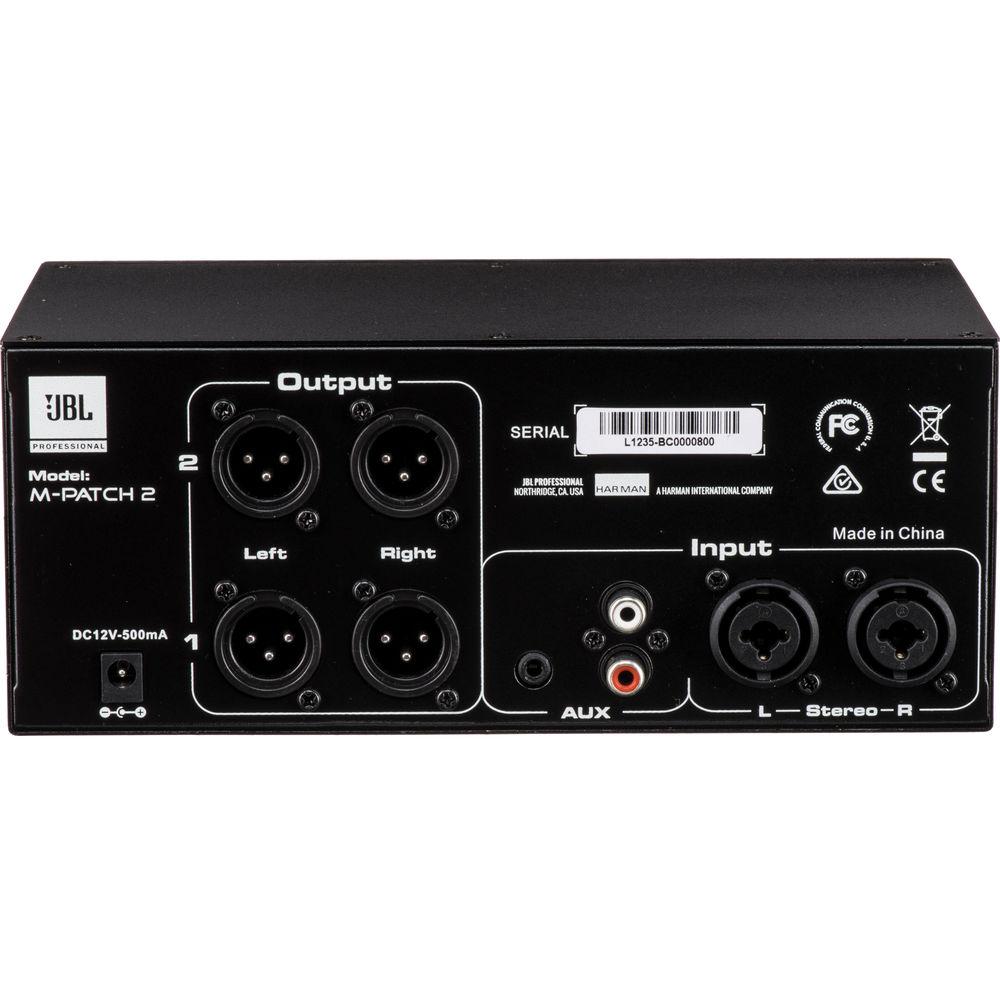

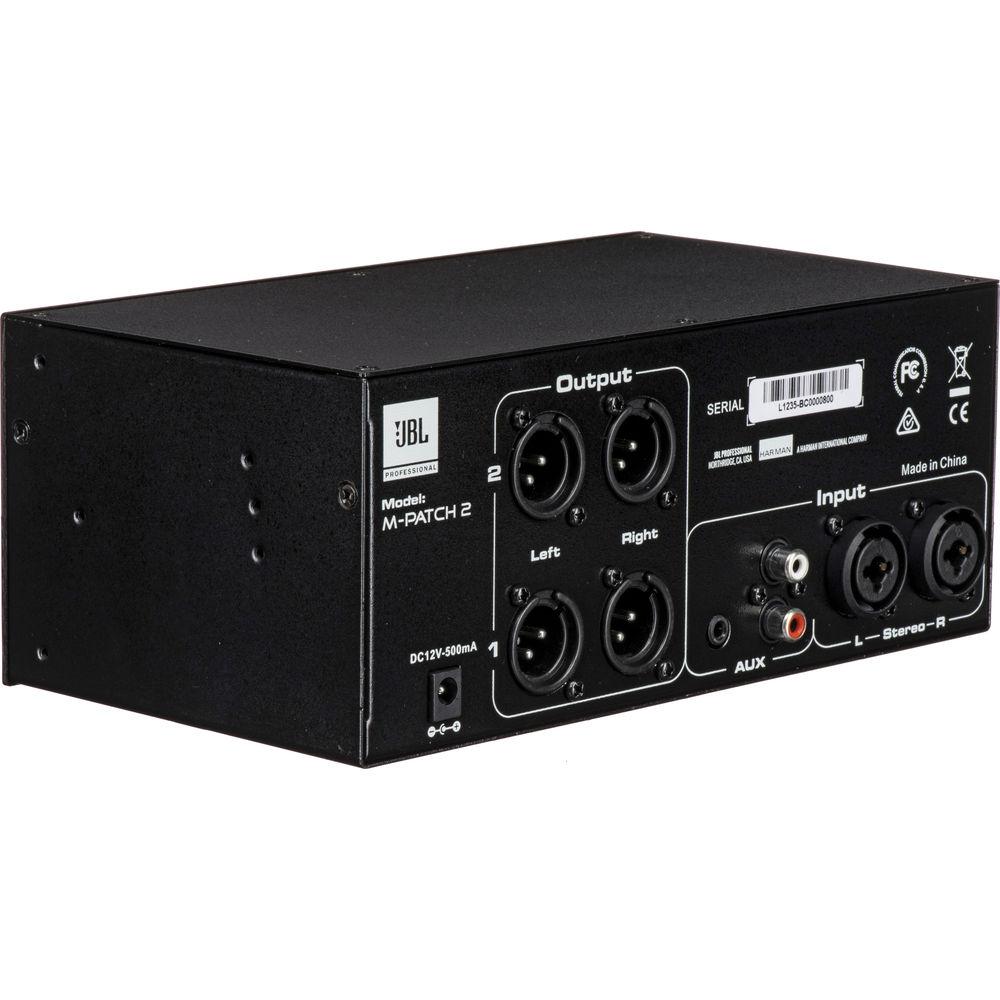

Product description The JBL M-Patch 2 is a passive stereo controller and switch box that is well suited for audio engineers, mastering studios, broadcast applications, project studios, and more. The M-Patch 2 offers passive volume attenuation of up to two line-level sources and can direct the output between two sets of XLR outputs. The main inputs feature combo XLR-1/4" connectors, while an auxiliary input provides stereo RCA and an 1/8" TRS connection for media players and other line-level devices.

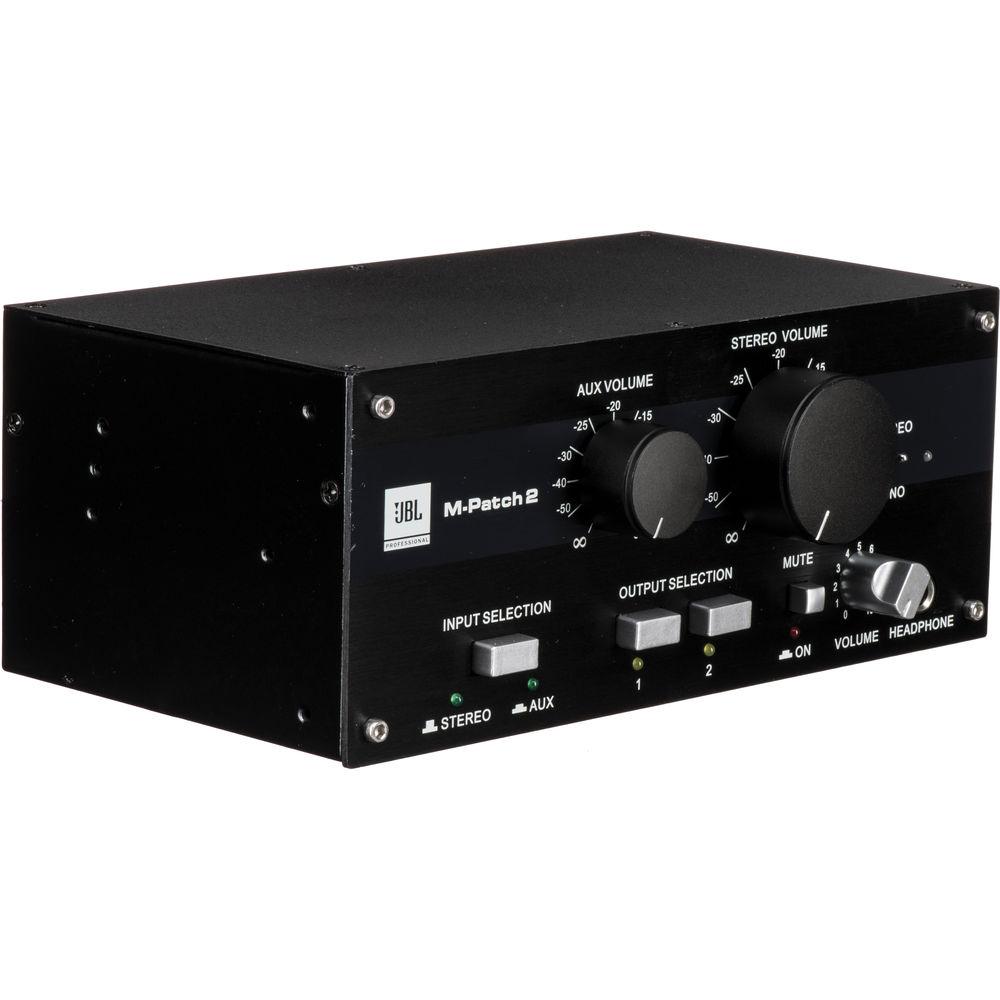

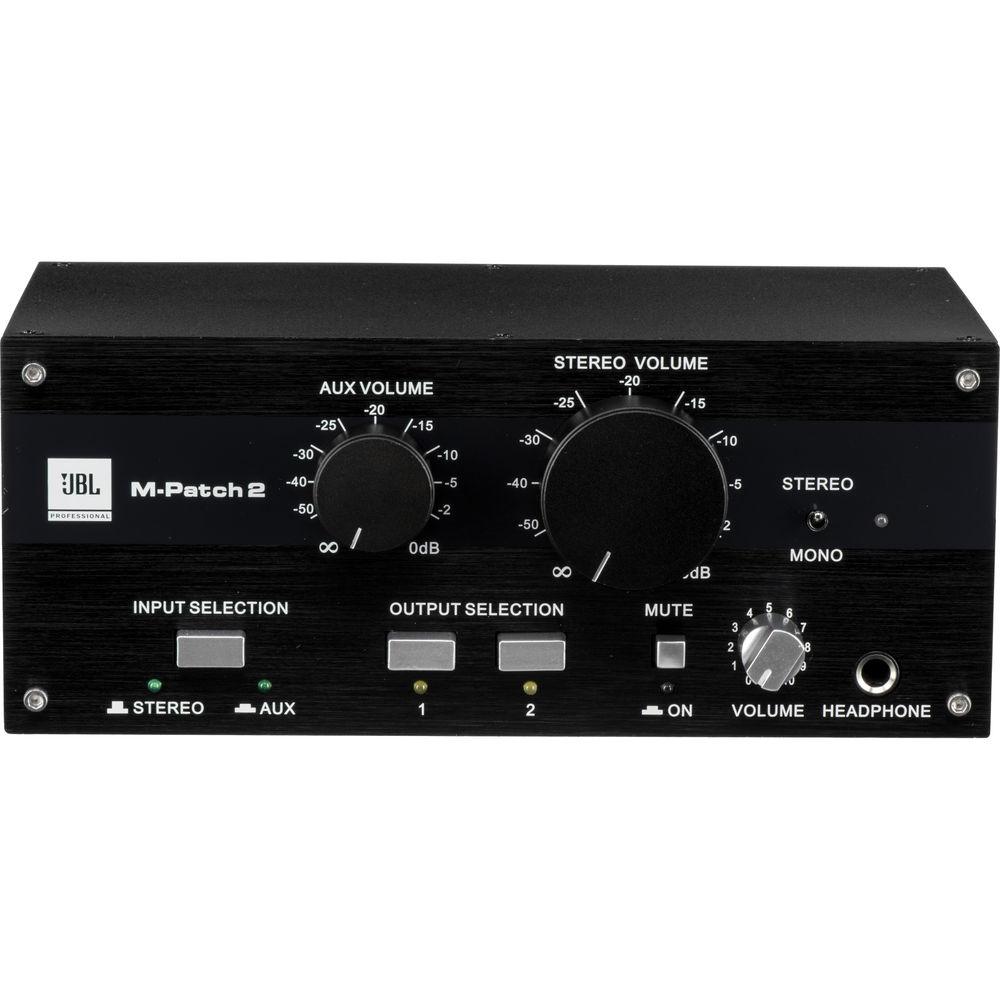

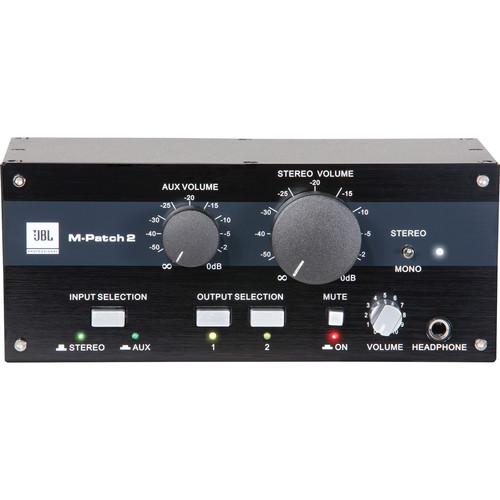

The front panel offers volume controls for the aux and stereo input, as well as a headphone output. There are buttons for routing signals which include a stereo/aux input select, output 1 and 2 select, mute on/off, and a switch for mono/stereo for checking your mixes in mono. The JBL M-Patch 2 ships with a power adapter, but this is only needed to power the headphone amplifier. The passive signal path between the main and aux inputs does not require power to operate. The M-Patch 2 also ships with desktop/rackmount hardware for easy mounting to a desk or within a 19" rack case. -
- High-quality‚ passive volume attenuator
- Great monitor switching device
- Two input channels, two output channels
- Combo, RCA, and 1/8" input connectors
- XLR outputs (balanced or unbalanced depends on the inputs selected)
- Mono/stereo summing switch
- System mute function
- Built-in headphone amplifier
- Quality components and rugged construction
- Desktop or rack-mountable installation
- External 16 VAC power supply included (only required for operation of headphone amplifier)
In the Box JBL M-Patch 2 Passive Stereo Controller and Switch Box Power Supply Desktop/Rackmount Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL M-Patch 2 Passive Stereo Controller and Switch Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL MPATCH2 Specs | Audio Input Connectors | 2 x combo XLR-1/4" / 6.35 mm
1 x stereo RCA pair (L/R)
1 x stereo 1/8" / 3.5 mm TRS | | Audio Output Connectors | 4 x XLR outputs (2 x pairs, A: L/R, B: L/R) | | Headphone Connector | 1 x 1/4" / 6.35 mm TRS stereo output | | Input / Output Level | > +26 dB | | Impedance | 0 - 5 kOhms | | Headphone Output Level | Maximum Output Level: 320 mW into 32 Ohms | | Frequency Response | 20 Hz to 20 kHz ±0.5 dB | | Signal-to-Noise Ratio (SNR) | -120 dB or better | | Channel Crosstalk | -80 dB or better | | Distortion | <0.0004% | | Power | Adapter: 12 to 16 VDC, 200 mA | | Dimensions (H x W x D) | 8.7 x 4.7 x 3.4" / 220.0 x 120.0 x 86.0 mm | | Weight | 2.2 lb / 1.0 kg (approximate) | | | | Package Weight | 4.2 lb | | Box Dimensions (LxWxH) | 14.0 x 7.4 x 5.3" |
