User Manual for JBL MTC-81BB8 Pre-Install Backcan for 8138 Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the JBL MTC-81BB8 Pre-Install Backcan for 8138
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL MTC-81BB8 Pre-Install Backcan for 8138 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

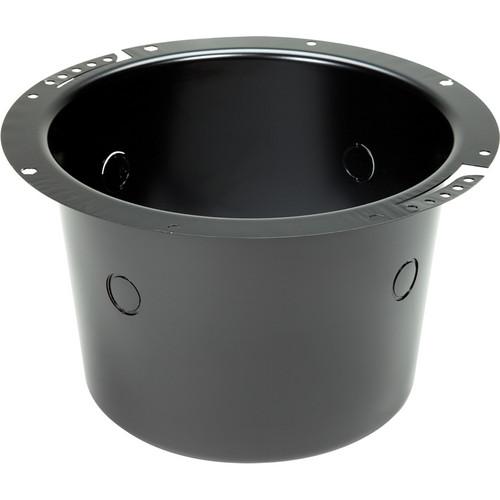

Product description The black JBL MTC-81BB8 is a pre-install, in-ceiling backcan designed for the JBL 8138 8" ceiling speaker and the JBL MTC-81TB8 tile bridge. It has an industry-standard 11.25" mounting circle, and an extra-large volume to provide additional bass range. It has five conduit knockouts for simplified cabling, and has the ability to nest during storage to minimize space requirements. Bend-up mounting straps contribute to easy installation. The MTC-81BB8 is made of sturdy steel finished in a rust-resistant powder coat. - Designed to house a JBL 8138 in-ceiling speaker on an MTC-81TB8 tile bridge (both available separately)
- Industry-standard 11.25" mounting circle
- Extra-large volume provides extra bass response
- Five conduit knockouts (one on top and four on the sides) for easy cable installation
- Durable 16-gauge steel construction
- Rust-resistant, powder-coat finish
- Nesting capability reduces the amount of space needed for storage
- Includes four clip nuts for easy attachment to a tile bridge
- Two integrated bend-up mounting straps
In the Box JBL MTC-81BB8 Pre-Install Backcan for 8138 Ceiling Speaker (Black) 4 x Clip Nuts 4 x M4 x 12mm Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL MTC-81BB8 Pre-Install Backcan for 8138 Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL MTC-81BB8 Specs | Construction | 16-Gauge Steel with Black Powder Coat | | Internal Volume | 7.4 Liters / 0.26 ft3 | | Mounting | Mounting Circle Diameter: 11.3" / 28.6 cm | | Dimensions (H x Diam.) | 7.0 x 11.8" / 17.8 x 30.0 cm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 8.8 x 7.3 x 5.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 56 owners. Add your rating and experience with the product.
