User Manual for JBL MTC-81TB8 Tile Bridge for 8138 Ceiling Speaker Click to enlarge the picture
Contents of the user manual for the JBL MTC-81TB8 Tile Bridge for 8138
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL MTC-81TB8 Tile Bridge for 8138 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

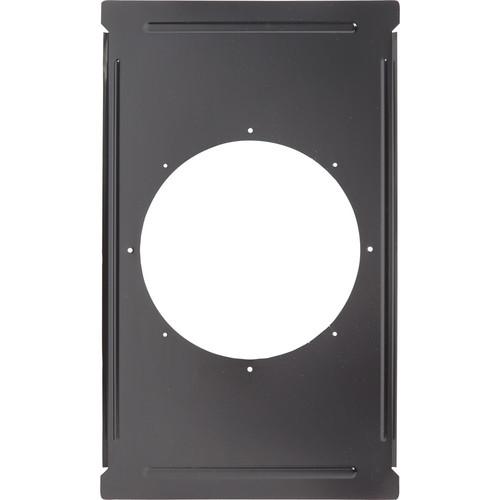

Product description The JBL MTC-81TB8 is a tile bridge designed for use with an MTC-81BB8 pre-install backcan to allow easy installation of a JBL 8138 8" speaker in a ceiling. It fits 24" and 23.6" tile grids. The bridge eliminates ceiling tile sag by evenly distributing the speaker's weight to the ceiling's support system. It is constructed from rust-resistant steel and has an e-coated finish for a long service life. - Designed for use with the JBL 8138 speaker and MTC-81BB8 backcan (both available separately) for in-ceiling mounting
- Load-bearing design distributes weight to eliminate ceiling tile sag
- Rust-resistant, 19-gauge steel construction with e-coated finish for a long service life
- Fits 23.6" and 24" ceiling tile grids
- Four thru-holes for attaching screws to backcan
- Four holes with clip nuts for speaker attachment screws
In the Box JBL MTC-81TB8 Tile Bridge for 8138 Ceiling Speaker Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL MTC-81TB8 Tile Bridge for 8138 Ceiling Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL MTC-81TB8 Specs | Compatibility | Speaker Mounting Circle Diameter: 11.3" / 28.6 cm
Tile Grid Size: 23.6" / 60 cm or 24" / 61 cm | | Construction | 19-Gauge Steel with Black Polymer E-Coating | | Dimensions (L x W) | 23.6 x 14.1" / 60.0 x 35.9 cm | | Weight | 2 lb / 0.9 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 24.0 x 14.5 x 1.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
