User Manual for JBL MTC-CBT-70T-WH Bolt-On Transformer Module for CBT70J-1, CBT70JE-1 Click to enlarge the picture
Contents of the user manual for the JBL MTC-CBT-70T-WH Bolt-On Transformer Module for
- Product category: Speaker Accessories JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Speaker Accessories
|
User manual for the JBL MTC-CBT-70T-WH Bolt-On Transformer Module for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

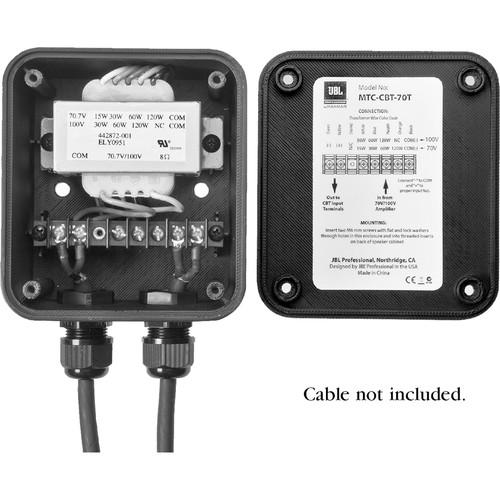

Product description The white MTC-CBT-70T-WH Bolt-On Transformer Module from JBL is designed for adapting the CBT-70J-1 and the CBT-70JE-1 to be used on distributed loudspeaker lines. It allows long cable runs and multiple speakers to be driven from a single distributed system amplifier channel. There are transformer taps for 70V and 100V at 120W, 60W and 30W and an additional tap at 15W for 70V only.
The module connects to the amplifier through separately sold cables which run to the transformer's screw-down terminals inside the enclosure. Taps are selected by connecting the cable from the amplifier to the appropriate terminal on the internal terminal strip. There are two gland nuts for a water-tight seal and two mounting holes which connect to insert points on the back of the CBT-70J-1 or CBT-70JE-1 cabinet. The transformer is also UV, moisture and salt-spray resistant. - Adapts the CBT-70J-1 and CBT-70JE-1 for use on distributed speaker lines
- Bolts onto the back of the CBT-70J-1 and the CBT-70JE-1 speakers
- Gland nuts provide a watertight seal
In the Box JBL MTC-CBT-70T-WH Bolt-On Transformer Module for CBT70J-1, CBT70JE-1 (White) 2 x Bolts 2 x Flat Washers 2 x Lock Washers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL MTC-CBT-70T-WH Bolt-On Transformer Module for CBT70J-1, CBT70JE-1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL MTC-CBT-70T-WH Specs | Compatibility | CBT 70J-1
CBT 70JE-1 | | Connection | CE-compliant barrier strip terminals | | Power Compatibility | 70.7 V / 100 V | | Transformer Taps | 120 W
60 W
30 W
15 W at 70 V only | | Terminal Compatibility | Exterior Wire Size: up to 0.3" / 8.0 mm
Interior Wire Size: up to 0.2" / 4.0 mm
Bare Wire Size: up to 12 AWG / 2.5 mm² | | Hardware | 2 x 1.0 thread pitch bolts (0.2 x 0.6" / 6.0 x 15.0 mm)
2 x flat washers
2 x lock washers | | Sealing | 2 x watertight gland nuts | | Mounting Area | 2 x mounting holes, 2.8" / 70.0 mm apart | | Certifications & Approvals | IP-55 rated per IEC529 | | Material | Fiberglass filled ABS | | Dimensions | With gland nuts: 6.2 x 4.5 x 3.4" / 157.5 x 114.3 x 86.4 mm
Height without gland nuts: 50.0" / 1,270.0 mm | | Weight | 2.5 lb / 1.1 kg |
