User Manual for JBL Nano Patch Compact 2-Channel Passive Volume Controller Click to enlarge the picture
Contents of the user manual for the JBL Nano Patch Compact 2-Channel Passive
- Product category: Studio Monitor Controllers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Studio Monitor Controllers
|
User manual for the JBL Nano Patch Compact 2-Channel Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

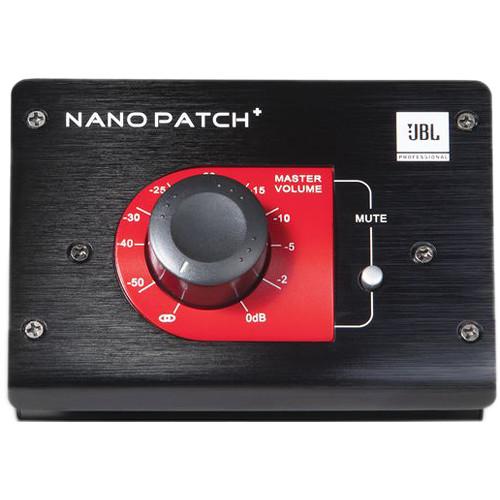

Product description The Nano Patch+ from JBL is a versatile passive volume controller in a compact desktop format. It can be used as a physical volume attenuation knob for audio software applications, when connected between a computer audio interface, or soundcard master output and a pair of active (powered) monitor speakers. Reducing levels from your software only reduces the audio bit depth. The Nano Patch+ allows you to maintain a maximum audio resolution and attenuate your monitoring volume with the confidence that your audio is not compromised. The Nano Patch+ has no active circuitry, buffers, transistors, batteries, or power supply and limits interference to the main passive outputs. It delivers attenuated signal, that is naturally transparent. UPC: 691991003837 In the Box JBL Nano Patch+ Compact 2-Channel Passive Volume Controller Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Nano Patch Compact 2-Channel Passive Volume Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL NPATCH BLK Specs | | | Input 1 | 2 x combination XLR/TRS 1/4" (6.3 mm) balanced/unbalanced | | Input 2 | 1/8" (3.5 mm) mini-jack | | Maximum Input Level | +26 dB | | Input Impedance | 5 kOhms | | | | Output 1 | 2 x TRS 1/4" (6.3 mm) balanced/unbalanced | | Output 2 | 1/8" (3.5 mm) | | Maximum Output Level | > +26 dB | | Impedance | 0 to 5 kOhms | | | | Frequency Response | 10 Hz to 40 kHz (0/0.15 dB) | | Signal to Noise | Better than -120 dB | | Channel Cross Talk | > -80 dB | | Distortion | < 0.0004% | | Dimensions (W x D x H) | 5.1 x 3.75 x 2.0" (130 x 95 x 51 mm) | | Weight | 0.8 lb (.34 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 5.5 x 3.95 x 2.85" |
