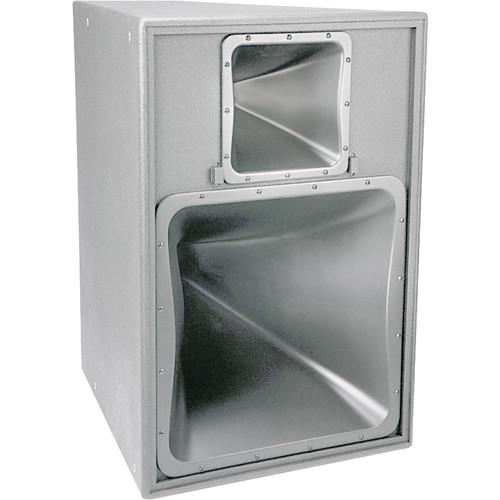

User Manual for JBL PD5200 43 Precision Directivity Full-Range 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the JBL PD5200 43 Precision Directivity Full-Range
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL PD5200 43 Precision Directivity Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The white PD5200/43 Precision Directivity Full-Range 2-Way Loudspeaker from JBL offers a coverage pattern of 40° x 30° and is designed for use in venues requiring high output capability and pattern control. The cone mid-range compression driver consists of a driver/phasing plug assembly to provide high output with low distortion. The driver's extended response is designed for smoother transitions to the high frequency driver and the small entrance diameter into the waveguide provides for patter control. The large format high frequency compression driver utilizes a neodymium magnet and aluminum diaphragm to deliver clear and intelligible high frequency projection, extended frequency response, and low distortion, even at high drive levels.
The Progressive Transition waveguides work to achieve an optimum balance of controlled coverage with low distortion, smooth frequency response, and natural sound character. The mid and high frequency horns are rotatable for cabinet positioning in vertical or horizontal orientation. High-slope crossovers minimize band overlap and the off-axis response can be well-controlled for enhancing arrayability. The cabinet is fitted with twenty M10 threaded suspension points for a variety of installation opportunities. - Cone Midrange Compression Driver provides sensitivity and continuous SPL capability along with low distortion, extended bandwidth, and phase coherence
- Neodymium high frequency driver
- Waveguides provide consistent 40° x 30° pattern control
- Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation
- Cabinet is fitted with threaded suspension points for various installation options
In the Box JBL PD5200/43 Precision Directivity Full-Range 2-Way Loudspeaker (40° x 30° Dispersion, White) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PD5200 43 Precision Directivity Full-Range 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL PD5200 Specs | Active or Passive | Passive | | Frequency Response ± 3dB | 240 Hz - 16 kHz | | Frequency Range | 200 Hz - 18 kHz | | Dispersion | 40° x 30° | | Directivity Factor | 24.1 | | Directivity Index | 16.0 dB | | Maximum Sound Pressure Level (SPL) | MF: 137 dB-SPL cont avg (143 dB peak)
HF: 135 dB-SPL cont avg (141 dB peak)
Passive Mode: 136 dB-SPL cont avg (142 dB peak) | | System Sensitivity | Passive Mode: 111 dB-SPL | | Impedance | 8 ohms | | Crossover | Bi-amp/Passive switchable | | Drivers | Mid Frequency Driver: CMCD-82H cone mid-range compression driver with integral 8" / 200 mm Differential Drive dual voice coil driver
High Frequency Driver: 2431H 1.5" / 38 mm exit compression driver with 3" / 75 mm voice coil | | Transducer Power Rating | MF: 350 W (1400 W peak) 100 h
HF: 75 W (300 W peak) 2 h | | Long-Term System Power Rating | Passive Mode: 300 W (1200 W peak) 100 h | | Enclosure Material | Birch plywood | | Input Connections | 1 x Neutrik Speakon NL4
1 x Barrier strip terminals | | Dimensions | 39.0 x 26.5 x 35.3" / 991.0 x 673.0 x 897.0 mm (in vertical orientation) | | Weight | 152.0 lb / 69.0 kg |
