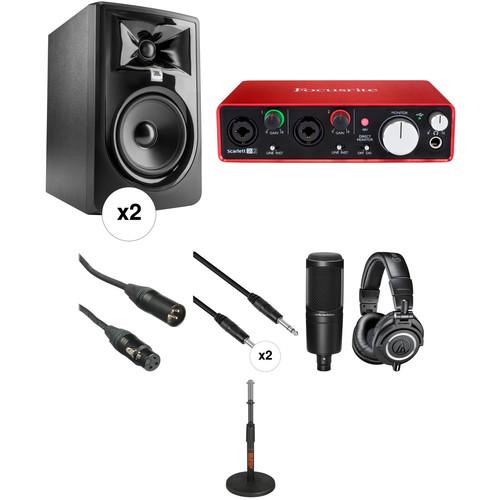

JBL Professional Recording and Complete Bundle

User Manual for JBL Professional Recording and Complete Bundle Kit

• Product category: Studio Monitors JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL Studio Monitors

Product description

• 2 x JBL 305P MkII - Powered 5" Two-Way Studio Monitor The JBL 305P MkII - Powered 5" Two-Way Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 305P MkII features dual 41W Class-D amplifiers, which power the 5" low frequency woofer and woven-composite 1" neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 49 Hz to 20 kHz with a peak SPL of 108 dB.

  The monitor features JBL's Image Control Waveguide technology for accurate audio reproduction and JBL's Slip Stream port design for improved bass response. The 305P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4" TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 305P MkII ships with a power cord.
  • • Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
    • High-quality JBL transducers for optimized transient response and improved linearity
    • Patented Slip Stream low-frequency port for superior bass performance at all playback levels
    • Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
    • Boundary EQ settings compensate for low-frequency variants introduced by the environment
    • HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
    • Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
    • Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
    • Strenuous JBL 100-hour full-power test ensures years of reliability
    • Sleek, modern design provides a visual upgrade to any studio
  UPC: 691991007705
• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (6') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558267
• 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6') The 6 foot PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable from Pearstone features Rean connectors with nickel-plated contacts on both ends, 24-gauge oxygen-free copper conductors, and spiral shielding to protect against EMI and RFI noise. Additionally, twin conductive PVC shields reduce electrostatic noise and provide a clean signal path while retaining good flexibility for those occasions that demand it.

  The connector's molded strain relief over metal shells provides excellent durability and allows for increased protection between the OFC conductors and the connectors. The cable is ideal for both live and studio applications, including connecting powered speakers to studio monitor controllers, or connecting synthesizers and outboard gear to mixers, or wherever balanced connections are indicated.
  • Rean male 1/4" TRS connectors with nickel-plated contacts on both ends of the interconnect cable offer excellent durability
  • 24-gauge OFC conductors maximize conductivity, making the cable ideal for both live and studio applications
  • Spiral shielding rejects both EMI and RFI noise and offers a clean signal path
  • Twin conductive PVC shields minimize electrostatic noise, while being flexible and durable for running the cable in tight spots
  • Metal shells provide rigid strain relief and protect the solder points between the OFC conductors and the connectors for greater cable longevity
  UPC: 847628580404
• Focusrite Scarlett 2i2 USB Audio Interface (2nd Generation) Focusrite's second-generation Scarlett 2i2 is a portable audio interface designed specifically for use in a portable computer environment. Lightweight at 1.3 lb, the device sports two inputs, two outputs, instrument/line switches, 48V Phantom power, direct monitoring, a discrete headphone output, and the ability to draw power via USB. It's designed to operate handily at resolutions and sample rates of up to 24-bit/192 kHz, and its combination front-panel inputs render it suitable for tracking instruments with much in the way of headroom and little in the way of distortion.

  In addition to its two balanced monitor outputs, the Scarlett 2i2 offers a volume-controllable headphone output on the front. Metal gain controls and a red metal chassis provide a durable construction which can be taken on the road. The 2i2 provides a round-trip latency as low as 2.74 ms at 96 kHz, allowing you to record and monitor processed sound sources in real time.

  An included Pro Tools | First Focusrite Creative pack is enhanced by a suite of Focusrite Scarlett plug-ins, a set of tools that includes compression, EQ, gating, and reverb. The Novation Bass Station software synthesizer can be used to add bass or melody, and a sample pack from Loopmasters contains drum loops and sound effects. Ableton Live is included to boot. Focusrite's Red Plug-In Suite (AAX, Audio Units, and VST) delivers modules based on the classic Focusrite Red 2 EQ and Red 3 Compressor hardware. Also included in this bundle is the Softube Time and Tone Pack for further sonic exploration within your chosen DAW.
  Notable Features
  • • 2 Scarlett mic preamps offering headroom and minimal distortion
    • 2 instrument inputs designed for high-level pickups
    • Sample rates up to 24-bit/192 kHz
    • Headphone output with gain control
    • Low latency and direct monitoring
    • 2 1/4-inch balanced jacks
    • Durable metal construction, portable at 1.3 lb
    • Powered by USB
    • Includes Pro Tools | First Focusrite Creative Pack and Ableton Live Lite
    • Includes additional plug-ins and loops
  UPC: 815301008415
• Audio-Technica AT2020 Cardioid Condenser Microphone The AT2020 Cardioid Condenser Microphone from Audio-Technica is designed for vocal and general instrument capturing in project and professional studio environments. The capsule features a low-mass, side-address diaphragm with a cardioid polar pattern for rejecting ambiance and noise at the off-axis sections of the microphone capsule. A linear frequency response of 20 Hz to 20 kHz enables the flexibility to accurately reproduce signals from a wide variety of sources. High SPL handling and wide dynamic range allow the AT2020 to capture loud signals with minimal noise and distortion. The microphone includes a pivoting, threaded stand mount for accurate positioning.
  • Suitable for project/home-studio applications
  • High SPL handling and wide dynamic range provide maximum versatility
  • Custom-engineered low-mass diaphragm provides extended frequency response and superior transient response
  • Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
  • Pivoting, threaded stand mount attaches securely for easy and precise placement of the microphone
  UPC: 042005134953
• Audio-Technica ATH-M50x Monitor Headphones (Black) The black ATH-M50x Monitor Headphones from Audio Technica are designed for use in critical studio mixing and tracking as well as for DJ monitoring applications. They feature 45mm Neodymium drivers with copper-clad aluminum voice coils that provide an extended frequency response from 15Hz to 28kHz. The headphones have a circumaural, around-the-ear design that provides sound isolation in loud environments. The ATH-M50x's ear cups can be swiveled 90-degrees, allowing for single-ear monitoring. The headphones have a detachable single-sided cable system, and a 3-meter coiled cable, a 3-meter straight cable, and a 1.2-meter straight cable are included. When not in use, the ATH-M50x can be folded down and stored in the included carry pouch.
• Auray TT-6220 Telescoping Tabletop Microphone Stand (Black) The black TT-6220 Telescoping Tabletop Microphone Stand from Auray meets the needs of any desktop audio applications that require the use of a microphone by providing a solid, weighted round base with three nonslip rubber feet for additional stability. The telescoping shaft delivers flexibility when it comes to positioning the height of the microphone and includes a microphone cable guide. Durable steel construction ensures longevity.
  • Telescoping shaft for adjustable height
  • Weighted round base
  • Three nonslip rubber feet
  • Microphone cable guide
  • Durable steel construction
  UPC: 847628578234

• 2 x 305P MkII - Powered 5" Two-Way Studio Monitor wxfrywtqexxfxwtdawwcbtvyaddfrawzfzt
• Power Cord
• Limited 2-Year Warranty

• Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

• 2 x Pearstone - PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6')

• Focusrite - Scarlett 2i2 USB Audio Interface (2nd Generation)

• Audio-Technica - AT2020 Cardioid Condenser Microphone

• Audio-Technica - ATH-M50x Monitor Headphones (Black)

• Auray - TT-6220 Telescoping Tabletop Microphone Stand (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL 305P MkII - Powered 5" Two-Way Studio Monitor

  Drivers	LF Driver: 5.0" / 127.0 mm HF Driver: 1.0" / 25.4 mm HF Driver Type: Soft dome
  Crossover	1725 Hz 4th order acoustic Linkwitz-Riley
  Magnetic Shielding	Yes
  Input Sensitivity	92 dB at 3.3' / 1 m (-10 dBV input)
  Power Configurations	Bi-amplified
  HF Driver Power Amp	41 W, Class-D
  LF Driver Power Amp	41 W, Class-D
  Frequency Response	49 Hz to 20 kHz (±3 dB)
  Frequency Range	43 Hz to 24 kHz (-10 dB)
  Low Frequency Extension	43 Hz
  SPL	Continuous: 94 dB Peak: 108 dB
  Maximum Input	Maximum Peak Input Level (-10 dBV / +4 dBu): +6 dBV / +20.3 dBu
  THD	System Distortion Criteria: <10% THD at maximum output with full compressor / limiter engagement Electrical Distortion Criteria: 0.2% THD @ 1 kHz / 2.83 VRMS output; <1% THD @ 1 kHz, full rated output
  Signal to Noise Ratio	75 dBA (A-weighted), 70 dBr (unweighted), relative to 2.83 VRMS output
  Dispersion	H x V: 120° x 90°
  Inputs	1 x XLR female (balanced) 1 x TRS female (balanced)
  HF Trim Control	-2 dB, 0 dB, +2 dB
  Equalization	Boundary EQ: LF Shelf at 50 Hz: -3 dB, -1.5 dB, 0 dB
  Enclosure Type	Ported
  Construction Material	MDF: 0.6" / 15.0 mm
  Finish	Matte black PVC
  Baffle	Injection-molded structural ABS
  Power	100 to 240 VAC (±10%), 50 / 60 Hz
  Dimensions (H x W x D)	11.7 x 7.3 x 9.1" / 297.2 x 185.4 x 231.1 mm
  Weight	10.4 lb / 4.7 kg

  Box Dimensions (LxWxH)	14.0 x 12.0 x 10.0"

• Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 6' (1.8 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	6' / 1.8 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	3.5 x 0.9 x 0.2"

• 2 x Pearstone PM-TRS 1/4" TRS Male to 1/4" TRS Male Interconnect Cable (6')

  Connector 1	1 x 1/4" TRS Male Straight
  Connector 2	1 x 1/4" TRS Male Straight
  Connector Brand	Rean
  Cable Length	6' / 1.8 m
  Shielding	92% Copper Spiral
  Wire Gauge	24 AWG
  Contact Plating	Nickel
  Jacket Type	Polyvinyl Chloride (PVC)
  Conductor Material	Oxygen-Free Copper (OFC)

  Box Dimensions (LxWxH)	9.0 x 5.0 x 1.0"

• Focusrite Scarlett 2i2 USB Audio Interface (2nd Generation)

  Max Sample Rate/Resolution	192 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	2 x Combo XLR / 1/4" Input 2 x 1/4" (6.3 mm) Balanced Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Digital I/O	None
  MIDI I/O	None

  OS Compatibility	macOS 10.10 macOS 10.11 Windows 7 Windows 8.1 Windows 10

  Dimensions	1.9 x 6.9 x 4.5" / 4.8 x 17.5 x 11.5 cm
  Weight	1.3 lb / 0.6 kg

  Box Dimensions (LxWxH)	7.7 x 5.9 x 2.0"

• Audio-Technica AT2020 Cardioid Condenser Microphone

  Transducer	Condenser
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	74 dB
  Equivalent Noise Level	20 dB
  Maximum SPL	144 dB SPL
  THD	1%
  Impedance	100 Ohms
  Sensitivity	14.1 mV/Pa
  Dynamic Range	124 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Current Consumption	2.0 µA
  Operating Voltage	48 V
  Length	6.38" / 162.0 mm
  Diameter	2.05" / 52.0 mm
  Weight	12.17 oz / 345 g

  Box Dimensions (LxWxH)	9.7 x 9.6 x 2.8"

• Audio-Technica ATH-M50x Monitor Headphones (Black)

  Driver Size	1.8" / 45 mm
  Magnet Type	Neodymium
  Voice Coil	Copper-Clad Aluminum Wire
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	15 Hz to 28 kHz
  Sensitivity	99 dB
  Impedance	38 Ohms
  Maximum Power Handling	1600 mW

  Audio Connector	1/8" (3.5 mm)
  Adapter (Included)	1/4" (6.3 mm)

  Detachable	Yes

  Weight	10 oz / 285 g

  Box Dimensions (LxWxH)	11.5 x 10.2 x 4.1"

• Auray TT-6220 Telescoping Tabletop Microphone Stand (Black)

  Height	8.3 to 13.5" / 21 to 34.3 cm
  Base Type	Round
  Base Dimensions	6.2 x 6.2" / 15.7 x 15.7 cm

  Mounting Thread	5/8"-27
  Weight	2.4 lb / 1.1 kg

  Box Dimensions (LxWxH)	7.05 x 7.05 x 1.9"
