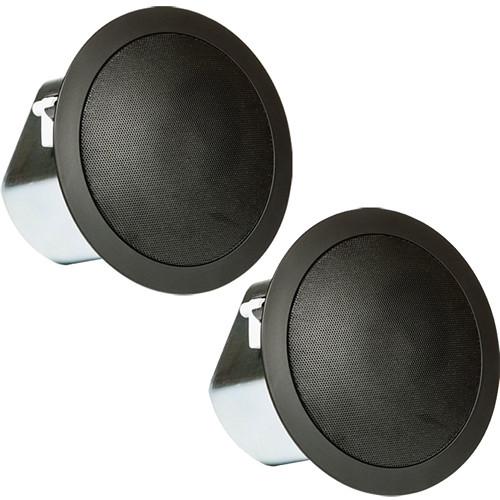

User Manual for JBL Professional Series Control 12C T 3" Compact Ceiling Loudspeakers Click to enlarge the picture
Contents of the user manual for the JBL Professional Series Control 12C T
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
|
User manual for the JBL Professional Series Control 12C T contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The pair of black Professional Series Control 12C/T 3" Compact Ceiling Loudspeakers from JBL is designed to provide an enhanced sound quality for a wide variety of low to medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and moreThese full-range ceiling speakers consist of 3” (76mm) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV-resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation. The 130° coverage is especially wide, delivering consistent sound quality for listeners located both off and on axis.The high technology cone driver is designed with a lightweight high temperature Kapton voice coil former and aluminum coupling ring to reduce distortion and extend the high-frequency response of the system. The FEA-optimized motor construction and cone geometry allow for smooth frequency response and improved off-axis performance. A high temperature-grade voice coil ensures stable performance under long-term, high-power working conditions. The butyl rubber surround provides long-term durability and good sonic damping, and the polypropylene cone is water and humidity resistant.The removable locking connector has screw terminals for secure wire termination and loop through terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit. The compact backcan extends only 5.4” (138mm) behind the baffle, allowing the speaker to fit into more shallow ceiling areas. Suitable for a wide variety of projects, the Control 12C/T Loudspeakers are switchable for use as either 8Ω, low-impedance speakers or as part of a 70 or 100V distributed loudspeaker system with a 15W, multi-tap transformer. The speakers come complete with 2 tile rail supports, a C-ring support backing plate, cutout template, paint shield, and a grille. A safety seismic attachment ring is provided on the top surface. - 3" (76mm) full-range driver
- Blind-mount backcan for quick and easy installation
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation (20W at 8Ωnominal setting; 15W multi-tap at 70V/100V)
- 68 Hz to 17 kHz bandwidth with wide 130° coverage
In the Box JBL Professional Series Control 12C/T 3" Compact Ceiling Loudspeakers (Black, Pair) C-Ring Support Backing Plate 2 x Tile Support Rail (For 2' or 600mm Tile Spans) Cutout Template Paint Shield Removable Locking Multi-Pin Connector Grille Limited 5-Year Warranty Brochure PDF 561.6kbebefawqrcrwsd Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Professional Series Control 12C T 3" Compact Ceiling Loudspeakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Control 12C/T Specs | Frequency Range | -10 dB: 68 Hz to 17 kHz Half-space (flush mounted in ceiling) | | Frequency Response | ±3 dB: 95 Hz to 15 kHz Half-space (flush mounted in ceiling) | | Power Capacity | At low-Z: 40W continuous program power
20W continuous pink noise (CPN) CPNR is IEC-shaped with a 6 dB crest factor for 100 hours continuously. Continuous Program Power is the system's ability to handle normal speech and music program material (3 dB above CPNR). | | Sensitivity | Nominal: 84 dB Half-space (in ceiling) average 1 kHz to 16 kHz | | Coverage Angle | Nominal: 130° conical coverage Half-space (in ceiling) average 1 kHz to 16 kHz | | Directivity | Factor Q: 9.8
Index DI: 7.4 dB Half-space (in ceiling) average 1 kHz to 16 kHz | | Sound Pressure | Rated Maximum Level: 97 dB @ 3.3' (1 m) average, 103 dB peak | | Nominal Impedance | 8 Ω (in direct/bypass 8 Ω setting) | | Transformer Taps | 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70 V only) | | Full Range Drivers | 3" (76 mm) with polypropylene cone, butyl rubber surround, Kapton voice coil former, high-temperature voice coil, aluminum coupling ring for low distortion, and HF extension | | Input Connector | Removable locking 4-pin connector with screw-down terminals
Maximum Wire Size: 12 AWG (2.5 mm2) | | Wiring | Connector: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru | | Strain Relief | Strain relief for 2 cables or 2 flex conduits via coupled clamping mechanism | | Material | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating
Zinc-plated steel backcan | | Safety Agency Approvals | UL1480, UL2043, NFPA90, & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems | | Ceiling Cutout Size | Circular cutout with 6.7" (170.0 mm) diameter (cardboard cutout template included) | | Ceiling Thickness | Range: Up to 1.4" (35.0 mm) with stock dog-ears; MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses (sold separately) | | Attachment | Safety Seismic: One point, top surface | | Dimensions (Ø x D) | From Back of Baffle: 7.7 x 5.4" (196.0 x 138.0 mm) | | Weight | One Speaker: 3.5 lb (1.6 kg) | | | | Package Weight | 14.69 lb | | Box Dimensions (LxWxH) | 26.75 x 9.5 x 9.5" |
