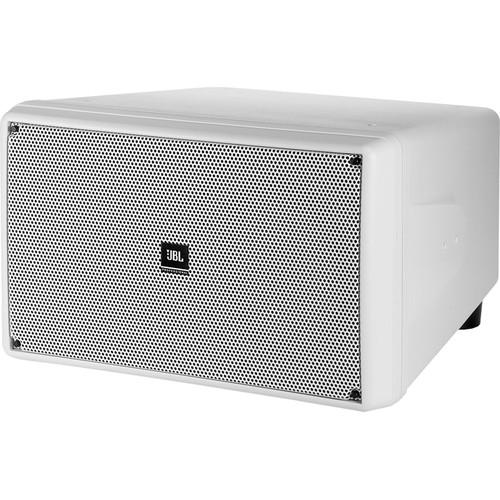

User Manual for JBL Professional Series Control SB2210 Dual 10" Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL Professional Series Control SB2210 Dual
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL Professional Series Control SB2210 Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Styled in white, the SB2210 from JBL is a subwoofer housing two 10" low frequency drivers, each one capable of handling 500W of continuous power. As such, this unit is suitable for reproducing low frequencies in conjunction with a wide variety of sound systems. Its compact size and ROHS-compliant design make it useful both inside and outdoors.
It can reach frequencies as low as 38 Hz, and can reach an SPL of 122 dB, making the sub quite loud. Its construction—replete with 13 included M6 points—allows the subwoofer to be mounted on the floor, on a wall, or hung from a ceiling. Four floor feet and four beveled washers are provided with the unit, while additional mounting equipment is available separately. -
- 2 x 10” / 250mm woven fiberglass cone LF drivers
- 500W power handling
- Frequency response down to 38 Hz
- 13 x M6 insert points including inserts for optional U-bracket
- Compact, low-profile design
UPC: 691991004339 In the Box JBL Professional Series Control SB2210 Dual 10" Subwoofer (White) MTC-PC2 Input Panel Cover 4 x Floor Standing Foot 4 x Beveled Washer Limited 5-Year Warranty on Woofer & Electronics Limited 2-Year Warranty on Speaker Enclosure Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Professional Series Control SB2210 Dual 10" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL SB2210 Specs | | | Configuration | Dual Subwoofer | | Total Power Capacity | 500 W RMS
2000 W Peak
1000 W Program | | System Impedance | 8 Ohms (Nominal)
7.2 Ohms (Minimum) | | | | LF Driver | 2 x 10" / 25 cm Woofer | | | | Frequency Range | 38 Hz to 500 Hz -10 dB
48 Hz to 95 Hz -3 dB | | Maximum SPL | 122 dB (Half-Space) | | Speaker Sensitivity | 95 dB | | | | Audio I/O | Screw Terminal Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm). Included MTC-PC2 and optional MTC-PC3 protective covers available. | | | | Filters | High-Pass:
45 Hz, 24 dB/Octave | | | | IP Rating | IP45 When installed with included MTC-PC2 terminal panel cover. | | Construction Material | Metal Grille, Polystyrene, Polyurethane | | Certifications | RoHS, as per Manufacturer | | Dimensions | 14.0 x 23.3 x 22.5" / 36.0 x 59.0 x 57.0 cm | | Weight | 51.4 lb / 23.3 kg | | | | Package Weight | 59.5 lb | | Box Dimensions (LxWxH) | 29.0 x 27.0 x 20.0" |
