User Manual for JBL PRX412M Two-Way 12" Passive Speaker Click to enlarge the picture
Contents of the user manual for the JBL PRX412M Two-Way 12" Passive Speaker
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL PRX412M Two-Way 12" Passive Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

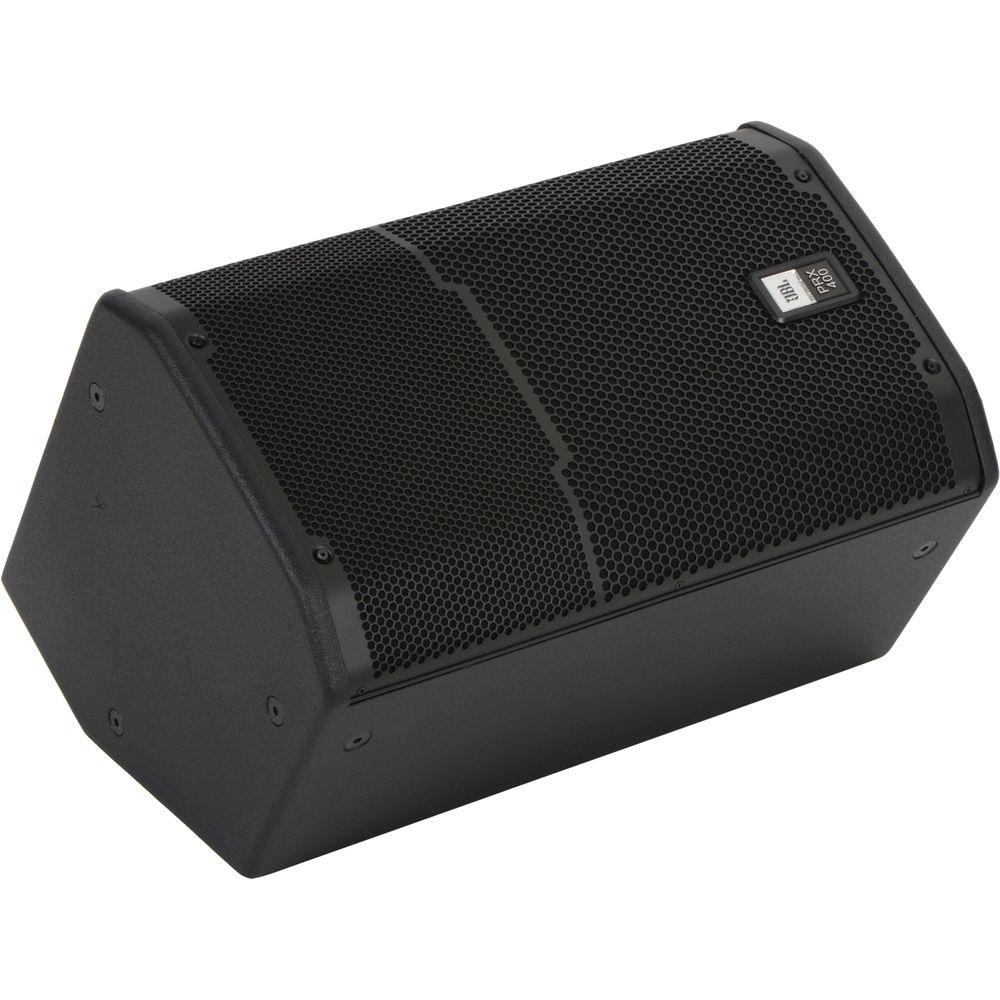

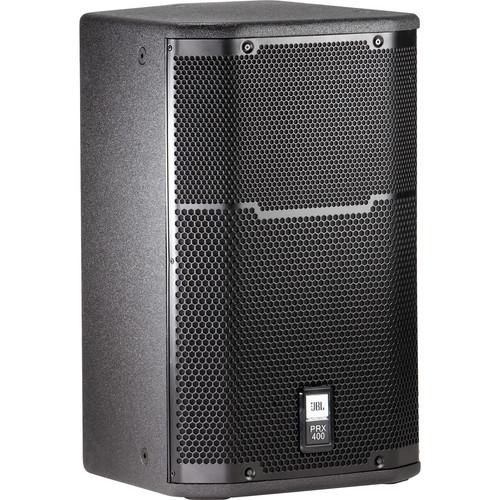

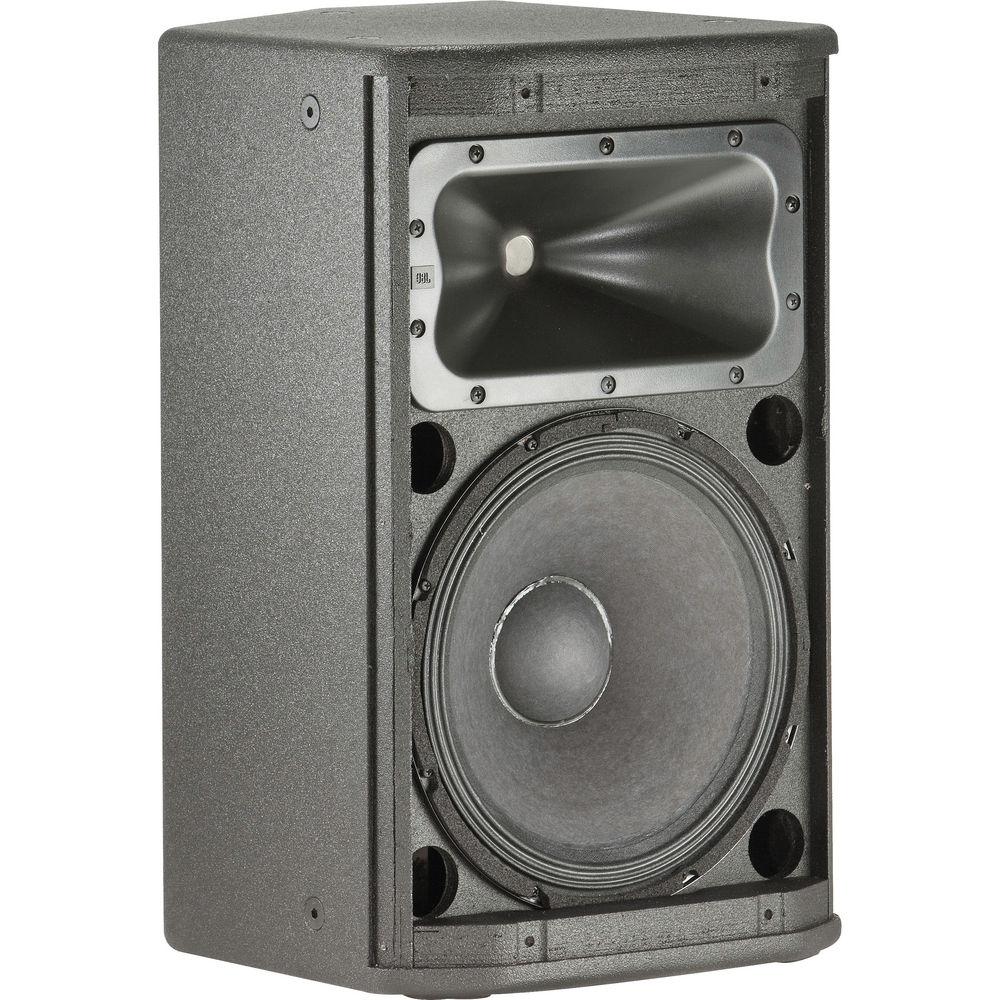

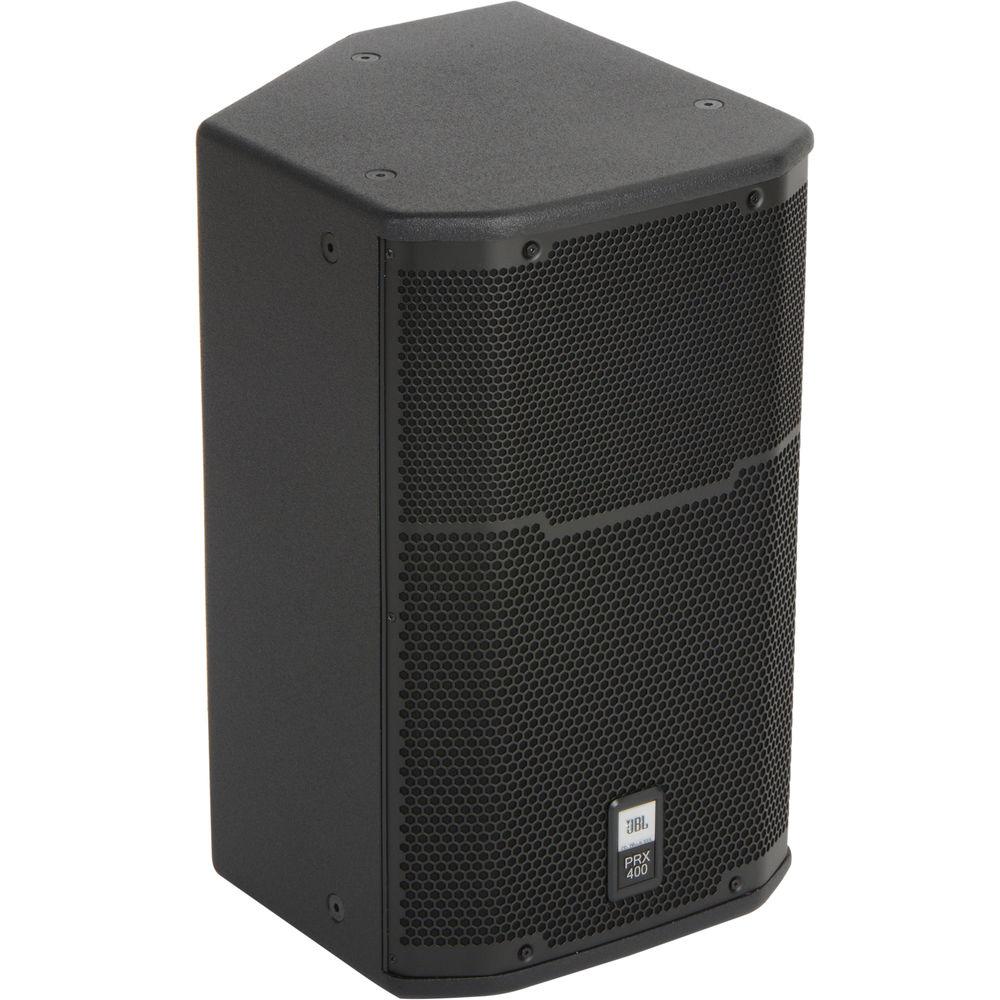

Product description The black PRX412M Two-Way 12" Passive Speaker by JBL has an asymmetrical enclosure shape, allowing it to be used as an FOH main or a wedge monitor. The PRX412M houses a 12" woofer and a 1" polymer diaphragm compression driver for 300W of continuous power capacity. The 90 x 50° horn provides smooth, even coverage in both vertical and horizontal orientations.

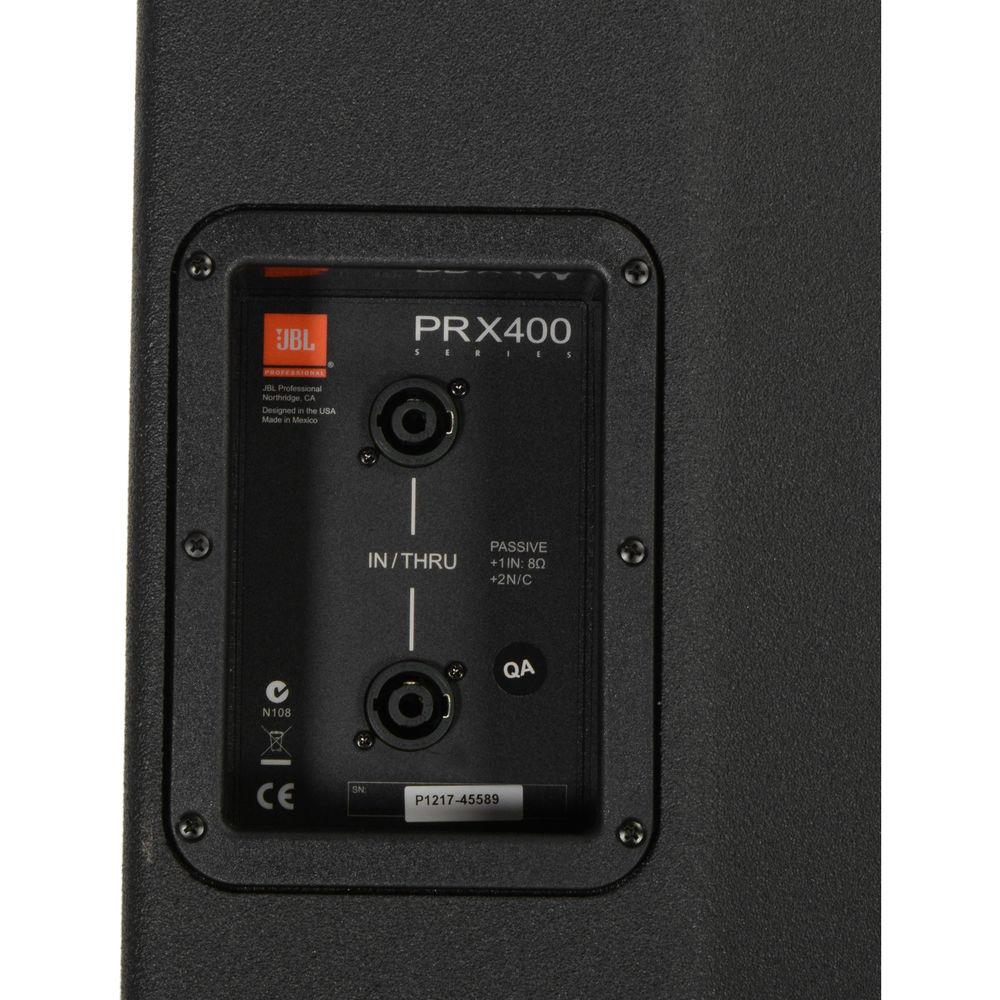

The PRX412M features combo connectors that accept both Speakon NL-2 and 1/4" TS connectors. A passive crossover network provides accurate sound reproduction. For use on a tripod or over a subwoofer, JBL's dual angle pole mount socket is integrated into the cabinet design. The socket can tilt down by 10°, allowing a mounted speaker to still obtain optimum audience coverage.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance. UPC: 050036904032 In the Box JBL PRX412M Two-Way 12" Passive Speaker (Black) Limited 2-Year Warranty on Enclosure Limited 5-Year Warranty on Components Specification PDF 991.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PRX412M Two-Way 12" Passive Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL PRX412M Specs | Active or Passive | Passive | | Frequency Range | 50 Hz - 20 kHz (-10 db) | | Frequency Response | 62 Hz - 19 kHz ±3 dB | | Coverage Pattern | 90 x 50° | | Crossover Type | Passive | | Crossover Frequency | 2.0 kHz | | Power Handling | 300 W continuous
600 W program
1200 W peak | | Maximum SPL | 120 dB SPL continuous, 126 dB SPL peak | | Sensitivity | 95 dB SPL (1 W @ 1 m) | | Low Frequency Driver | 12" (305 mm) JBL MB112-8 woofer | | High Frequency Driver | 1" (25 mm) JBL 2414H-C polymer diaphragm compression driver | | Nominal Impedance | 8 ohms | | Enclosure | Asymmetrical stage monitor
0.71" (18 mm) birch/poplar plywood | | Mounting Options | Dual angle, 0° or -10° 35 mm pole socket

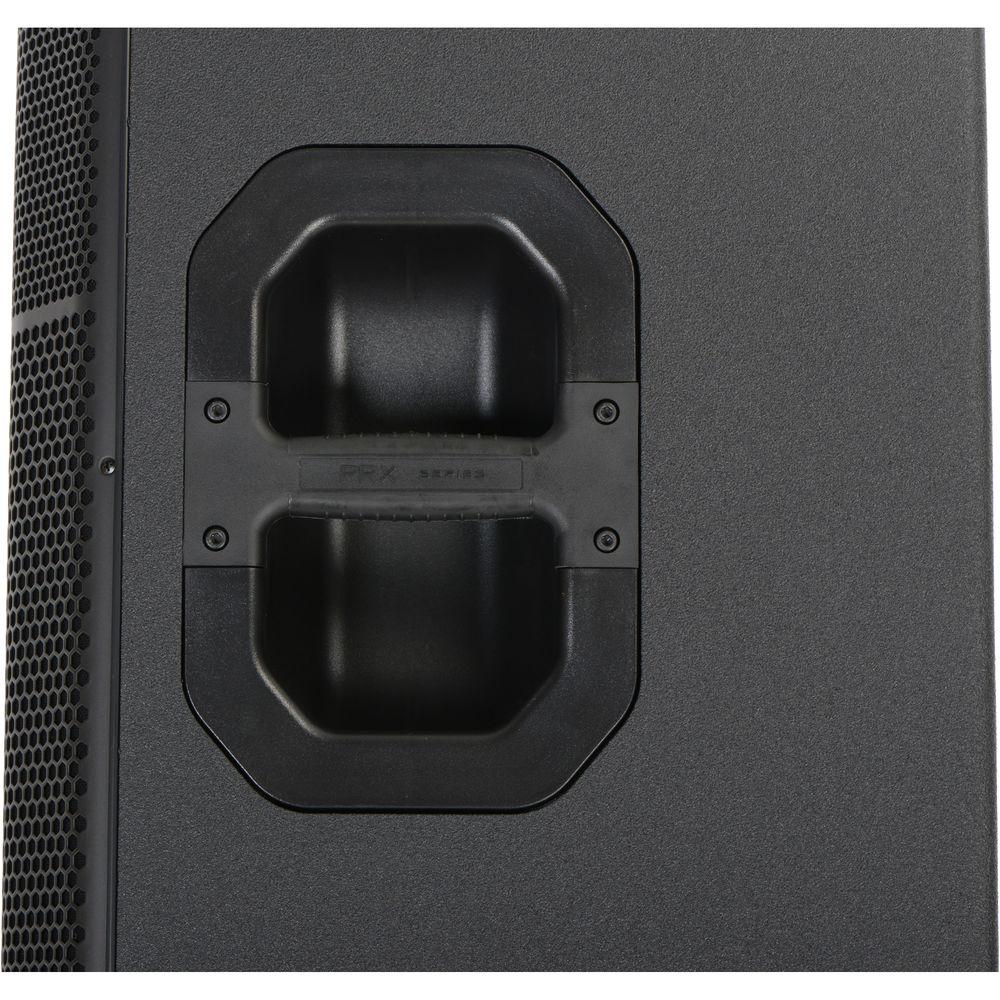

Twelve M10 Suspension Points | | Handle or Carrying Type | Glass-filled handle with rubber grip | | Finish | Black DuraFlex finish | | Grille | Powder coated, black, 16-gauge perforated steel with acoustically transparent black screen backing | | Input Connectors | Parallel Neutrik Speakon NL-2 and 1/4" combo jacks | | Dimensions (H x W x D) | 22.6 x 13.9 x 15.7" (57.4 x 35.3 x 39.9 cm) | | Weight | 35 lb (16 kg) | | | | Package Weight | 43.4 lb | | Box Dimensions (LxWxH) | 25.0 x 20.5 x 18.7" |
