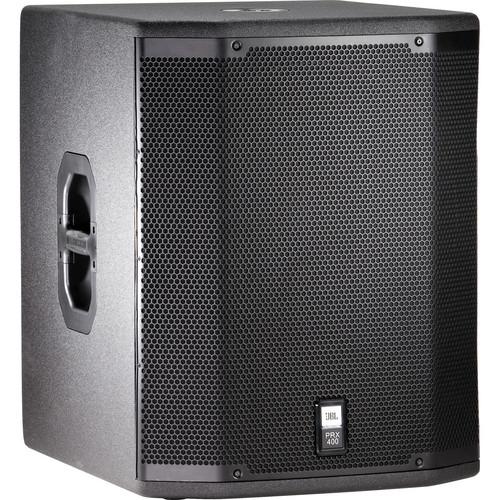

User Manual for JBL PRX418S Passive 18" Subwoofer Click to enlarge the picture
Contents of the user manual for the JBL PRX418S Passive 18" Subwoofer
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL PRX418S Passive 18" Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The PRX418S Passive 18" Subwoofer from JBL features a Selenium woofer in a front-loaded, vented enclosure. It can handle 800W of continuous power and up to 3,200W peak. The input panel incorporates a pair of Neutrik combo jacks that accept both Speakon NL-2 and 1/4" TS connectors wired in parallel. The PRX418S is supplied with pins +1/-1 connected to the woofer.
The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL's rugged DuraFlex finish. The 16-gauge steel grille is CNC-machined for precision. The grille is internally lined with an acoustically transparent screen to provide additional driver protection and give a professional appearance. UPC: 050036904063 In the Box JBL PRX418S Passive 18" Subwoofer Limited Warranty: 5-Years Enclosure / 1-Year Components Specification PDF 1mbfzzweacudqweueyzaaadxuztv Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PRX418S Passive 18" Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL PRX418S Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 800 W RMS
1600 W Program
3200 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | | | Frequency Range | 35 Hz to 250 Hz -10 dB | | Frequency Response | 52 Hz to 120 Hz ±3 dB | | Maximum SPL | 124 dB SPL (Continuous)
130 dB SPL (Peak) | | Speaker Sensitivity | 95 dB SPL | | | | Audio I/O | 2 x Combo speakON / 1/4" | | | | Crossover | Low-Pass:
80 Hz 24 to 48 dB/Octave Slope | | Filters | High-Pass:
35 Hz, 24 dB/Octave | | | | Mounting | 1 x Pole Socket Top mount for SS4-BK Pole | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 26.7 x 21.1 x 24.2" / 678.0 x 536.0 x 615.0 mm | | Weight | 79 lb / 36 kg | | | | Package Weight | 95.0 lb | | Box Dimensions (LxWxH) | 29.0 x 29.0 x 26.0" |
