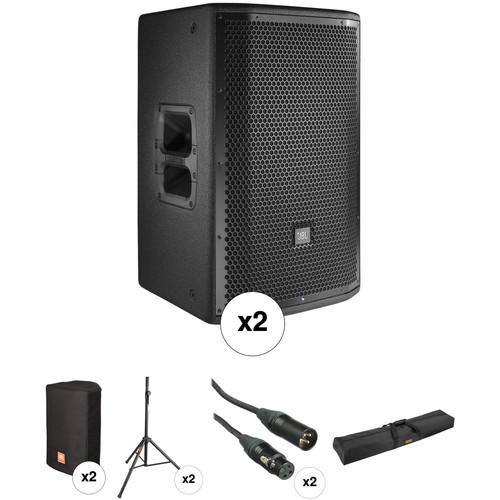

User Manual for JBL PRX812W 12" Loudspeaker Pair with Stands, Covers, and Cables Kit

• Product category: PA Speakers JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL PA Speakers

Product description

• 2 x JBL PRX812W 12" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi
  • PRX800W Connect App
  The PRX812W from JBL is a 2-way powered loudspeaker designed for main PA and monitor applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 12" woofer and 1.5" compression driver, which combine to offer a frequency range of 52 Hz to 20 kHz at 135 dB maximum SPL output.

  The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing.
  • • Maximum SPL Output 135 dB Peak
    • 12” Differential Drive low-frequency driver for low distortion and higher SPL
    • 1.5”-diameter next-generation JBL neodymium compression driver
    • 1500W (dual 750 watt) highly efficient Class-D amplifier
    • Optimized EQ for monitor or front-of-house applications
    • Wireless remote control of its on-board DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere
    • DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
    • Professional XLR-1/4” combination inputs, RCA inputs, and XLR loop-through
    • Integrated 36mm pole-mount socket with angle-down tilt
    • Integrated 12 x M10 suspension points
    • Lightweight poplar-plywood cabinets made structurally sound with tongue-and-groove joints and protected by JBL’s tour-proven DuraFlex finish
  UPC: 691991005343
• 2 x JBL BAGS Deluxe Padded Cover for PRX812W Speaker (Black)
  • PRX800W Connect App
  Protect your JBL PRX812W from dirt, dust and scratches with the black Deluxe Padded Cover from JBL. This is the official protective cover for JBL PRX loudspeakers, and it features a durable 600D nylon exterior with a soft, tricot lined interior padding. An opening in the rear of the cover offers easy access to the speaker handle.
  • Durable 600-D nylon outer fabric keeps out dust and dirt, and helps prevent dents and dings
  • Interior is padded with a protective foam layer and soft tricot lining
  • Handle cut-outs provide access to built-in cabinet handles
  • Printed JBL logo on front
  UPC: 716408533919
• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand
  • PRX800W Connect App
  The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
  • Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
  • Locking pin fits into any of five predrilled holes to secure desired height setting
  • Center brace connects tripod legs for increased stability
  UPC: 847628015845
• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
  • PRX800W Connect App
  The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.

  Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 95% dual-spiral shielding offers protection from EMI and RFI noise
  • Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
  • 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
  • Cotton yarn reduces electrostatic and microphonic noise
  • All solder points shrink-wrapped for protection
  • Neutrik XX silver connectors offer high conductivity
  • Caged type contact and improved ground contact
  UPC: 847628558304
• Auray Speaker Stand Bag 51" Interior (Black)
  • PRX800W Connect App
  The Speaker Stand Bag from Auray is a spacious, durable bag designed to hold and protect two speaker stands, six microphone stands, or miscellaneous hardware for DJs, bands, and engineers between gigs, parties, and special events. The 52” rugged nylon bag holds stands up to 51” in length.The smooth, coated interior won’t mar the finish of your stands. Dual large-gauge zippers provide easy and fast access to the bag’s contents. Webbed nylon handles with a padded touch-fastener wrap make carrying the bag, even with one hand, simple and balanced.The Auray logo is embroidered on the front and provides quick, stylish bag identification.
  Durable Protection
  • The heavy-duty nylon exterior resists rips and tears, and protects speaker stands from scuffs and scratches. The smooth, coated interior keeps your stands' finishes looking nice. The bag holds one or two speaker stands, six microphone stands, or miscellaneous hardware up to 51" in length.
  Reliable and Stylish
  • Dual large-gauge zippers allow you to open and close the bag easily on either side or the middle. Nylon extensions on the zippers make them even easier to grab. The Auray logo is embroidered on the front, providing easy bag identification.
  Easy Transport
  • Forget carrying one speaker stand in each hand. Put your stands in the bag, then carry the bag with one hand, thanks to the webbed nylon carry handles and padded handle wrap.
  UPC: 847628002432

• 2 x PRX812W 12" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi
• Power Cord
• Limited 5-Year Warranty

• 2 x JBL BAGS - Deluxe Padded Cover for PRX812W Speaker (Black) usfweddfbrvddtrdyttfrrsefbdcvvbfyq

• 2 x Auray - SS-4320 Lightweight Aluminum Speaker Stand

• 2 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

• Auray - Speaker Stand Bag 51" Interior (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL PRX812W 12" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi

  Configuration	Active 2-Way
  Enclosure Type	Bass-Reflex Loudspeaker/Floor Monitor
  Total Power Capacity	1500 W
  Amplifier Power Rating	2 x 750 W
  Amplifier Class	Class-D

  HF Driver	1 x 1.5" / 3.8 cm Polymer Compression Driver
  LF Driver	1 x 12" / 30.5 cm Woofer
  Magnet	HF: Neodymium

  Frequency Range	52.6 Hz to 20 kHz -10 dB (Main) 50.3 Hz to 20 kHz -10 dB (Monitor)
  Frequency Response	58.1 Hz to 20 kHz ±3 dB (Main) 59 Hz to 20 kHz ±3 dB (Monitor)
  Maximum SPL	135 dB (Peak)
  Coverage Angle	90° H x 50° V
  Directivity Index	10.2 dB (Directivity Index) 10.4 dB (Directivity/Q Factor)
  I/O Impedance	Input: 20 kOhms (Balanced) 10 kOhms (Unbalanced)

  Audio I/O	2 x Combo XLR / 1/4" TRS Balanced Input 2 x RCA Unbalanced Input

  Crossover	1.9 kHz
  EQ	Yes
  Dynamic Processing	Limiter

  AC Input Power	100 to 240 VAC, 50 / 60 Hz

  Mounting	2 x 1.4" / 36 mm Pole Socket 12 x M10
  Handles	1
  Construction Material	Plywood
  Dimensions	23.6 x 15.1 x 13.4" / 59.9 x 38.4 x 34.0 cm
  Weight	42.5 lb / 19.3 kg

  Box Dimensions (LxWxH)	25.5 x 19.5 x 18.0"

• 2 x JBL BAGS Deluxe Padded Cover for PRX812W Speaker (Black)

  Type	Cover
  Padding	Foam
  Material of Construction	Nylon, Tricot

  Box Dimensions (LxWxH)	17.0 x 12.0 x 4.5"

• 2 x Auray SS-4320 Lightweight Aluminum Speaker Stand

  Type	Speaker Stand
  Load Capacity	100 lb / 45.4 kg
  Mount Size	1-3/8" 1-1/2"
  Height Adjustment Range	47 to 78" / 120 to 198 cm
  Material of Construction	Aluminum
  Weight	5 lb / 2.3 kg

  Box Dimensions (LxWxH)	42.0 x 5.3 x 5.0"

• 2 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	20' / 6.1 m
  Shielding	95% Spiral
  Wire Gauge	24 AWG
  Contact Plating	Silver

  Box Dimensions (LxWxH)	8.6 x 7.0 x 0.4"

• Auray Speaker Stand Bag 51" Interior (Black)

  Material	Nylon
  Type of Closure	Zipper
  Exterior Dimensions (H × W × D)	52 × 5 × 10.5" / 132.1 × 12.7 × 26.7 cm
  Carrying/Transport Options	Dual carry handles with padded touch-fastener wrap
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	16.6 x 10.8 x 2.2"
