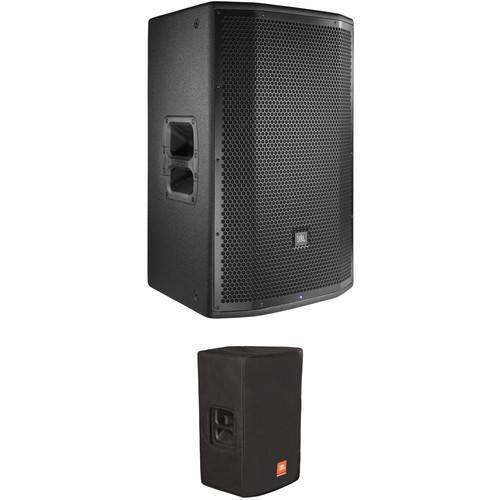

User Manual for JBL PRX815W 15" Loudspeaker and Bag Kit Click to enlarge the picture
Contents of the user manual for the JBL PRX815W 15" Loudspeaker and Bag
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL PRX815W 15" Loudspeaker and Bag contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL PRX815W 15" Loudspeaker and Bag Kit from includes the JBL PRX815W 15" 2-way powered loudspeaker, a power cord, and a deluxe padded cover for the PRX815W loudspeaker. This kit can be used as a main PA or audio monitor for DJs, clubs, bars, schools, and church applications. The loudspeaker offers Wi-Fi control over the on-board DSP. In addition, it delivers a total of 1500W to the 15" woofer and 1.5" compression driver. - JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi The PRX815W from JBL is a 2-way powered loudspeaker designed for main PA and monitor applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer and 1.5" compression driver, which combine to offer a frequency range of 50 Hz to 20 kHz at 137 dB maximum SPL output.
The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing. -
- Maximum SPL Output 137 dB Peak
- 15” Differential Drive low-frequency driver for low distortion and higher SPL
- 1.5”-diameter next-generation JBL neodymium compression driver
- 1500W (dual 750 watt) highly efficient Class-D amplifier
- Optimized EQ for monitor or front-of-house applications
- Wireless remote control of its on-board DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR-1/4” combination inputs, RCA inputs, and XLR loop-through
- Integrated 36mm pole-mount socket with angle-down tilt
- Integrated 12 x M10 suspension points
- Lightweight poplar-plywood cabinets made structurally sound with tongue-and-groove joints and protected by JBL’s tour-proven DuraFlex finish
UPC: 691991005350 - JBL BAGS Deluxe Padded Cover for PRX815W Speaker (Black) Protect your JBL PRX815W from dirt, dust and scratches with the black Deluxe Padded Cover from JBL. This is the official protective cover for JBL PRX loudspeakers, and it features a durable 600D nylon exterior with a soft, tricot lined interior padding. An opening in the rear of the cover offers easy access to the speaker handle.
- Durable 600-D nylon outer fabric keeps out dust and dirt, and helps prevent dents and dings
- Interior is padded with a protective foam layer and soft tricot lining
- Handle cut-outs provide access to built-in cabinet handles
- Printed JBL logo on front
UPC: 716408533933 In the Box - PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi ddsewstztrexdccdqrzarqurtrsb
- Power Cord
- Limited 5-Year Warranty
- JBL BAGS - Deluxe Padded Cover for PRX815W Speaker (Black)
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PRX815W 15" Loudspeaker and Bag Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi
| | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor | | Total Power Capacity | 1500 W | | Amplifier Power Rating | 2 x 750 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.5" / 3.8 cm Polymer Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Range | 50 Hz to 20 kHz -10 dB (Main)
46 Hz to 20 kHz -10 dB (Monitor) | | Frequency Response | 56 Hz to 20 kHz ±3 dB (Main)
56 Hz to 19 kHz ±3 dB (Monitor) | | Maximum SPL | 137 dB (Peak) | | Coverage Angle | 90° H x 50° V | | Directivity Index | 10.2 dB (Directivity Index)
10.4 dB (Directivity/Q Factor) | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x RCA Unbalanced Input | | | | Crossover | 2 kHz | | EQ | Yes | | Dynamic Processing | Limiter | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 2 x 1.4" / 36 mm Pole Socket
12 x M10 | | Handles | 1 | | Construction Material | Plywood | | Dimensions | 27.6 x 17.5 x 14.1" / 70.1 x 44.5 x 35.8 cm | | Weight | 58 lb / 26.3 kg | | | | Box Dimensions (LxWxH) | 30.0 x 22.0 x 20.0" | - JBL BAGS Deluxe Padded Cover for PRX815W Speaker (Black)
| Type | Cover | | Padding | Foam | | Material of Construction | Nylon, Tricot | | | | Box Dimensions (LxWxH) | 21.26 x 14.961 x 5.118" |
