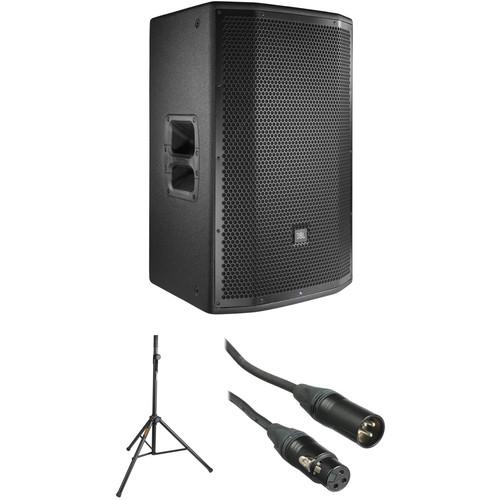

Product description The JBL PRX815W 15" Loudspeaker with Stand and Cable Kit from B&H includes the JBL PRX815W 15" loudspeaker with power cord, an Auray SS-4320 lightweight aluminum speaker stand, and a premium performance XLR M to XLR F microphone cable. This kit can be used as a main PA or audio monitor for DJs, clubs, bars, schools, and houses of worship delivering a total output of 1500W. - JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi The PRX815W from JBL is a 2-way powered loudspeaker designed for main PA and monitor applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer and 1.5" compression driver, which combine to offer a frequency range of 50 Hz to 20 kHz at 137 dB maximum SPL output.
The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing. -
- Maximum SPL Output 137 dB Peak
- 15” Differential Drive low-frequency driver for low distortion and higher SPL
- 1.5”-diameter next-generation JBL neodymium compression driver
- 1500W (dual 750 watt) highly efficient Class-D amplifier
- Optimized EQ for monitor or front-of-house applications
- Wireless remote control of its on-board DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR-1/4” combination inputs, RCA inputs, and XLR loop-through
- Integrated 36mm pole-mount socket with angle-down tilt
- Integrated 12 x M10 suspension points
- Lightweight poplar-plywood cabinets made structurally sound with tongue-and-groove joints and protected by JBL’s tour-proven DuraFlex finish
UPC: 691991005350 - Auray SS-4320 Lightweight Aluminum Speaker Stand The SS-4320 Lightweight Aluminum Speaker Stand from Auray is built to be lightweight, yet stable and durable; a single stand is capable of supporting speakers weighing up to 100 pounds. It features a telescoping center column with five height adjustments ranging from 47 to 78". It also features collapsible legs for portability, as well as non-slip feet for traction on surfaces such as dance floors and stages.
- Center column fits 1-3/8" speaker mounts and 1-1/2" adapter is included
- Locking pin fits into any of five predrilled holes to secure desired height setting
- Center brace connects tripod legs for increased stability
UPC: 847628015845 - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (20') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558304 In the Box - PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi efazfsdyzczryzrcwxxufarwratvrvrcdwze
- Power Cord
- Limited 5-Year Warranty
- Auray - SS-4320 Lightweight Aluminum Speaker Stand efazfsdyzczryzrcwxxufarwratvrvrcdwze
- Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PRX815W 15" Loudspeaker with Stand and Cable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi
| | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor | | Total Power Capacity | 1500 W | | Amplifier Power Rating | 2 x 750 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.5" / 3.8 cm Polymer Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Range | 50 Hz to 20 kHz -10 dB (Main)
46 Hz to 20 kHz -10 dB (Monitor) | | Frequency Response | 56 Hz to 20 kHz ±3 dB (Main)
56 Hz to 19 kHz ±3 dB (Monitor) | | Maximum SPL | 137 dB (Peak) | | Coverage Angle | 90° H x 50° V | | Directivity Index | 10.2 dB (Directivity Index)
10.4 dB (Directivity/Q Factor) | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x RCA Unbalanced Input | | | | Crossover | 2 kHz | | EQ | Yes | | Dynamic Processing | Limiter | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 2 x 1.4" / 36 mm Pole Socket
12 x M10 | | Handles | 1 | | Construction Material | Plywood | | Dimensions | 27.6 x 17.5 x 14.1" / 70.1 x 44.5 x 35.8 cm | | Weight | 58 lb / 26.3 kg | | | | Box Dimensions (LxWxH) | 30.0 x 22.0 x 20.0" | - Auray SS-4320 Lightweight Aluminum Speaker Stand
| Type | Speaker Stand | | Load Capacity | 100 lb / 45.4 kg | | Mount Size | 1-3/8"
1-1/2" | | Height Adjustment Range | 47 to 78" / 120 to 198 cm | | Material of Construction | Aluminum | | Weight | 5 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 42.0 x 5.3 x 5.0" | - Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 20' (6.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 20' / 6.1 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 0.4" |
