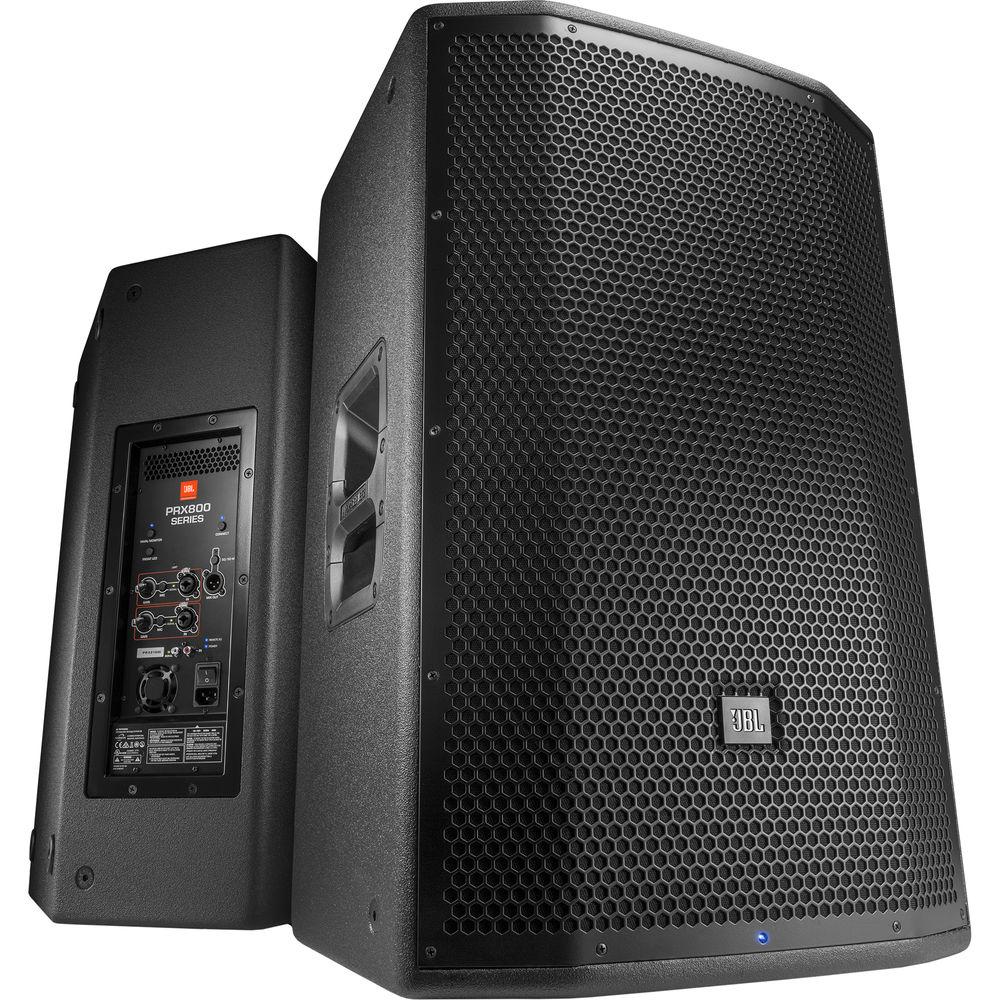

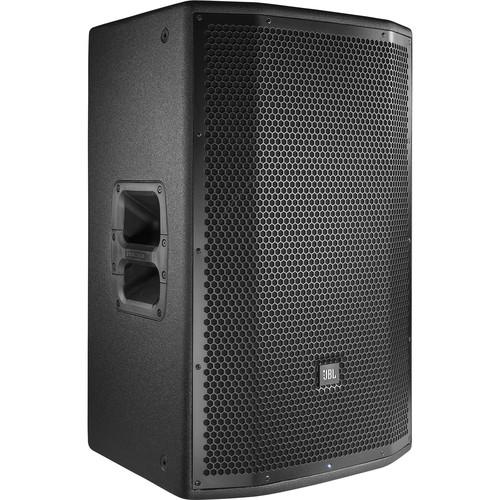

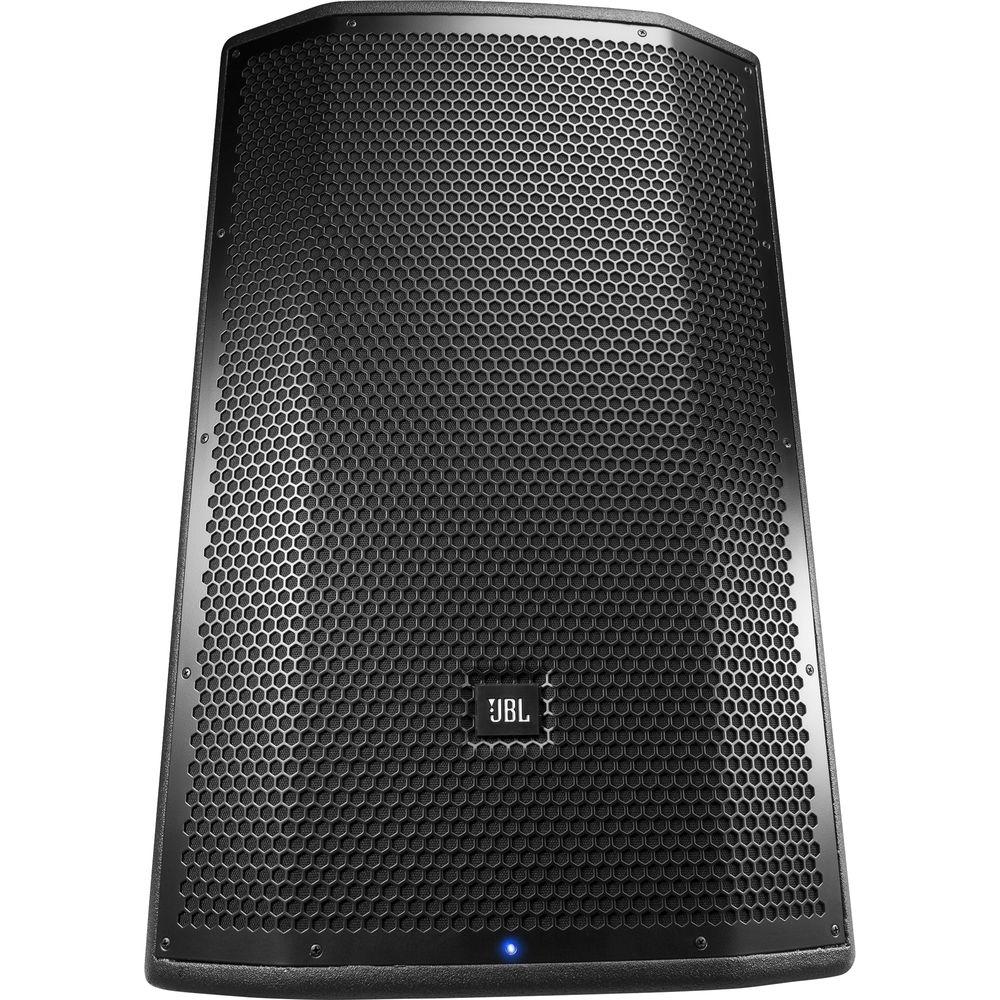

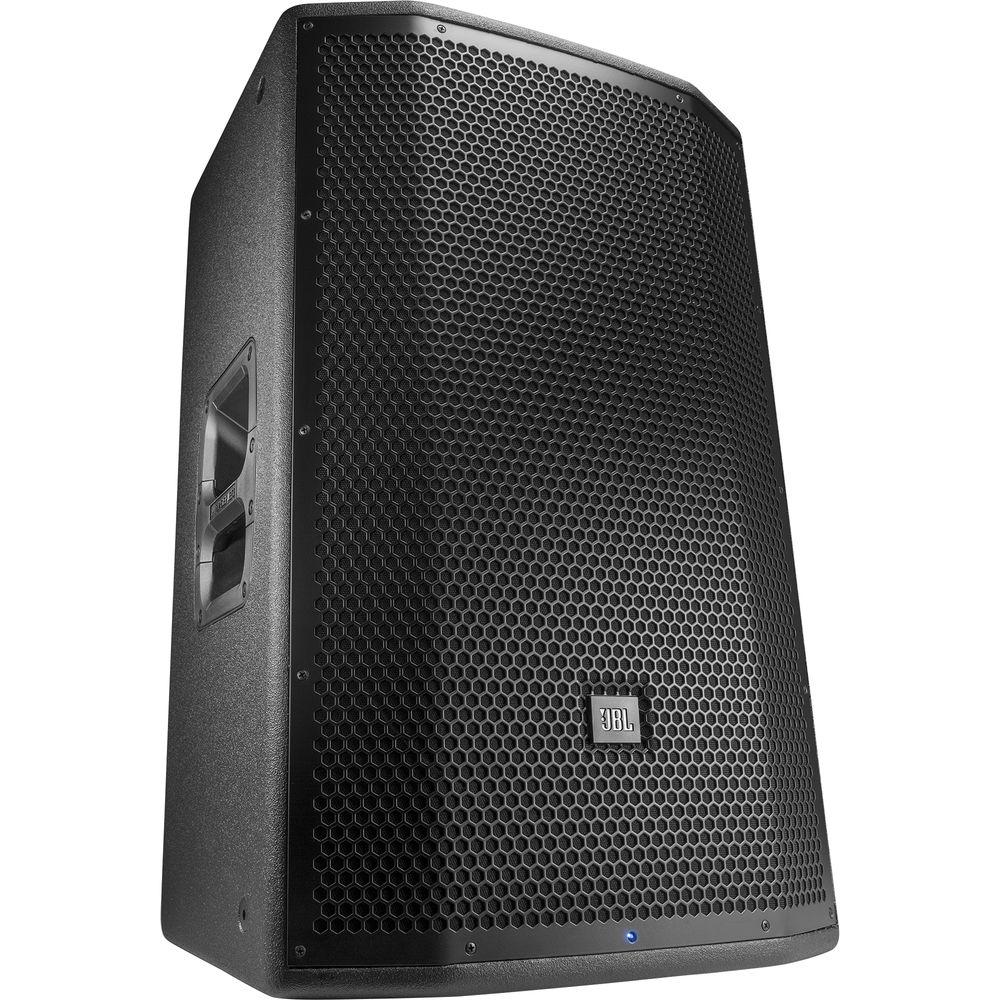

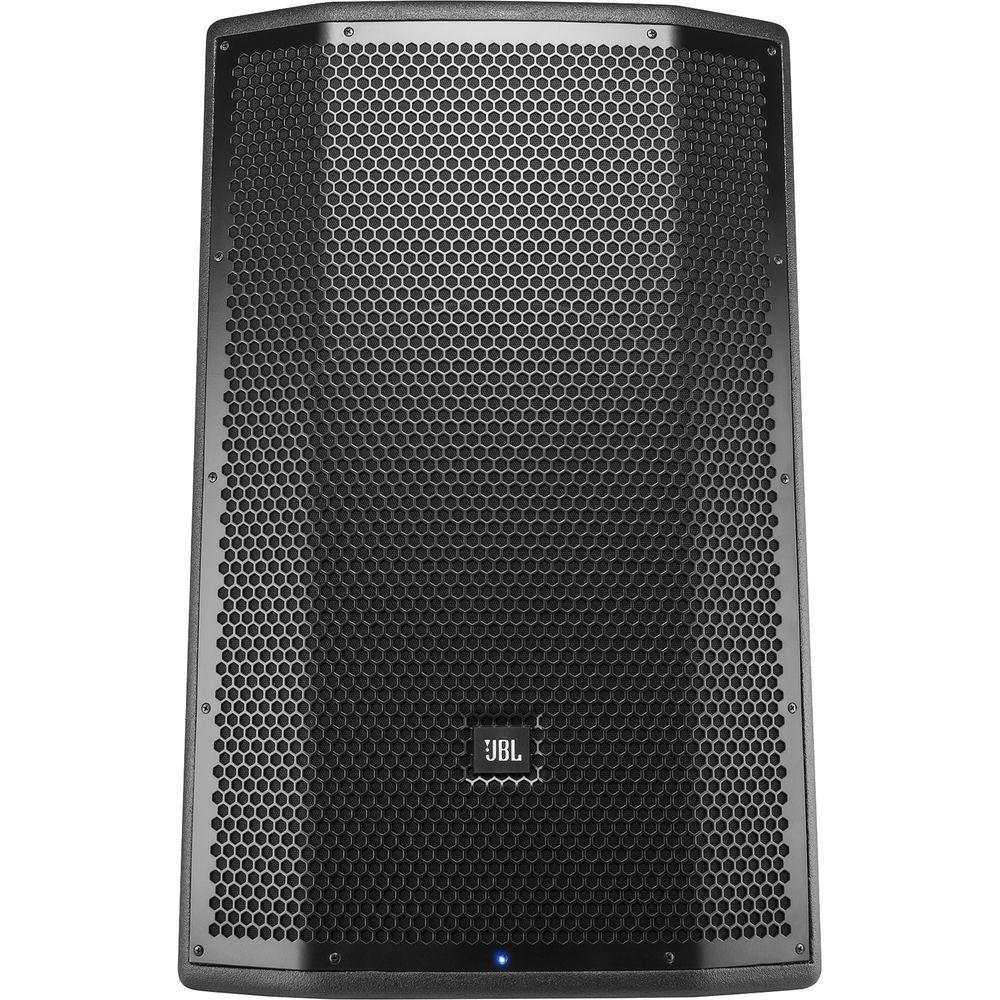

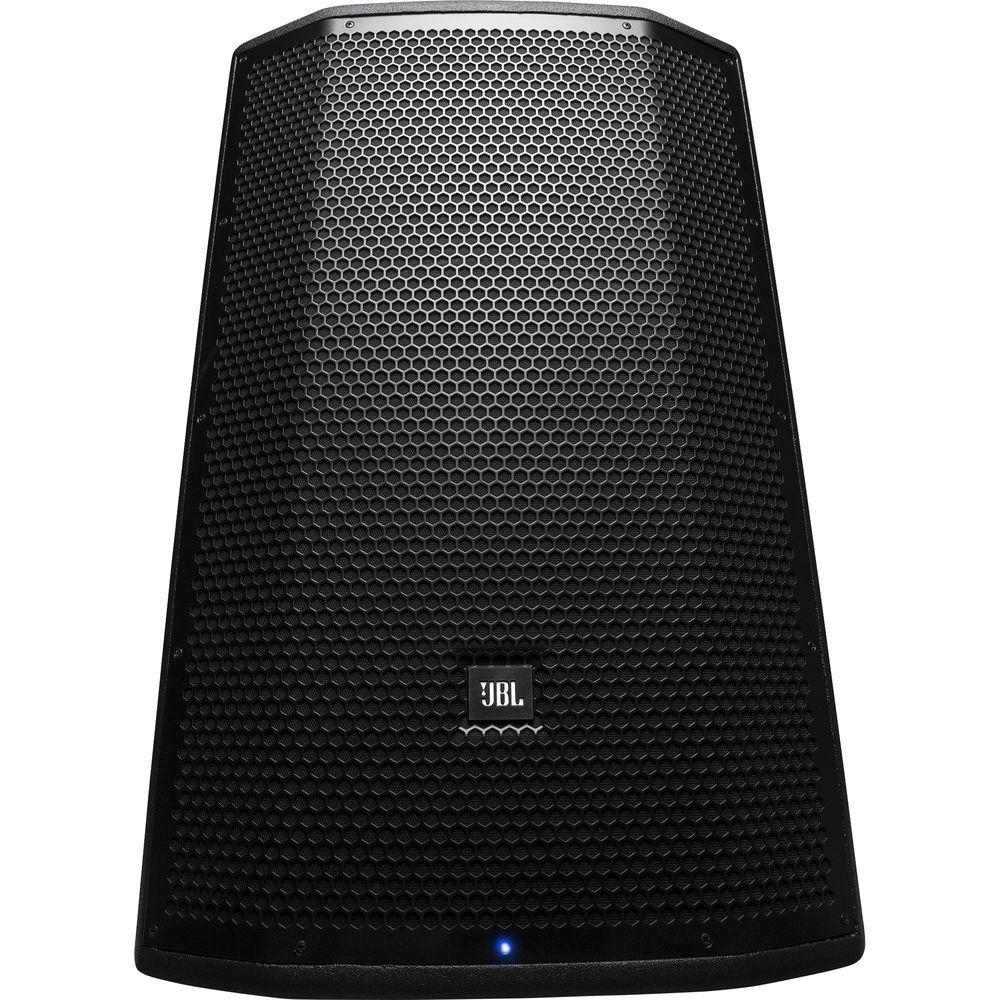

User Manual for JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi Click to enlarge the picture
Contents of the user manual for the JBL PRX815W 15" Two-Way Full-Range Main
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL PRX815W 15" Two-Way Full-Range Main contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

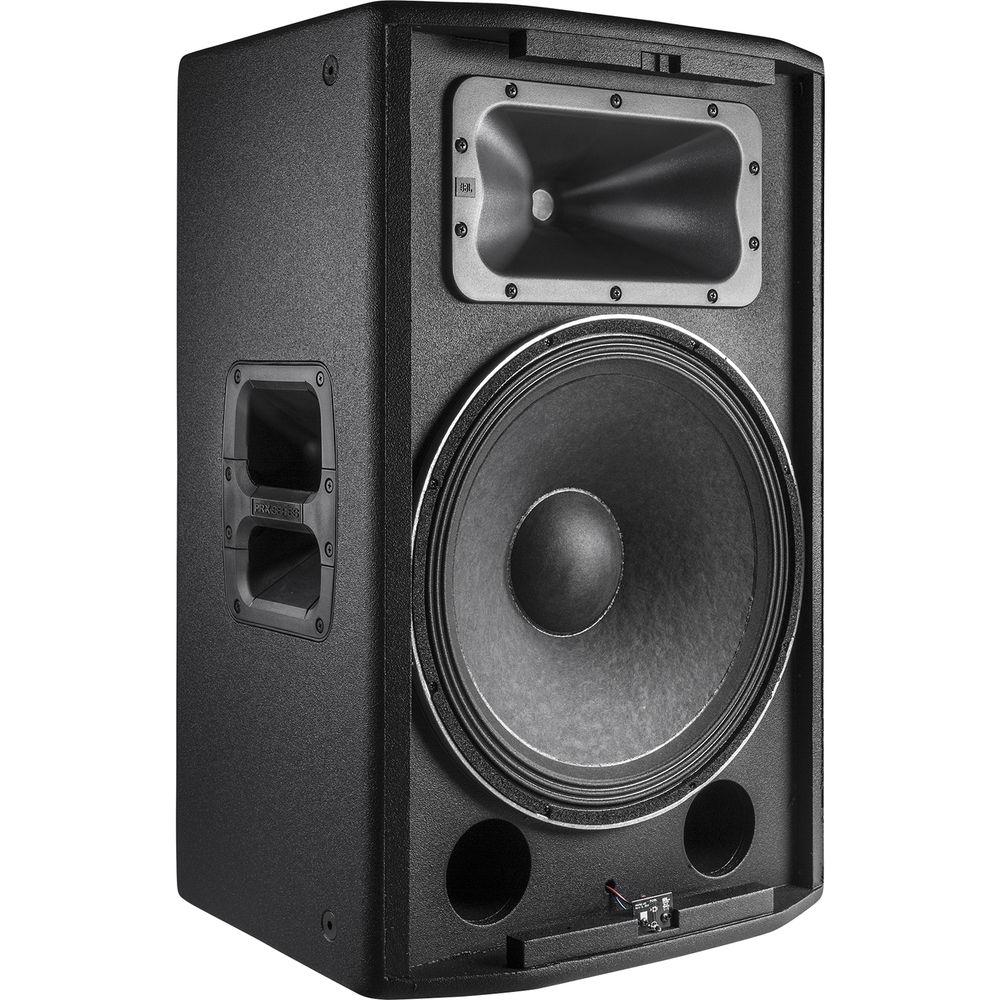

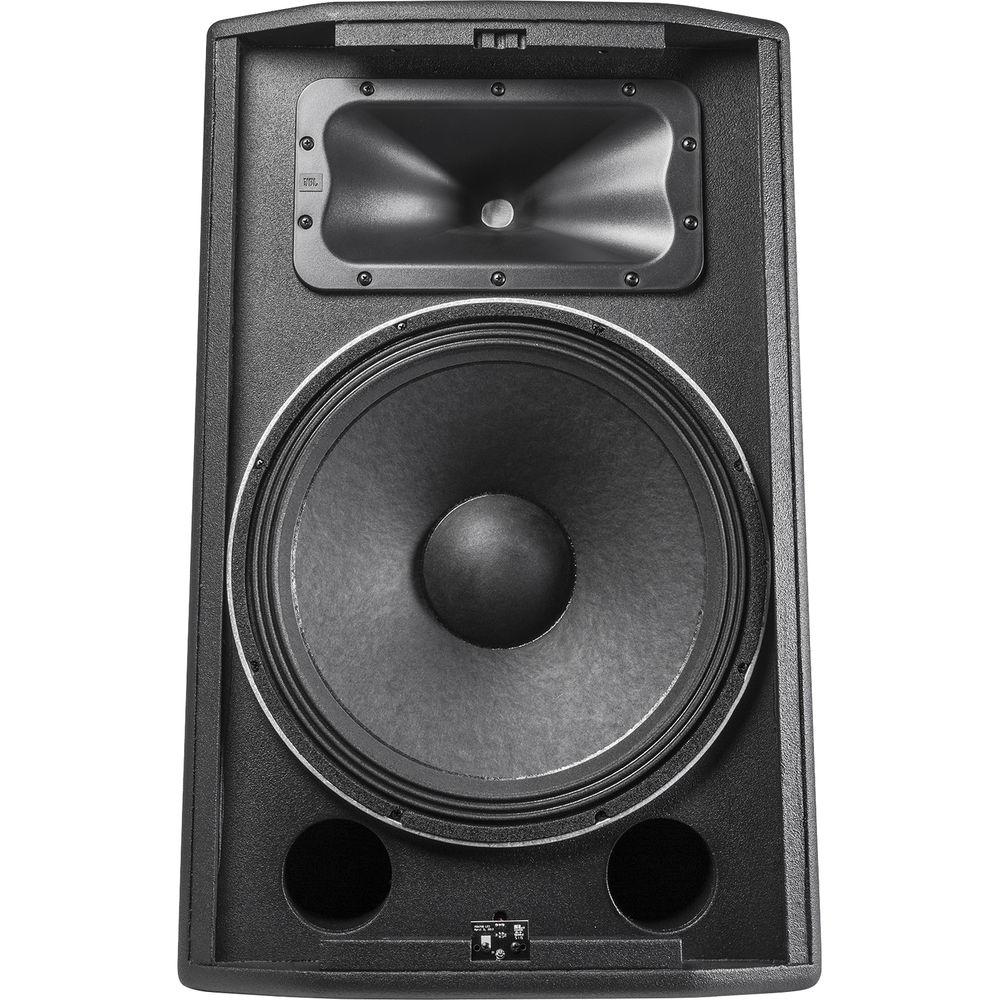

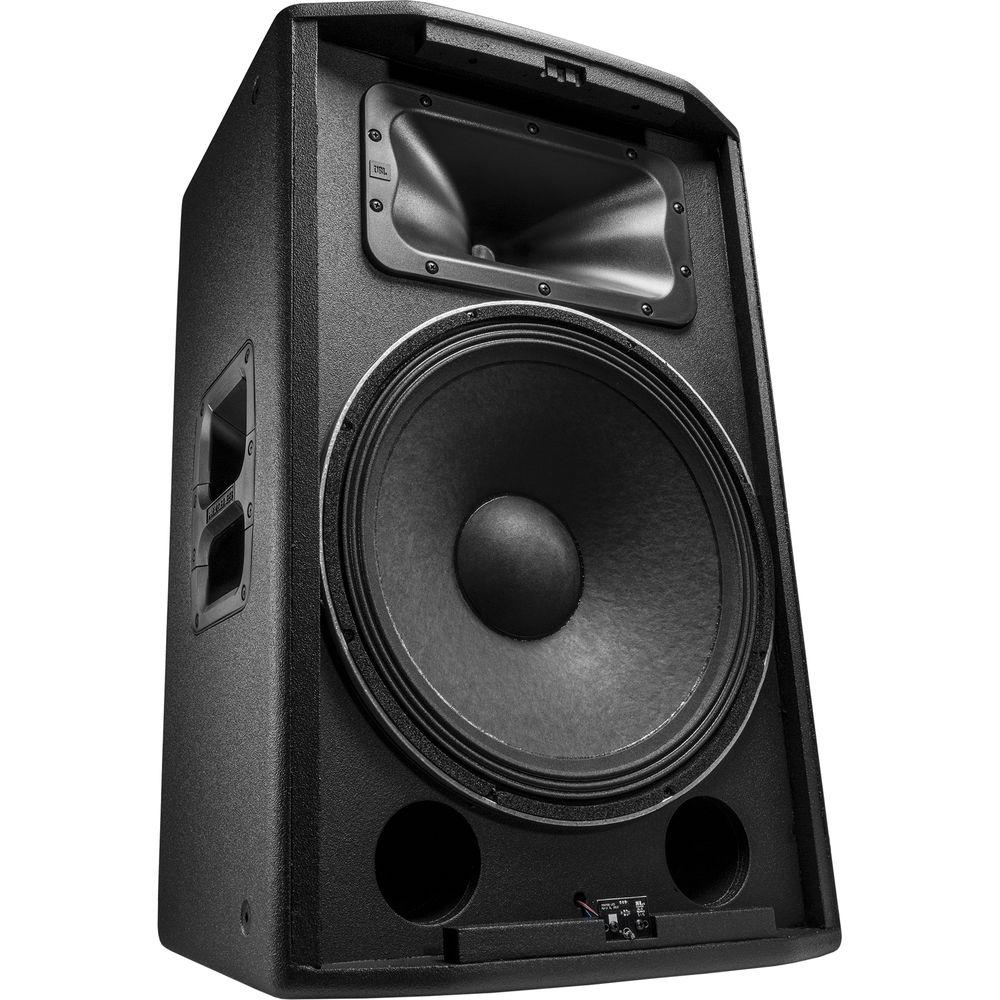

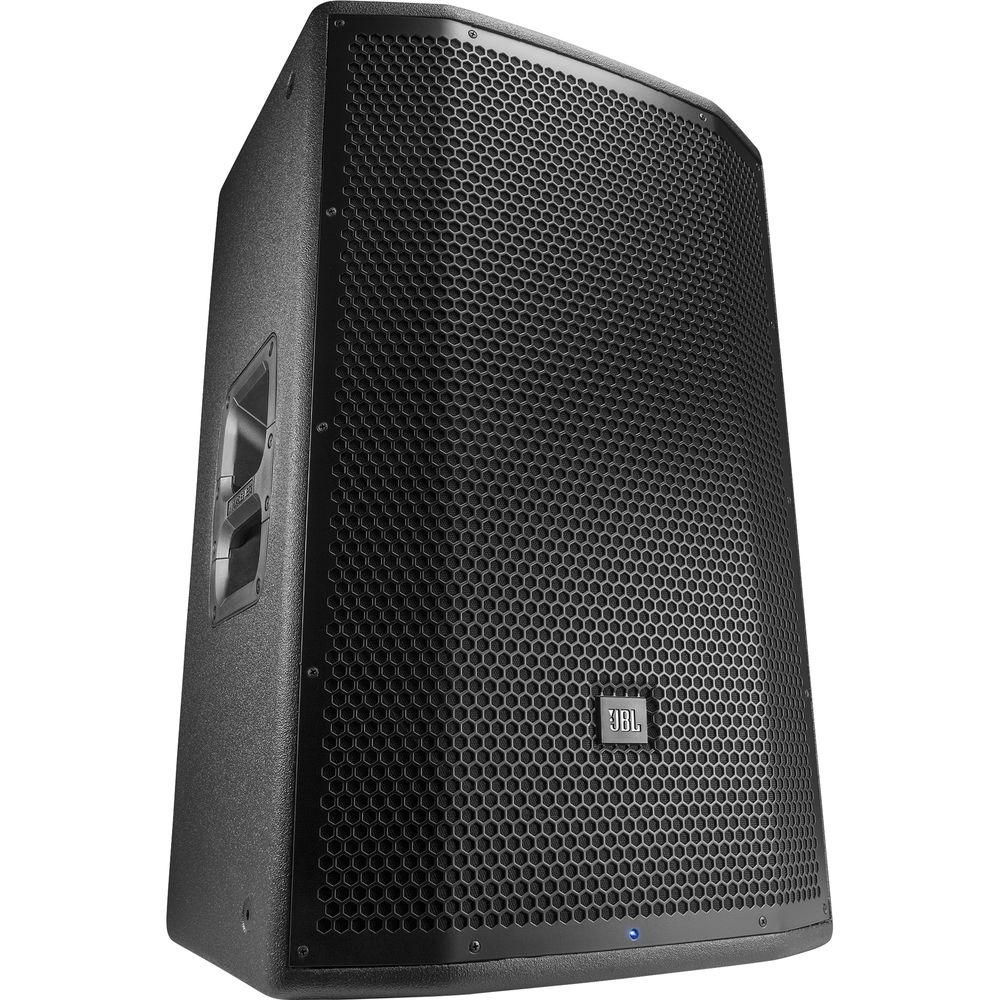

Product description The PRX815W from JBL is a 2-way powered loudspeaker designed for main PA and monitor applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the 15" woofer and 1.5" compression driver, which combine to offer a frequency range of 50 Hz to 20 kHz at 137 dB maximum SPL output.
The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing. -
- Maximum SPL Output 137 dB Peak
- 15” Differential Drive low-frequency driver for low distortion and higher SPL
- 1.5”-diameter next-generation JBL neodymium compression driver
- 1500W (dual 750 watt) highly efficient Class-D amplifier
- Optimized EQ for monitor or front-of-house applications
- Wireless remote control of its on-board DSP EQ parameters via Wi-Fi. Control and configure your show from anywhere
- DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
- Professional XLR-1/4” combination inputs, RCA inputs, and XLR loop-through
- Integrated 36mm pole-mount socket with angle-down tilt
- Integrated 12 x M10 suspension points
- Lightweight poplar-plywood cabinets made structurally sound with tongue-and-groove joints and protected by JBL’s tour-proven DuraFlex finish
UPC: 691991005350 In the Box JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi Power Cord Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL PRX815W 15" Two-Way Full-Range Main System and Floor Monitor with Wi-Fi can be downloaded in PDF format at the link stated below.
Technical parametersJBL PRX815W Specs | | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker/Floor Monitor | | Total Power Capacity | 1500 W | | Amplifier Power Rating | 2 x 750 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.5" / 3.8 cm Polymer Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Range | 50 Hz to 20 kHz -10 dB (Main)
46 Hz to 20 kHz -10 dB (Monitor) | | Frequency Response | 56 Hz to 20 kHz ±3 dB (Main)
56 Hz to 19 kHz ±3 dB (Monitor) | | Maximum SPL | 137 dB (Peak) | | Coverage Angle | 90° H x 50° V | | Directivity Index | 10.2 dB (Directivity Index)
10.4 dB (Directivity/Q Factor) | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input
2 x RCA Unbalanced Input | | | | Crossover | 2 kHz | | EQ | Yes | | Dynamic Processing | Limiter | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 2 x 1.4" / 36 mm Pole Socket
12 x M10 | | Handles | 1 | | Construction Material | Plywood | | Dimensions | 27.6 x 17.5 x 14.1" / 70.1 x 44.5 x 35.8 cm | | Weight | 58 lb / 26.3 kg | | | | Package Weight | 57.5 lb | | Box Dimensions (LxWxH) | 30.0 x 22.0 x 20.0" |
