User Manual for JBL PRX825W Dual 15" Two-Way Full-Range Main System with Wi-Fi Click to enlarge the picture
Contents of the user manual for the JBL PRX825W Dual 15" Two-Way Full-Range
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL PRX825W Dual 15" Two-Way Full-Range contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

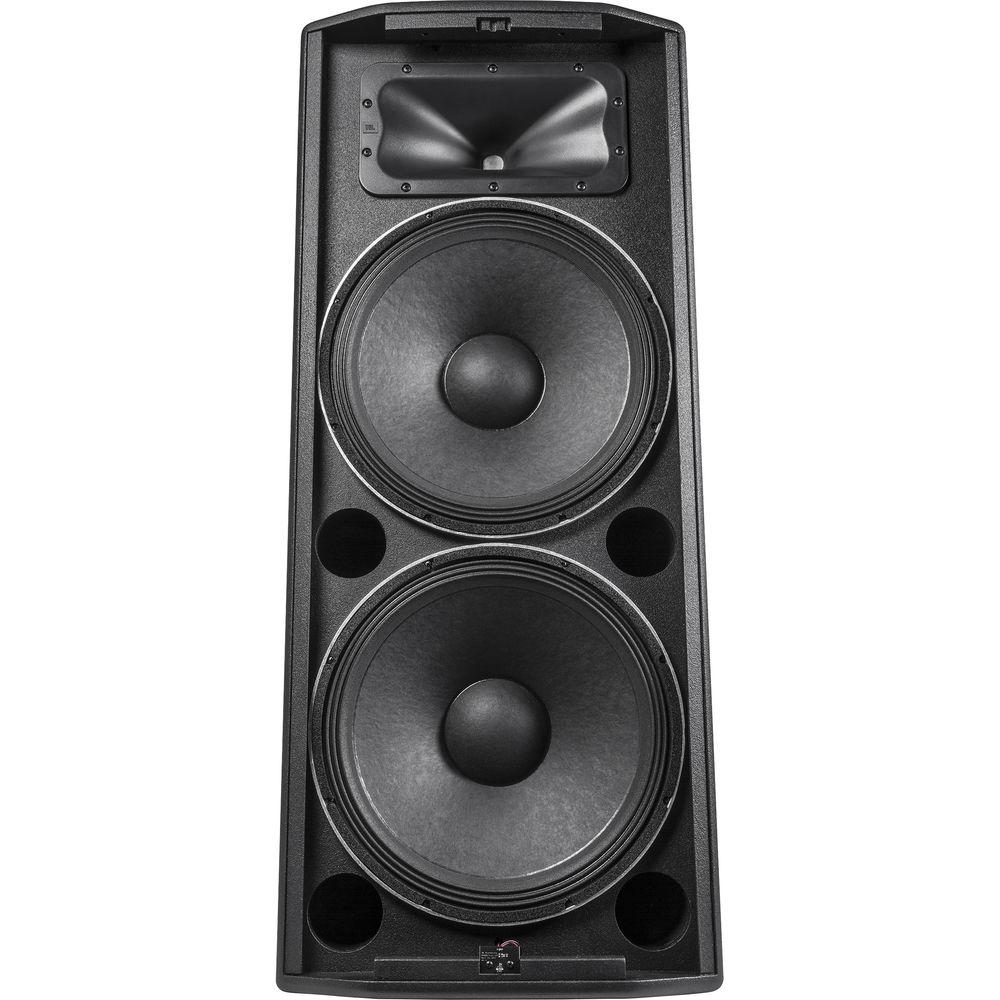

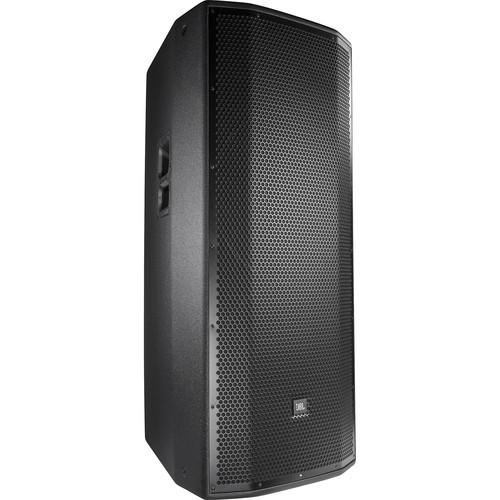

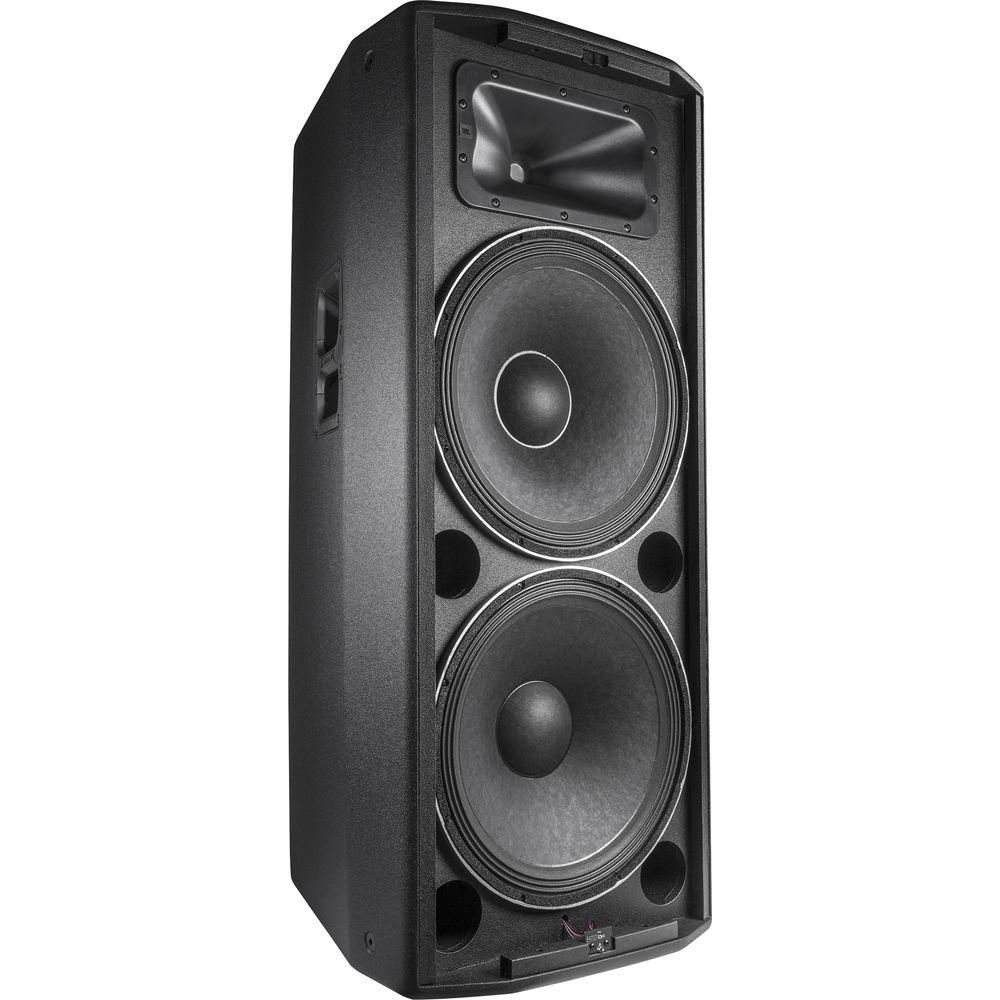

Product description The PRX825W from JBL is a 2-way powered loudspeaker designed for main PA applications with extensive Wi-Fi control over the on-board DSP. Well suited for event halls, bands, DJ systems, clubs, bars, schools, and churches, the speaker utilizes two 750W Class-D amplifiers delivering a total of 1500W to the dual 15" woofers and 1.5" compression driver, which combine to offer a frequency range of 46 Hz to 18.3 kHz at 138 dB maximum SPL output.
The built-in Wi-Fi offers wireless control of the system from anywhere in the venue using the free PRX Connect app for iOS and Android devices. The app controls levels, an 8-band parametric EQ, user presets, and up to 50ms of user-defined delay to fine-tune your setup. The durable 18mm plywood enclosure is coated with an Obsidian DuraFlex finish and a powder-coated steel grille with acoustical transparent black-cloth backing. -
- Built in Wi-Fi for wireless control of your system from anywhere in the venue
- Free PRX Connect mobile app provides wireless control over levels, parametric EQ, user presets, and up to 50ms of user delay to fine-tune your sound
- Class-leading 1500-watt amplifier delivers ample power to fill your venue
- JBL Differential Drive transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers

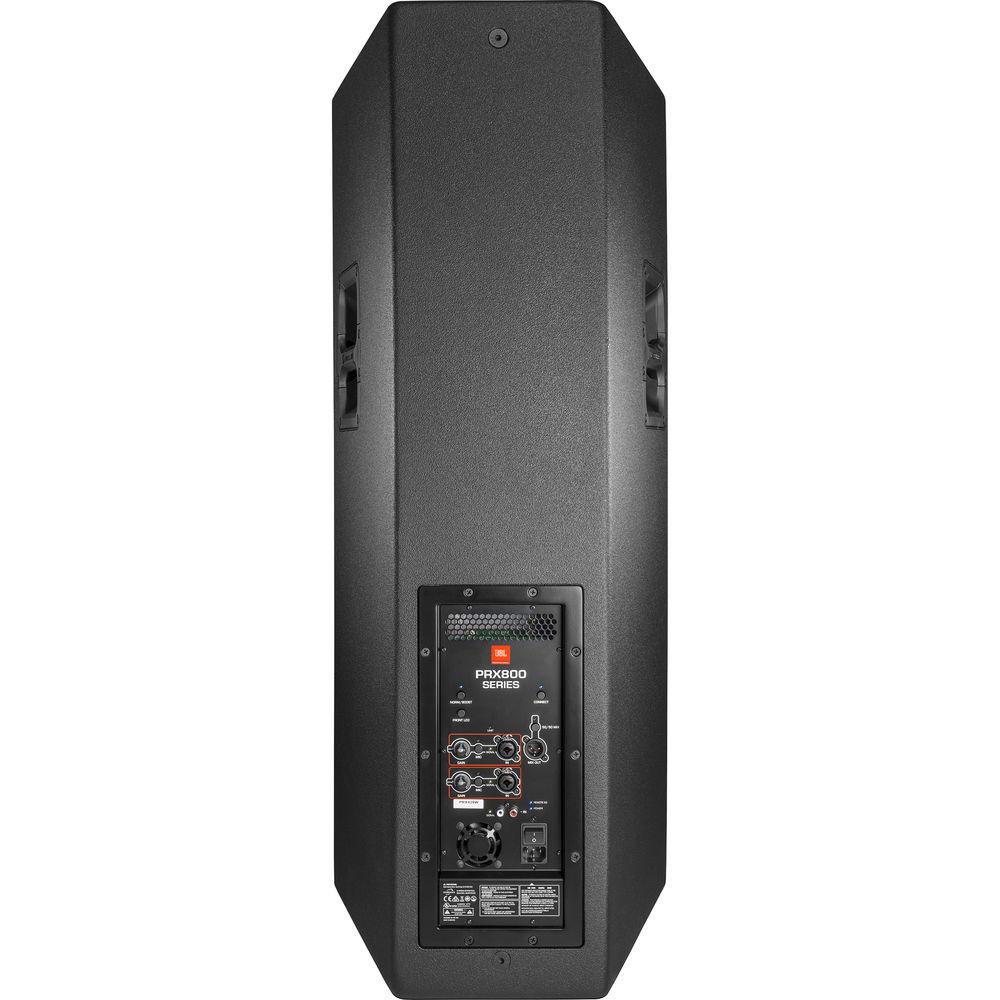

- Crown-designed input panel with XLR, 1/4”, and RCA inputs, plus XLR loop-through

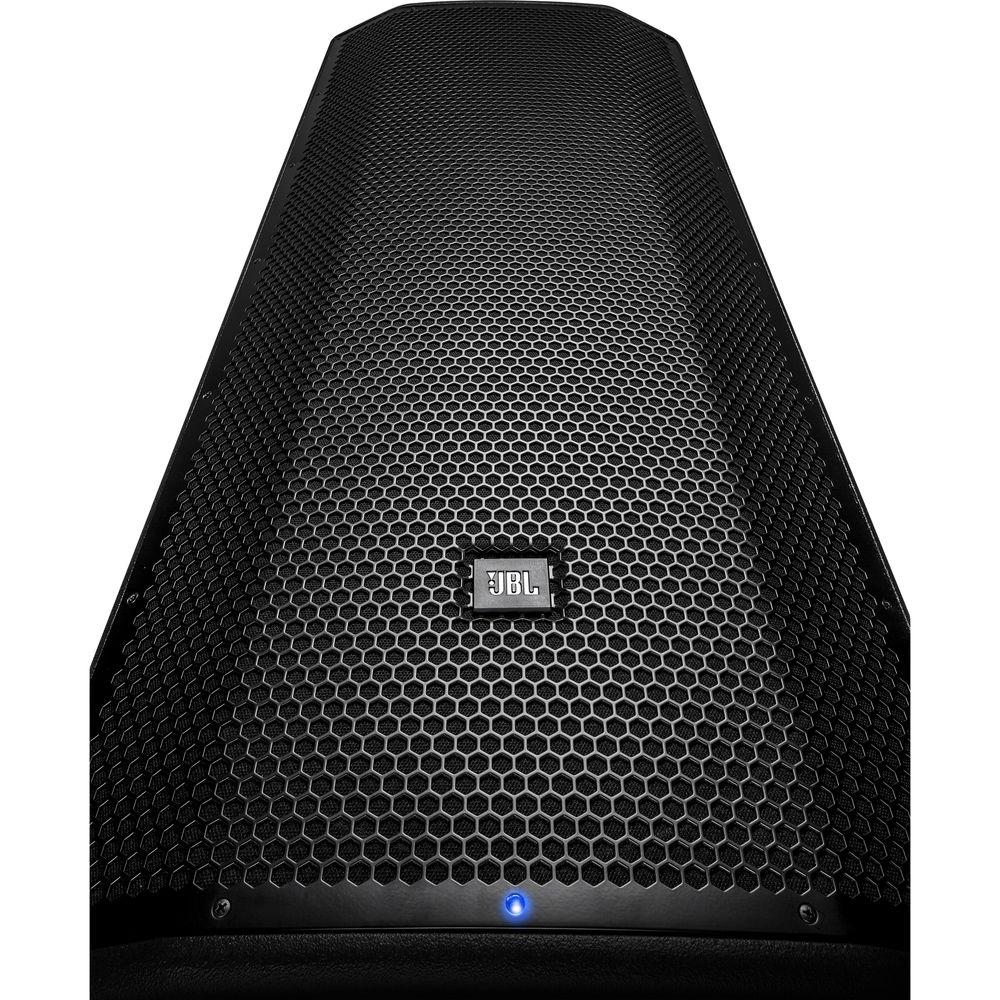

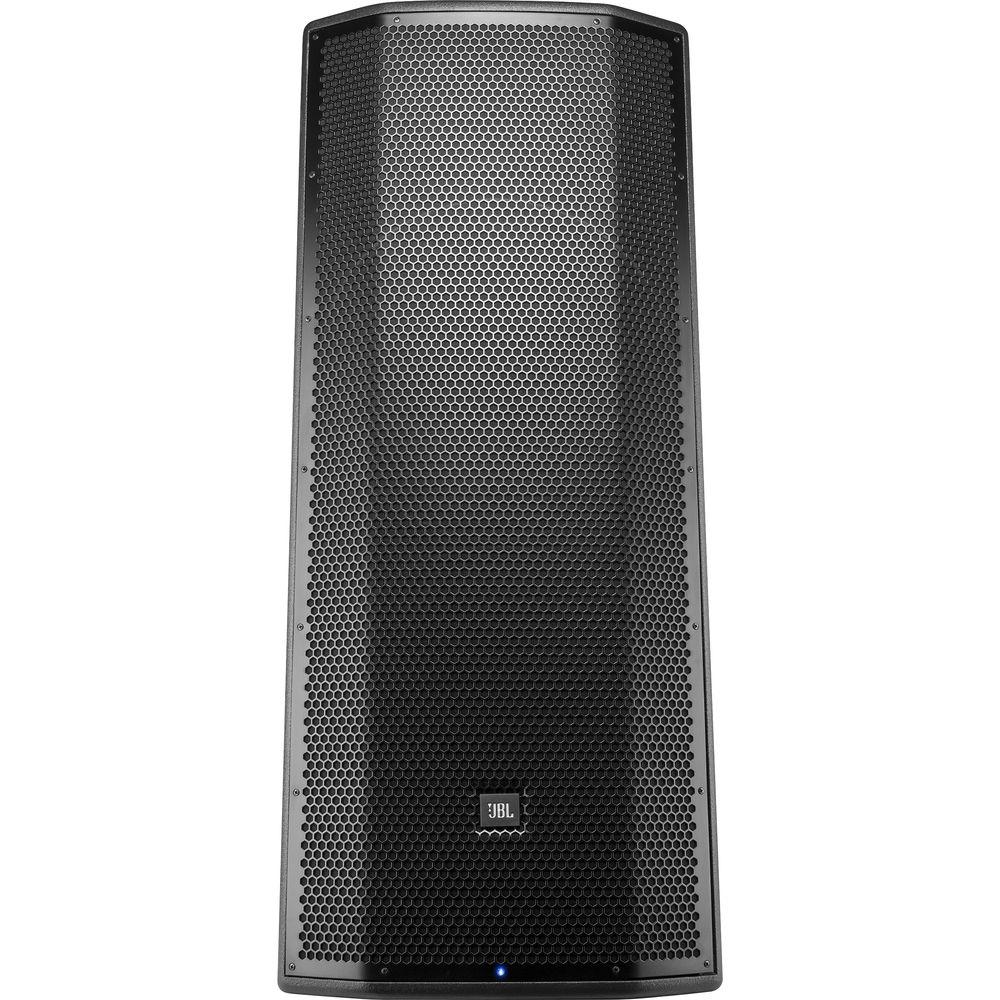

- Durable construction with wooden cabinets, tour-proven DuraFlex finish, and dent-resistant cloth-backed 16-gauge grilles
- Universal power supply for worldwide compatibility
- Demanding 100-hour test regimen ensures reliable performance
- Intelligent variable-speed fan activates only when needed to reduce noise
- Scalable system that integrates with other JBL portable powered PAs
UPC: 691991005404 In the Box JBL PRX825W Dual 15" Two-Way Full-Range Main System with Wi-Fi Power Cord Limited 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PRX825W Dual 15" Two-Way Full-Range Main System with Wi-Fi in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL PRX825W Dual 15" Two-Way Full-Range Main System with Wi-Fi can be downloaded in PDF format at the link stated below.
Technical parametersJBL PRX825W Specs | | | Configuration | Active 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 1500 W | | Amplifier Power Rating | 2 x 750 W | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1.5" / 3.8 cm Polymer Compression Driver | | LF Driver | 2 x 15" / 38.1 cm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Range | 46 Hz to 18.3 kHz -10 dB | | Frequency Response | 51.8 Hz to 17.5 kHz ±3 dB | | Maximum SPL | 138 dB (Peak) | | Coverage Angle | 90° H x 50° V | | Directivity Index | 10.4 dB (Directivity Index)
11 dB (Directivity/Q Factor) | | I/O Impedance | Input:
20 kOhms (Balanced)
10 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Balanced Input

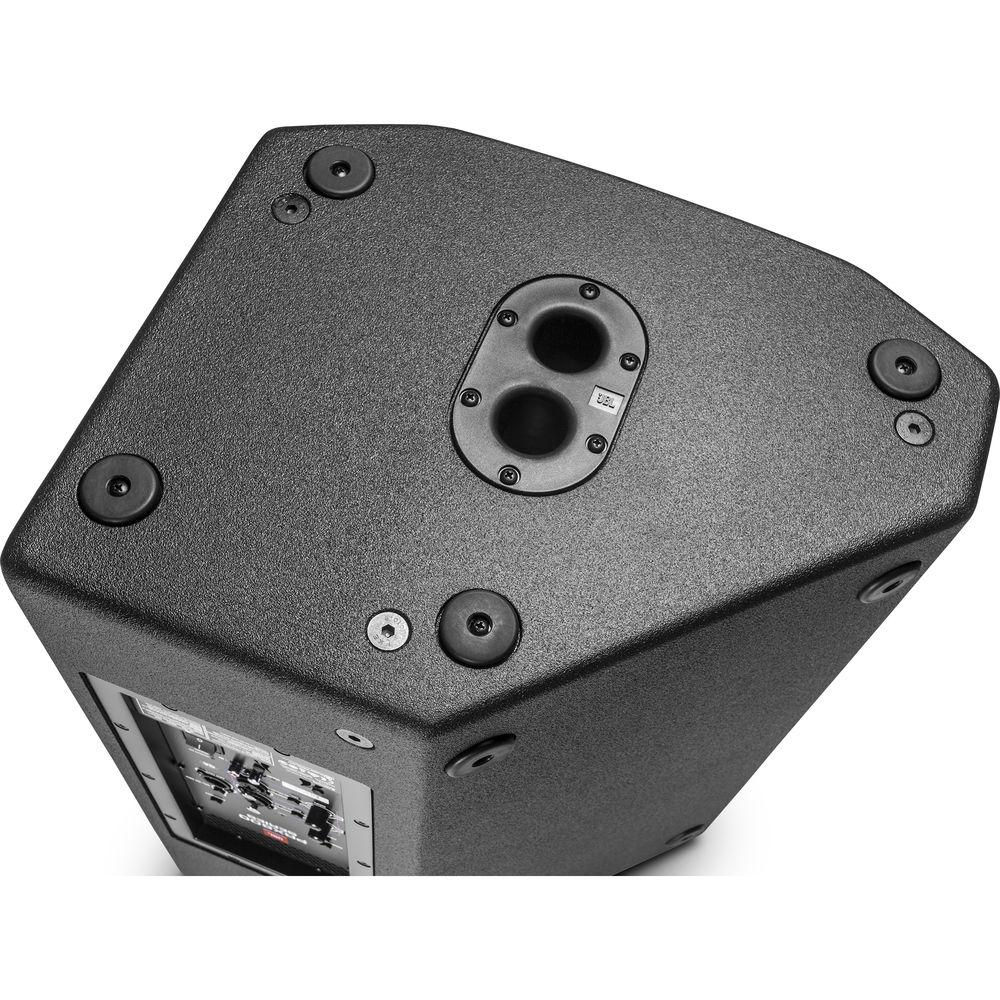

2 x RCA Unbalanced Input | | | | Crossover | 2.4 kHz | | EQ | Presets (Factory) | | Dynamic Processing | Limiter | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Mounting | 8 x M10

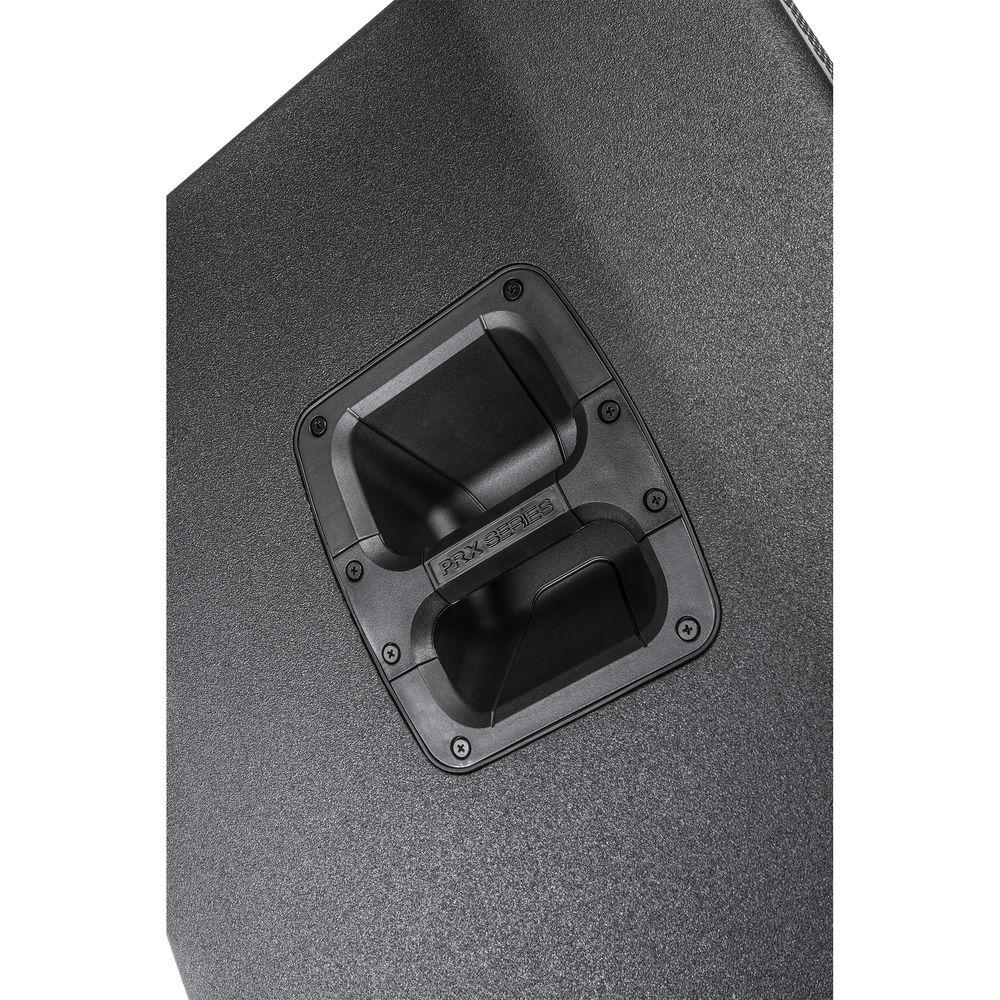

1 x M10 | | Handles | 2 | | Construction Material | Plywood | | Dimensions | 41.8 x 17.5 x 21.2" / 106.0 x 44.5 x 54.0 cm | | Weight | 95 lb / 43.1 kg | | | | Package Weight | 101.0 lb | | Box Dimensions (LxWxH) | 43.65 x 25.5 x 21.3" |
