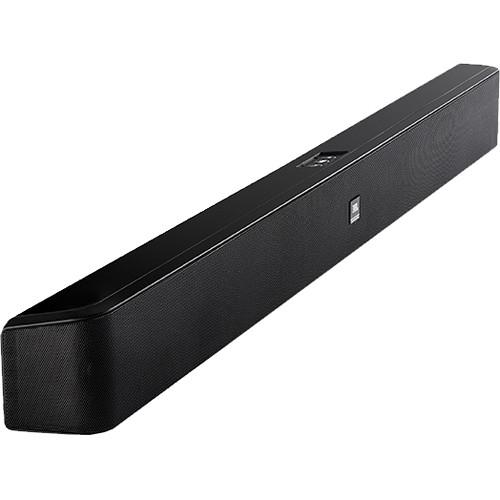

User Manual for JBL PSB-1 Pro - 2-Channel Commercial-Grade Soundbar Click to enlarge the picture
Contents of the user manual for the JBL PSB-1 Pro - 2-Channel Commercial-Grade
- Product category: Installed Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Installed Speakers
 |
User manual for the JBL PSB-1 Pro - 2-Channel Commercial-Grade contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

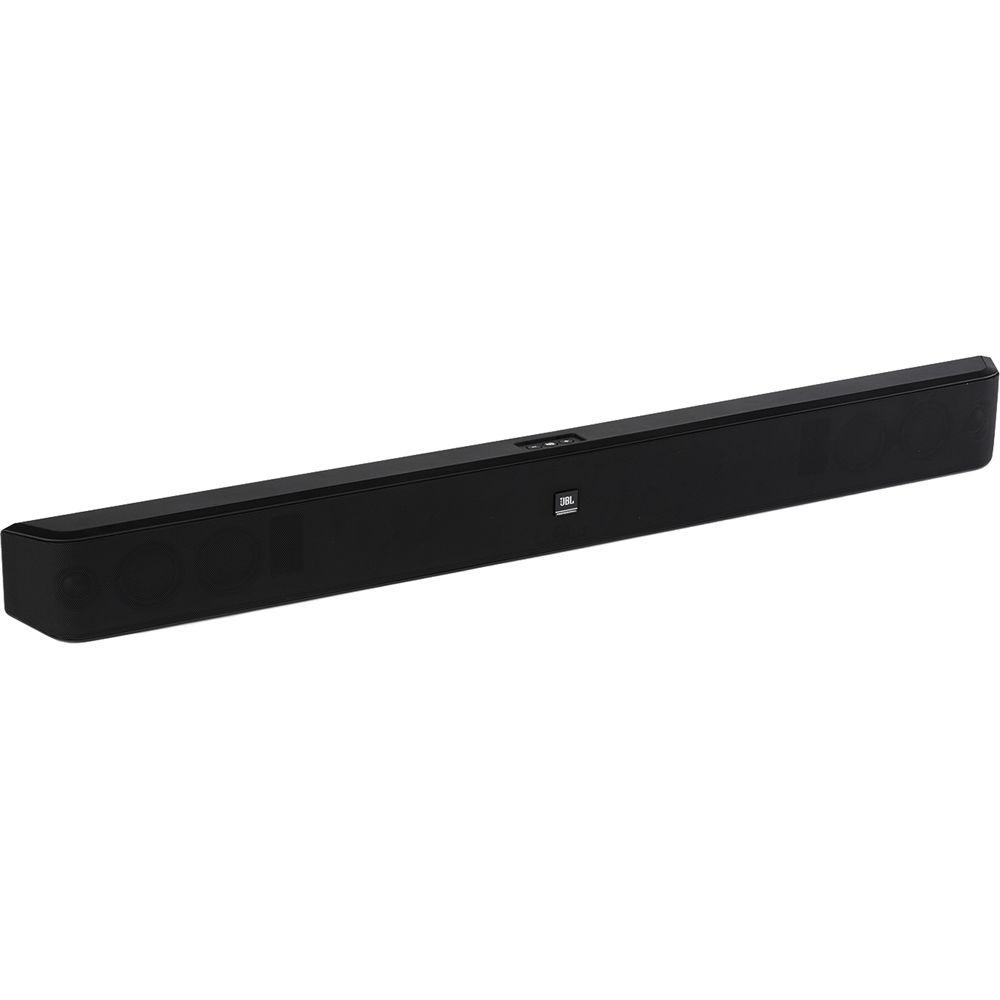

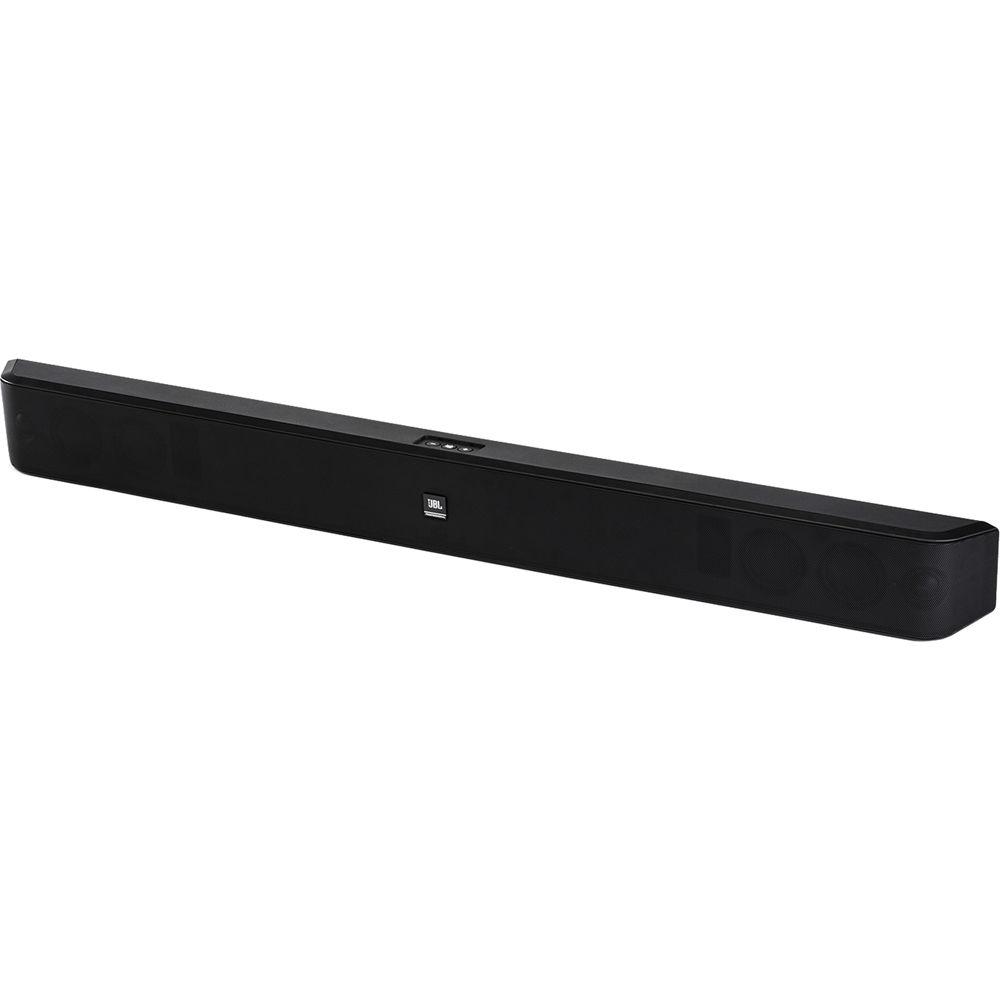

Product description The JBL PSB-1 Pro Soundbar is a full-range, two-channel, commercial-grade sound bar, well suited for hotel guestrooms, cruise ship staterooms, meeting rooms, and public spaces. The PSB-1 Pro is optimized for reduced cost and complexity with professional quality sound, security, and reliability.
The all-in-one design utilizes a Class-D amplifier (20W per channel) to power the 0.75" soft-dome tweeter and a 2.0" low-frequency driver, which combine for a frequency response of 56 Hz to 20 kHz and a maximum SPL of 94 dB. The soundbar features variable and fixed source volume functions, which allow you to set up the gain staging at the TV using a TV remote or at the soundbar via the PSB-1's ability to learn the TV remotes IR signal. Once setup is complete, you can enjoy better clarity at lower volume levels, thus preventing intrusive volume levels. The JBL PSB-1 Pro Soundbar ships with a power cord, a stereo RCA cable, an 1/8" to RCA cable, mounting hardware, safety plates for tamper resistance, and the IR remote with batteries included. -
- Full-range stereo sound
- Application-specific features for guestrooms and staterooms
- Fixed/variable source volume modes
- IR learning for use with any remote
- Neutral room décor aesthetic
- Volume limiting
- Lockout plate prevents tampering
- Internal, universal power supply for global installations, no “wall warts”
- Securely mounts on wall/table to prevent theft or drifting on cruise ships
- Mounting hardware, audio cables, cable adapters, and remote included
- Auto standby for reduced energy usage
- Non-absorbent materials for easy cleaning
UPC: 691991007965 In the Box JBL PSB-1 Pro - 2-Channel Commercial-Grade Soundbar Power Cord Stereo RCA to Stereo RCA Cable 1/8" to Stereo RCA Cable 2 x Mounting Brackets 2 x Mounting Screws Rear Security Plate Rear Security Plate Screw Top Security Plate 2 x Top Security Plate Screws Remote Control (Batteries Included) Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL PSB-1 Pro - 2-Channel Commercial-Grade Soundbar in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL PSB-1 Specs | Frequency Range | 42 Hz to 20 kHz (-10 dB) | | Frequency Response | 56 Hz to 20 kHz (±3 dB) | | Crossover | 4300 Hz, 1st order LF, 1st order HF | | SPL | Maximum Peak SPL (0 dBV): 90 dB*
Maximum Peak SPL (0 dBV): 94 dB* (both channels driven)
*Full bandwidth pink noise measured C-Weighted | | Input Connector | RCA | | Input Sensitivity | 85 dB / 1 m (-10 dBV) | | Drivers | HF Driver Size: 0.7" / 19.0 mm soft-dome tweeter
LF Driver Size: 2.0" / 51.0 mm low-frequency loudspeaker | | Power Amp | 20 W per channel, Class-D | | Enclosure Material | Injection-molded ABS | | Finish | Black | | Dimensions (H x W x D) | 3.5 x 35.4 x 2.6" / 90.0 x 900.0 x 65.0 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 37.25 x 5.5 x 5.25" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
