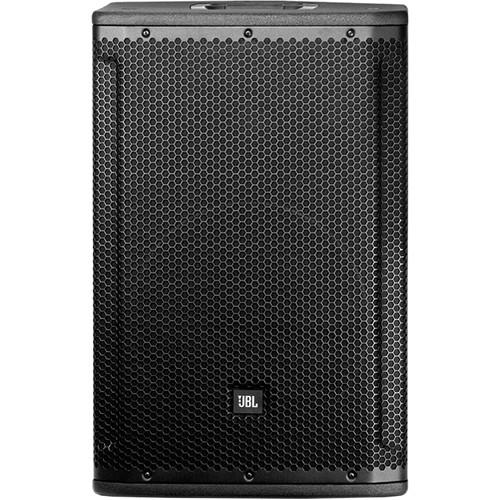

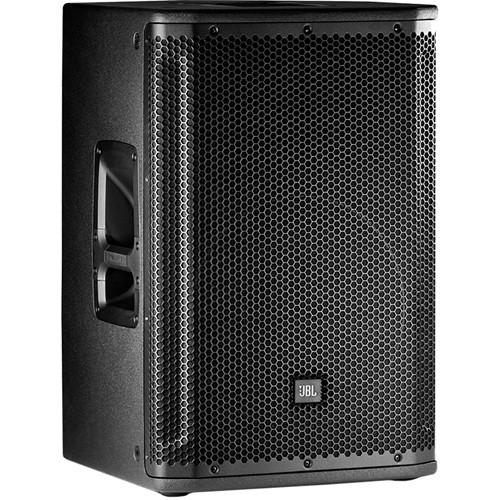

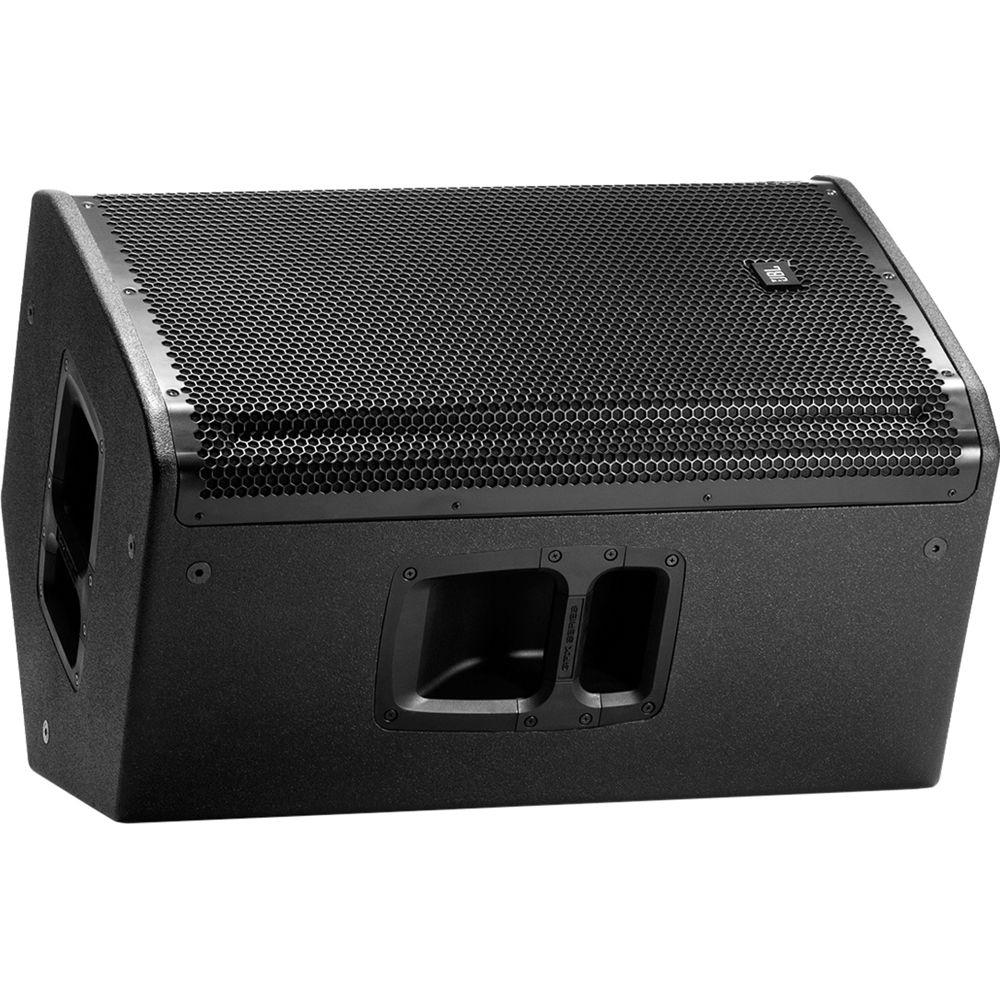

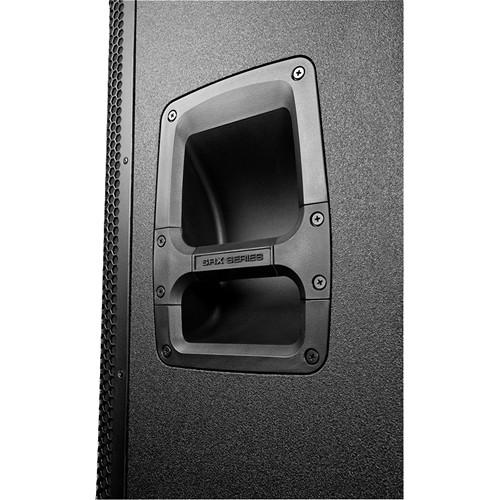

Product description The JBL SRX812P 12" Two-Way Bass Reflex Self Powered System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. The speaker can also be placed on its side and used as a stage monitor. Using JBL Premium Transducers, 2000W peak of Crown Class-D Drivecore Amplification, and a full user configurable DSP system with HiQnet network control (via Ethercon connection to third party router) and 50 JBL engineered application presets, the system can deliver a frequency response of 48 to 20,000 Hz (-3 dB) (-3 dB) and a maximum SPL of 136 dB.

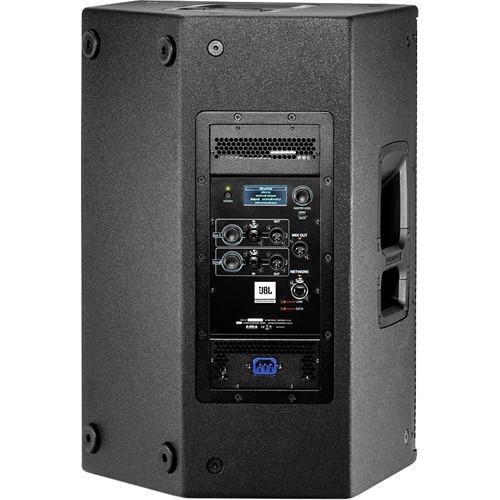

The rear panel of the speaker features a power button with LED indicator, a pair of balanced XLR/TRS combo input connectors, an LCD display screen with master encoder knob and back button for accessing presets, a pair of XLR-3M output connectors for sending to additional speakers, an XLR-3M mix output connector for sending audio out to an external source, and an Ethercon connector with LINK and DATA for network control via standard Ethernet cable to a third party router for iOS and Android mobile remote control. - Transducer Design
-

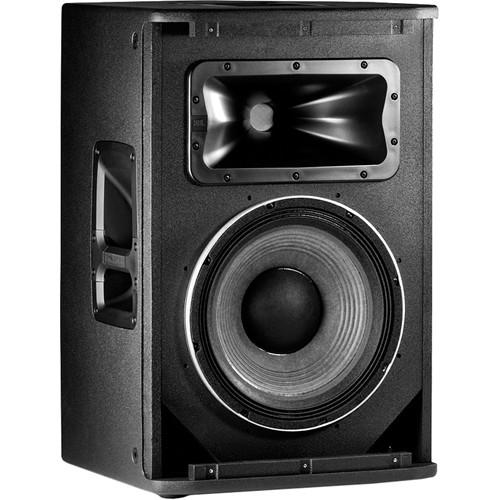

- Features premium JBL transducers. High frequencies are handled by an annular polymer diaphragm compression driver that features a best in class 3" voice coil coupled to a 1.5" throat opening. Using a neodymium magnet, the compression driver is lightweight, efficient, and extremely powerful. This delivers very high power levels with reduced distortion and increased phase coherence resulting in smooth, crystal clear high frequencies.

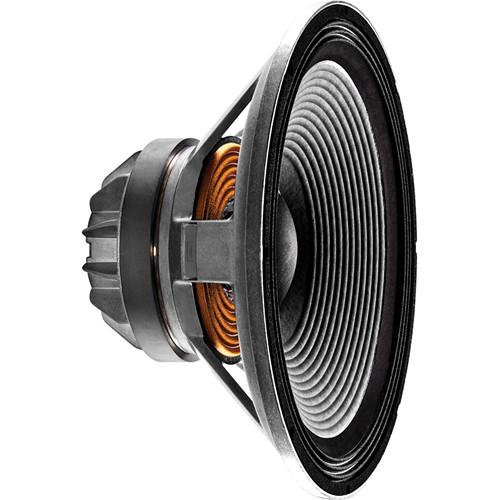

- Uses a 12-inch woofer with JBL's patented Differential Drive Technology for reduced weight while maximizing power amp efficiency. 3" voice coils and dual ferrite drivers deliver exceptionally low distortion and extended low frequency response
- DSP Control
- Using a 400 MHz DSP Sharc Chip, the speaker offers 20 PEQs, 2 seconds of delay, signal generators, input mixing, amplifier monitoring, and 50 user presets with 96 kHz FIR filters and LevelMax Limiting
- Compatibility
- Incorporates V5 JBL Tunings for compatibility with flagship Vertec and VTX touring systems
- LCD Screen
- Supports fast setup and configuration
- Drivecore Amplification by Crown
- Offers 103 dB signal-to-noise ratio with 2000W Peak available Class-D power
- HiQnet Network Control
- Allow for configuring the system via wired Ethercon connector or wireless connection when linked to a third party router for use with Audio Architect, HiQnet Motion Control, and standalone applications for iOS and Android mobile devices
UPC: 691991000676 In the Box JBL SRX812P 12" Two-Way Bass Reflex Self Powered System Limited 3-Year Warranty User Manual PDF 7.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL SRX812P 12" Two-Way Bass Reflex Self Powered System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL SRX812P Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 2000 W Peak
1500 W RMS | | Amplifier Class | Class-D | | | | Frequency Response | 48 Hz to 20 kHz -3 dB | | Maximum SPL | 136 dB | | Coverage Angle | 90° H x 50° V | | Gain Range | Line Input:
21 dB
Aux Input:
3 dB
Mic Input:
45 dB
Line Input:
20 dBu
Aux Input:
8 dBu
Mic Input:
-4 dBu | | I/O Impedance | Input:
40 kOhms (Balanced)
20 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" TRS Input
2 x XLR 3-Pin Male Output
1 x XLR 3-Pin Mix Output | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 120 VAC:
2.2 A (1/8 Power)
5.6 A (1/3 Power) | | | | Mounting | 2 x 1.4" / 36 mm Pole Socket
12 x M10 | | Handles | 3 | | Cooling | Fan (Variable Speed) | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 25.1 x 16.3 x 16.9" / 63.8 x 41.5 x 42.9 cm | | Weight | 58 lb / 26.4 kg | | | | Package Weight | 66.5 lb | | Box Dimensions (LxWxH) | 27.3 x 22.0 x 21.5" |
