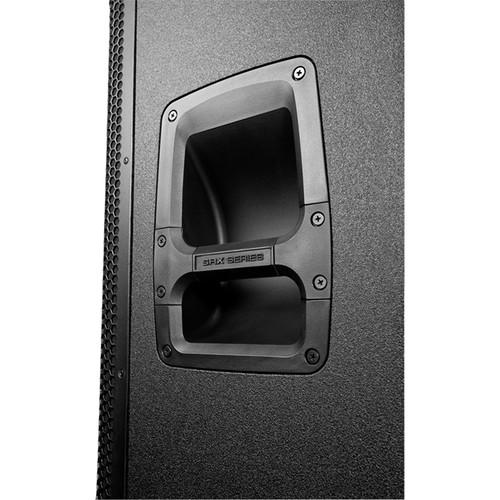

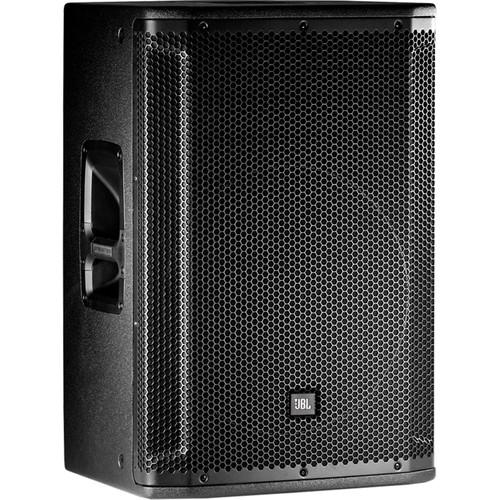

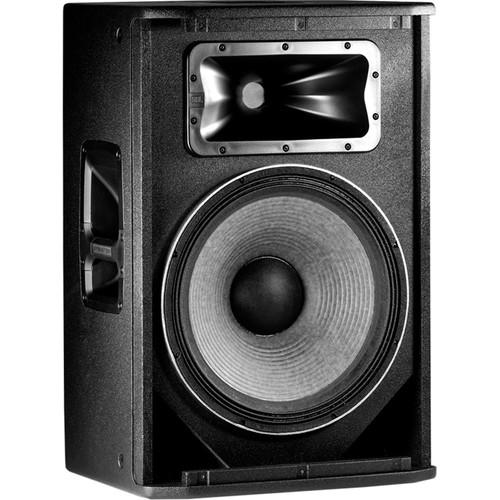

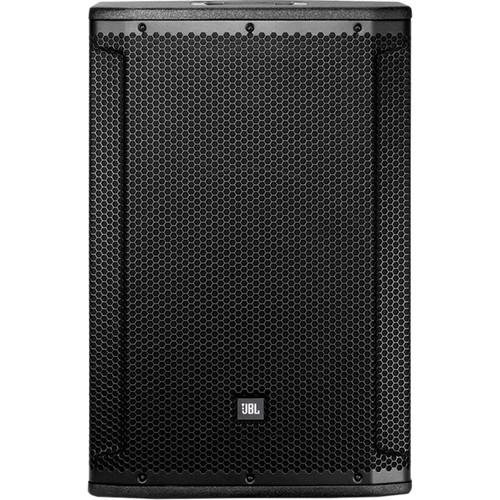

User Manual for JBL SRX815 - 15" Two-Way Bass Reflex Passive System Click to enlarge the picture
Contents of the user manual for the JBL SRX815 - 15" Two-Way Bass
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL SRX815 - 15" Two-Way Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

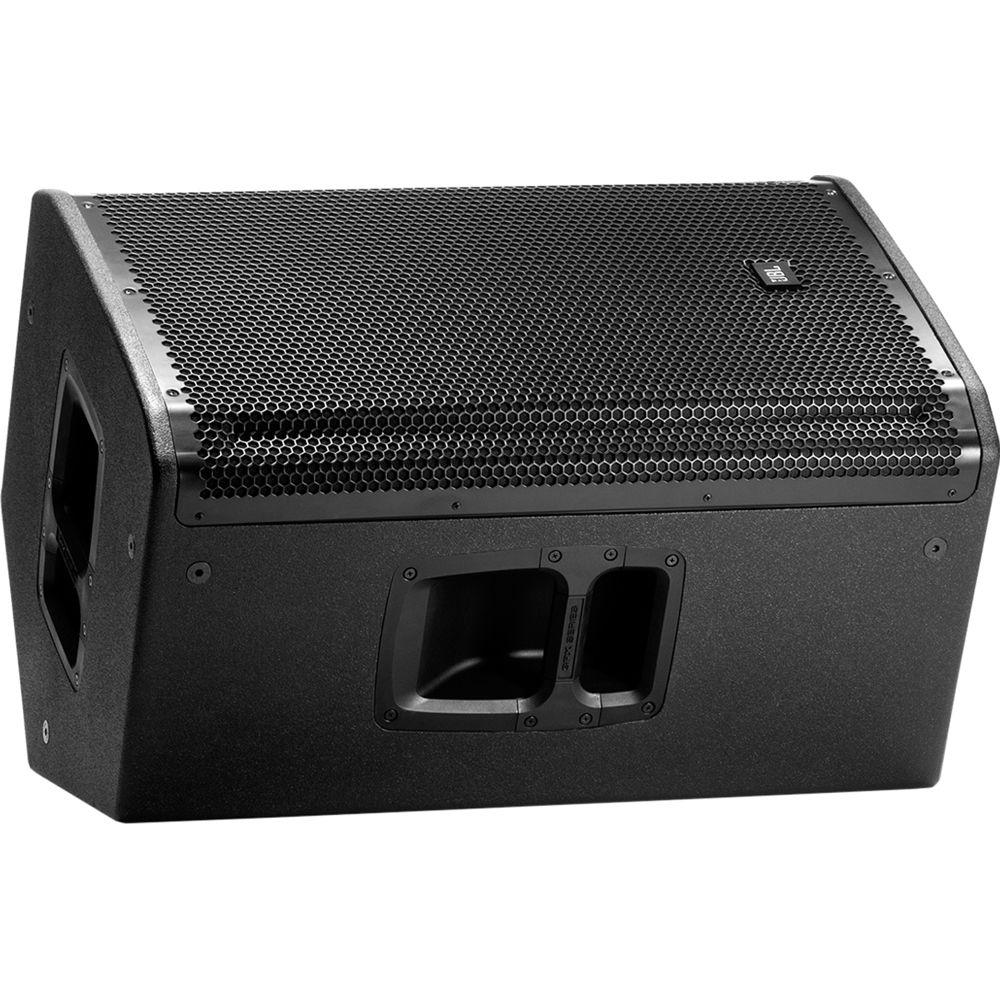

Product description The JBL Professional SRX815 - 15" Two-Way Bass Reflex Passive System is designed for use as a light-duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the speaker is suitable for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processor. - Transducer Technology

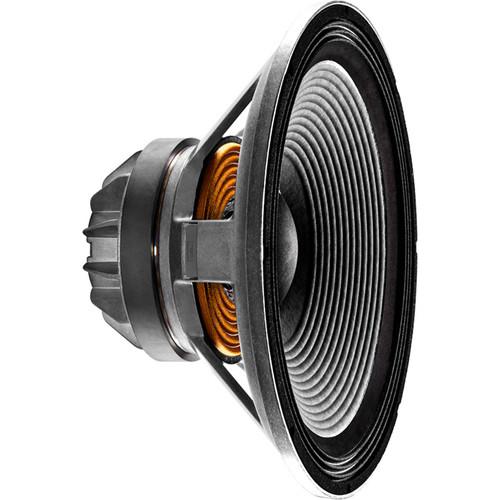

- Includes JBL's patented Differential Drive technology using lower-mass ferrite drivers for reduced weight with 3" voice coils
UPC: 691991001635 In the Box JBL SRX815 - 15" Two-Way Bass Reflex Passive System Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL SRX815 - 15" Two-Way Bass Reflex Passive System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL SRX815 Specs | | | Configuration | Passive 2-Way | | Enclosure Type | Bass-Reflex Loudspeaker | | Total Power Capacity | 3200 W Peak
1600 W Program
800 W RMS | | System Impedance | 8 Ohms | | | | HF Driver | 1 x Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Response | 41 Hz to 20 kHz -10 dB
56 Hz to 20 kHz -3 dB | | Maximum SPL | 135 dB | | Speaker Sensitivity | 95 dB | | | | Audio I/O | 1 x speakON NL4 Input

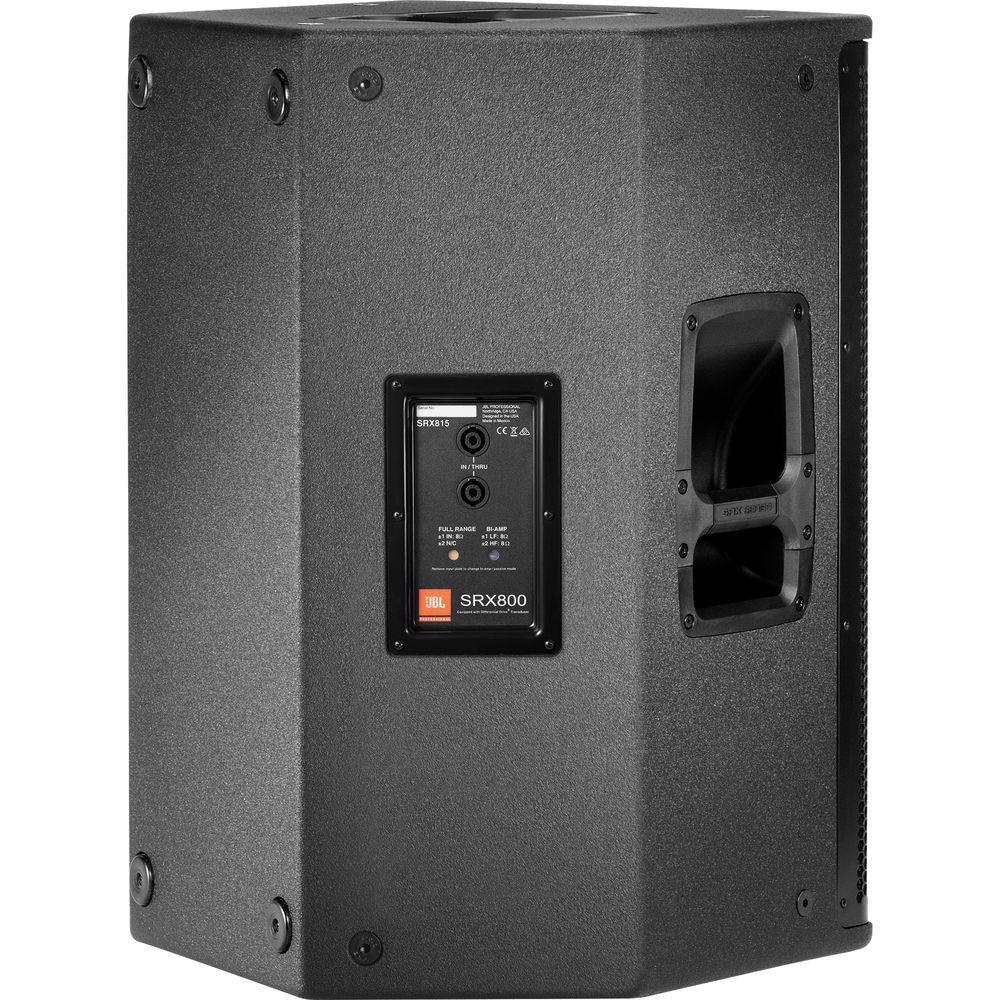

1 x speakON NL4 Thru/Output +/-1 or +/-2 Selectable | | | | Mounting | 2 x 1.4" / 36 mm Pole Socket
12 x M10 | | Handles | 3 | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 18.8 x 18.0 x 27.2" / 478.0 x 458.0 x 691.0 mm | | Weight | 57 lb / 25.9 kg |
