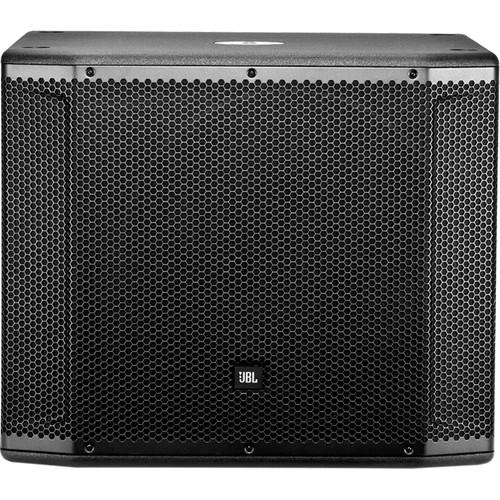

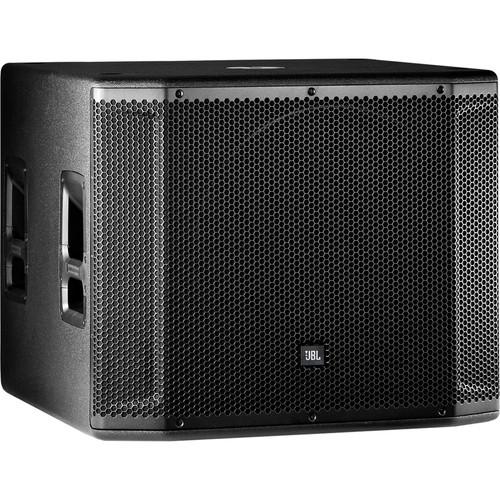

Product description The SRX818SP from JBL is an 18" subwoofer system featuring controllable DSP, ergonomically designed handles, and DriveCore technology to ensure that its 3" voice coils can deliver a 1000W peak power rating. It offers a frequency range of 29 to 150 Hz and Class D amplification. The SRX818SP also provides HiQnet network integration, which allows you to automate the control interface via many compatible apps. Wired control can be achieved through Ethercon connections. Many localized controls are easily tweaked via the back-panel LCD screen, allowing you to access DSP presets without connection to networks. The system accepts inputs from both XLR and 1/4" connection points, and outputs to male balanced XLR jacks. LED indicators for Power, Link, and Data notify you as to the unit's present usage, making it clear whether or not the SRX818SP is on, linked to other speakers via the network, or sending/receiving information to/from other points of access. This subwoofer system can be used for various purposes, including in live performance, mobile and fixed DJ systems, sound system rentals and tours, and permanent installations. - DSP Control
- User-controllable DSP, driven by the system’s onboard 400 MHz Sharc DSP, includes 20 PEQs, 2 seconds of delay, signal generators, input mixing, amplifier monitoring, and 50 user presets. The system can also incorporate V5 JBL tunings, providing compatibility with the Vertec and VTX touring systems. All of this is accessible via an LCD screen.
- Handling and Design

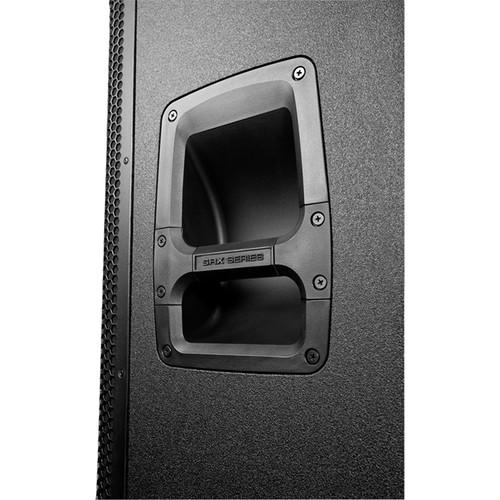

- Ergonomically designed handles offer a useful grip for streamlined handling, while M10 suspension points, indexed feet, and M20 pole/tripod mounts support a wide and flexible array of configurations.
- Transducer Technology

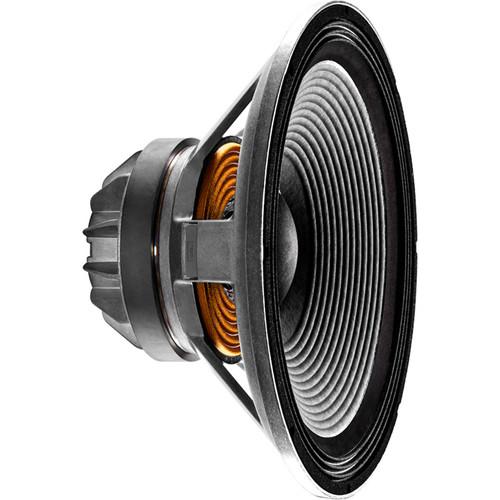

- Differential Drive Technology ferrite drivers incorporate 3" voice coils inducing low distortion, and a suitable low frequency response, while 2432H neodymium 3" voice coil compression drivers can deliver high levels and a clarion sound.
- DriveCore by Crown
- Crown’s proprietary front-end DriveCore technology features a 1000W peak power rating. Its subwoofer features a signal-to-noise ratio of 103 dB.
- HiQnet Network Control
- With HiQnet Network Integration, the SRX818SP System features automated control-interface configuration. Wired control is provided via Ethercon connector, while third-party wireless router capability is included; control options include Audio Architect, a HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android.
- Other Features
-
- Rugged design.
- JBL-engineered application presets.

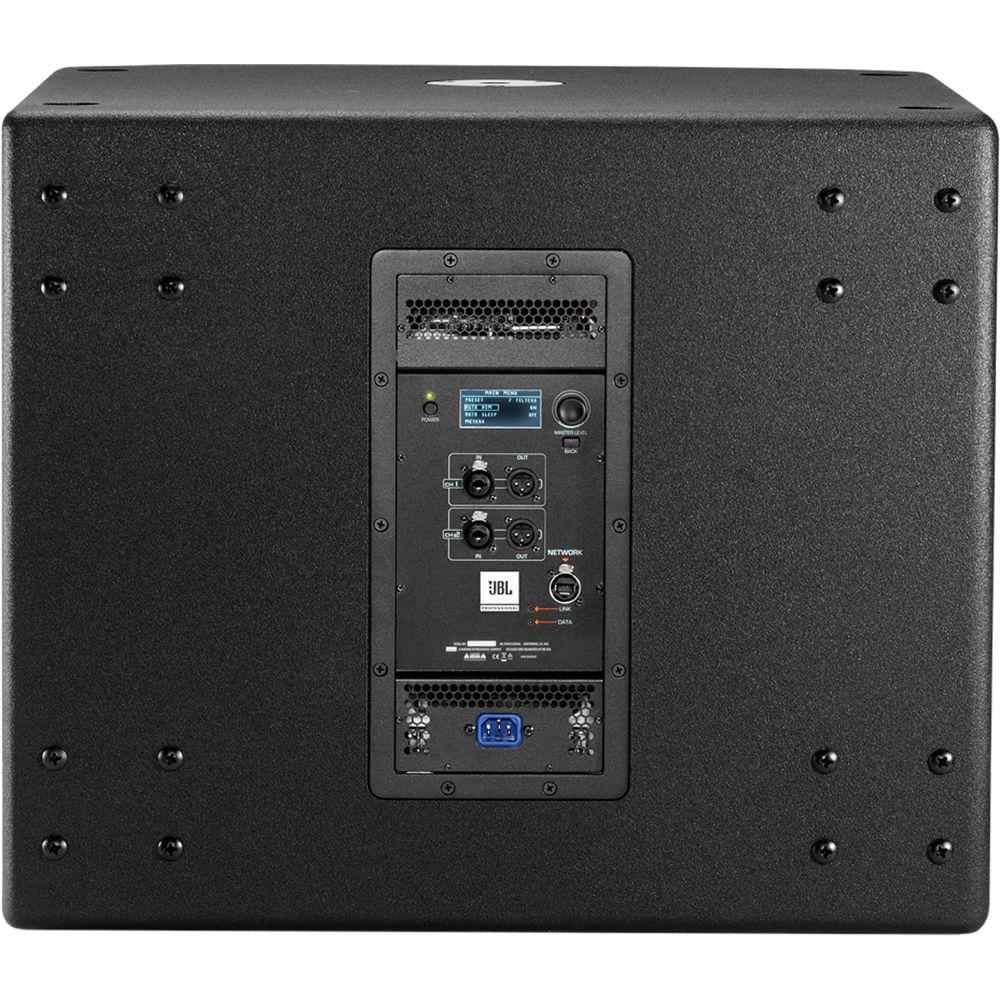

- LCD screen and glow in the dark ink on back panel.
- Accepts JBL WK-4S Caster Kit.
- Applications
-
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
UPC: 691991000737 In the Box JBL SRX818SP 18" Self-Powered Subwoofer System Limited 5-Year Warranty User Manual PDF 7.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL SRX818SP 18" Self-Powered Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL SRX818SP Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1000 W Peak | | Amplifier Class | Class-D | | | | LF Driver | 1 x 18" / 45.72 cm Woofer | | | | Frequency Range | 29 Hz to 150 Hz -10 dB | | Frequency Response | 35 Hz to 120 Hz -3 dB | | Maximum SPL | 135 dB | | Max Input Level | Line Input:
20 dBu | | Gain Range | Line Input:
21 dB | | I/O Impedance | Input:
40 kOhms (Balanced)
20 kOhms (Unbalanced) | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
2 x XLR Output | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Current Consumption | 2.2 A (1/8 Power)
5.6 A (1/3 Power) | | | | Mounting | 1 x M20 (Top) | | Handles | 4 | | Cooling | Fan (Variable Speed) | | Construction Material | Perforated Metal Grille, Plywood | | Dimensions | 22.6 x 26.9 x 26.9" / 57.5 x 68.4 x 68.3 cm | | Weight | 87 lb / 39.5 kg | | | | Package Weight | 103.0 lb | | Box Dimensions (LxWxH) | 32.0 x 32.0 x 25.0" |
