User Manual for JBL SRX828SP 18" Dual Self-Powered Subwoofer System Click to enlarge the picture
Contents of the user manual for the JBL SRX828SP 18" Dual Self-Powered Subwoofer
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL SRX828SP 18" Dual Self-Powered Subwoofer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

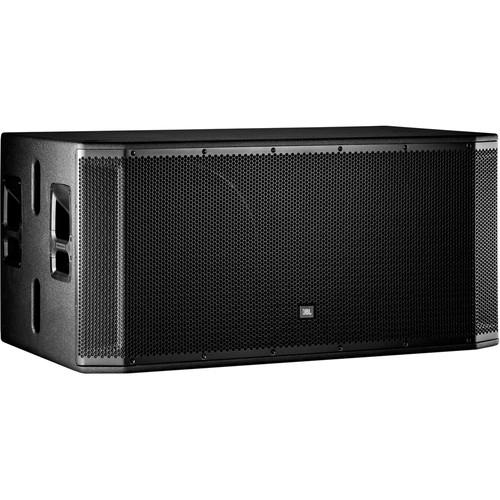

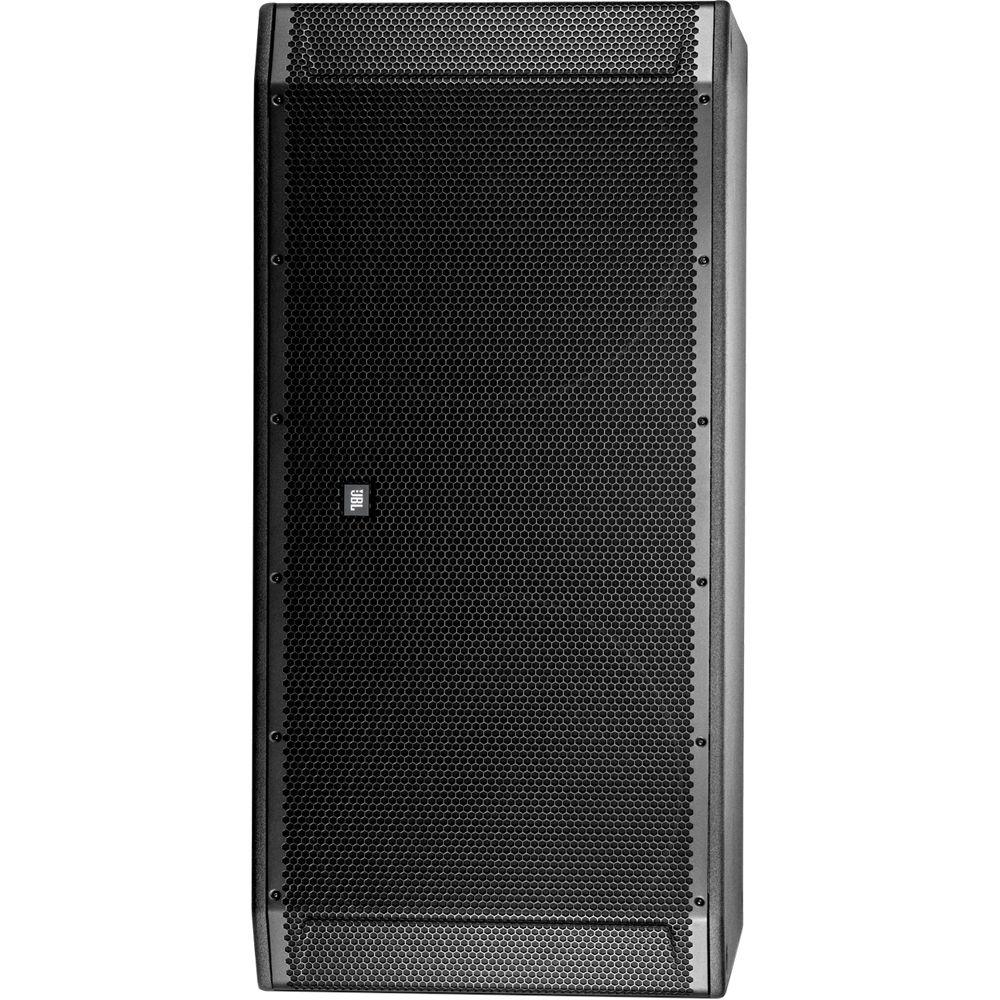

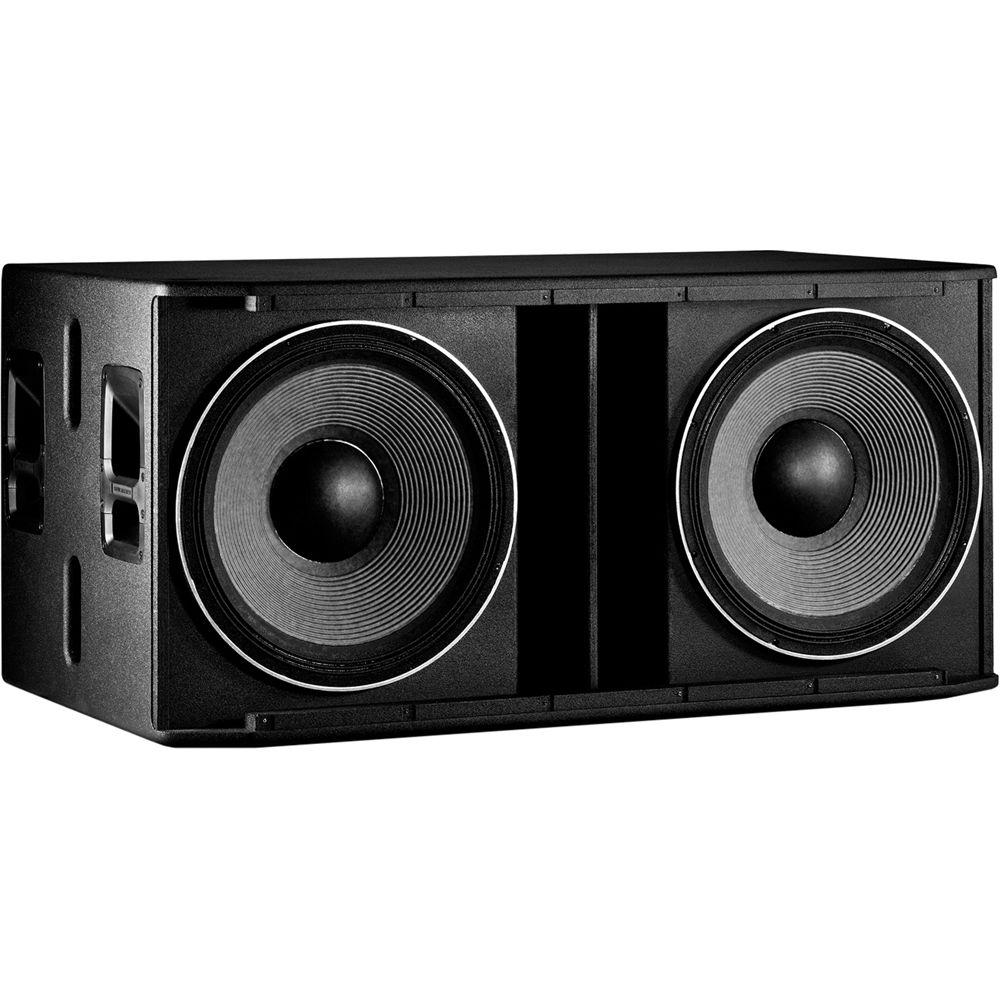

Product description The SRX828SP 18" Dual Self-Powered Subwoofer System from JBL features a full suite of user controllable DSP which is driven by the system’s powerful onboard 400MHz Sharc DSP and includes 20 PEQs, 2 seconds of delay, signal generators, input mixing, amplifier monitoring, and 50 user presets. The ergonomically designed handles offer an easy, non-fatiguing grip for streamlined handling. The JBL Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, low distortion, and extended low frequency response.Thanks to the Crown’s proprietary front-end DriveCore technology which features a 2000W power rating, the system offers a remarkable 103 dB signal-to-noise ratio, producing high sound pressure levels with headroom, low distortion, and absolute clarity throughout its frequency range. This subwoofer system can be used for various purposes including in live performances, mobile and fixed DJ systems, sound system rentals and tours, and permanent installations. - Unprecedented Control
-
- The full suite of user controllable DSP which is driven by the system’s powerful onboard 400 MHz Sharc DSP and includes 20 PEQs, 2 seconds of delay, signal generators, Input mixing, amplifier monitoring, and 50 user presets
- The system can incorporate V5 JBL Tunings providing compatibility with the Vertec and VTX touring systems
- An integrated LCD screen supports fast setup and configuration
- Purposeful Design
-

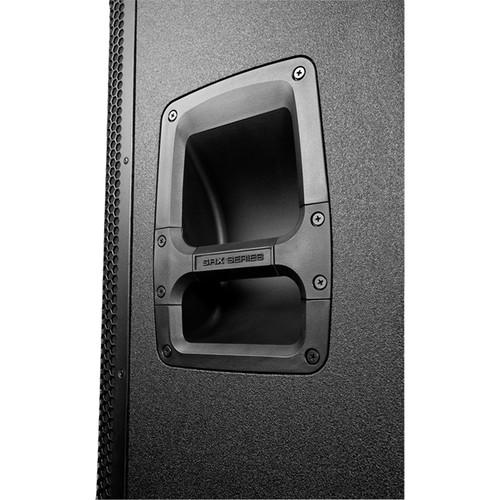

- Ergonomically designed handles offer an easy, non-fatiguing grip for streamlined handling
- M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations
- Transducer Technology
-

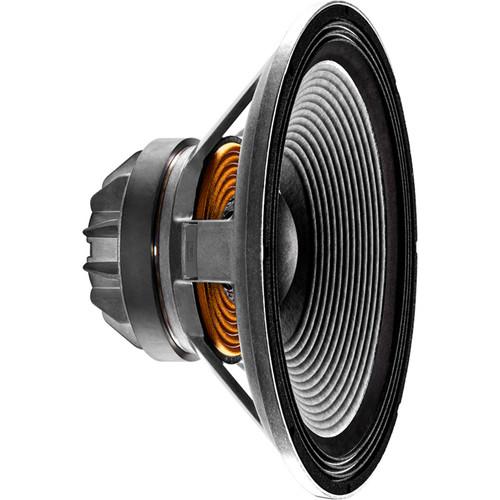

- The Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, low distortion, and extended low frequency response
- The 2432H neodymium 3" voice coil compression driver delivers high-power levels and smooth, crystal clear sound
- Drivecore by Crown
-
- Crown’s proprietary front-end DriveCore technology features a 2000W power rating
- With a remarkable 103 dB signal-to-noise ratio, the SRX828SP Subwoofer is capable of massive sound pressure levels with headroom, low distortion, and absolute clarity throughout its frequency range
- HiQnet Network Control
-
- With full HiQnet Network Integration, configuring the SRX828SP System is simplified, saving time while fully automating the control interface configuration
- Simple wired control is provided via Ethercon connector and a third-party wireless router capability is included
- Control options include Audio Architect, HiQnet Motion ControlTM iOS app, and standalone applications for iOS and Android
- Others
-
- Rugged design that makes it intuitive to use & easy to transport
- JBL engineered application presets

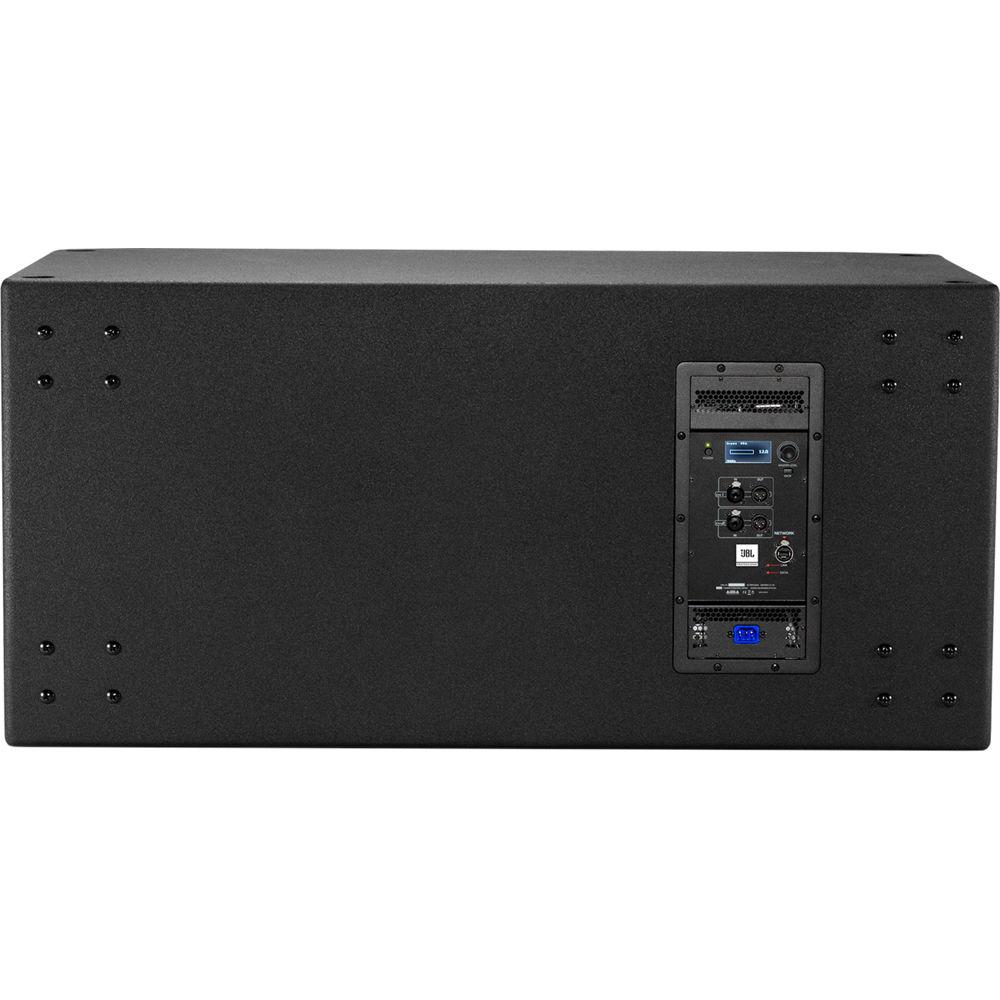

- LCD screen and glow in the dark ink on back panel
- Accepts JBL WK-4S Caster Kit
- Applications
-
- Live performance systems
- Mobile and fixed DJ systems
- Sound system rental and tour
- Permanent installations
UPC: 691991000751 In the Box JBL SRX828SP 18" Dual Self-Powered Subwoofer System Limited 5-Year Warranty Guides & Manuals fwyuqrsytqacsaweee Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL SRX828SP 18" Dual Self-Powered Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL SRX828SP 18" Dual Self-Powered Subwoofer System can be downloaded in PDF format at the link stated below.
Technical parametersJBL SRX828SP Specs | System Type | Self-powered dual 18" (46 cm) system | | Max SPL Level | 141 dB | | Frequency Range | -10 dB: 29 to 150 Hz | | Frequency Response | -3 dB: 35 to 120 Hz | | Design | Class D (amplifier) | | Power Rating | 2000 W peak | | Dimensions (H x W x D) | 22.6 x 47.4 x 26.8" (57.4 x 121 x 68.1 cm) | | Weight | 145 lb (65.9 kg) | | | | Package Weight | 165.0 lb | | Box Dimensions (LxWxH) | 52.0 x 31.5 x 24.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 66 owners. Add your rating and experience with the product.
