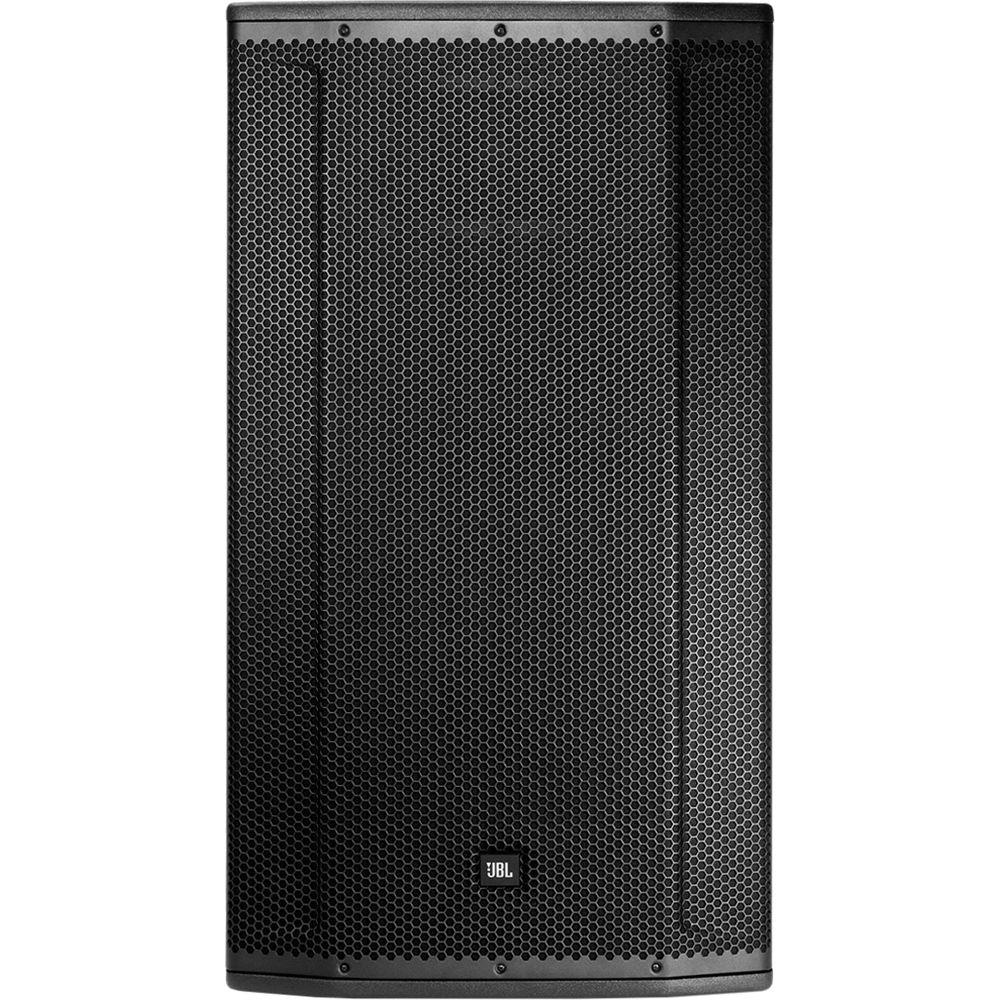

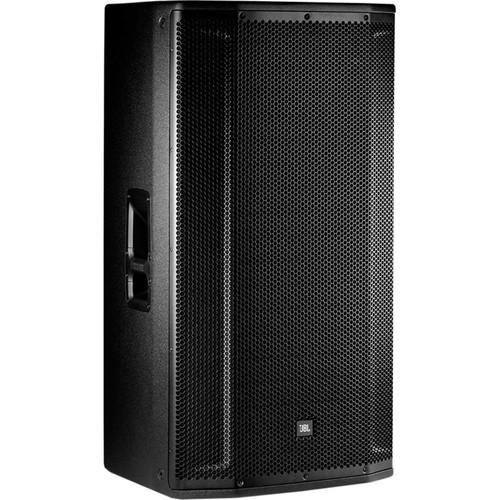

User Manual for JBL SRX835 15" Three-Way Bass Reflex Passive System Click to enlarge the picture
Contents of the user manual for the JBL SRX835 15" Three-Way Bass Reflex
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
 |
User manual for the JBL SRX835 15" Three-Way Bass Reflex contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

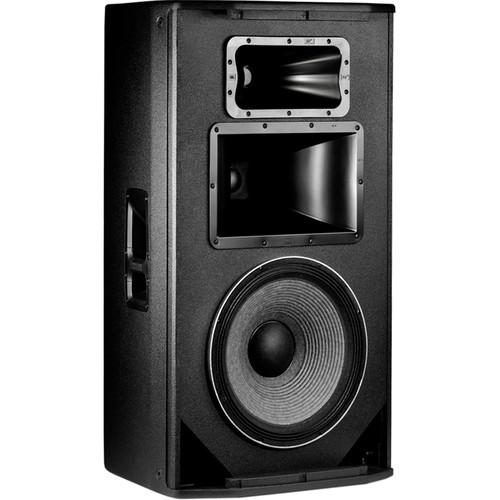

Product description The JBL SRX835 15" Three-Way Bass Reflex Passive System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. The system can deliver a frequency response of 41 to 20 kHz (-3 dB) and a maximum SPL of 137 dB. - High frequencies are handled by an annular polymer diaphragm compression driver that features a 3" voice coil coupled to a 1.5" throat opening
- Using a neodymium magnet, the compression driver delivers high power levels with reduced distortion and increased phase coherence resulting in smooth, crystal clear high frequencies

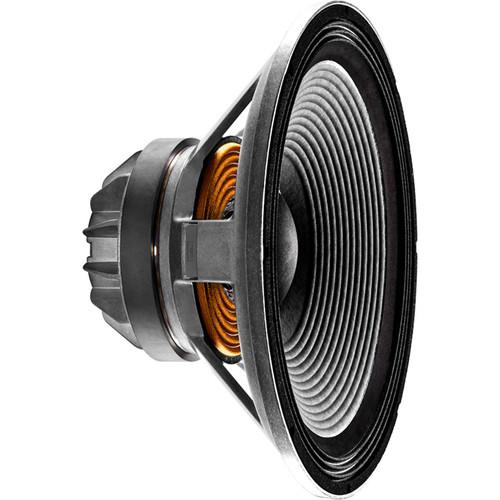

- For low frequencies, the SRX835 uses a 15" woofer with JBL's patented Differential Drive Technology for reduced weight while maximizing power amp efficiency
- 3" voice coils and dual ferrite drivers deliver low distortion and extended low frequency response
- SRX835's midrange driver is derived from the midrange transducer on the VTX 20 touring line array system
- The outside cast aluminum frame acts as the structural support, acoustic cavity, and heat sink for the driver, optimizing both space in the speaker cabinet and the performance of the system at the same time
UPC: 691991001642 In the Box JBL SRX835 15" Three-Way Bass Reflex Passive System Limited 5-Year Warranty on Speaker Limited 2-Year Warranty on Enclosure Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL SRX835 15" Three-Way Bass Reflex Passive System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL SRX835 Specs | | | Type | 15" (38 cm), three-way, bass-reflex | | Maximum SPL | 137 dB | | Frequency Range | @-10 dB: 33 Hz to 21 kHz | | Frequency Response | @-3 dB: 41 Hz to 20 kHz | | | | Drivers | LF Driver: 2275F
MF Driver: 2107H

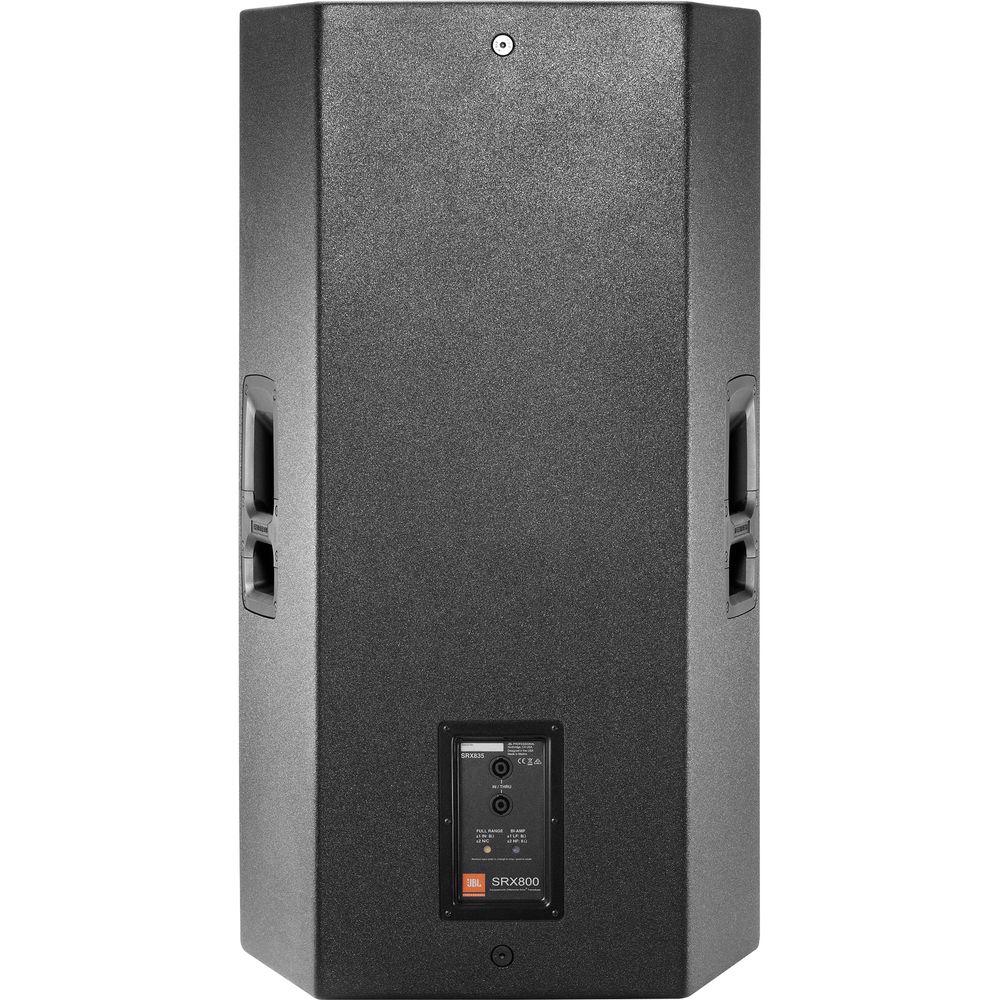

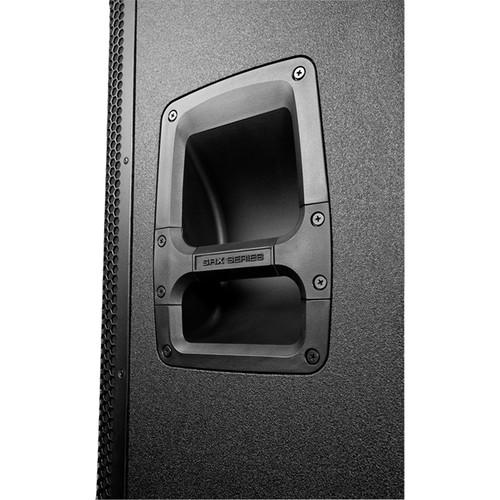

HF Driver: 2432H | | Coverage Pattern | 60° x 40° | | Crossover Frequency | 330 Hz and 2.4 kHz | | | | Material of Construction | 0.7" (1.8 cm) | | Monitor Angle | Supported | | Mounting | Single 1.4" (3.6 cm) pole socket, 12 x M10 suspension points | | Handles | 2 | | Finish | Obsidian Duraflex finish | | Dimensions | 18.7 x 21.4 x 38.7" (47.6 x 54.4 x 98.4 cm) | | Weight | 85.0 lb (38.6 kg) | | | | Package Weight | 109.0 lb | | Box Dimensions (LxWxH) | 40.75 x 26.0 x 23.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
