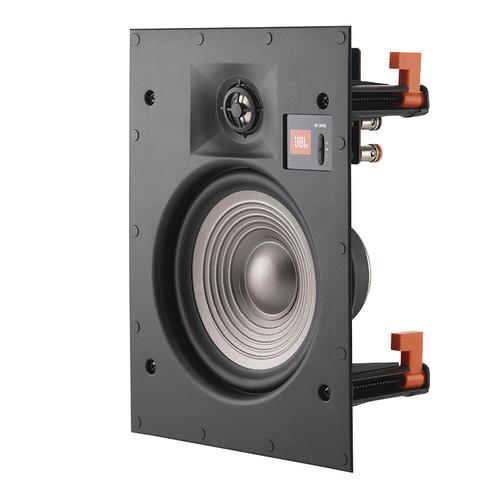

User Manual for JBL Studio 2 6IW 6.5" Two-Way In-Wall Speaker Click to enlarge the picture
Contents of the user manual for the JBL Studio 2 6IW 6.5" Two-Way
- Product category: In-Wall Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL In-Wall Speakers
|
User manual for the JBL Studio 2 6IW 6.5" Two-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description Add high-fidelity sound to your walls or ceiling with the JBL Studio 2 6IW 6.5" Two-Way In-Wall Speaker. This speaker features a 6.5" PolyPlas woofer and a 1" CMMD lite adjustable-level pivoting tweeter. It reproduces frequencies from 38 Hz to 20 kHz and is recommended for use with amplifiers producing 80W.
The Studio 2's JBL High-Definition Imaging waveguide enables the speaker to perform in off-axis locations and at high elevations. It features the XL-2 bracket which installs into walls and ceilings up to 2" deep. The bezel-free magnetic grille is paintable, allowing you to match it to any décor. - Inspired by JBL's M2 Master Reference Monitor
- High-Definition Imaging (HDI) waveguide technology is based on the JBL M2 Master Reference Monitor. Computer-optimized driver positioning and network integration result in enhanced performance and soundstage imaging throughout the entire room.
- Tweeter
- The 1" tweeter pivots so you can target your audio to your favorite listening location. Its level can be adjusted up or down by up to 3 dB.
UPC: 050036328272 In the Box JBL Studio 2 6IW 6.5" Two-Way In-Wall Speaker Magnetic Grille Limited 1-Year Warranty, Electronics Limited 5-Year Warranty, Enclosure and Drivers Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Studio 2 6IW 6.5" Two-Way In-Wall Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL STUDIO26IWAM Specs | | | Frequency Response | 38 Hz to 20 kHz | | Woofer | 6.5" (165 mm) Polyplas Woofer | | Tweeter | 1" (25 mm) Pivoting CMMD Lite | | Recommended Amplifier Power | 80 W | | Sensitivity | 86 dB @ 2.83 V/1 m | | Impedance | 8 Ohms | | Output Treble | ±3 dB | | | | Cutout Size | 9.80 x 7.28" (24.9 x 18.5 cm) | | Grille Dimensions | Finished: 10.87 x 8.35" (27.6 x 21.2 cm) | | Mounting Depth | 3.59" (91 mm) | | Depth of Wall | 0.5 to 2.0" (12 to 51 mm) | | Weight | Not specified by manufacturer | | | | Package Weight | 5.95 lb | | Box Dimensions (LxWxH) | 13.4 x 11.0 x 5.7" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
