User Manual for JBL Studio 230 2-Way 6.5" Bookshelf Speakers - Pair Click to enlarge the picture
Contents of the user manual for the JBL Studio 230 2-Way 6.5" Bookshelf
- Product category: Bookshelf Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Bookshelf Speakers
 |
User manual for the JBL Studio 230 2-Way 6.5" Bookshelf contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

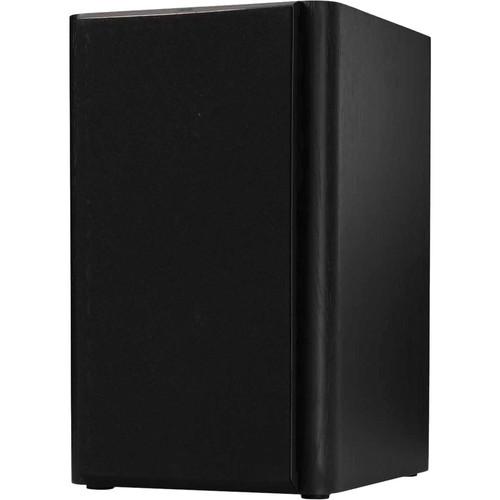

Product description The black JBL Studio 230 bookshelf speaker pair is designed to deliver big sound for music and movies. Each JBL Studio 230 has a 2-way design that incorporates a 1" CMMD Lite dome tweeter and a 6.5" PolyPlas woofer. With a recommended power handling of 20 - 150W per speaker, the JBL Studio 230 is compatible with a wide variety of amplifiers and music types.

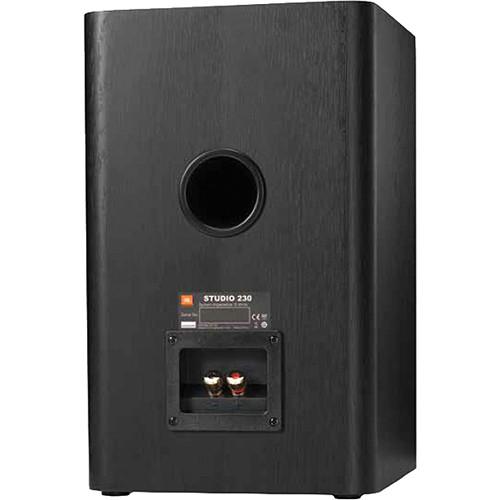

The JBL Studio 230 features a rear-firing bass port with a slipstream designed enclosure for reduced port noise and distortion. To help the speakers remain sturdy and upright, eight rubber cushion pads are included. This speaker pair features gold-plated binding-posts that provide high-quality connections between the speakers and your connected equipment. - 1" CMMD Lite High-Frequency Driver and High-Definition Imaging
- The JBL Studio 230's 1" CMMD lite high-frequency dome tweeter works with the speaker's High-Definition Imaging (HDI) horn design to optimize high-frequency detail, sound imaging, and balance. These optimizations help the JBL Studio 230 deliver a dynamic sound for music and movies.
- Frequency Response
- With a frequency response of 52 Hz - 22 kHz, the JBL Studio 230 is capable of handling a wide variety of music and movies, ranging from medium-bass tones to high frequencies.
UPC: 050036319041 In the Box JBL Studio 230 2-Way 6.5" Bookshelf Speakers - Pair (Black) 8 x Rubber Cushion Pads Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Studio 230 2-Way 6.5" Bookshelf Speakers - Pair in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Studio 230 Specs | | | Speaker Design | Bookshelf | | Recommended Amplifier Power | 20 - 150 W per speaker | | Impedance | 8 Ohms | | Frequency Response | 52 Hz - 22 kHz | | Sensitivity | 88 dB | | Enclosure | Slipstream rear-firing bass port | | | | Tweeter | 1x 1" (25 mm) CMMD Lite high-frequency dome | | Woofer | 1x 6.5" (165 mm) PolyPlas low-frequency transducer | | | | Configuration | 2-Way | | Speaker Connectors | Gold-plated binding-posts | | Dimensions (H x W x D) | 15 x 9.3 x 10.4" (38.1 x 23.6 x 26.4 cm) | | Weight | 17.5 lb (7.9 kg) | | | | Package Weight | 41.5 lb | | Box Dimensions (LxWxH) | 25.0 x 19.5 x 15.25" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
