User Manual for JBL Studio 280 3-Way Dual 6.5" Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the JBL Studio 280 3-Way Dual 6.5"
- Product category: Floorstanding Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Floorstanding Speakers
 |
User manual for the JBL Studio 280 3-Way Dual 6.5" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

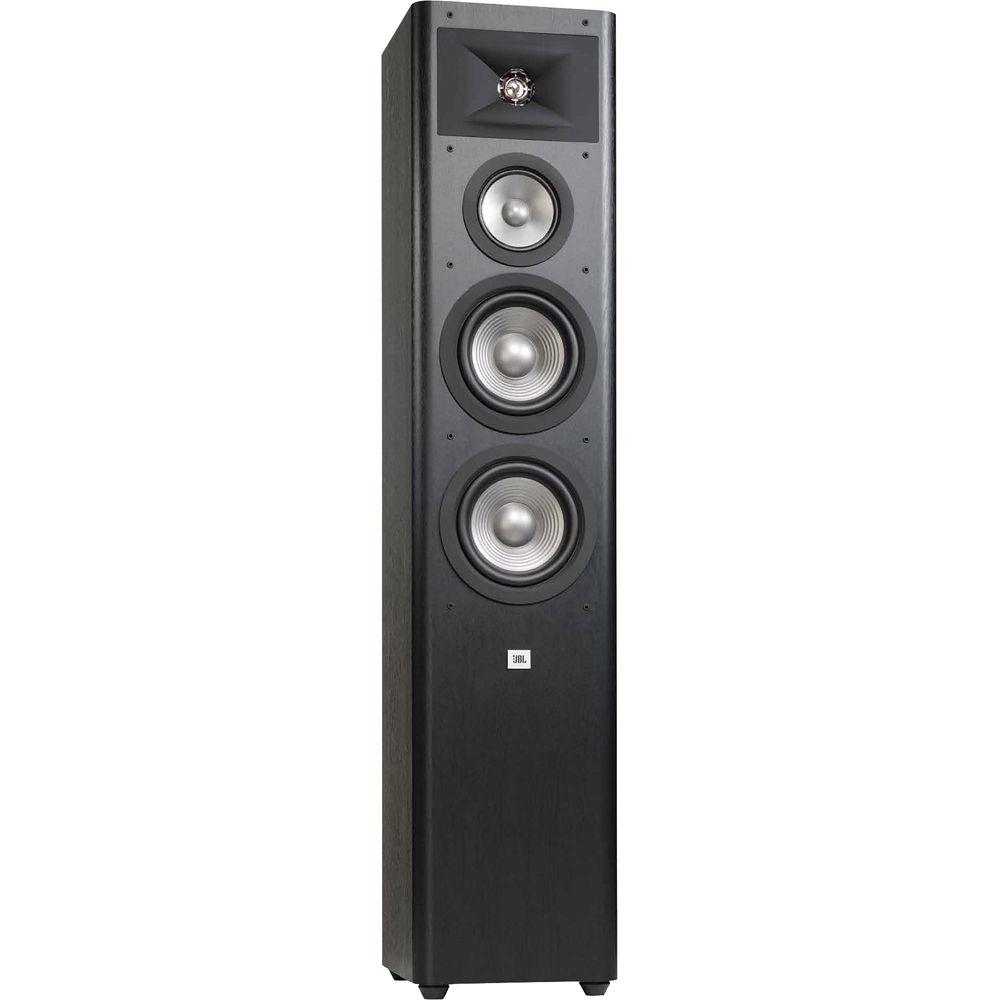

Product description The black JBL Studio 280 is a floorstanding speaker that is designed for robust sound production. This speaker has a 3-way design that includes a 1" CMMD Lite dome tweeter, 4" PolyPlas midrange, and two 6.5" PolyPlas woofers. With a recommended power handling of 20 - 200W, the JBL Studio 280 is compatible with a variety of amplifiers and music types. The speaker's power handling also contributes to its overall dynamic range.

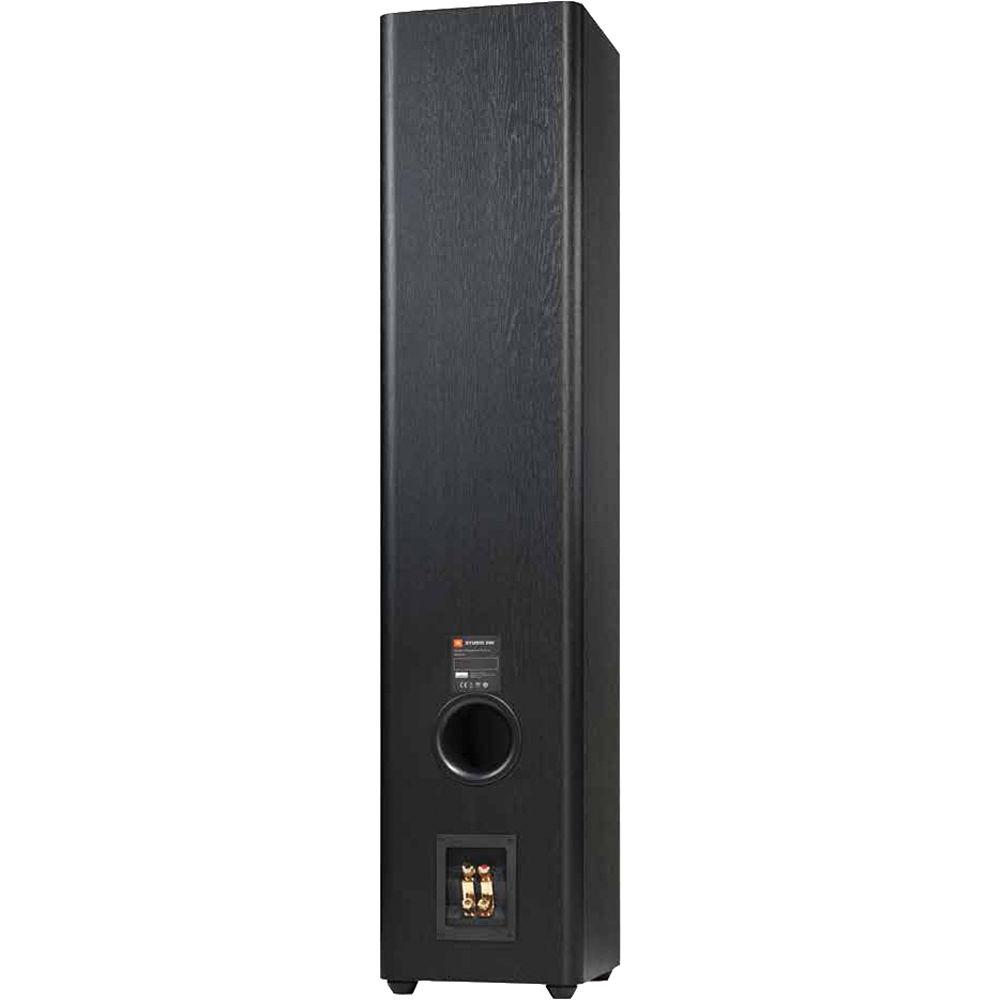

The JBL Studio 280 features a rear-firing bass port with a slipstream designed enclosure for reduced port noise and distortion. To help the speaker remain sturdy and upright, four carpet spikes are included. The JBL Studio 280 features gold-plated binding-posts that provide high-quality connections between the speaker and your connected equipment. This speaker is also bi-wire capable for feeding two amplifier sources at a time for driving low and high-frequencies separately. - 1" CMMD Lite High-Frequency Driver and High Definition Imaging
- The JBL Studio 280's 1" CMMD lite high-frequency dome tweeter works with the speaker's High Definition Imaging (HDI) horn design to optimize high frequency detail, sound imaging, and balance. These optimizations help the JBL Studio 280 deliver a full-spectrum sound for music and movies.
- Frequency Response
- With a frequency response of 40 Hz - 22 kHz, the JBL Studio 280 is capable of handling a wide variety of music, ranging from low bass tones to high frequencies.
In the Box JBL Studio 280 3-Way Dual 6.5" Floorstanding Speaker (Black) 4 x Carpet Spikes Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Studio 280 3-Way Dual 6.5" Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL Studio 280 Specs | | | Speaker Design | Floorstanding | | Recommended Amplifier Power | 20 - 200 W | | Impedance | 8 Ohms | | Frequency Response | 40 Hz - 22 kHz | | Sensitivity | 89 dB | | Enclosure | Braced with Slipstream, rear-firing bass port | | | | Tweeter | 1x 1" (25 mm) CMMD Lite high-frequency dome | | Midrange | 1x 4" (102 mm) PolyPlas midrange transducer | | Woofer | 2x 6.5" (165 mm) PolyPlas low-frequency transducers | | | | Configuration | 3-Way | | Speaker Connectors | Gold-plated binding-posts | | Special Features | Bi-Wire | | Dimensions (H x W x D) | 44.3 x 9.3 x 11.2" (112.5 x 23.6 x 28.4 cm) | | Weight | 45.2 lb (20.5 kg) | | | | Package Weight | 54.8 lb | | Box Dimensions (LxWxH) | 48.0 x 17.0 x 14.0" |
Rating82% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
