User Manual for JBL Under Armour Pivot Wireless Sport In-Ear Headphones Click to enlarge the picture
Contents of the user manual for the JBL Under Armour Pivot Wireless Sport
- Product category: Bluetooth Headphones JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL Bluetooth Headphones
 |
User manual for the JBL Under Armour Pivot Wireless Sport contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|

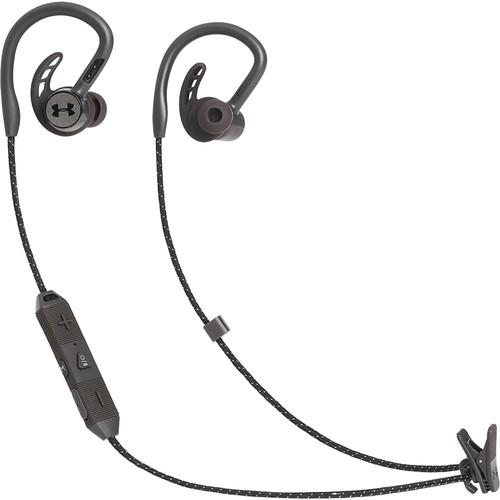

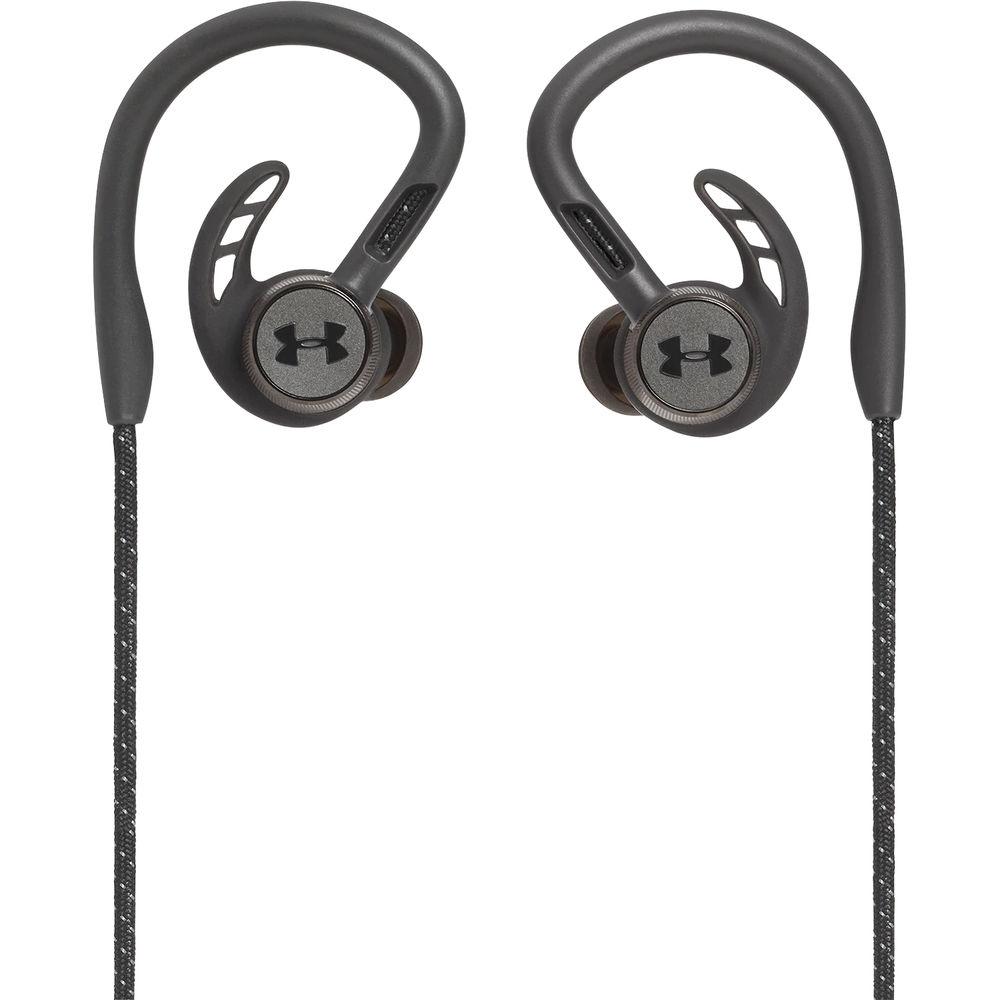

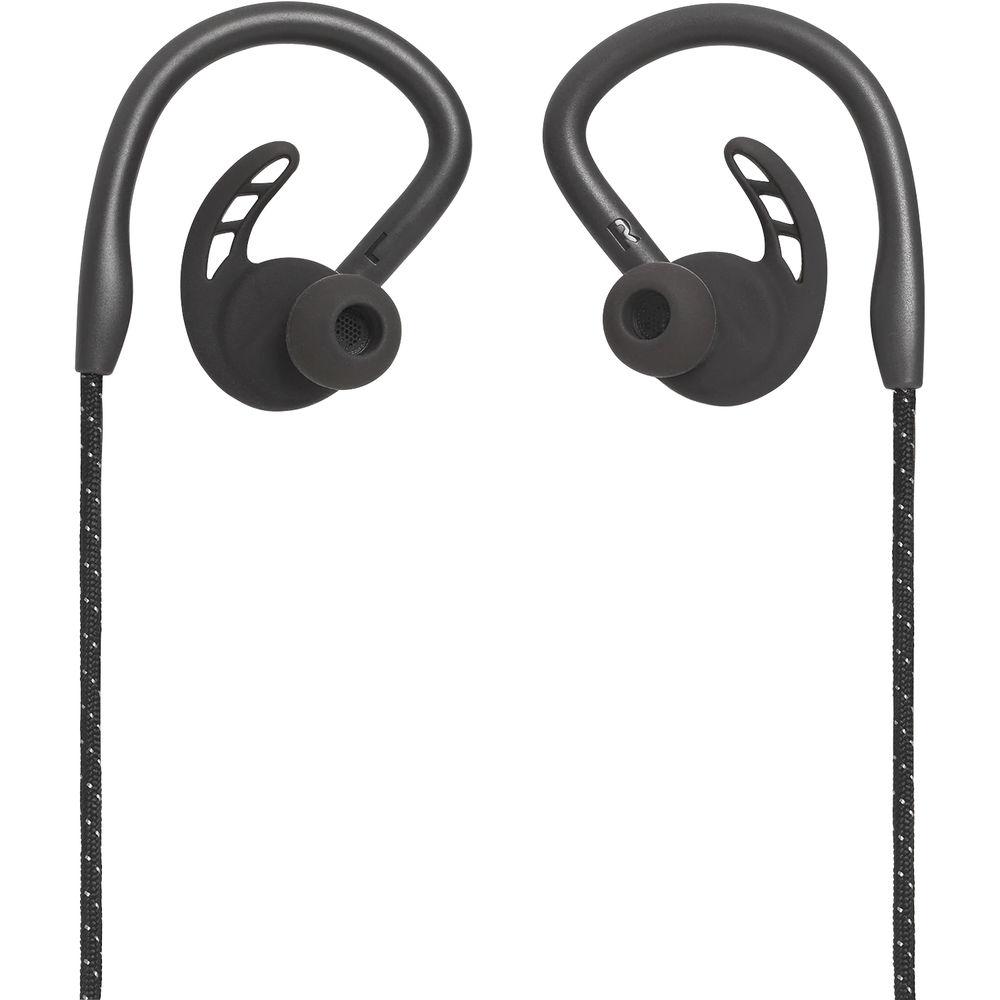

Product description Built to withstand your workout, the Under Armour Pivot Wireless Sport In-Ear Headphones from JBL features an IPX7 rated construction that's both sweatproof and waterproof. The Pivot headphones stream your favorite music wirelessly via Bluetooth technology, and with JBL Charged Sound, you get audio that's tuned to provide rich bass that's meant to keep you motivated throughout your workout. Sport Flex Fit eartips and behind-the-ear hooks in different sizes help to keep the in-ear Pivot headphones secure, and Bionic Hearing technologies are built-in to help keep you aware of your environment. - Bionic Hearing
- JBL has built-in audio technologies inside the Pivot headphones that are designed to keep you aware of your environment. With TalkThru technology, the Pivots lower your music and amplify speech, helping you have a quick conversation without having to take out your earbuds. Ambient Aware is another Bionic Hearing technology that is designed to provide a more immersive audio experience, letting you enjoy your music while increasing ambient sounds.
- Battery Life for Multiple Workouts
- The in-ear Pivot headphones provide you with 9 hours of playback when fully charged. That's enough time to cover multiple workouts before needing to be recharged.
- Free 12-Month Membership to MapMyRun
- MapMyRun lets you track your training sessions, monitor your workout progress, and more. Try out their exercise monitoring features with the included free 12-month premium membership.
- Additional Features
- Fabric cable

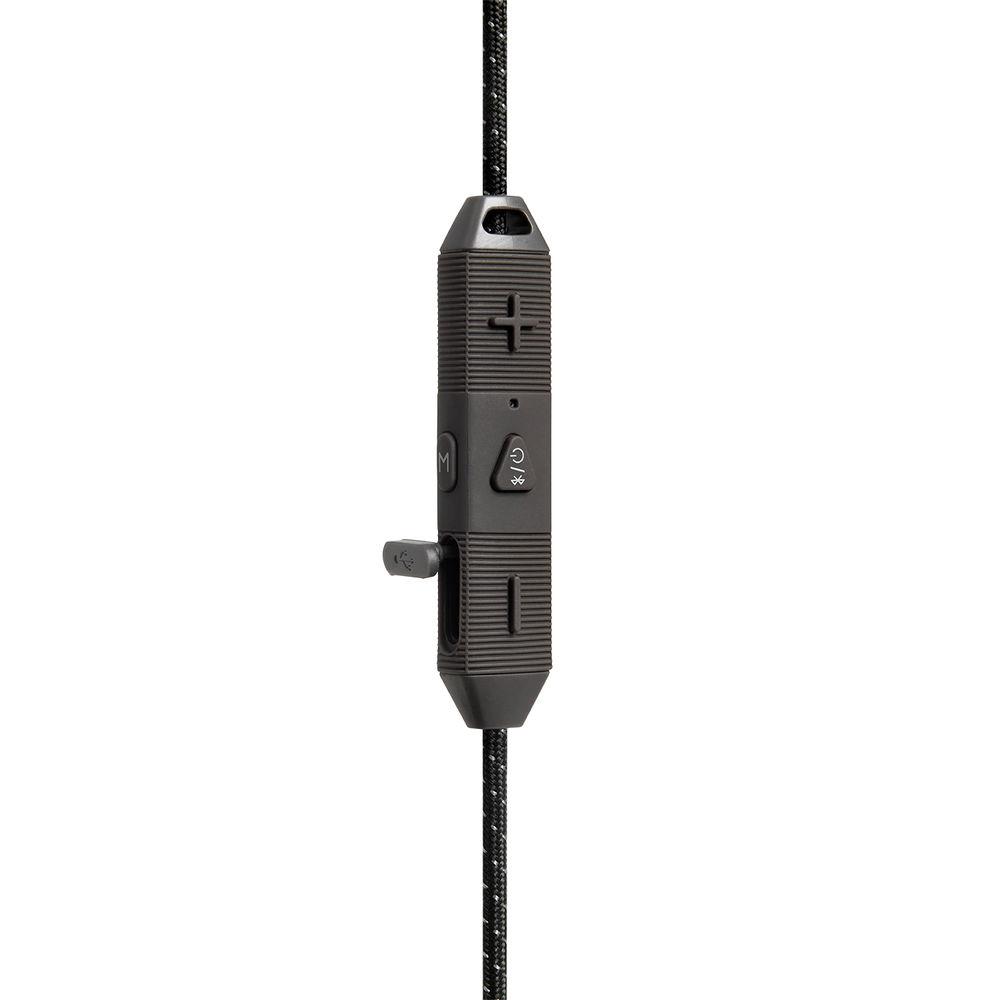

Cable volume and playback controls

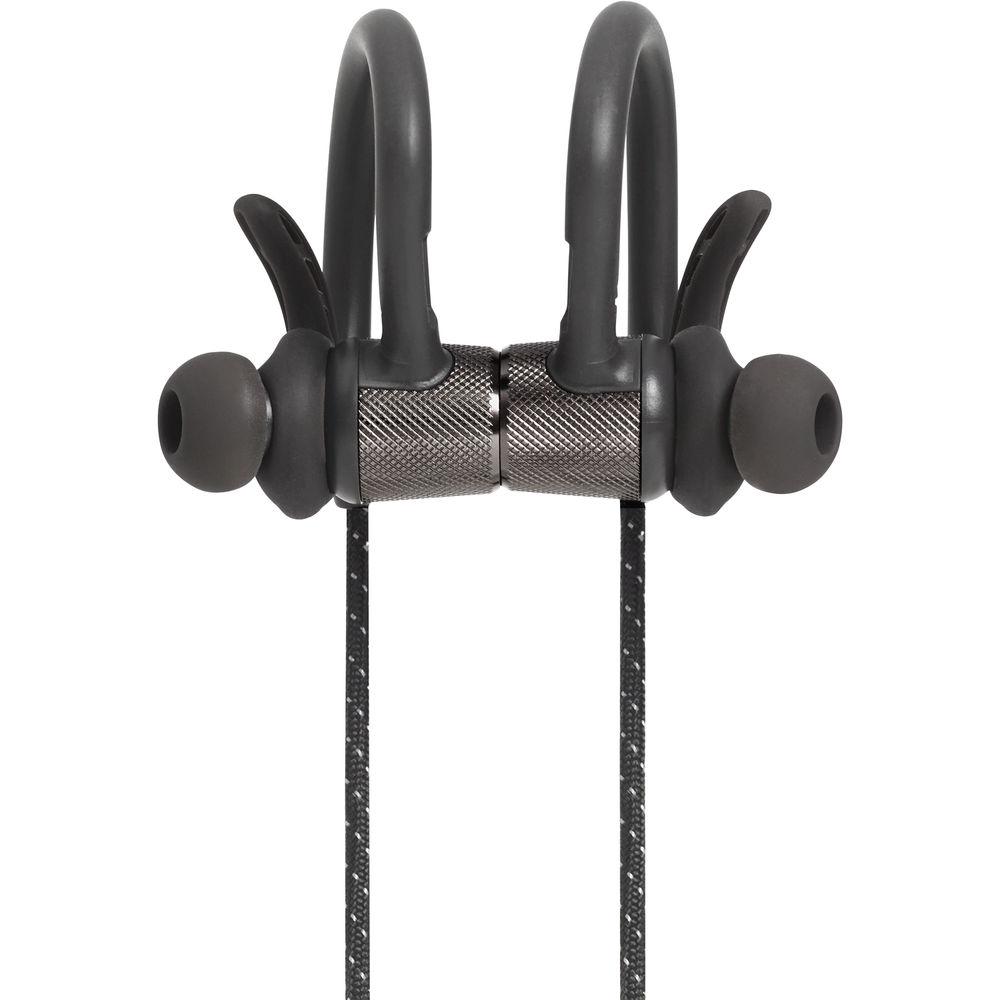

Magnetic earbuds snap together to stay untangled when not in use

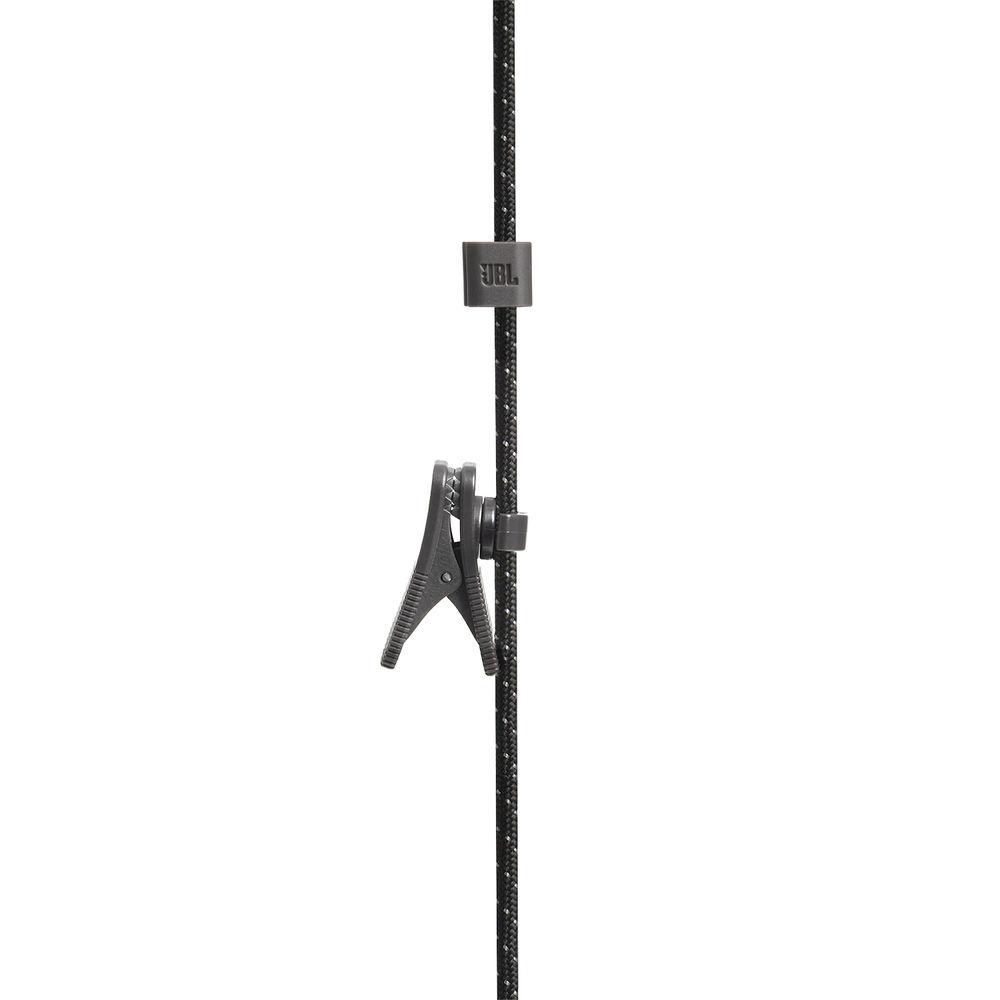

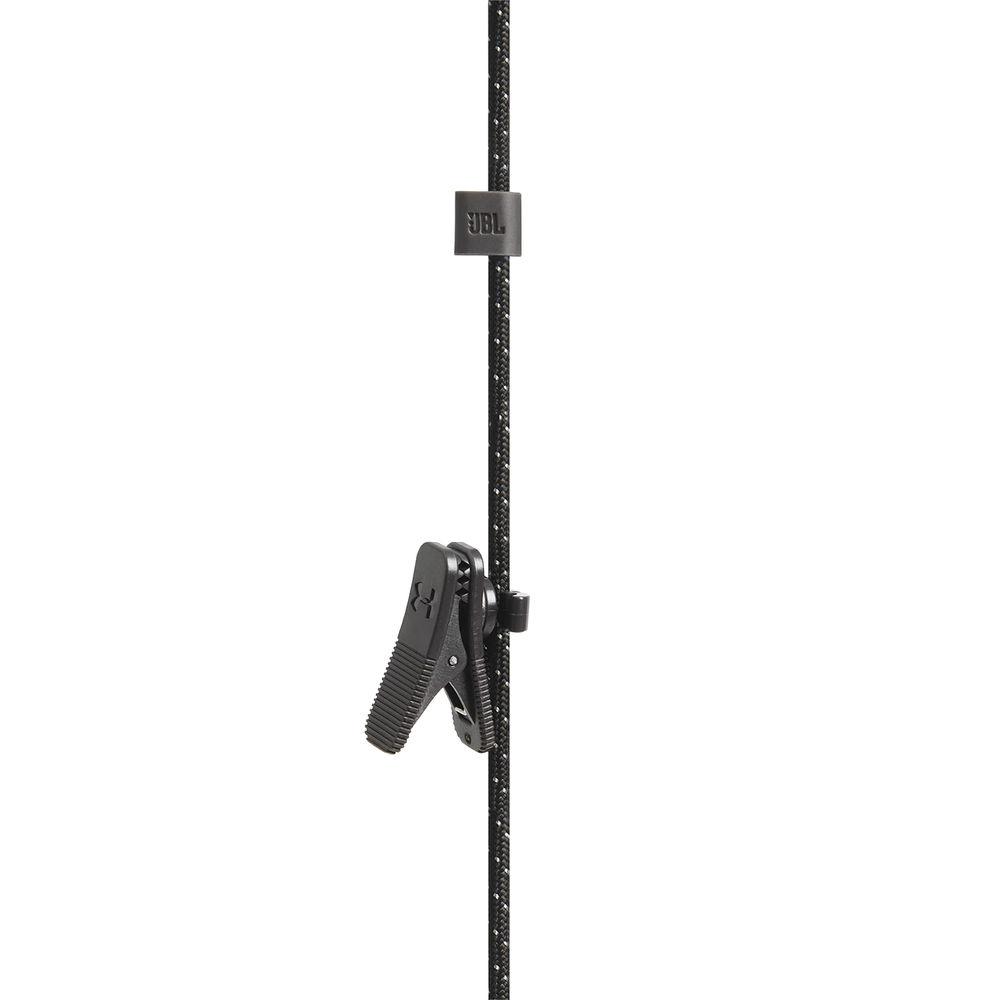

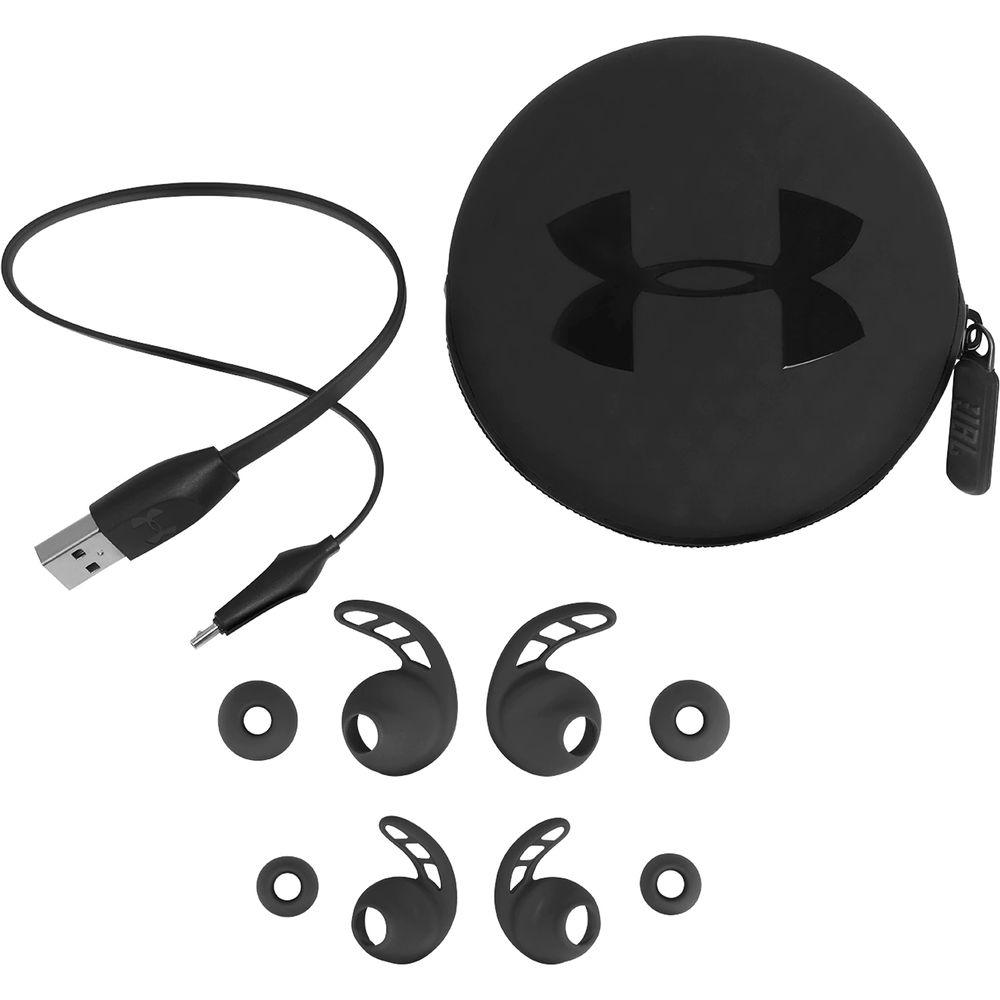

Cord clip secures the cable to the back of your shirt for more stability UPC: 050036353557 In the Box JBL Under Armour Pivot Wireless Sport In-Ear Headphones (Black) Breathable Carry Pouch Micro-USB Charging Cable 3 x Different-Sized Eartips 3 x Different-Sized Eartip Enhancers Free 12-Month Premium Membership to MapMyRun Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL Under Armour Pivot Wireless Sport In-Ear Headphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL UA Sport Wireless PIVOT Specs | | | Driver Size | 0.23" / 5.8 mm | | Active Noise Cancellation | No | | Design | In-Ear (Intra-aural), Behind-the-Neck | | | | Frequency Response | 20 Hz to 20 kHz (Wireless) | | Sensitivity | 102 dB at 1 kHz / 1 mW | | Impedance | 14 Ohms | | Maximum Sound Pressure Level (SPL) | 96 dB | | Controls/Microphone Location | Cable | | | | Bluetooth Profiles | HFP 1.7
A2DP 1.3
AVRCP 1.5 | | Bluetooth Version | 4.2 | | Wireless Range | 33' / 10.1 m | | Frequency | 2.4 GHz (2402 to 2480 MHz) | | Bluetooth Transmitter Power | 4 dBm | | Bluetooth Transmitter Modulation | π/4 DQPSK, 8DPSK, GFSK | | NFC | No | | | | Headphone Charging Port | Micro-USB | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity (mAh) | 170 mAh | | Runtime | 9 Hours (BT) | | Recharge Time | 2 Hours | | DC Input Power | 3.7 VDC | | | | IP Rating | IPX7 | | LED Indicator | No | | Weight | 0.6 oz / 16.5 g | | | | Package Weight | 0.58 lb | | Box Dimensions (LxWxH) | 6.25 x 4.5 x 2.35" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
