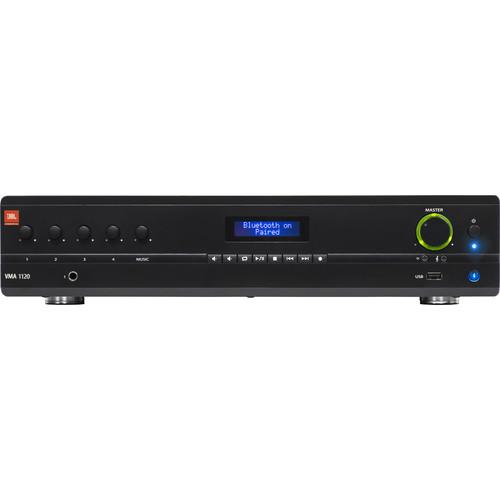

Product description The JBL VMA1120 is a Commercial Series Bluetooth-enabled mixer/amplifier designed to provide flexible multi-source mixing and amplification for installation in restaurants, educational institutions, fitness centers, and retail stores. It features a 5-in/1-out mixer and 120W of output power. It can be installed in a standard 19” equipment rack with the supplied rackmount kit or set on a surface such as a desk or ledge.Stream music wirelessly via Bluetooth or connect a USB drive to the front-panel USB Type-A port. Route other sources via Euroblock, RCA, and 1/4" input jacks. The integrated mixer offers level controls as well as bass and treble for each channel. Routing to the Euroblock outputs is configurable. The VMA1120 supports voice-activated ducking and priority muting. The front-panel controls and display make operation easy, and remote volume control is possible via a JBL CSR-V module and a standard Ethernet cable (both available separately). - Suitable for commercial and industrial use
- Euroblock, RCA, and 1/4" TRS input connectors
- Independent bass and treble controls for each output channel
- Voice-activated ducking during announcements
- Remote volume control capability using optional JBL CSR-V module and Cat5e cable with RJ45 connectors
- Priority muting using PTT switch closure
- Configurable output routing
- Barrier block output connections to drive 8 Ohms, 70V or 100V speaker systems
- Media player capable of playing MP3 files from a Bluetooth device or USB drive
UPC: 691991004414 In the Box JBL VMA1120 Commercial Series 120W Bluetooth-Enabled Mixer/Amplifier (5-In/1-Out) Rubber Feet Rackmount Kit Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VMA1120 Commercial Series 120W Bluetooth-Enabled Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL VMA1120 Specs | Output Power | 120 W (per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤0.5% THD) | | Insertion Loss | 70 V and 100 V Outputs: 1 dB maximum | | Input Channels | 5 | | Output Channels | 1 | | Tone Controls | Bass and Treble non-detented potentiometers on each channel
Bass: ±14 dB @ 50 Hz
Treble: ±14 dB @ 10 kHz | | Input Sensitivity | To obtain full rated power (load of 8 Ohms)
Mic Input: 5.5 mVrms
Line Input: 1.3 Vrms
RCA Input (Stereo In): 130 mVrms | | Frequency Response | Measured at 2.83 Vrms into rated load impedance at any output
4/8 Ohms Output: 20 Hz to 20 kHz, ±2 dB
70 V/100 V Outputs: 80 Hz to 15 kHz ±3 dB | | Total Harmonic Distortion (THD) | Measured at 2.83 Vrms into rated load impedance at any output
Power Amp Output: <0.5%, 20 Hz to 20 kHz | | Signal-to-Noise Ratio | >76 dB (reference rated power, mixer levels @ minimum, master volume @ maximum A-weighted) | | Input Impedance | Nominal
Mic: 400 Ohms
Line: 20 kOhms (balanced)
RCA: 50 kOhms | | Phantom Power | 27 VDC | | Crosstalk | -70 dB (reference rated power, volume at mid position, 1 kHz) | | Nominal Input Voltages | Nominal AC Line Voltages: 100, 120, 220, 220 to 240 VAC, 50/60 Hz | | Minimum Load Impedance | Low Impedance Output: 4 Ohms
70 V Output: 40 Ohms
100 V Output: 80 Ohms | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Humidity | 95% RH (non-condensing) | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Dimensions (W x D x H) | 17 x 16.3 x 3.5" / 432 x 415 x 88 mm | | Weight | 20.2 lb / 9.2 kg | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.5 x 7.0" |
