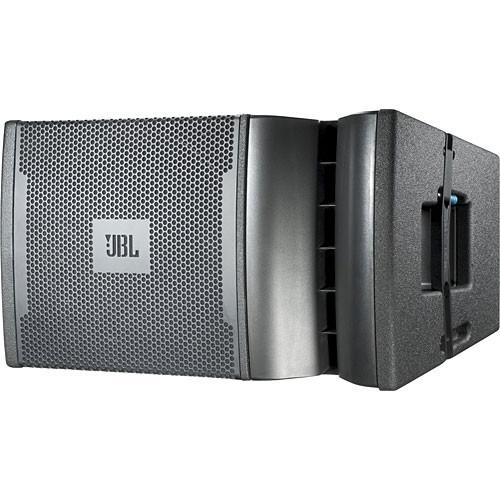

User Manual for JBL VRX-928LA 8" 2-Way Line Array Loudspeaker System Click to enlarge the picture
Contents of the user manual for the JBL VRX-928LA 8" 2-Way Line Array
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL VRX-928LA 8" 2-Way Line Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL VRX-928LA is an 8" 2-Way Line Array Loudspeaker System is a lightweight, compact, two-way line array speaker system designed for use in arrays of up to six units. The VRX-928LA is equipped with JBL's exclusive neodymium magnet Differential Driver woofer for high power. There are also two patent-pending, high-frequency neodymium compression drivers. The Constant Curvature waveguide mounts two compression speakers on a continuous arc. Adding additional speakers does not alter the arc, so all drivers work together as though they would be one single driver on a long waveguide. With amplitude shading you get the perfect shape to your array. The VRX-928LA can be mounted on a tripod, over the VRX915S, or use the integral rigging system. In fact, up to six VRX-928LA speakers can be mounted together in the same array for a nominal vertical coverage of up to 90°. - High Power Capacity
- This speaker takes advantage of JBL's exclusive neodymium magnet Differential Drive woofer so you get high power capacity in a surprisingly lightweight package.
- Array Coherence
- You get unprecedented array coherence with JBL's Constant Curvature waveguide.
- Mounting Options
- Built-in dual-angle pole socket gives you aiming flexibility when pole mounting and the integral rigging hardware provides simplified connection of enclosures and optional array frame.
UPC: 050036903196 In the Box JBL VRX-928LA 8" 2-Way Line Array Loudspeaker System Product Instructions 5-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VRX-928LA 8" 2-Way Line Array Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the JBL VRX-928LA 8" 2-Way Line Array Loudspeaker System can be downloaded in PDF format at the link stated below.
Technical parametersJBL VRX928LA Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 400 W RMS
800 W Program
1600 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 2 x 1" / 25 mm Compression Driver | | LF Driver | 1 x 8" / 208 mm Woofer | | Magnet | HF:
Neodymium | | | | Frequency Response | 70 Hz to 20 kHz ±3 dB (Half-Space) | | Maximum SPL | 122 dB | | Speaker Sensitivity | 90 dB | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Metal Grille, Plywood | | Dimensions | 9.0 x 16.5 x 10.5" / 230.0 x 419.0 x 267.0 mm | | Weight | 28 lb / 12.7 kg | | | | Package Weight | 29.0 lb | | Box Dimensions (LxWxH) | 18.0 x 14.0 x 12.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 42 owners. Add your rating and experience with the product.
