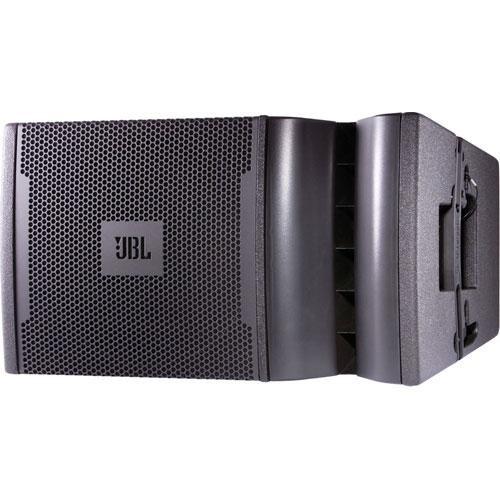

User Manual for JBL VRX-932LA-1 12" 2-Way Bi-Ampable Line Array System P.A. Speaker - Click to enlarge the picture
Contents of the user manual for the JBL VRX-932LA-1 12" 2-Way Bi-Ampable Line
- Product category: PA Speakers JBL
- Brand: JBL
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for JBL PA Speakers
|
User manual for the JBL VRX-932LA-1 12" 2-Way Bi-Ampable Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any JBL product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official JBL user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a JBL product will considerably shorten its lifespan!
|
Product description The JBL VRX-932LA-1 (Black) is a lightweight, compact, passive and bi-ampable two-way line array speaker system, with an 800-watt continuous passive program power handling capacity, designed for use in arrays of up to six units. The VRX-932LA-1 is equipped with a 12" dual voice coil woofer and a trio of 1" Neodymium compression drivers, and offers a worthy solution when line array performance is desired in a smaller venue, but the very long-throw characteristics of a larger line array is not needed. The VRX-932LA-1 uses amplitude shading technology to shape the coverage of the array. Switches on the input plate allow the upper box in an array to reach a distant balcony, while the lower HF section is attenuated to reduce excessive level at the front of the listening area. One or two VRX-932LA-1 units may also be used on a tripod or over subwoofers, and up to six may be suspended in a single array for a nominal vertical coverage of up to 90°. - 2-way passive or bi-ampable 800-watt line array P.A. speaker system for smaller venues with up to 6-unit array capacity
- 12" Neodymium magnet Differential Drive(TM) woofer for high-power capacity and light-weight
- Three 1.5" Neodymium Annular Ring Diaphragm technology drivers for high power capacity, high-frequency extension and directivity
- Constant Curvature waveguide technology for reliable array coherence
- Array Configuration Selector switch - permits array in passive mode, allows for precise directivity and level attenuation
- Dual angle pole socket for aiming flexibility when pole mounting, Integral rigging hardware for simplified connection of enclosures and optional array frame
- Tripod or subwoofer mounting of up to 2 speakers for multi-range floor placement
In the Box JBL VRX-932LA-1 12" 2-Way Bi-Ampable Line Array System P.A. Speaker - (Black) 5 Year Warranty Brochure PDF 547.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the JBL VRX-932LA-1 12" 2-Way Bi-Ampable Line Array System P.A. Speaker - in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersJBL VRX932LA Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | Passive:
800 W Program
1600 W Peak
Bi-Amp / LF:
800 W Program
1600 W Peak
Bi-Amp / HF:
75 W Program
150 W Peak | | System Impedance | 8 Ohms | | | | HF Driver | 3 x Compression Driver | | HF Voice Coil | 1.5" / 3.81 cm | | LF Driver | 1 x 12" / 305 mm Woofer | | LF Voice Coil | Dual | | Magnet | HF:
Neodymium
LF:
Neodymium | | | | Frequency Response | 75 Hz to 20 kHz ±3 dB | | Maximum SPL | 130 dB (Passive)
130 dB (LF, Bi-Amp)
139 dB (HF, Bi-Amp) | | Speaker Sensitivity | Passive:
95 dB SPL
Bi-Amp/LF:
95 dB
Bi-Amp/HF:
114 dB | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Metal Grille, Plywood | | Dimensions | 23.5 x 13.8 x 15.0" / 597.0 x 349.0 x 381.0 mm | | Weight | 46 lb / 21 kg | | | | Package Weight | 55.8 lb | | Box Dimensions (LxWxH) | 25.5 x 19.0 x 18.0" |
