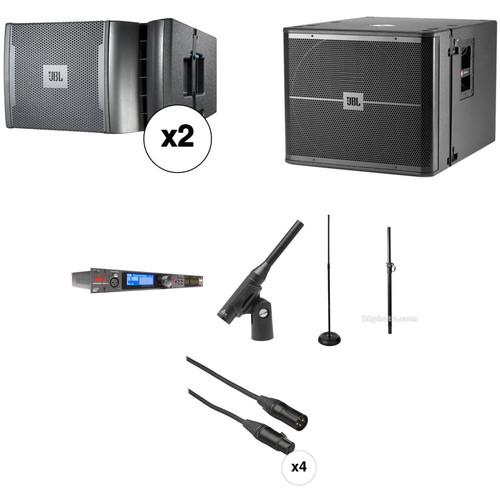

JBL VRX PA Kit with Loudspeaker

User Manual for JBL VRX PA Kit with Loudspeaker Management System, Mic, Stands, and Cables

• Product category: PA Speakers JBL
• Brand: JBL
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for JBL PA Speakers

Product description

• 2 x JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black) The JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System in black is designed for playback and sound reinforcement in small to mid sized venues. The built-in JBL DrivePack DPC-2 amplifier module by Crown provides a whopping 1750W of peak power while the DSP-based resident input module provides system optimization and EQ. The Differential Drive woofer gives you high power while still maintaining a lightweight profile. Three 2408J annular ring diaphragm HF drivers incorporate the latest in JBL Professional compression driver design. The VRX932LAP can be used in arrays of up to five units and works perfectly for entertainers and A/V professionals. If you're in a venue that requires a line array but not very long-throw characteristics, then this fast and easy setup is perfect for your presentation.
  Crown Technology
  • JBL and Crown worked together to create the built-in DrivePack DPC-2 Amplifier so you get 1750W of power, system optimization and EQ functionality.
  JBL Differential Drive
  • JBL's exclusive neodymium Differential Drive woofer gives you high power capacity and still remains its lightweight profile.
  Latest Compression Drivers
  • Three 2408J Annular Ring Diaphragm HF drivers are the latest in JBL technology.
  Array Coherence
  • With the constant curvature waveguide you get unprecedented array coherence.
  Easy Configuration
  • If you're looking to add speakers to form an array the integral rigging hardware provides you with an incredibly simple connection of enclosures and optional array frame.
  UPC: 050036903493
• JBL VRX918SP 18" Powered Flying Subwoofer If your tour needs the most powerful low frequencies, the VRX918SP 18" Powered Flying Subwoofer from JBL is the obvious choice. This powered subwoofer uses the Drivepack DPC-2 designed by Crown to provide 1500W of peak power to the 18", 2268H Differential Drive woofer for extended low-frequency output. The VRX918S uses internal rigging hardware for connection with optional line-arrays and array frames. A 20mm threaded pole socket is provided for secure satellite speaker mounting.
  • 18", 2268FF dual voice coil, neodymium magnet Differential Drive woofer is powered by JBL Drivepack DPC-2 amplifier module designed by Crown provides 1500W of peak power
  • Distortion is reduced with large port area
  • 20mm threaded socket provided for secure satellite speaker placement
  UPC: 050036903509
• dbx DriveRack VENU360 Loudspeaker Management System The DriveRack VENU360 from dbx is a loudspeaker-management processor designed to protect and optimize front-of-the house, stage monitor, delay-fill, and zone loudspeaker systems in clubs, outdoor music events, or houses of worship. Connect the VENU360 between your mixer and amplifiers/powered speakers, and use it for precise feedback elimination, automatic speaker level and room equalization, crossover-frequency setting, dbx compression/limiting, driver alignment delay, and more. The unit provides a 5 x 6 routing/mixing matrix (using four AES signals and one analog signal) and a 3 x 6 signal processing chain. The 24-bit A/D and D/A converters with dbx Type IV conversion protect the incoming audio signal from accidental digital clipping at the A/D stage, while the 32-bit floating point, 48 / 96 kHz internal processing produces professional audio quality with high headroom and wide dynamic range. For easy operation, the Wizard functions guide you through simple, step-by-step processes to help you quickly configure the unit. For more control, you can use the manual mode which lets you customize each parameter separately. A large, bright, LCD display and nine 6-segment signal meters provide easy-to-read visual feedback. Additionally, the free DriveRack VENU360 control application offers network control via the built-in Ethernet port, and is available for iOS, Android, Mac, and Windows-compatible devices.
  • Provides a 5 x 6 routing/mixing matrix with a 3 x 6 signal processing chain
  • 24-bit A/D & D/A converters with dbx Type IV conversion and 48 / 96 kHz, 32-bit floating-point processing – with sample rate conversion
  • Setup Wizard for easy system configuration and Level Assist Wizard for system level balancing
  • AutoEQ Wizard for fast & accurate room equalization using 10-band parametric EQ; further user adjustments can be made to bands 11 to 14
  • AFS Wizard for easy & accurate feedback suppression
  • Support for multi-mono, stereo, LCR, & aux-fed sub input configurations
  • Selectable 31-Band graphic EQ or 12-band parametric EQ with narrow notch capabilities for speaker tuning
  • Input Delay processing for aligning the sound system of the stage backline, and Fill Delay processing for balcony & tower delays – up to 3000 ms total cascaded delay time (3 x configurable delay modules at 1000 ms each)
  • dbx compression with dbx PeakStopPlus output limiters
  • Crossover with support for full range up to mono 6-way configurations – selectable crossover filter types & slope rates with adjustable polarity & variable phase control
  • Noise Gate to remove unwanted low-level noise in sound system
  • Subharmonic Synthesis for deep, punchy bass
  • 3 x XLR inputs (selectable between 4 x AES or 3 x analog input channels), and 6 x analog outputs
  • Front-panel RTA mic input with 48V phantom power
  • Built-in signal generator & RTA for system fine-tuning & troubleshooting
  • Large, bright, easy-to-read LCD display and 6-segment signal meters with input clip & output limiter indicators
  • 25 x factory / 75 x user presets with various speaker & amplifier tunings included
  • Network control via the free VENU360 Control Application for iOS, Android, Mac & Windows-compatible devices
  UPC: 691991401497
• dbx RTA-M Reference Microphone The RTA-M Reference Microphone from dbx is an omnidirectional mic designed for use with dbx DriveRack series real-time analyzers (sold separately) to provide an acoustic picture of a room. It can be used to capture audio and fine-tune your sound system performance to match the response characteristics of the room for live sound and recording applications. In addition, the RTA-M is built with a metal housing, requires phantom power (9 to 52 VDC), and includes a mic clip along with a hardcover case.
  • Flat frequency response
  • Omnidirectional polar pattern
  • Designed for the DriveRack series
  • Accurate "pinking" / real-time analysis of your audio
  • It runs on phantom power (supplied by the DriveRack units) and comes with a clip and case
  UPC: 691991400421
• Auray MS-5130 Round Base Microphone Stand The Auray MS-5130 Round Base Microphone Stand features durable, steel construction. An ergonomic twist-action clutch adjusts the height of the stand from 36.2 to 63", while the weighted round base and permanently-attached nonslip rubber feet keep it firmly and sturdily in place. UPC: 847628015555
• On-Stage SS7745 - Adjustable P.A. Subwoofer Speaker Attachment Shaft The On-Stage SS7745 is an all-aluminum subwoofer-mounting speaker shaft with a pair of heavy-duty 1-3/8" endcaps, adjustable from 36" - 60", designed to connect full-range or mid-range speaker satellites to floor-positioned P.A. subwoofers. UPC: 659814356270
• 4 x Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black The Kopul Studio Elite 4000 Series XLR M to XLR F Microphone Cable (25') is a studio-quality cable for connecting mics to mixers, preamps, audio interfaces and recorders; or to be used in any other application where XLR connectivity is required. The cable is engineered to be both quiet and durable, and is well-suited for critical recording and broadcast situations.

  Studio Elite 4000 Series cables are made from 24 AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. A 98% braided outer shield makes the cable resistant to EMI and RFI noise. The Neutrix XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection.
  • 98% braided shield offers protection from EMI and RFI noise.
  • Twin-conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core.
  • 24 AWG oxygen-free stranded copper inner core provides the best possible conductivity.
  • Cotton yarn reduces electrostatic and microphonic noise.
  • All solder points shrink-wrapped for protection.
  • Neutrik XX silver connectors offer high conductivity.
  • Cast zinc shell and chuck style strain relief.
  UPC: 847628551206

• 2 x VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black) btcwwefevevbdt
• Product Instructions
• 5-Year Warranty

• VRX918SP 18" Powered Flying Subwoofer

• dbx - DriveRack VENU360 Loudspeaker Management System

• dbx - RTA-M Reference Microphone

• Auray - MS-5130 Round Base Microphone Stand

• On-Stage - SS7745 - Adjustable P.A. Subwoofer Speaker Attachment Shaft

• 4 x Kopul - Studio Elite 4000 Series XLR M to XLR F Microphone Cable - 25' (7.6 m), Black

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x JBL VRX932LAP 12" 2-Way Line Array Loudspeaker System (Black)

  Configuration	Active 2-Way
  Total Power Capacity	1750 W Peak 875 W RMS
  System Impedance	LF: 2 x 2 Ohms HF: 4 Ohms

  HF Driver	3 x Compression Driver
  HF Voice Coil	1.5" / 3.81 cm
  LF Driver	1 x 12" / 304.8 mm Woofer
  LF Voice Coil	Dual
  Magnet	HF: Neodymium

  Frequency Response	75 Hz to 20 kHz
  Maximum SPL	136 dB

  AC Power Connector	1 x powerCON Input

  Construction Material	Plywood
  Dimensions	13.8 x 23.5 x 17.5" / 34.9 x 59.7 x 44.4 cm
  Weight	52 lb / 24 kg

  Box Dimensions (LxWxH)	26.0 x 21.5 x 18.0"

• JBL VRX918SP 18" Powered Flying Subwoofer

  Configuration	Active Subwoofer
  Total Power Capacity	1500 W Peak
  Amplifier Class	Class-D
  System Impedance	2 x 2 Ohms

  LF Driver	1 x 18" / 457.2 mm Woofer

  Frequency Range	31 Hz to 220 Hz
  Maximum SPL	126 dB

  Audio I/O	1 x XLR Input 1 x XLR Thru

  Crossover	80 / 120 Hz
  Filters	Low-Pass: 80 Hz / 120 Hz High-Pass: 80 Hz High-Pass is selectable on Thru Output

  Construction Material	Plywood
  Dimensions	20.0 x 23.5 x 29.5" / 508.0 x 297.0 x 749.0 mm
  Weight	85 lb / 38.5 kg

  Box Dimensions (LxWxH)	32.5 x 25.0 x 22.0"

• dbx DriveRack VENU360 Loudspeaker Management System

  Inputs	Number of Inputs: 3 x analog line inputs / 2 x AES digital inputs (shared connectors), 1 x RTA mic input Connectors: 3 x female XLRs (2 x selectable between analog / AES digital audio formats), 1 x female XLR RTA mic input Type: Electronically balanced, RF filtered Impedance: > 30 kOhms, balanced line to line Max Input Level (Line Inputs): > +28 dBu, balanced, ≤ 1% THD CMRR: > 50 dB at 1 kHz RTA Mic Preamp Phantom Power: +48 VDC
  Analog Outputs	Number of Outputs: 6 x line outputs Connectors: Male XLR Type: Electronically balanced, RF filtered Impedance: 120 Ohms, balanced line to line Max Output Level: +22 dBu, balanced, ≤1% THD Alignment Delay: Up to 1000 ms per output channel
  A/D Conversion	A/D Converter: 24-bit with dbx Type IV conversion system A/D Dynamic Range: 117 dB A-weighted, 114 dB unweighted, 22 kHz BW Type IV Dynamic Range (22 kHz BW): 129 dB with transient material / A-weighted, 126 dB with transient material / unweighted, 121 dB typical with program material / A-weighted
  D/A Conversion	D/A Converter: 24-bit D/A Dynamic Range: 116 dB A-weighted, 113 dB unweighted, 22 kHz BW
  System Performance	Internal Processing Wordlength: 32-bit floating point Supported Sample Rates: 48/96 kHz (32-192 kHz using sample rate conversion) Dynamic Range: 114 dB A-weighted, 110 dB unweighted THD+Noise: 0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain Frequency Response: 20 Hz - 20 kHz, +0 /- 0.5 dB Interchannel Crosstalk: < -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured Latency: 2.57 ms at 48 kHz, 2.28 ms at 96 kHz (Analog input to output) / 2.31 ms at 48 kHz, 2.15 ms at 96 kHz (Digital AES input to output) Operating Temperature: 32 to 104° F / 0 to 40° C
  Compatibility	N/A
  Power Supply	Operating Voltage: 100-240 VAC, 50/60 Hz Power Consumption: 30 W
  Dimensions (H x W x D)	1.75 x 19.00 x 8.00" / 4.45 x 48.26 x 20.32 cm
  Weight	5.48 lb / 2.49 kg

  Box Dimensions (LxWxH)	22.2 x 11.4 x 3.7"

• dbx RTA-M Reference Microphone

  Element Type	Back-electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20 Hz to 20 kHz
  Impedance	250 Ohms Rating 70% users recommend this product to others. And what about you? This product has already been rated by 61 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
